muRata Keramik-Kondensator KCM-Serie KCM55WC71E107MH13L

Artikel Details

muRata CeramicCapacitor/MLCC KCM Series

Metal Terminal Type Multilayer Ceramic Capacitors for Automotive Powertrain/Safety Equipment

Bonding the metal terminals to external electrodes solves design issues by mounting large size MLCC

Specific Applications

Consumer equipment	Industrial equipment	Automotive infotainment/comfort equipment	Automotive powertrain/safety equipment	Medical equipment [GHTF A/B/C]	Implanted medical equipment or medical equipment [GHTF D]
				except for implant equipment
		✔	✔	✔

Features

1. Bond metal terminals to the external electrodes of chips.

The stress applied to the chip is relieved by the elastic action of the metal terminal.

2. Substantially reduces noise, board deflection cracks and soldering cracks.

This product is not damaged even with a board deflection of 6 mm.
Solder cracks do not occur even with 2,000 cycles of heat stress.

Comparison of noise reduction effects/Reduces stress caused by board deflection/Suppresses solder cracks caused by heat stress

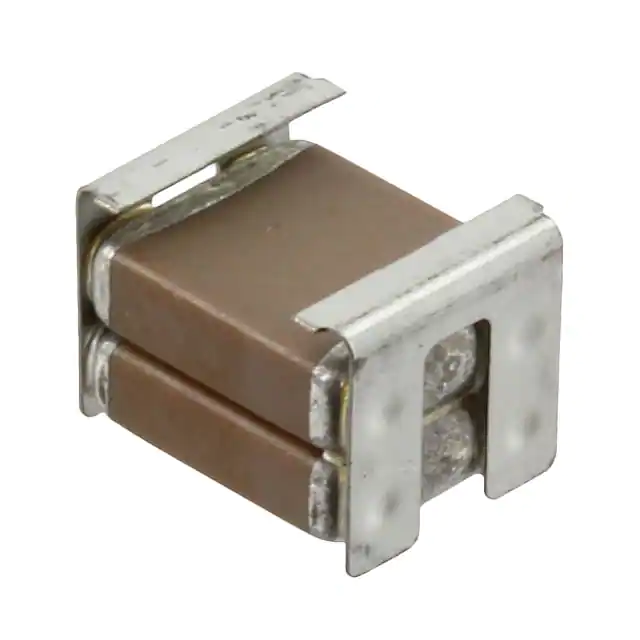

3. 2 chips can be stacked.

Realize large capacity by stacking 2 capacitors.

Specifications

Size(mm)	6.1x5.1mm - 6.1x5.3mm
Rated Voltage	25Vdc - 1,000Vdc
Capacitance	8,200pF - 100μF
Main applications	For drive system control of engine ECU For other drive system controls and safety devices

Hot-Selling：KCM55WC71E107MH13#("#" at the end indicates the package specification code)

KCM55WC71E107MH13L,KCM55WC71E107MH13K

Appearance & Shape

Dimensions

Chip size code (mm/inch)	5750M/2220
Length	6.1mm ±0.5mm
Width	5.3mm ±0.2mm
Thickness	6.4mm ±0.3mm
Metal terminal width e	1.2mm ±0.2mm

Specifications

Temperature characteristics (complied standard)	EIA
Temperature characteristics	X7S
Temperature range of temperature characteristics	-55～125℃
Operating Temperature	-55～125℃
Capacitance	100μF
Tolerance of capacitance	±20%
Rated Voltage DC	25Vdc

References

Packaging	Specifications	Standard Packing Quantity
L	φ180mm Reel Embossed Tape	200
K	φ330mm Reel Embossed Tape	500

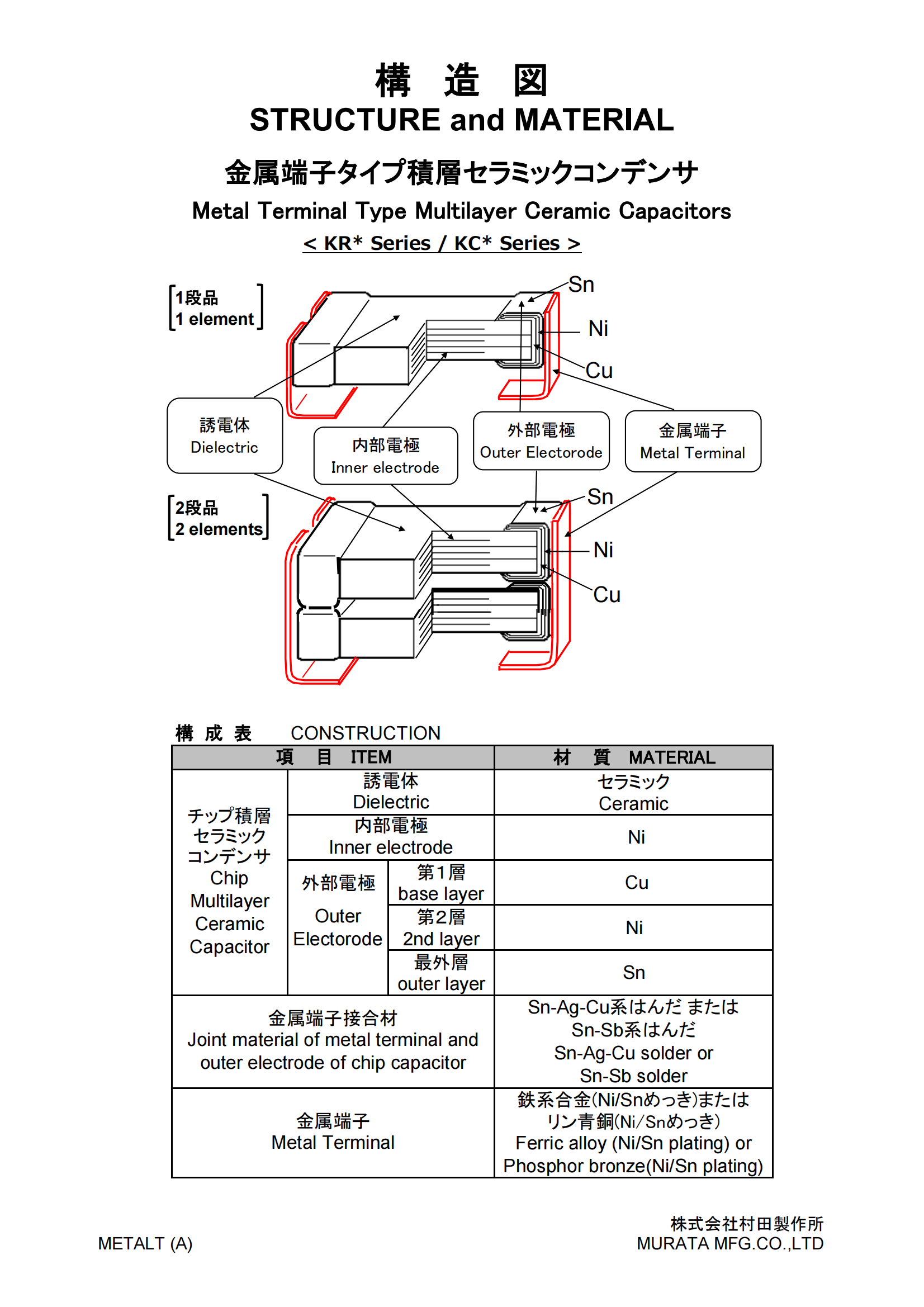

STRUCTURE and MATERIAL
