DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPMB5.0-2.0-CTDC DC CONVERTER 5V |
0 |
|
Datenblatt |
INNOLINE RPMB-2.0 | 25-BLGA Module | Tube | Active | Non-Isolated PoL Module | 1 | 5.5V | 36V | 5V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 88% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | Enable, Active Floating | - | - |
|
TES 1-2413DC DC CONVERTER 15V 975MW |
2,963 |
|
Datenblatt |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 65mA | 975 mW | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
|
TES 1-2412DC DC CONVERTER 12V 1W |
3,558 |
|
Datenblatt |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 85mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 77% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
MTU1S1205MCDC DC CONVERTER 5V 1W |
1,221 |
|
Datenblatt |
MTU1 (1W) | 5-SMD Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|

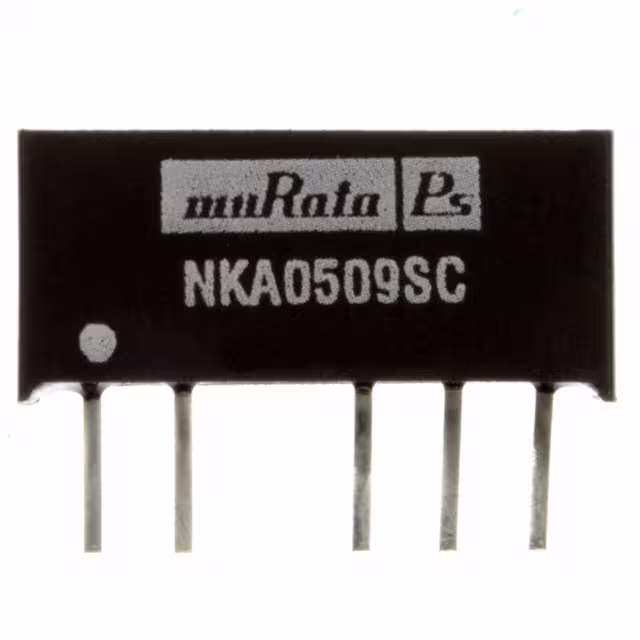

NKA0509SCDC DC CONVERTER +/-9V 1W |
3,463 |
|
Datenblatt |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|
NKA1209SCDC DC CONVERTER +/-9V 1W |
3,900 |
|
Datenblatt |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|
NMR106CDC DC CONVERTER 5V 1W |
3,835 |
|
Datenblatt |
NMR (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm) | - | - | - | - |
|

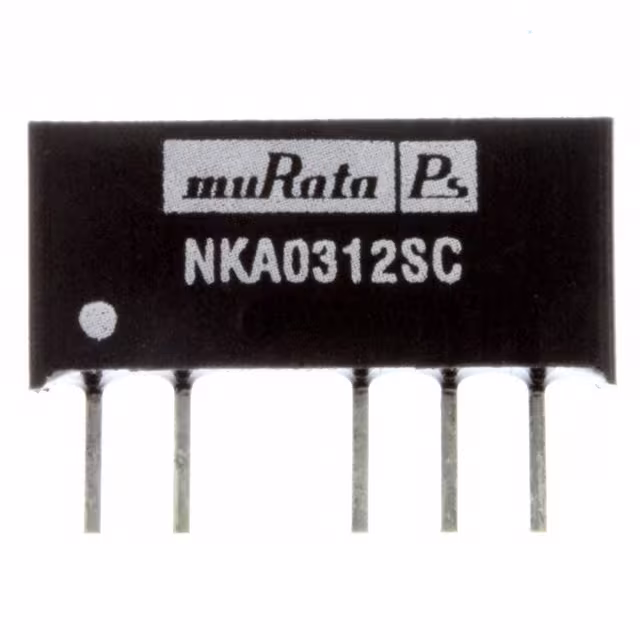

NKA0312SCDC DC CONVERTER +/-12V 1W |
2,725 |
|
Datenblatt |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 3V | 3.6V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|
NMG2405SCDC DC CONVERTER 5V 2W |
3,796 |
|
Datenblatt |
NMG (2W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
EC2SA-12D15NDC DC CONVERTER +/-15V 2W |
1,458 |
|
Datenblatt |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE | 60950-1 |
|

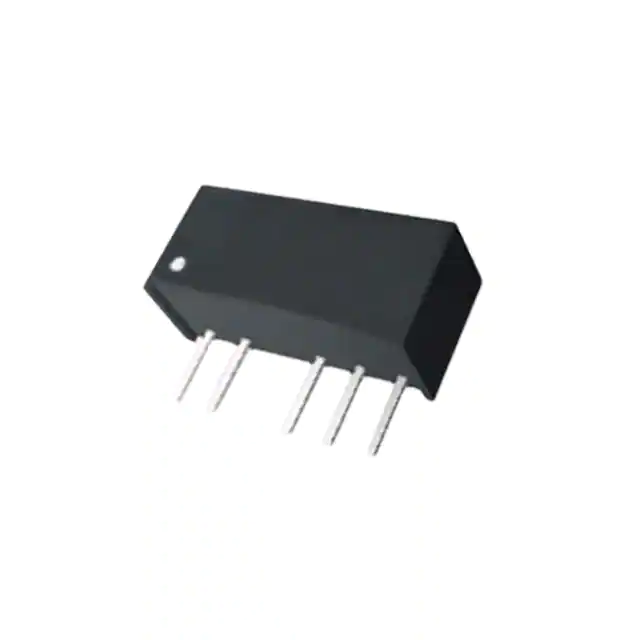

NKA0315SCDC DC CONVERTER +/-15V 1W |
1,876 |
|
Datenblatt |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 3V | 3.6V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|

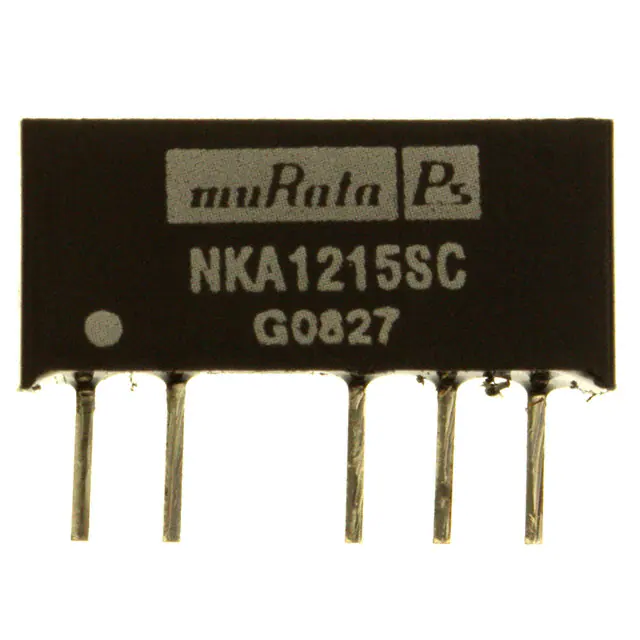

NKA1215SCDC DC CONVERTER +/-15V 1W |
4,379 |
|
Datenblatt |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|

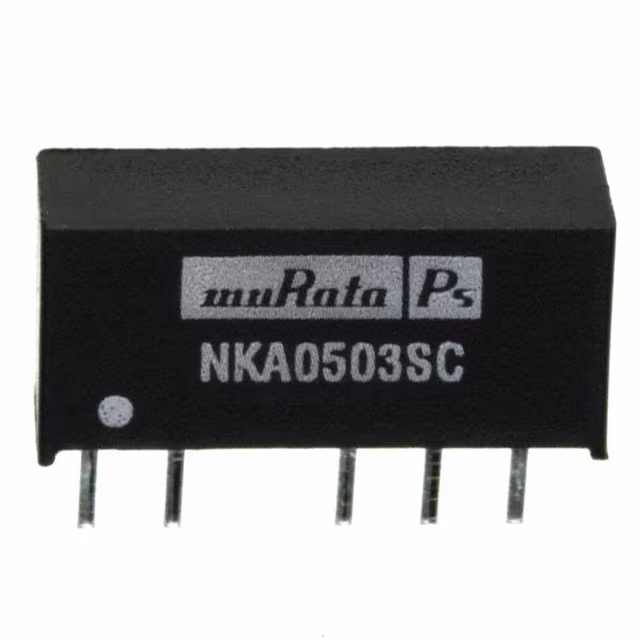

NKA0503SCDC DC CONVERTER +/-3.3V 1W |
2,105 |
|
Datenblatt |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|

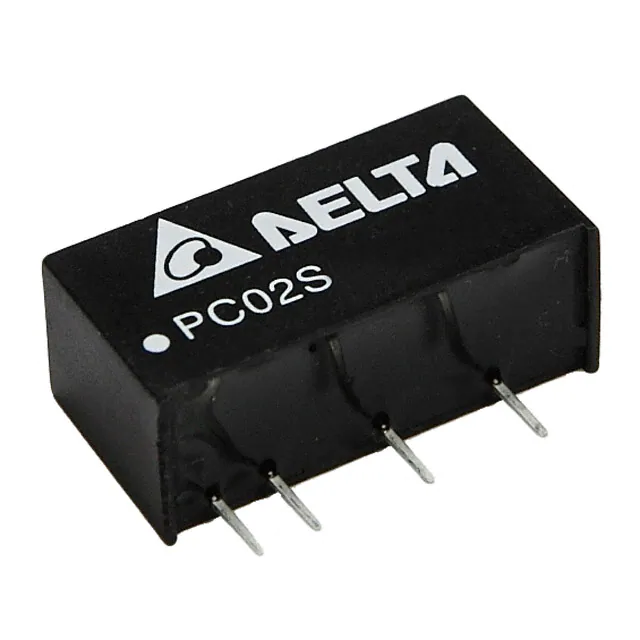

PC02S2405ADC DC CONVERTER 5V 2W |
2,451 |
|
Datenblatt |
PC02S/D (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
R1S-0524DC DC CONVERTER 24V 1W |
2,167 |
|
Datenblatt |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 84% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
RM-3.305S/PDC DC CONVERTER 5V 250MW |
1,623 |
|
Datenblatt |
ECONOLINE RM (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 5V | - | - | - | 50mA | 250 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|

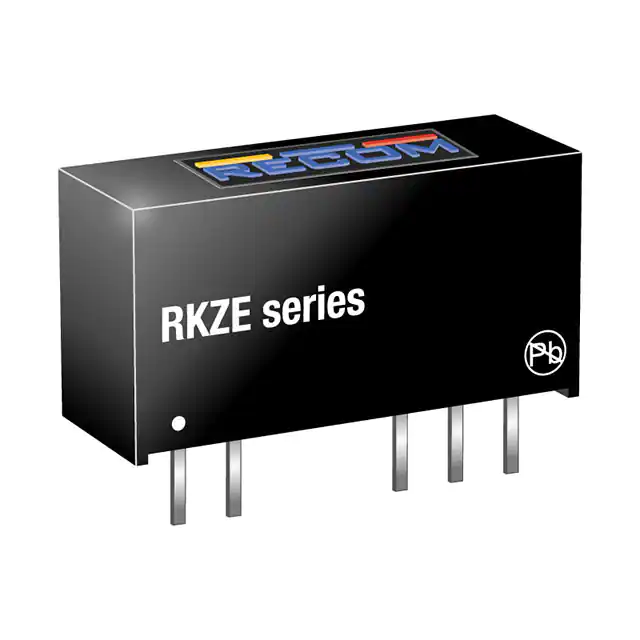

RKZE-1212DDC DC CONVERTER +/-12V 2W |
3,117 |
|
Datenblatt |
RKZE (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 80°C | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RKZE-0515DDC DC CONVERTER +/-15V 2W |
1,425 |
|
Datenblatt |
RKZE (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 80°C | 86% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

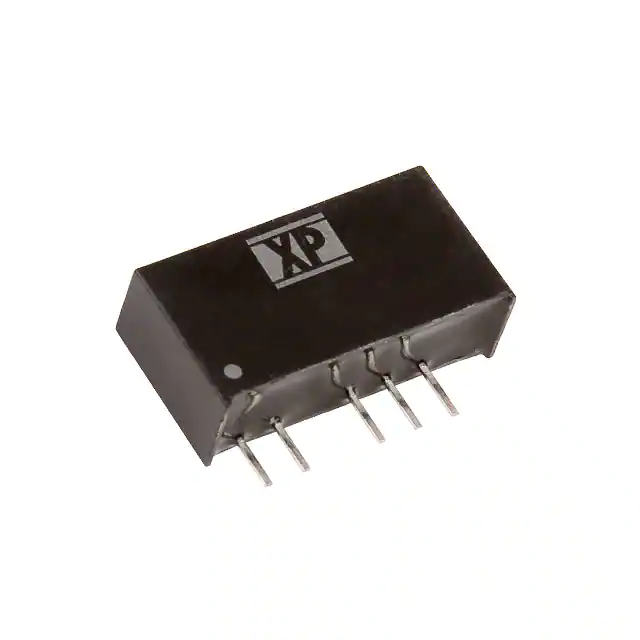

ITA2415SDC DC CONVERTER +/-15V 1W |
3,180 |
|
Datenblatt |
ITA (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33.3mA, 33.3mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
ITA2405SDC DC CONVERTER +/-5V 1W |
1,163 |
|
Datenblatt |
ITA (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) | - | - | - | - |
