DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMA 2412SDC DC CONVERTER 12V 1W |
2,248 |
|
Datenblatt |
TMA (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
3S7B_0505S3UISOLATED MODULE DC DC CONVERTERS |
1,092 |
|
Datenblatt |
3S7B_3U (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|

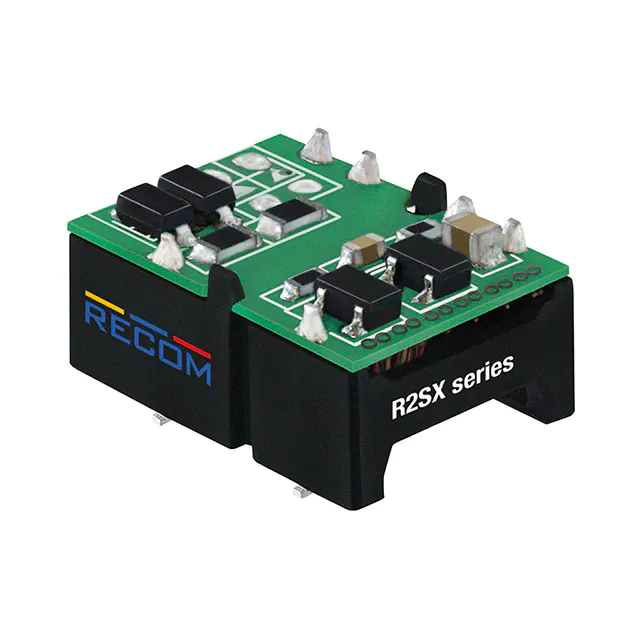

R2SX-053.3-TRAYDC DC CONVERTER 3.3V 2W |
2,075 |
|
Datenblatt |
ECONOLINE R2SX (2W) | 10-SMD Module, 6 Leads | Tray | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 606mA | 2 W | 1 kV | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 79% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.31" H (15.2mm x 10.7mm x 8.0mm) | - | - | CB, cURus | - |
|

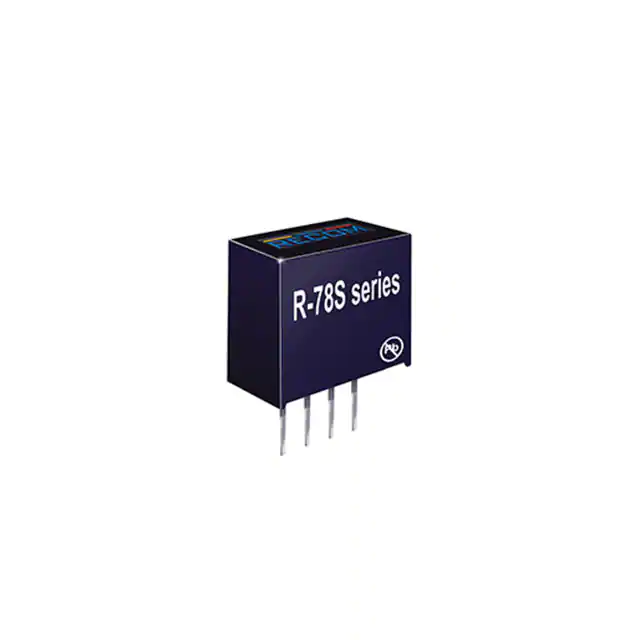

R-78S3.3-0.1DC DC CONVERTER 3.3V |
4,426 |
|
Datenblatt |
R-78S | 4-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 0.65V | 3.15V | 3.3V | - | - | - | 100mA | - | - | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 93% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | - | Enable, Active High | - | - |
|
|
R-78S3.6-0.1DC DC CONVERTER 3.6V |
3,577 |
|
Datenblatt |
R-78S | 4-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 0.65V | 3.3V | 3.6V | - | - | - | 100mA | - | - | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 93% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | 4-SIP | Enable, Active High | - | - |
|
|
3S7B_0515D3UISOLATED MODULE DC DC CONVERTERS |
1,065 |
|
Datenblatt |
3S7B_3U (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|
DETN01L-15DC DC CONVERTER +/-15V 1W |
1,497 |
|
Datenblatt |
DETN01 (1W) | 12-SMD Module, 10 Leads | - | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 80% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.1mm) | - | - | - | - |
|
0.1MS4A_0505S1.5UPISOLATED MODULE DC DC CONVERTERS |
2,702 |
|
Datenblatt |
0.1MS4A_1.5UP (0.1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 20mA | 100 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 59% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | CE | - |
|
|
0.1MS4A_0512S1.5UPISOLATED MODULE DC DC CONVERTERS |
2,635 |
|
Datenblatt |
0.1MS4A_1.5UP (0.1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 8.3mA | 100 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 61% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | CE | - |
|
|
3S7B_1215D3UISOLATED MODULE DC DC CONVERTERS |
3,442 |
|
Datenblatt |
3S7B_3U (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|

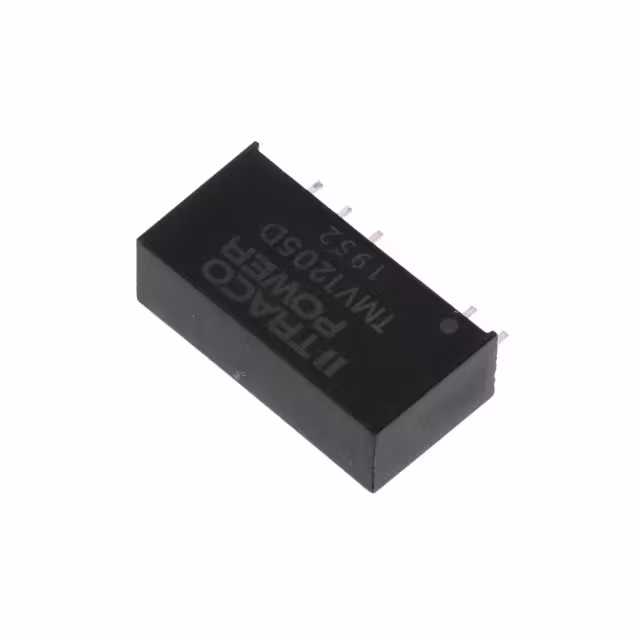

TMV 1205DDC DC CONVERTER +/-5V 1W |
1,323 |
|
Datenblatt |
TMV (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
RE-0509SDC DC CONVERTER 9V 1W |
3,341 |
|
Datenblatt |
ECONOLINE RE (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
RE-1212SDC DC CONVERTER 12V 1W |
1,038 |
|
Datenblatt |
ECONOLINE RE (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
IQ0509SDC DC CONVERTER +/-9V 1W |
2,426 |
|
Datenblatt |
IQ (1W) | 7-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 9V | -9V | - | - | 55.5mA, 55.5mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.76" L x 0.24" W x 0.39" H (19.3mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
RE-1205SDC DC CONVERTER 5V 1W |
2,080 |
|
Datenblatt |
ECONOLINE RE (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
MGJ2D121509MPC-R7DC DC CONVERTER 15V -9V 2W |
2,829 |
|
Datenblatt |
MGJ2 (2W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -9V | - | - | 80mA, 80mA | 2 W | 5.7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 77% | - | - | Surface Mount | 0.79" L x 0.59" W x 0.17" H (19.9mm x 15.0mm x 4.4mm) | - | - | - | 60601-1; 62368-1 |
|
|
MGJ2D151509MPC-R7DC DC CONVERTER 15V -9V 2W |
2,029 |
|
Datenblatt |
MGJ2 (2W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -9V | - | - | 80mA, 80mA | 2 W | 5.7 kV | ITE (Commercial), Medical | - | -40°C ~ 95°C (With Derating) | 77% | - | - | Surface Mount | 0.79" L x 0.59" W x 0.17" H (19.9mm x 15.0mm x 4.4mm) | - | - | - | 60601-1; 62368-1 |
|

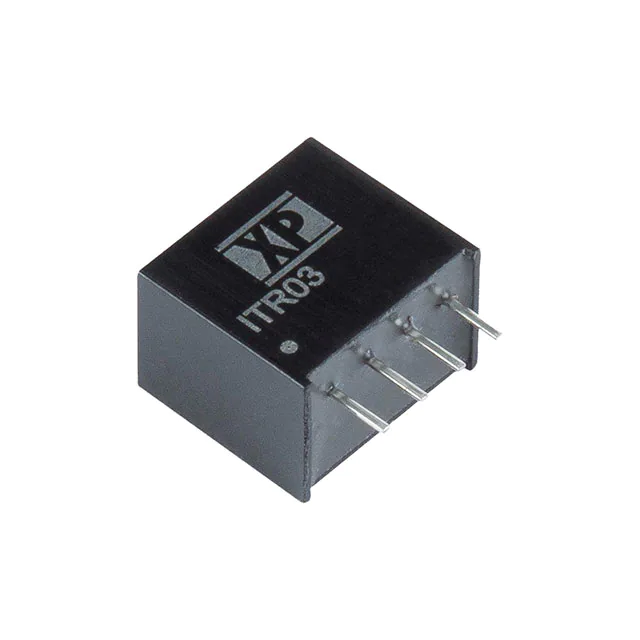

ITR0312S12DC-DC 3W 10% INPUT |
1,721 |
|
Datenblatt |
ITR03 (3W) | 3-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 0.46" L x 0.30" W x 0.42" H (11.7mm x 7.5mm x 10.7mm) | 3-SIP Module | - | - | - |
|
|
ITR0312S09DC-DC 3W 10% INPUT |
1,368 |
|
Datenblatt |
ITR03 (3W) | 3-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 0.46" L x 0.30" W x 0.42" H (11.7mm x 7.5mm x 10.7mm) | 3-SIP Module | - | - | - |
|
|
ITR0305S09DC-DC 3W 10% INPUT |
1,404 |
|
Datenblatt |
ITR03 (3W) | 3-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 0.46" L x 0.30" W x 0.42" H (11.7mm x 7.5mm x 10.7mm) | 3-SIP Module | - | - | - |
