DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMA 1212DDC DC CONVERTER +/-12V 1W |
2,694 |
|
Datenblatt |
TMA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
|
TMA 1515DDC DC CONVERTER +/-15V 1W |
3,062 |
|
Datenblatt |
TMA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
TMA 0505DDC DC CONVERTER +/-5V 1W |
4,626 |
|
Datenblatt |
TMA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 72% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
PCN1-S12-S5-SDC DC CONVERTER 5V 1W |
4,258 |
|
Datenblatt |
PCN1-S (1W) | 6-SIP Module, 4 Leads | Bulk | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | EN | 55032 Class A |
|

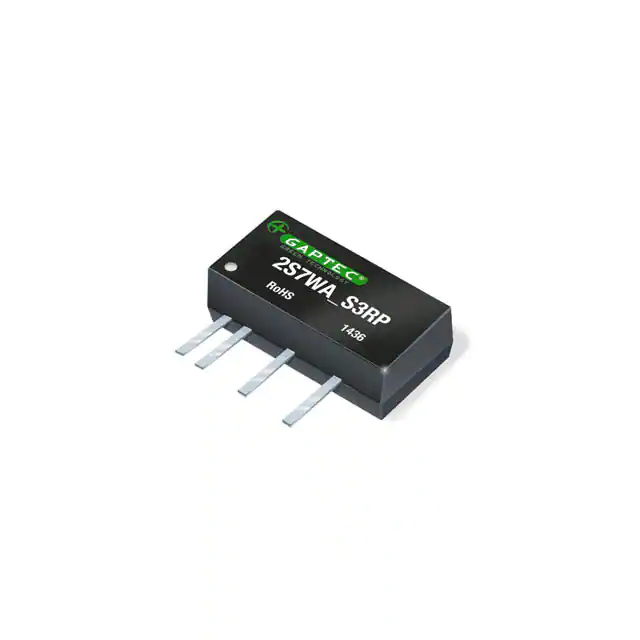

2S7WA_1212S3RPISOLATED MODULE DC DC CONVERTERS |
1,550 |
|
Datenblatt |
2S7WA_3RP (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.5mm x 7.1mm x 10.0mm) | - | - | - | - |
|
IA1209SDC DC CONVERTER +/-9V 1W |
2,293 |
|
Datenblatt |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 55mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
|
IA0305SDC DC CONVERTER +/-5V 1W |
2,470 |
|
Datenblatt |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 2.97V | 3.63V | 5V | -5V | - | - | 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 66% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
|
IA2424SDC DC CONVERTER +/-24V 1W |
3,239 |
|
Datenblatt |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 24V | -24V | - | - | 21mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.76" L x 0.24" W x 0.40" H (19.3mm x 6.1mm x 10.2mm) | - | - | - | 62368-1 |
|
MEZD71202A-DDC DC CONVERTER 1.8V |
2,559 |
|
Datenblatt |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 24V | 1.8V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 0.79" L x 0.39" W x 0.16" H (20.0mm x 10.0mm x 4.0mm) | - | - | - | - |
|

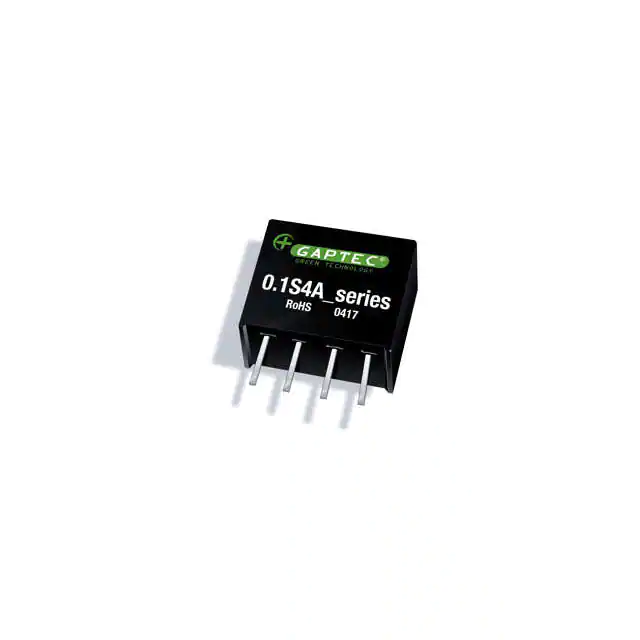

0.1S4A_0303S1.5UISOLATED MODULE DC DC CONVERTERS |
2,481 |
|
Datenblatt |
0.1S4A_1.5U (0.1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.6V | 3.3V | - | - | - | 30.3mA | 100 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 70% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|

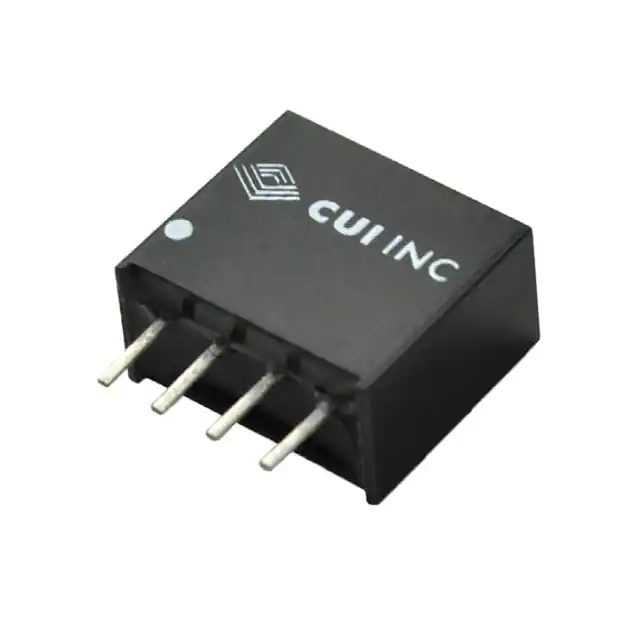

PCSA1-S12-S15-SDC DC CONVERTER 15V 1W |
1,618 |
|
Datenblatt |
PSCA1-S (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
TME 0509SDC DC CONVERTER 9V 1W |
2,626 |
|
Datenblatt |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 110mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TME 0515SDC DC CONVERTER 15V 1W |
4,902 |
|
Datenblatt |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.45" L x 0.28" W x 0.40" H (11.5mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TMV 0515SDC DC CONVERTER 15V 1W |
4,163 |
|
Datenblatt |
TMV (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm) | - | - | - | - |
|
MER1S1505SCDC DC CONVERTER 5V 1W |
4,161 |
|
Datenblatt |
MER1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83.5% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
|
MER1S1215SCDC DC CONVERTER 15V 1W |
2,914 |
|
Datenblatt |
MER1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) | - | - | - | - |
|
RE-123.3SDC DC CONVERTER 3.3V 1W |
3,809 |
|
Datenblatt |
ECONOLINE RE (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|

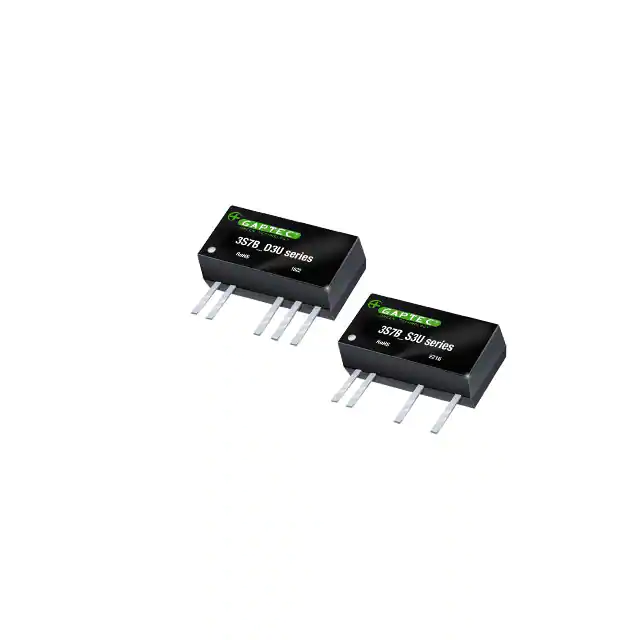

3S7B_0509S3UISOLATED MODULE DC DC CONVERTERS |
1,096 |
|
Datenblatt |
3S7B_3U (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) | - | - | CE | - |
|

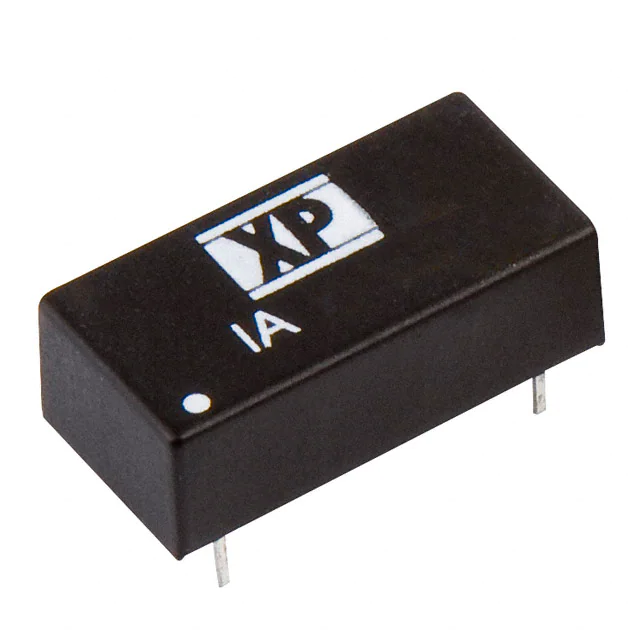

IA2405DDC DC CONVERTER +/-5V 1W |
3,867 |
|
Datenblatt |
IA (1W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.80" L x 0.40" W x 0.25" H (20.3mm x 10.2mm x 6.4mm) | - | - | - | 62368-1 |
|
|
IA1212DDC DC CONVERTER +/-12V 1W |
2,243 |
|
Datenblatt |
IA (1W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.80" L x 0.40" W x 0.25" H (20.3mm x 10.2mm x 6.4mm) | - | - | - | 62368-1 |
