852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ROM-0512SDC DC CONVERTER 12V 1W |
2,696 |
|
Datenblatt |
ECONOLINE ROM (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.45" L x 0.24" W x 0.30" H (11.5mm x 6.1mm x 7.7mm) | - | - | - | - |
|
RBM-0512SDC DC CONVERTER 12V 1W |
4,386 |
|
Datenblatt |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.65" L x 0.24" W x 0.30" H (16.5mm x 6.0mm x 7.7mm) | - | - | - | - |
|
TES 1-0523DC DC CONVERTER +/-15V 1.1W |
2,282 |
|
Datenblatt |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 35mA, 35mA | 1.1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
LCN78_03-0.5NON-ISOLATED POL MODULE DC DC CO |
3,324 |
|
Datenblatt |
LCN78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 42V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 92% | - | - | Through Hole | 0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|

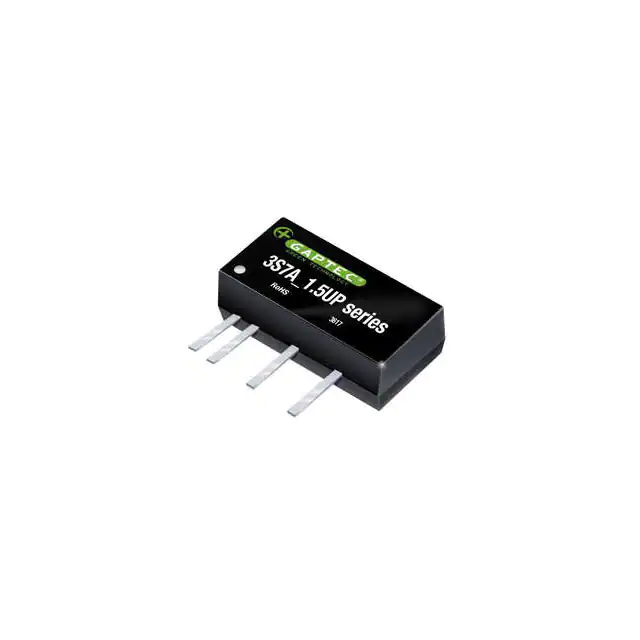

3S7A_2409S1.5UPISOLATED MODULE DC DC CONVERTERS |
2,856 |
|
Datenblatt |
3S7A_1.5UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 333mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
3S7B_2424S3UPISOLATED MODULE DC DC CONVERTERS |
1,457 |
|
Datenblatt |
3S7B_3UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 125mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
TES 1-1221DC DC CONVERTER +/-5V 1W |
3,361 |
|
Datenblatt |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 74% | - | - | Surface Mount | 0.54" L x 0.31" W x 0.28" H (13.7mm x 8.0mm x 7.0mm) | - | - | - | - |
|
TMH 1212DDC DC CONVERTER +/-12V 2W |
1,959 |
|
Datenblatt |
TMH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
NTE0309MCDC DC CONVERTER 9V 1W |
1,718 |
|
Datenblatt |
NTE (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm) | - | - | - | - |
|
|
ROL-0512SDC DC CONVERTER 12V 500MW |
1,649 |
|
Datenblatt |
ECONOLINE ROL (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 42mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
R1S-1515DC DC CONVERTER 15V 1W |
2,294 |
|
Datenblatt |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
ROL-1212SDC DC CONVERTER 12V 500MW |
4,237 |
|
Datenblatt |
ECONOLINE ROL (0.5W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 42mA | 500 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
PCN2-S12-D5-SDC DC CONVERTER +/-5V 2W |
100 |
|
Datenblatt |
PCN2-S (2W) | 6-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | EN | 55032 Class A |
|
|
PCN2-S24-S15-SDC DC CONVERTER 15V 2W |
3,794 |
|
Datenblatt |
PCN2-S (2W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 134mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | EN | 55032 Class A |
|
|
3S7A_0503S1.5UPISOLATED MODULE DC DC CONVERTERS |
1,884 |
|
Datenblatt |
3S7A_1.5UP (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 909mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | 0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm) | - | - | CE | - |
|
|
PCN2-S5-D12-SDC DC CONVERTER +/-12V 2W |
1,633 |
|
Datenblatt |
PCN2-S (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 86% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | EN | 55032 Class A |
|
|
PCN2-S24-D15-SDC DC CONVERTER +/-15V 2W |
4,836 |
|
Datenblatt |
PCN2-S (2W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | EN | 55032 Class A |
|
RB-2415D/HDC DC CONVERTER +/-15V 1W |
1,448 |
|
Datenblatt |
ECONOLINE RB (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm) | - | - | - | - |
|
|
RBM-1205SDC DC CONVERTER 5V 1W |
1,646 |
|
Datenblatt |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.65" L x 0.24" W x 0.30" H (16.5mm x 6.0mm x 7.7mm) | - | - | - | - |
|
3S4A_0515S1UPISOLATED MODULE DC DC CONVERTERS |
4,876 |
|
Datenblatt |
3S4A_1UP (3W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | CE | - |
