852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R2S-1515/HPDC DC CONVERTER 15V 2W |
3,704 |
|
Datenblatt |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
1065MINI DC/DC STEP-DOWN (BUCK) CONV |
1,088 |
|
Datenblatt |
TSR 1 | 3-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 6.5V | 36V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.1mm) | - | - | - | - |
|
IMM0212D03DC DC CONVERTER +/-3.3V 2W |
4,339 |
|
Datenblatt |
IMM02 (2W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 3.3V | -3.3V | - | - | 303mA, 303mA | 2 W | 1.5 kV | Medical | Remote On/Off, OCP, OVP, SCP | -20°C ~ 100°C | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active High | - | - |
|
R24P212SDC DC CONVERTER 12V 2W |
4,047 |
|
Datenblatt |
ECONOLINE RxxP2xx (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2 W | 6.4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|

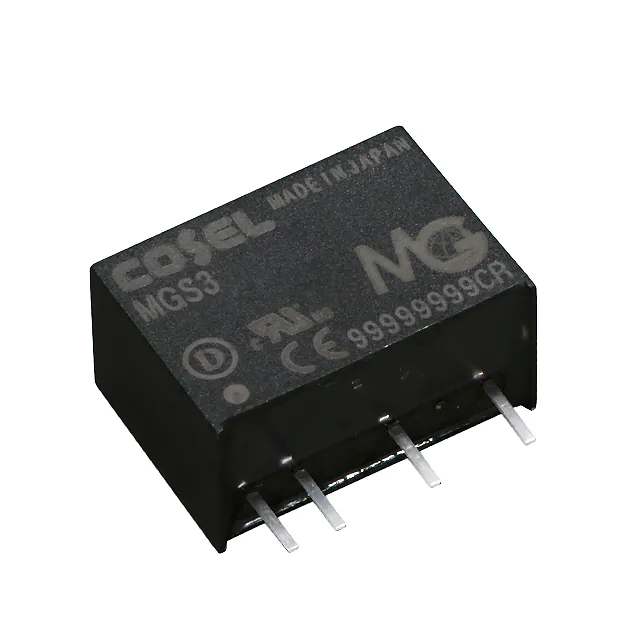

MGS3243R3DC DC CONVERTER 3.3V |
4,046 |
|
Datenblatt |
MGS (3W) | 4-SIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 800mA | - | 1.5 kV | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm) | - | - | - | - |
|

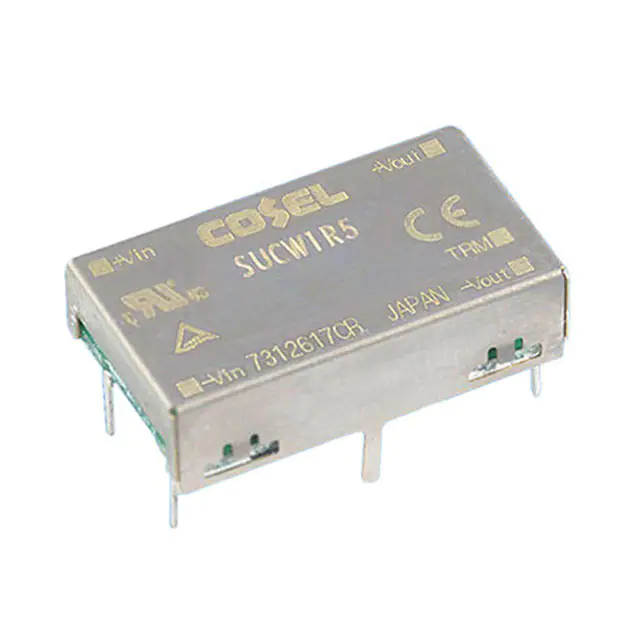

SUCW1R54815CDC DC CONVERTER +/-15V |
2,597 |
|
Datenblatt |
SUCW (1.5W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 36V | 76V | 15V | -15V | - | - | 50mA, 50mA | - | 500 V | ITE (Commercial) | OCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Through Hole | 0.88" L x 0.50" W x 0.28" H (22.4mm x 12.7mm x 7.0mm) | - | - | - | - |
|
TEC 3-0923DC DC CONVERTER +/-15V 3W |
3,921 |
|
Datenblatt |
TEC 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
EC4SAW-48S15NDC DC CONVERTER 15V 6W |
4,649 |
|
Datenblatt |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | CE | - |
|

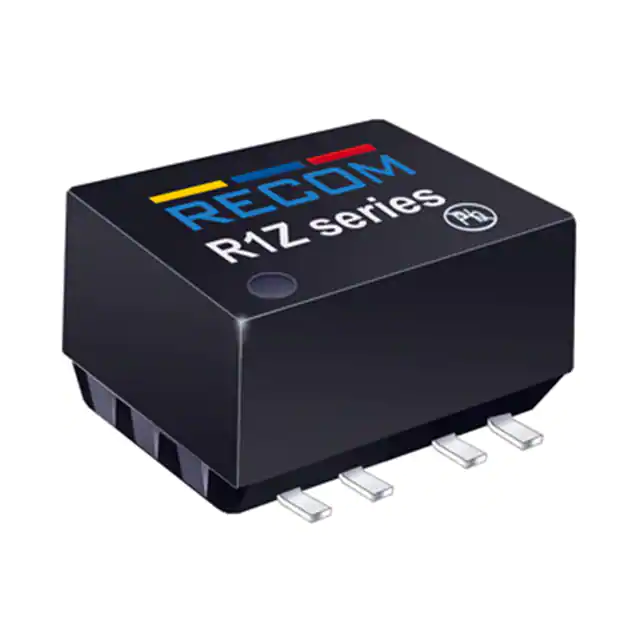

R1Z-0505DC DC CONVERTER 5V 1W |
4,589 |
|
Datenblatt |
ECONOLINE R1Z (1W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial), Medical | - | -40°C ~ 70°C | 60% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|

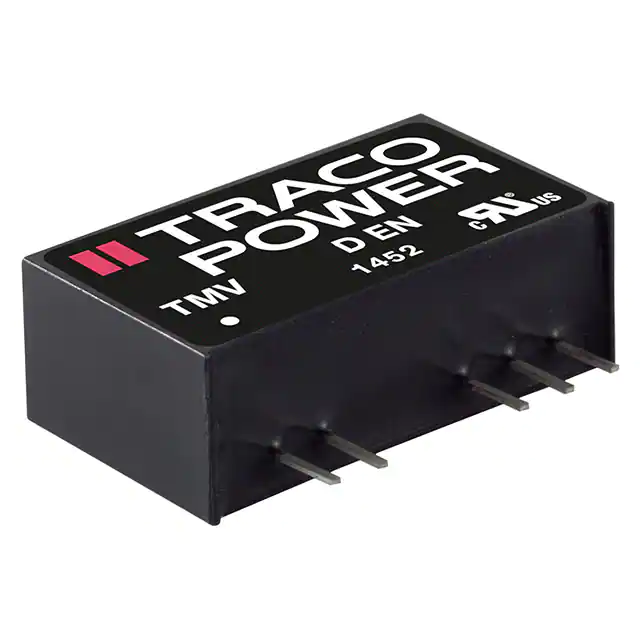

TMV 0505DENDC DC CONVERTER +/-5V 1W |
2,779 |
|
Datenblatt |
TMV-EN (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | - | - |
|
TEC 3-1215WIDC DC CONVERTER 24V 3W |
1,860 |
|
Datenblatt |
TEC 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 24V | - | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
RS3-1209SDC DC CONVERTER 9V 3W |
3,369 |
|
Datenblatt |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 9V | - | - | - | 333mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TEL 3-2412DC DC CONVERTER 12V 3W |
2,283 |
|
Datenblatt |
TEL 3 (3W) | 24-DIP Module, 13 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
IM2415SDC DC CONVERTER +/-15V 2W |
1,522 |
|
Datenblatt |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 65mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm) | - | Enable, Active Low | - | 62368-1 |
|
|
IM2412SDC DC CONVERTER +/-12V 2W |
2,949 |
|
Datenblatt |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 85mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 83% | - | - | Through Hole | 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.2mm x 12.5mm) | - | Enable, Active Low | - | 62368-1 |
|
TMR 1-2423SMDC DC CONVERTER +/-15V 990MW |
100 |
|
Datenblatt |
TMR 1SM (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 33mA, 33mA | 990 mW | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 82°C (With Derating) | 82% | - | - | Surface Mount | 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm) | Module | - | CB, CSA | - |
|
TRV 1-1221MDC DC CONVERTER +/-5V 1W |
4,539 |
|
Datenblatt |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 9.6V | 14.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|

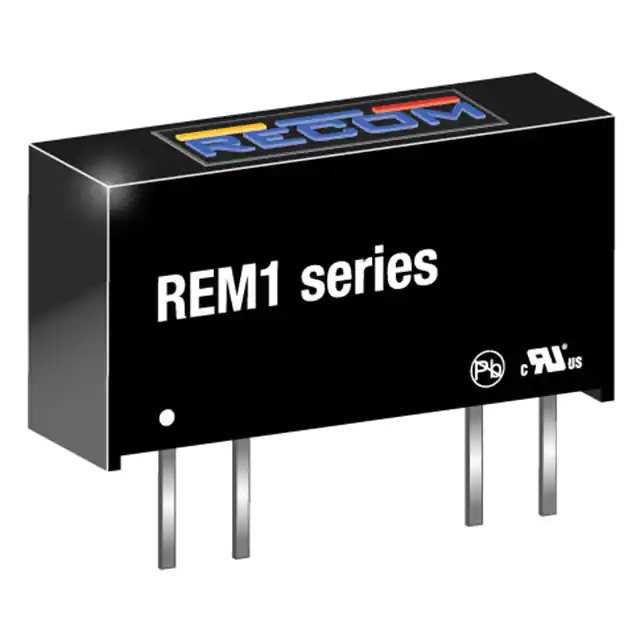

REM1-2405SDC DC CONVERTER 5V 1W |
2,280 |
|
Datenblatt |
MEDLINE REM1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | Medical | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm) | - | - | - | - |
|
TMR 4-2412WI4 WATT DC/DC CONVERTER, INDUSTRI |
4,899 |
|
Datenblatt |
TMR 4WI (4W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 333mA | 4 W | 1.92 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | CB, cURus, UL | - |
|
R-78HB15-0.5LDC DC CONVERTER 15V 7.5W |
3,845 |
|
Datenblatt |
INNOLINE R-78HBxx | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 20V | 72V | 15V | - | - | - | 500mA | 7.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole, Right Angle | 0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm) | - | - | - | - |
