DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

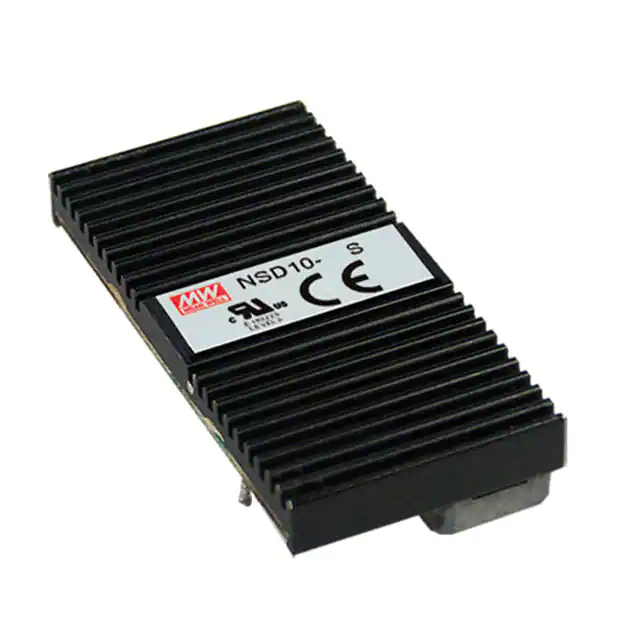

NSD10-12S12DC DC CONVERTER 12V 10W |
2,228 |
|
Datenblatt |
NSD10-S (10W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9.8V | 36V | 12V | - | - | - | 830mA | 10 W | 1 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 79% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|
RP-243.3SDC DC CONVERTER 3.3V 1W |
4,000 |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 70% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

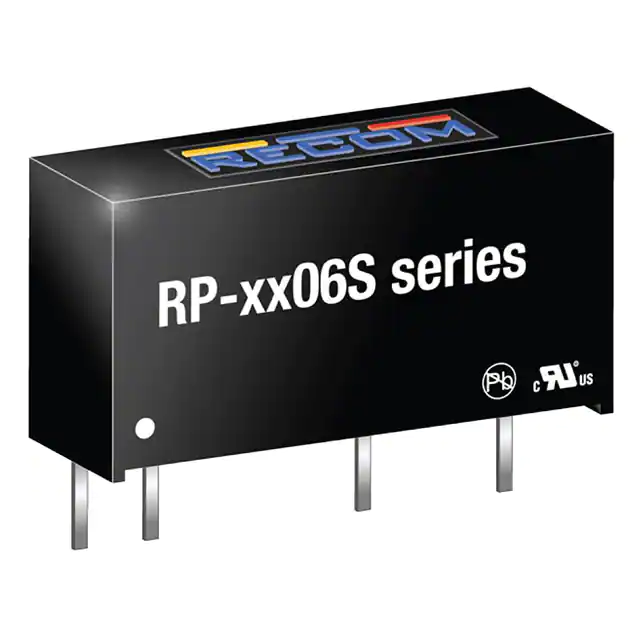

RP-1206SDC DC CONVERTER 6V 1W |
3,664 |
|
Datenblatt |
RP-xx06S (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 6V | - | - | - | 167mA | 1 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 80°C | 77% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
RP-1512SDC DC CONVERTER 12V 1W |
1,505 |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 84mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|

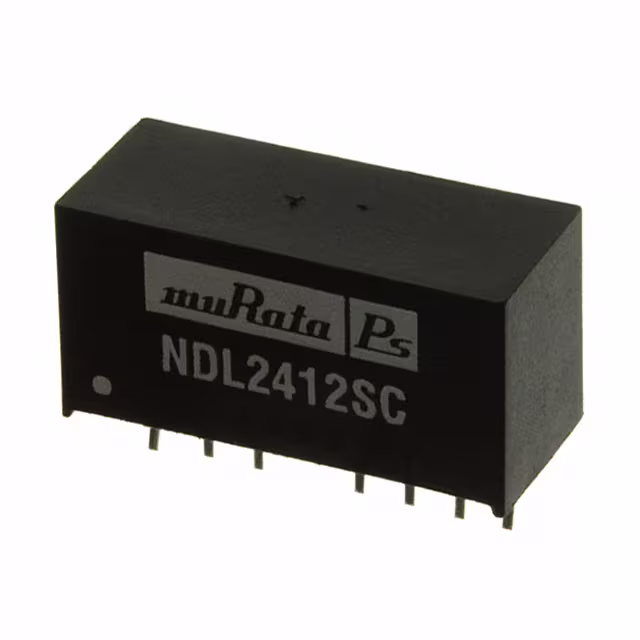

NDL2412SCDC DC CONVERTER 12V 2W |
1,177 |
|
Datenblatt |
NDL (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
R-78B15-2.0DC DC CONVERTER 15V |
1,706 |
|
Datenblatt |
INNOLINE R-78B-2.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 18V | 32V | 15V | - | - | - | 2A | - | - | ITE (Commercial) | OTP, SCP | -40°C ~ 70°C | 96% | - | - | Through Hole | 0.45" L x 0.33" W x 0.69" H (11.5mm x 8.5mm x 17.5mm) | - | - | - | - |
|

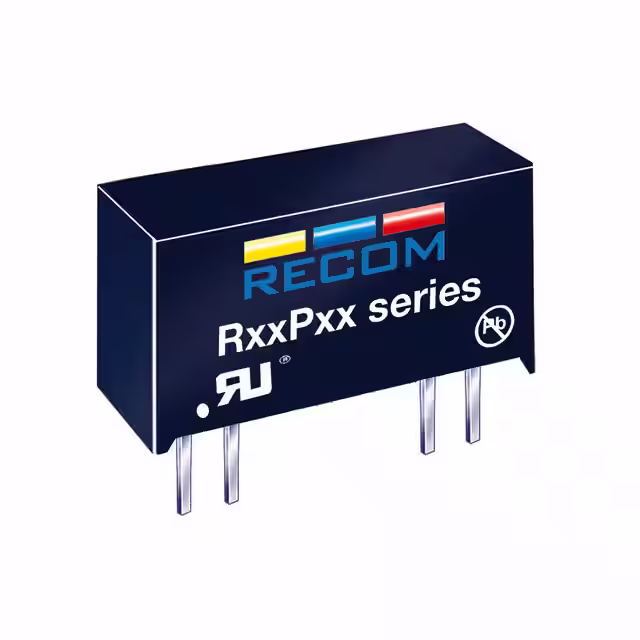

R24P05SDC DC CONVERTER 5V 1W |
2,777 |
|
Datenblatt |
ECONOLINE RxxPxx (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 6.4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 90°C | 75% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm) | - | - | - | - |
|
EC4SAW-24S05HNDC/DC CONVERTER |
3,417 |
|
Datenblatt |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Floating | CE | - |
|
TEC 3-0911DC DC CONVERTER 5V 3W |
3,491 |
|
Datenblatt |
TEC 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

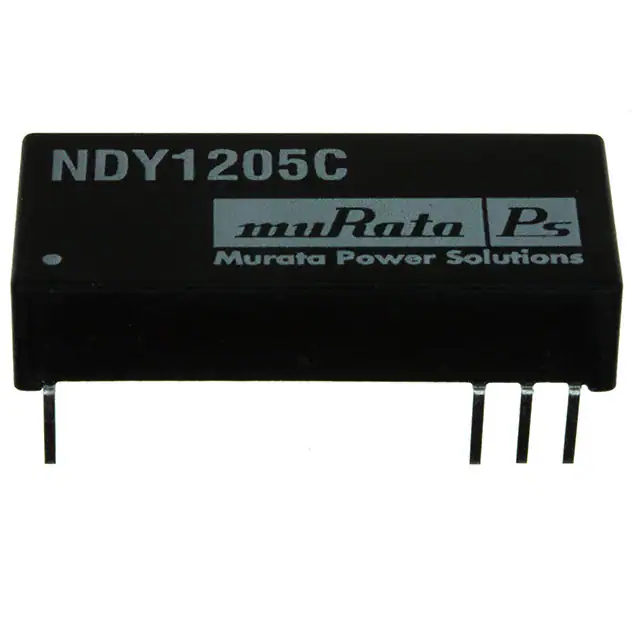

NDY1205CDC DC CONVERTER 5V 3W |
2,060 |
|
Datenblatt |
NDY (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm) | - | - | - | - |
|
|

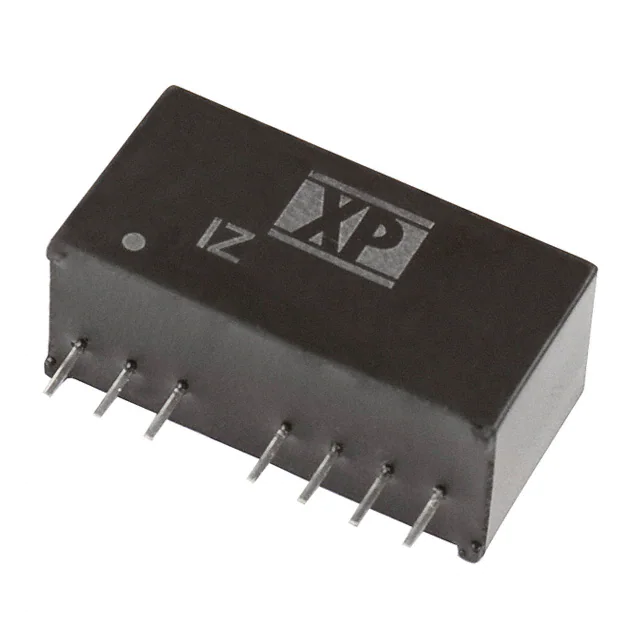

IZ4805SADC DC CONVERTER 5V 3W |
2,502 |
|
Datenblatt |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 78% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
IZ2415SADC DC CONVERTER 15V 3W |
1,303 |
|
Datenblatt |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | 62368-1 |
|
RA3-122005D/SMDDC DC CONVERTER 20V 5V 3W |
1,571 |
|
Datenblatt |
RA3 | 16-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 20V | 5V | - | - | 75mA, 300mA | 3 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.92" L x 0.59" W x 0.33" H (23.4mm x 15.0mm x 8.5mm) | - | - | - | - |
|

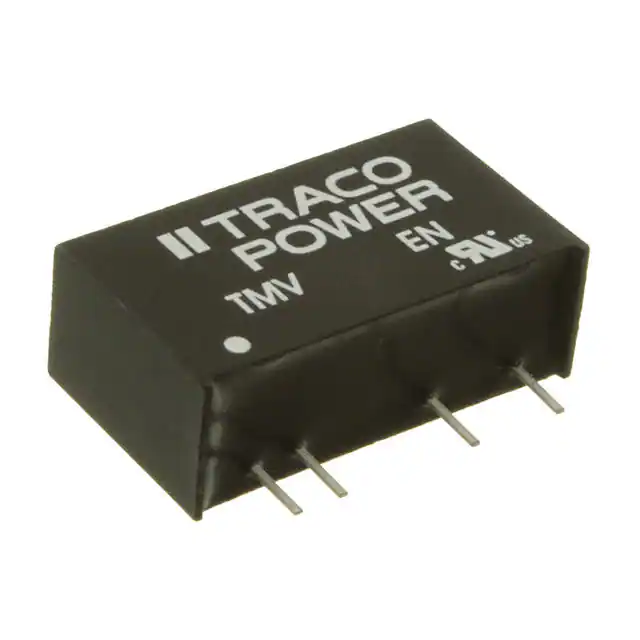

TMV 1215ENDC DC CONVERTER 15V 1W |
2,920 |
|
Datenblatt |
TMV-EN (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 65mA | 1 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 85°C (With Derating) | 66% | - | - | Through Hole | 0.87" L x 0.30" W x 0.49" H (22.0mm x 7.5mm x 12.5mm) | - | - | - | - |
|
TEN 3-2412NDC DC CONVERTER 12V 3W |
4,404 |
|
Datenblatt |
TEN 3N (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|
|
RP-0524S/PDC DC CONVERTER 24V 1W |
1,280 |
|
Datenblatt |
ECONOLINE RP (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
TMR 1-1211SMDC DC CONVERTER 5V 1W |
2,578 |
|
Datenblatt |
TMR 1SM (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 82°C (With Derating) | 79% | - | - | Surface Mount | 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm) | Module | - | CB, CSA | - |
|

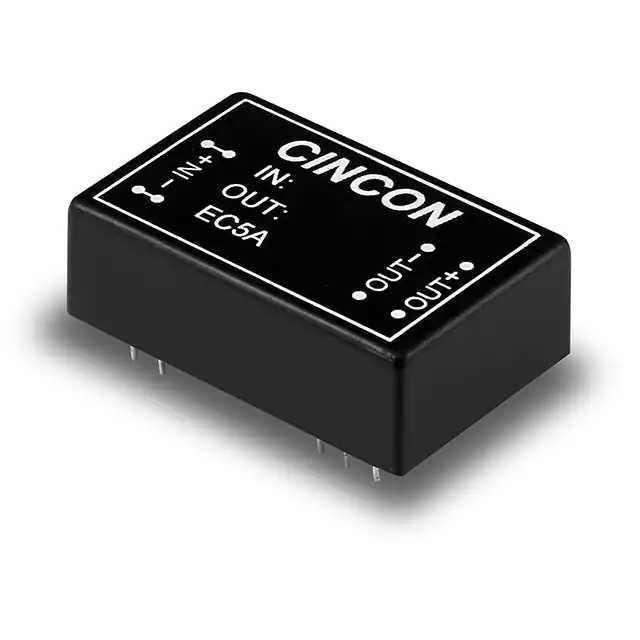

EC5A-12S05DC DC CONVERTER 5V 10W |
4,799 |
|
Datenblatt |
EC5A (24W) | 24-DIP Module, 14 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 32V | 5V | - | - | - | 2A | 10 W | - | ITE (Commercial) | OCP | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|

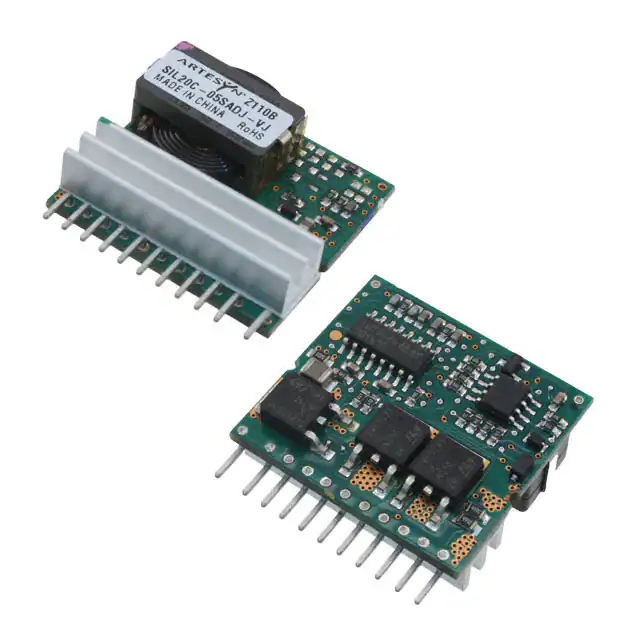

SIL20C2-00SADJ-HJDC DC CONVERTER 0.59-5.1V 100W |
4,969 |
|
Datenblatt |
SIL20C2 (100W) | 9-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 13.8V | 0.59 ~ 5.1V | - | - | - | 20A | 100 W | - | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | 0°C ~ 70°C | 93% | - | - | Through Hole, Right Angle | 1.20" L x 0.61" W x 0.51" H (30.5mm x 15.5mm x 13.4mm) | - | - | - | - |
|
TEM 3-0523NDC DC CONVERTER +/-15V 3W |
1,489 |
|
Datenblatt |
TEM 3N (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
