DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEC 2-0923DC DC CONVERTER +/-15V 2W |
4,417 |
|
Datenblatt |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TES 1-2421VDC DC CONVERTER +/-5V 1W |
4,204 |
|
Datenblatt |
TES 1V (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.64" L x 0.31" W x 0.31" H (16.3mm x 8.0mm x 8.0mm) | - | - | - | - |
|
TES 1-2423VDC DC CONVERTER +/-15V 1W |
3,501 |
|
Datenblatt |
TES 1V (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | 0.64" L x 0.31" W x 0.31" H (16.3mm x 8.0mm x 8.0mm) | - | - | - | - |
|
R2D-0505DC DC CONVERTER +/-5V 2W |
1,788 |
|
Datenblatt |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|
TEC 2-4810WIDC DC CONVERTER 3.3V 1.7W |
2,578 |
|
Datenblatt |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 500mA | 1.7 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 74% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

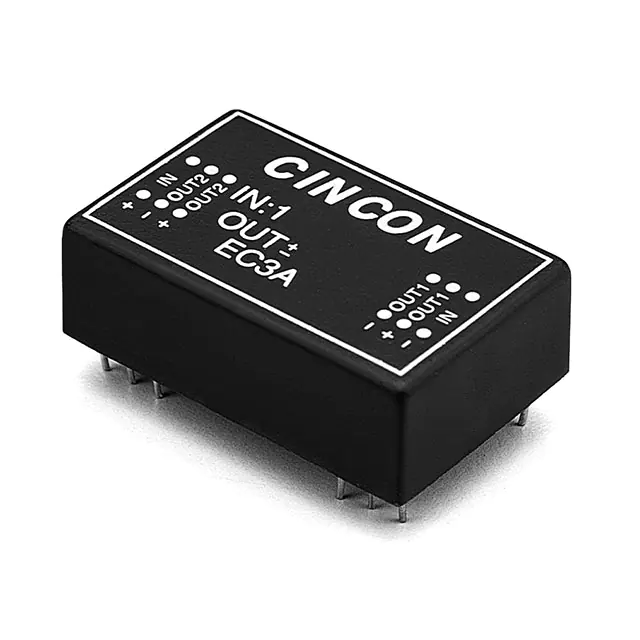

EC3A01DC DC CONVERTER 5V 3W |
3,542 |
|
Datenblatt |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 6V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 75% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
TEC 2-2413WIDC DC CONVERTER 15V 2W |
1,027 |
|
Datenblatt |
TEC 2WI (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 134mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 93°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

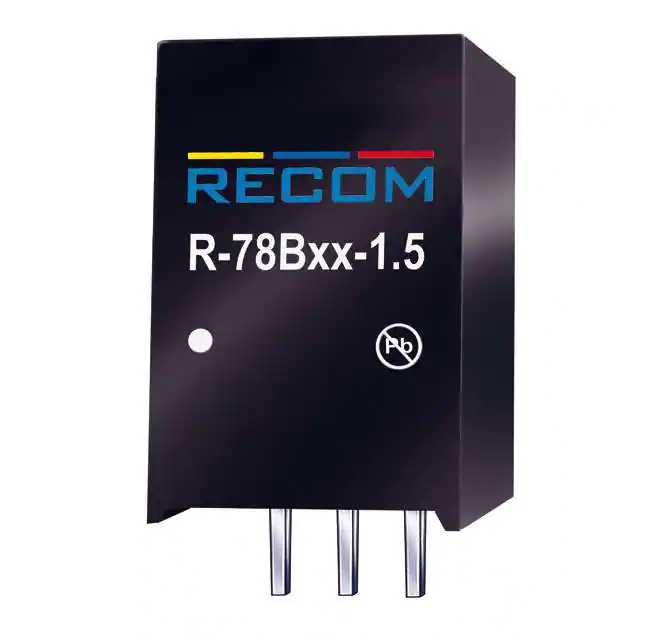

R-78B6.5-1.5DC DC CONVERTER 6.5V 9.75W |
2,186 |
|
Datenblatt |
INNOLINE R-78B-1.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 8V | 18V | 6.5V | - | - | - | 1.5A | 9.75 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.45" L x 0.33" W x 0.69" H (11.5mm x 8.5mm x 17.5mm) | - | - | - | - |
|
CC3-0503SF-EDC DC CONVERTER 3.3V 3W |
4,851 |
|
Datenblatt |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 800mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-1203SF-EDC DC CONVERTER 3.3V 3W |
3,274 |
|
Datenblatt |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 800mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-0512SF-EDC DC CONVERTER 12-15V 3W |
4,082 |
|
Datenblatt |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 12 ~ 15V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
TSR 2-0518DC DC CONVERTER 1.8V 3.6W |
3,217 |
|
Datenblatt |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 3V | 5.5V | 1.8V | - | - | - | 2A | 3.6 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
|
|
R2D-0524DC DC CONVERTER +/-24V 2W |
2,582 |
|
Datenblatt |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|

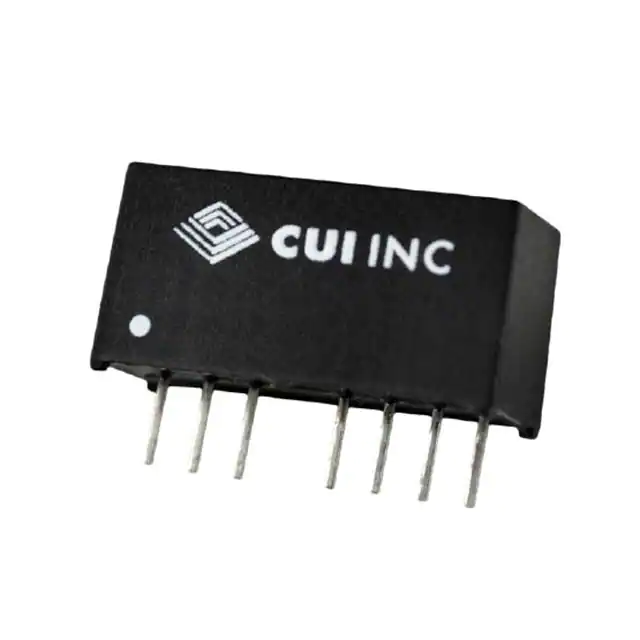

PDQ2-D5-S12-SDC DC CONVERTER 12V 2W |
4,061 |
|
Datenblatt |
PDQ2-S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | Enable, Active Low | EN | 55032 Class A |
|

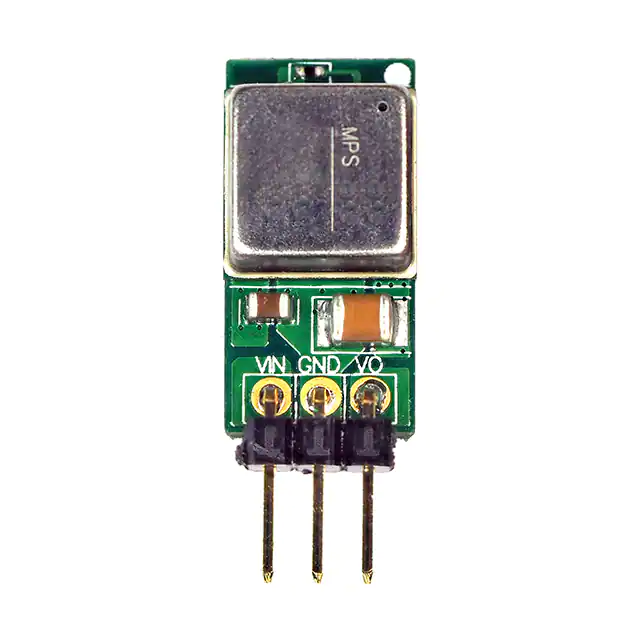

MEZD74800A-BDC DC CONVERTER 5V |
4,391 |
|
Datenblatt |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 75V | 5V | - | - | - | 300mA | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 0.79" L x 0.39" W x 0.16" H (20.0mm x 10.0mm x 4.0mm) | - | - | - | - |
|
TSR 0.6-48240WIDC DC CONVERTER 24V 3SIP |
1,105 |
|
Datenblatt |
TSR 0.6WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 33V | 72V | 24V | - | - | - | 400mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 0.47" L x 0.34" W x 0.53" H (12.0mm x 8.6mm x 13.4mm) | - | - | - | - |
|
|
TSR 0.6-48120WIDC DC CONVERTER 12V 3SIP |
4,609 |
|
Datenblatt |
TSR 0.6WI | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 17V | 72V | 12V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.47" L x 0.34" W x 0.53" H (12.0mm x 8.6mm x 13.4mm) | - | - | - | - |
|
DCV010512DP-UDC DC CONVERTER +/-12V 1W |
3,444 |
|
Datenblatt |
DCV01 (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 41mA, 41mA | 1 W | 1.5 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|

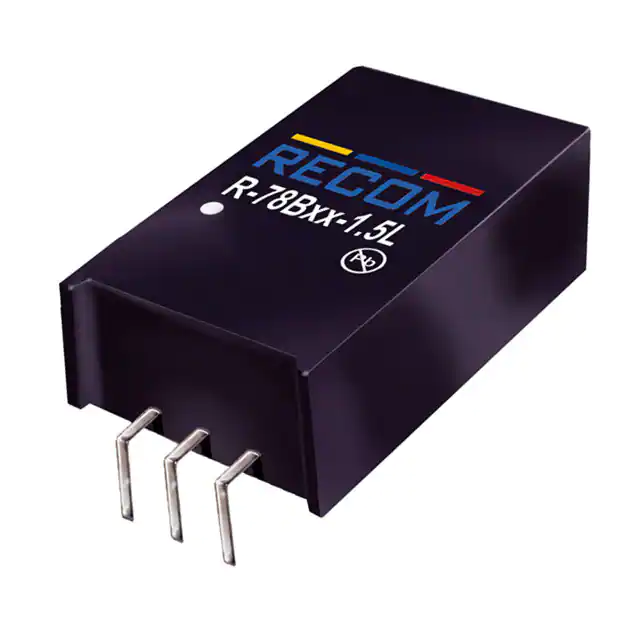

R-78B6.5-1.5LDC DC CONVERTER 6.5V 9.75W |
4,455 |
|
Datenblatt |
INNOLINE R-78B-1.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 8V | 18V | 6.5V | - | - | - | 1.5A | 9.75 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole, Right Angle | 0.69" L x 0.45" W x 0.33" H (17.5mm x 11.5mm x 8.5mm) | - | - | - | - |
|

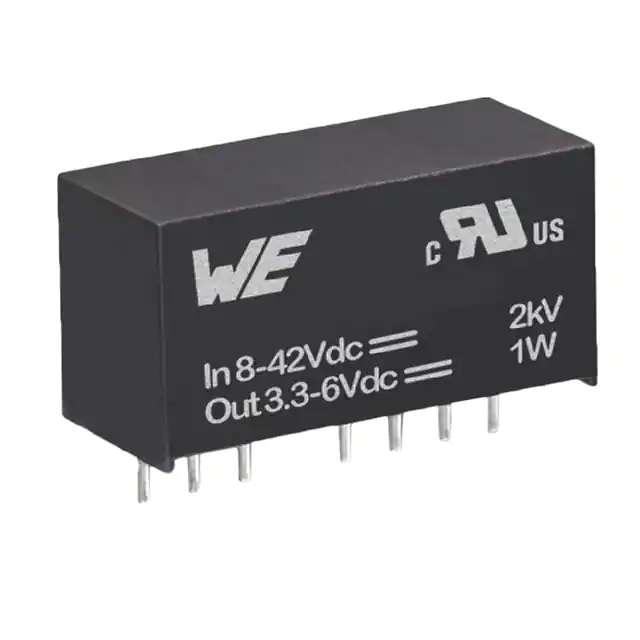

17791063215DC DC CONVERTER 3.3-6V 1W |
2,969 |
|
Datenblatt |
MagI³C, VISM | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 8V | 42V | 3.3 ~ 6V | - | - | - | 300mA | 1 W | 2 kV | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 80.6% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CB, cURus | - |
