DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NQB-420NWA-DANHDC DC CONVERTER 12V 420W |
3,237 |
|
Datenblatt |
Novum®, NQB-N | 5-DIP Module, 1/4 Brick | Bulk | Obsolete | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | - | Enable, Active Low | - | - |
|
|
EN63A0QIDC DC CONVERTER 0.6-5.4V 65W |
319 |
|
Datenblatt |
Enpirion® | 76-PowerBFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.5V | 6.6V | 0.6 ~ 5.4V | - | - | - | 12A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 96% | - | - | Surface Mount | 0.43" L x 0.39" W x 0.12" H (11.0mm x 10.0mm x 3.0mm) | 76-QFN (11x10) | Enable, Active High | - | - |
|
UVQ-24/4.5-D48NB-CDC DC CONVERTER 24V 108W |
3,267 |
|
Datenblatt |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 4.5A | 108 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|

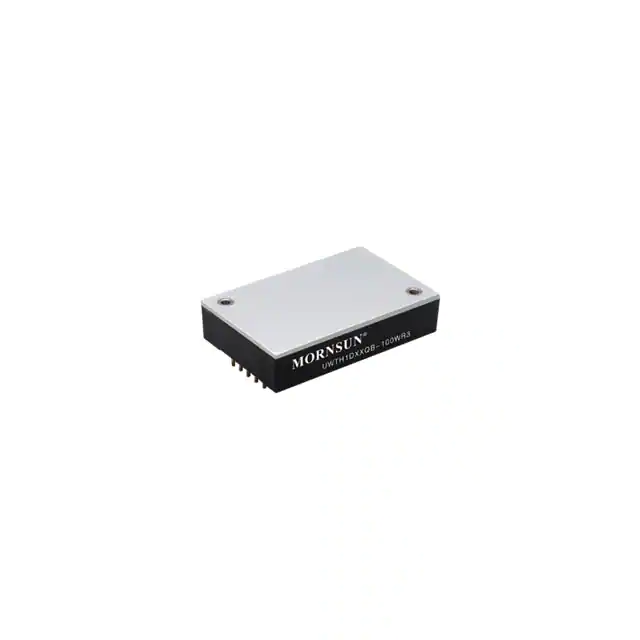

UWTH1D28QB-100WR3ISOLATED MODULE DC DC CONVERTER |
4,076 |
|
Datenblatt |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 28V | - | - | - | 3.57A | 100 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D48QB-100WR3ISOLATED MODULE DC DC CONVERTER |
4,925 |
|
Datenblatt |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D15QB-100WR3ISOLATED MODULE DC DC CONVERTER |
4,236 |
|
Datenblatt |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 6.67A | 100 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D54QB-100WR3ISOLATED MODULE DC DC CONVERTER |
4,440 |
|
Datenblatt |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 1.85A | 100 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D24QB-100WR3ISOLATED MODULE DC DC CONVERTER |
3,496 |
|
Datenblatt |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 4.16A | 100 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D12QB-100WR3ISOLATED MODULE DC DC CONVERTER |
4,549 |
|
Datenblatt |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
PT4683ADC DC CONVERTER 3.3V 1.8V 49W |
3,281 |
|
Datenblatt |
Excalibur™ PT4680 | 26-SIP Module | Tray | Obsolete | Isolated Module | 2 | 18V | 36V | 3.3V | 1.8V | - | - | 15A, 15A | 49 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
CBS2002424DC DC CONVERTER 24V |
2,358 |
|
Datenblatt |
CBS (200W) | 9-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 8.4A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|

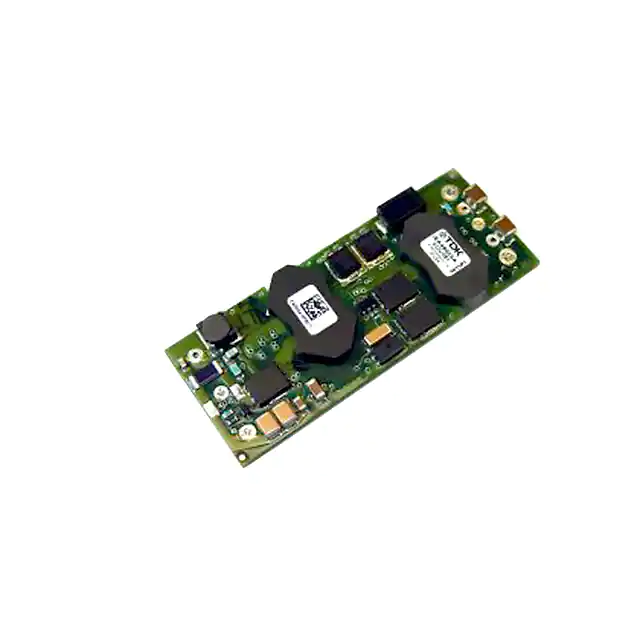

IHG48038A120V-109-RDC DC CONVERTER 12V 456W |
4,353 |
|
Datenblatt |
IHG (300W) | 9-DIP Module, 1/2 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 38A | 456 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 116°C | 92.5% | - | - | Through Hole | 2.36" L x 2.24" W x 0.52" H (60.0mm x 57.0mm x 13.2mm) | - | Enable, Active Low | - | - |
|
0RQP-X5M12BGDC-DC 48-60VIN 12V 125AOUT 1500W |
352 |
|
Datenblatt |
0RQP-X5M12B (1500W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 48V | 60V | 12V | - | - | - | 125A | 1.5 kW | 500 V | ITE (Commercial) | Baseplate, Remote On/Off | -20°C ~ 85°C (With Derating) | 97.3% | - | - | Through Hole | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) | Quarter Brick | Enable, Active Low | CSA, UL | - |
|

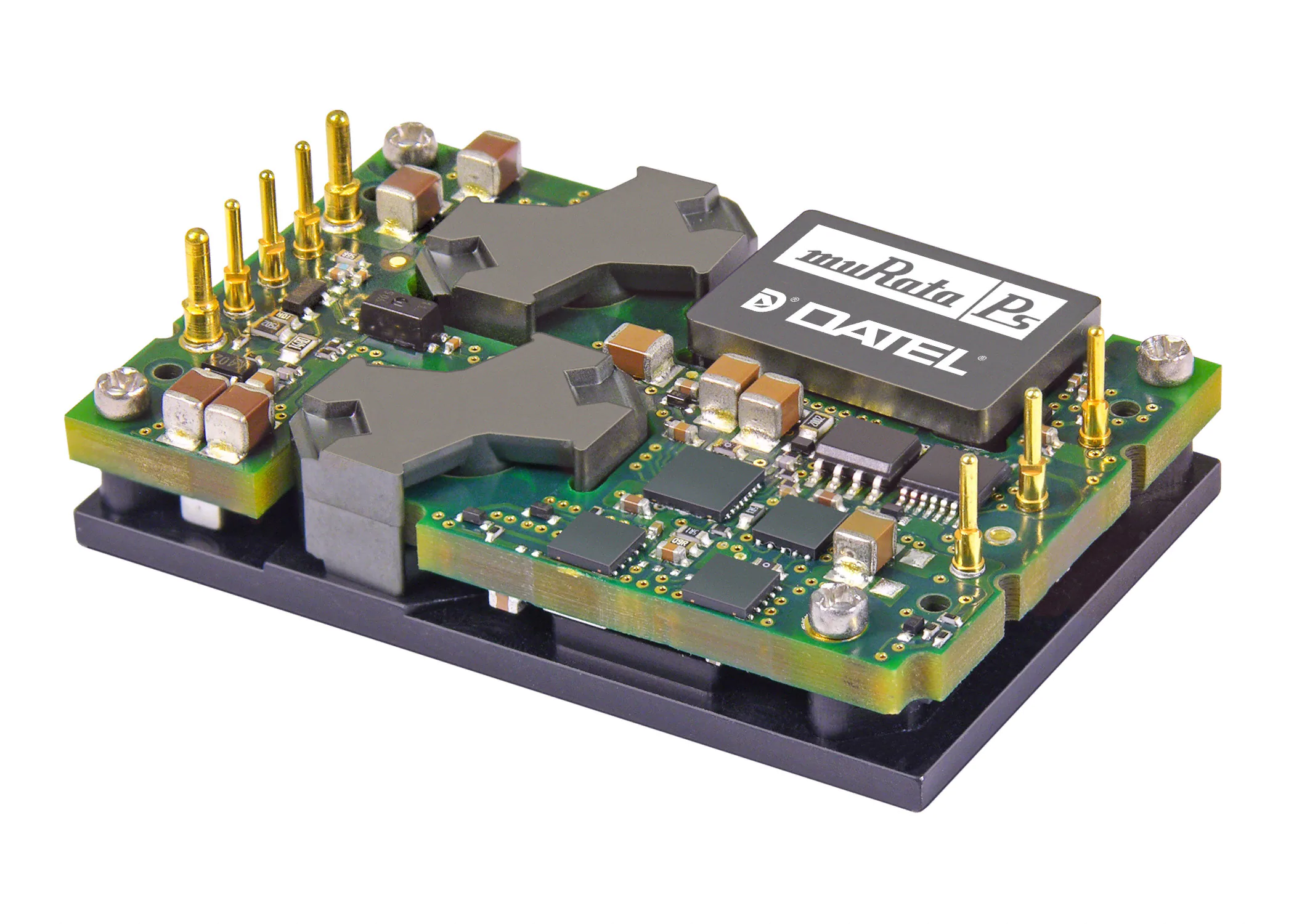

UQQ-12/8-Q48NB-CDC DC CONVERTER 12V 96W |
537 |
|
Datenblatt |
UQQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 8A | 96 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89.5% | - | - | Through Hole | 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
CQB150W-110S05DC DC CONVERTER 5V 150W |
3,115 |
|
Datenblatt |
CQB150W-110S (150W) | Module | Tray | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 30A | 150 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 |
|
|
HBS050ZG-ANT9DC DC CONVERTER 5V 50W |
1,694 |
|
Datenblatt |
HBS (50W) | 9-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 34V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 82% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|
CBS502424DC DC CONVERTER 24V |
4,802 |
|
Datenblatt |
CBS (50W) | 13-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 2.1A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|

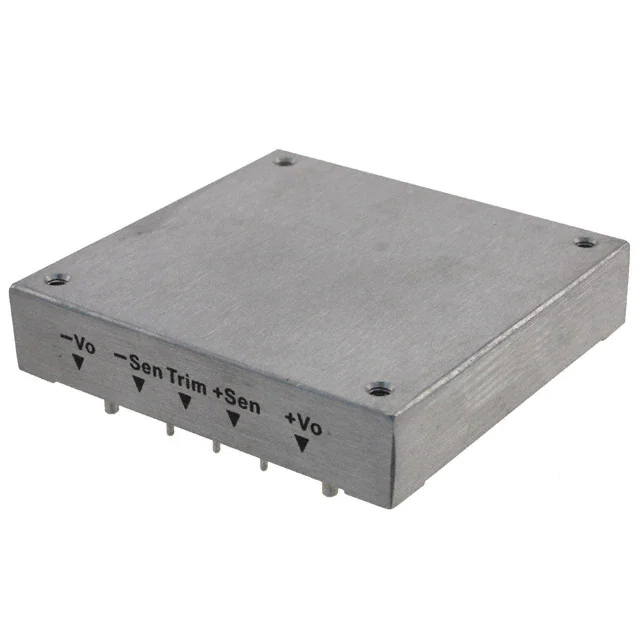

VHB50W-Q24-S24DC DC CONVERTER 24V 50W |
1,428 |
|
Datenblatt |
VHB50W (50W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | EN, UL | 60950-1; 61000-3-2; 61000-3-3; 61000-6-1 |
|
|
VHB50W-Q24-S5DC DC CONVERTER 5V 50W |
108 |
|
Datenblatt |
VHB50W (50W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 81% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | EN, UL | 60950-1; 61000-3-2; 61000-3-3; 61000-6-1 |
|
|
VHB50W-Q48-S5DC DC CONVERTER 5V 50W |
4,683 |
|
Datenblatt |
VHB50W (50W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 82% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | EN, UL | 60950-1; 61000-3-2; 61000-3-3; 61000-6-1 |
