852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0RQB-X0S110GDC-DC Regulated Power Supply Mod |
4,116 |
|
Datenblatt |
0RQB-X0S11 | Quarter Brick | Bulk | Active | Isolated Module | 1 | 45V | 58V | 10.6V | - | - | - | 94.3A | 1000 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 97.3% | - | - | Through Hole | 2.30" L x 1.45" W x 0.48" H (58.4mm x 36.8mm x 12.2mm) | Quarter Brick | Enable, Active High | - | 62368-1 |
|

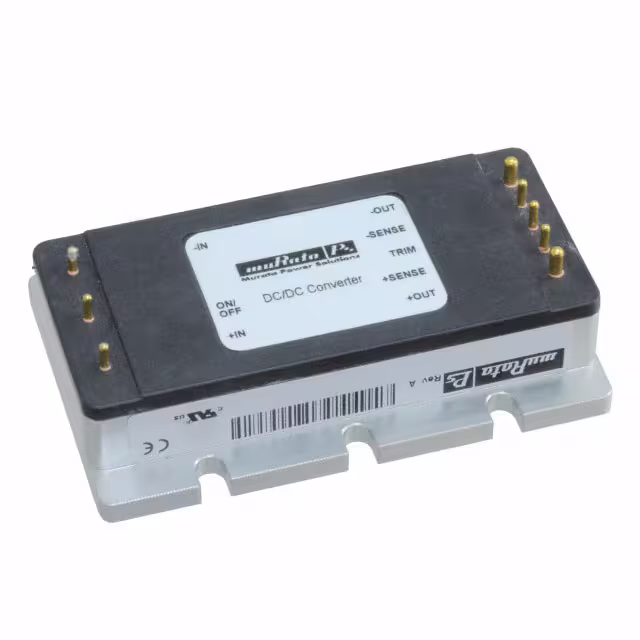

IRQ-24/4.2-T110NF-CDC DC CONVERTER 24V 100W |
178 |
|
Datenblatt |
IRQ (100W) | Quarter Brick | Tray | Obsolete | Isolated Module | 1 | 57.6V | 160V | 24V | - | - | - | 4.2A | 100 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 88.2% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
IRQ-12/8.3-T110NF-CDC DC CONVERTER 12V 100W |
3,737 |
|
Datenblatt |
IRQ (100W) | Quarter Brick | Tray | Obsolete | Isolated Module | 1 | 57.6V | 160V | 12V | - | - | - | 8.3A | 100 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active Low | - | - |
|
VHB100W-Q48-S5DC DC CONVERTER 5V 100W |
1,170 |
|
Datenblatt |
VHB100W (100W) | 9-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 86% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | UL | 60950-1 |
|
|
RPR30-11024S-BCONV DC/DC 30W 40-160VIN 24VOUT |
4,193 |
|
Datenblatt |
POWERLINE+ RPR30 (30W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 1.25A | - | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -45°C ~ 85°C | 89% | - | - | Through Hole | 2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm) | - | - | - | - |
|
|
HES075ZD-ANTDC DC CONVERTER 2.5V 150W |
2,247 |
|
Datenblatt |
HES (150W) | 9-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 72V | 2.5V | - | - | - | 30A | 150 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 81% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
EN5365QIDC DC CONVERTER 0.75-3.3V |
1,396 |
|
Datenblatt |
Enpirion® 5300 | 58-PowerQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.375V | 5.5V | 0.75 ~ 3.3V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.47" L x 0.39" W x 0.07" H (12.0mm x 10.0mm x 1.9mm) | 58-QFN (12x10) | Enable, Active High | - | - |
|
|
SQE48T30033-NGB0DC DC CONVERTER 3.3V 99W |
3,382 |
|
Datenblatt |
SQE48 | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 30A | 99 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.41" H (58.4mm x 22.9mm x 10.4mm) | - | Enable, Active Low | - | - |
|
|
RFT-30Y24DC-DC,14-160V INPUT, 24V/1.25A O |
114 |
|
Datenblatt |
RFT-30Y (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 1.25A | 30 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RFT-30Y28DC-DC,14-160V INPUT, 28V/1.07A O |
114 |
|
Datenblatt |
RFT-30Y (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 28V | - | - | - | 1.071A | 30 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RFT-30Y05DC-DC,14-160V INPUT, 5V/6.0A OUT |
114 |
|
Datenblatt |
RFT-30Y (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 5V | - | - | - | 6A | 30 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RFT-30Y12DC-DC,14-160V INPUT, 12V/2.5A OU |
113 |
|
Datenblatt |
RFT-30Y (30W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 2.5A | 30 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|

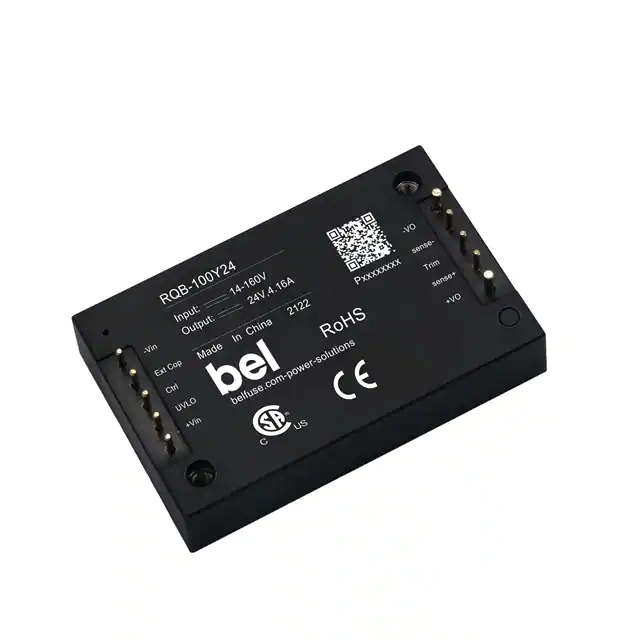

RQB-100Y24DC,14-160V INPUT, 24V/4.16A |
2,326 |
|
Datenblatt |
RQB-100Y | Quarter Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 4.16A | 100 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | - | CE, CSAus | 62368-1 |
|
|
PT4842ADC DC CNVRTR 12V 3.3V 1.8V 65W |
4,400 |
|
Datenblatt |
Excalibur™ PT4840 (65W) | 26-SIP Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 12V | 3.3V | 1.8V | - | 2.7A, 6A, 7A | 65 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT4842NDC DC CNVRTR 12V 3.3V 1.8V 65W |
2,853 |
|
Datenblatt |
Excalibur™ PT4840 (65W) | 26-SIP Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 12V | 3.3V | 1.8V | - | 2.7A, 6A, 7A | 65 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | - |
|
|
ATMV24V600V6R7MA14W Isolated DC-DC Power Module |
100 |
|
Datenblatt |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 18V | 36V | 600V | - | - | - | 6.7mA | 4 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|
UQQ-15/7-Q12PB-CDC DC CONVERTER 15V 105W |
4,238 |
|
Datenblatt |
UQQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 7A | 105 W | 2 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90.5% | - | - | Through Hole | 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
|
UQQ-24/4-Q12PB-CDC DC CONVERTER 24V 96W |
1,221 |
|
Datenblatt |
UQQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 10V | 36V | 24V | - | - | - | 4A | 96 W | 2 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
|
NQB-420NWA-ANDC DC CONVERTER 12V 420W |
3,218 |
|
Datenblatt |
Novum®, NQB-N | 5-DIP Module, 1/4 Brick | Bulk | Obsolete | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 125°C | 96.4% | - | - | Through Hole | 2.28" L x 1.45" W x 0.44" H (57.9mm x 36.8mm x 11.3mm) | - | Enable, Active Low | - | - |
|
|
DGP20E24T5/15DC DC CONVERTER 5V +/-15V 20W |
4,068 |
|
Datenblatt |
DGP20 (20W) | 7-DIP Module | Bulk | Obsolete | Isolated Module | 3 | 18V | 36V | 5V | 15V | -15V | - | 2.5A, 250mA, 250mA | 20 W | 700 V | ITE (Commercial) | Remote On/Off, OVP, SCP | -55°C ~ 100°C | 84% | - | - | Through Hole | 2.02" L x 2.02" W x 0.45" H (51.3mm x 51.3mm x 11.4mm) | - | Enable, Active High | - | - |
