DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRE-11.4/53-L48NB-CDC DC CONVERTER 11.4V 604W |
4,548 |
|
Datenblatt |
DRE-11.4/53-L48 (600W) | Eighth Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 60V | 11.4V | - | - | - | 53A | 604 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C (With Derating) | 95.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.57" H (58.4mm x 22.9mm x 14.5mm) | Eighth Brick | Enable, Active Low | cURus | - |
|
|
400QBW_4824S2.25-BPISOLATED MODULE DC DC CONVERTERS |
3,547 |
|
Datenblatt |
400QBW_2.25 (400W) | Quarter Brick | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 16.5A | 396 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 0.51" H (57.9mm x 36.8mm x 12.9mm) | Quarter Brick | - | - | 62368-1 |
|

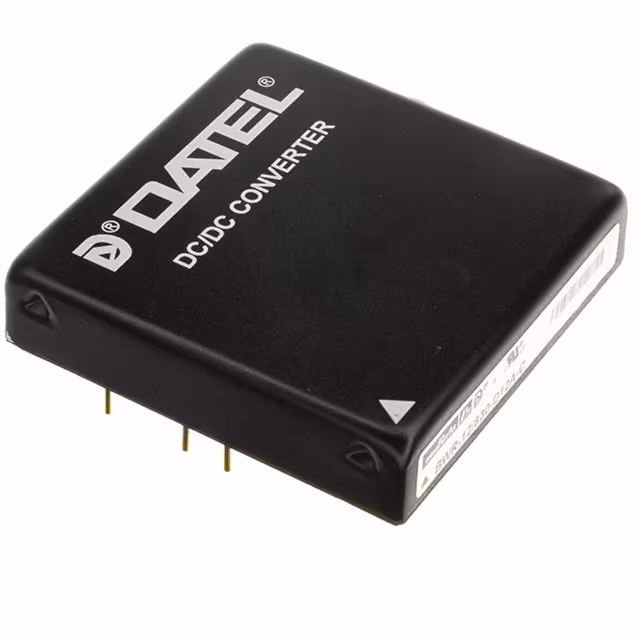

BWR-12/830-D12A-CDC DC CONVERTER +/-12V 20W |
349 |
|
Datenblatt |
BWR (10W) | 8-DIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 830mA, 830mA | 20 W | 1 kV | ITE (Commercial) | - | -40°C ~ 100°C | 83% | - | - | Through Hole | 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm) | - | - | - | - |
|
CES24050-16-RDC DC CONVERTER 5V 80W |
2,151 |
|
Datenblatt |
CES (80W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 16A | 80 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.28" L x 0.90" W x 0.33" H (57.9mm x 22.8mm x 8.5mm) | - | - | - | - |
|
|
PRQ150W-Q48-S12-B-DDC DC CONVERTER 12V 150W |
1,754 |
|
Datenblatt |
PRQ150W | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 12.5A | 150 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.44" L x 2.20" W x 0.57" H (62.0mm x 56.0mm x 14.6mm) | Quarter Brick | - | CE | 62368-1 |
|
|
PRQ150W-Q48-S48-B-DDC DC CONVERTER 48V 150W |
4,906 |
|
Datenblatt |
PRQ150W | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 48V | - | - | - | 3.13A | 150 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.44" L x 2.20" W x 0.57" H (62.0mm x 56.0mm x 14.6mm) | Quarter Brick | - | CE | 62368-1 |
|

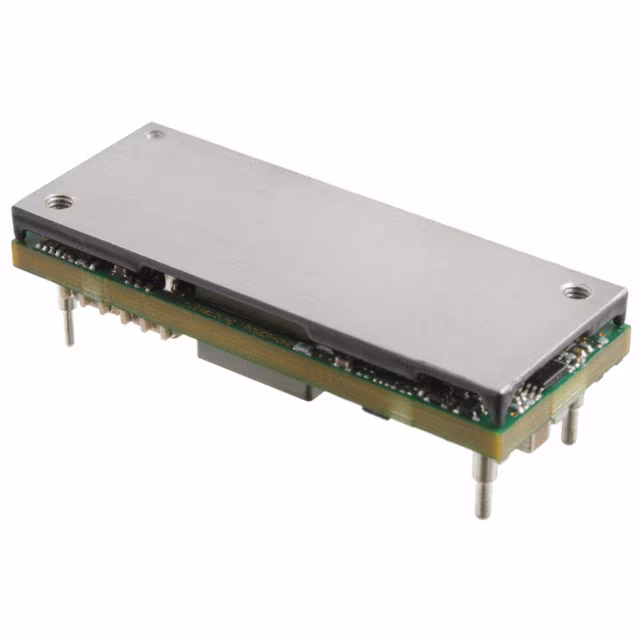

SQE48T20120-NDABGDC DC CONVERTER 12V 240W |
1,085 |
|
Datenblatt |
SQE48 (240W) | 5-DIP Module, 1/8 Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 20A | 240 W | 2.25 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 94.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|
UVQ-24/4.5-D48N-CDC DC CONVERTER 24V 108W |
603 |
|
Datenblatt |
UVQ | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 4.5A | 108 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 110°C | 90.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) | - | Enable, Active Low | - | - |
|
PRQ150W-Q48-S15-DDC DC CONVERTER 15V 150W |
1,604 |
|
Datenblatt |
PRQ150W | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 10A | 150 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | CE | 62368-1 |
|
RP40-11005SFR/NDC DC CONVERTER 5V 40W |
3,131 |
|
Datenblatt |
POWERLINE RP40-FR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 8A | 40 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | 6-DIP Module | Enable, Active Low | - | - |
|
|
PT4411ADC DC CONVERTER 1.3-3.5V 100W |
1,246 |
|
Datenblatt |
Excalibur™ PT4410 (100W) | 21-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.3 ~ 3.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
CES24150-4-NDC DC CONVERTER 15V 60W |
2,624 |
|
Datenblatt |
CES (80W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 20V | 33V | 15V | - | - | - | 4A | 60 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.28" L x 0.90" W x 0.33" H (57.9mm x 22.8mm x 8.5mm) | - | - | - | - |
|

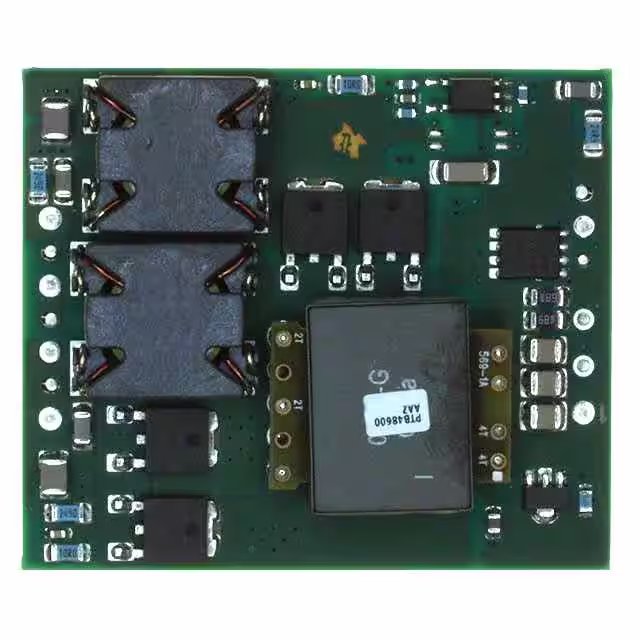

PTB48600AAZDC DC CONVERTER +/-5V 85W |
1,965 |
|
Datenblatt |
PTB48600 (85W) | 8-SMD Module | Bulk | Not For New Designs | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 8.5A, 8.5A | 85 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 85% | - | - | Surface Mount | 2.22" L x 1.89" W x 0.50" H (56.4mm x 48.0mm x 12.7mm) | - | - | - | - |
|
|
PT4475ADC DC CONVERTER 6.5-17.5V 100W |
1,088 |
|
Datenblatt |
Excalibur™ PT4475 (100W) | 26-SIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 6.5 ~ 17.5V | - | - | - | 8.5A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 100°C | 89% | - | - | Through Hole, Right Angle | - | - | Enable, Active Low | - | - |
|
|
PT4473CDC DC CONVERTER 4.6-5.7V 100W |
2,547 |
|
Datenblatt |
Excalibur™ PT4473 (100W) | 26-SMD Module | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 4.6 ~ 5.7V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | 3.61" L x 1.62" W x 0.50" H (91.7mm x 41.1mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
BMR4530101/001DC DC CONVERTER 12V 396W |
3,613 |
|
Datenblatt |
BMR453 (396W) | Quarter Brick | Tray | Obsolete | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 1.5 kV | ITE (Commercial) | Baseplate, PMBus™, Remote On/Off | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm) | Quarter Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

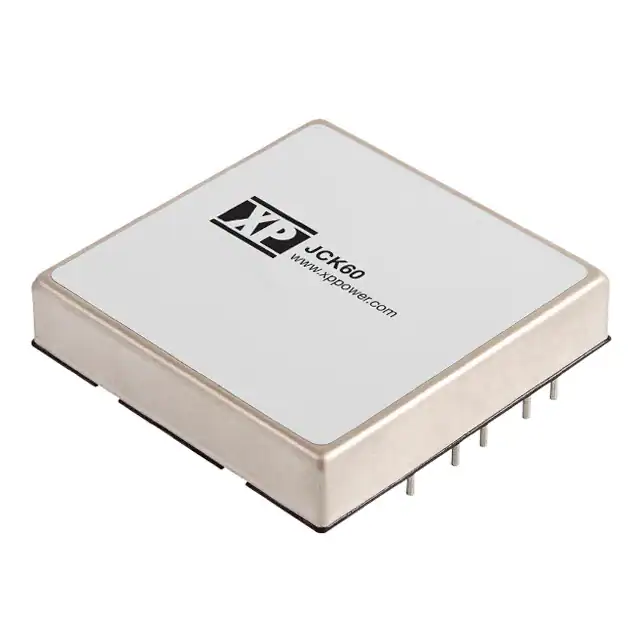

JCK6024S12DC DC CONVERTER 12V 60W |
3,308 |
|
Datenblatt |
JCK (60W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 91% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
RFT-20Y28DC-DC,14-160V INPUT, 28V/0.71A O |
114 |
|
Datenblatt |
RFT-20Y (20W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 28V | - | - | - | 714mA | 20 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RFT-20Y48DC-DC,14-160V INPUT, 48V/0.42A O |
114 |
|
Datenblatt |
RFT-20Y (20W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 417mA | 20 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RFT-20Y12DC-DC,14-160V INPUT, 12V/1.67A O |
114 |
|
Datenblatt |
RFT-20Y (20W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 1.667A | 20 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
