DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

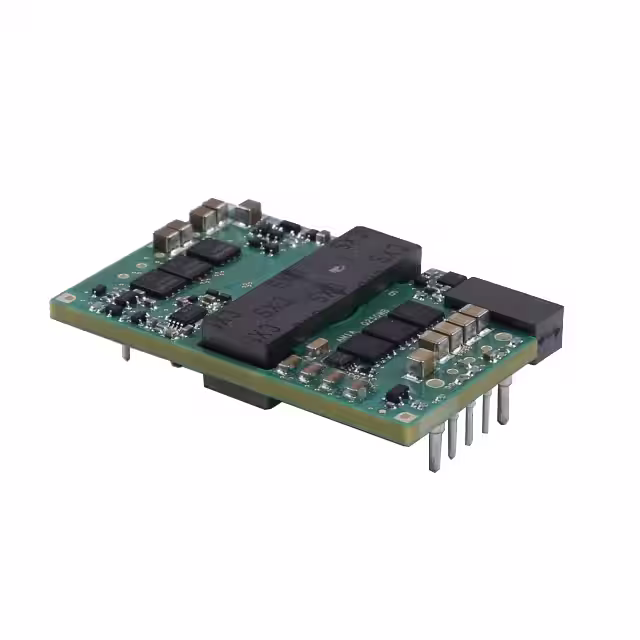

QPS3120N019N25WDC DC CONVERTER 12V 228W |
4,981 |
|
Datenblatt |
QPS | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 19A | 228 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 93.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.41" H (57.9mm x 36.8mm x 10.4mm) | Quarter Brick | Enable, Active Low | cURus | - |
|
RP40-120512TGDC DC CONVERTER 5V +/-12V 40W |
2,009 |
|
Datenblatt |
POWERLINE RP40-G (40W) | 9-DIP Module | Tube | Active | Isolated Module | 3 | 9V | 18V | 5V | 12V | -12V | - | 6A, 400mA, 400mA | 40 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | Enable, Active High | - | - |
|
QBC4120N033N75DC DC CONVERTER 12V 396W |
2,586 |
|
Datenblatt |
QBC | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 95.5% | - | - | Through Hole | 2.29" L x 1.46" W x 0.40" H (58.2mm x 37.1mm x 10.2mm) | Quarter Brick | Enable, Active Low | cURus | - |
|
UIE48T36033-NDABGDC DC CONVERTER 3.3V 120W |
3,352 |
|
Datenblatt |
UIB (120W) | 8-DIP Module, 1/8 Brick | Bulk | Obsolete | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 36A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|

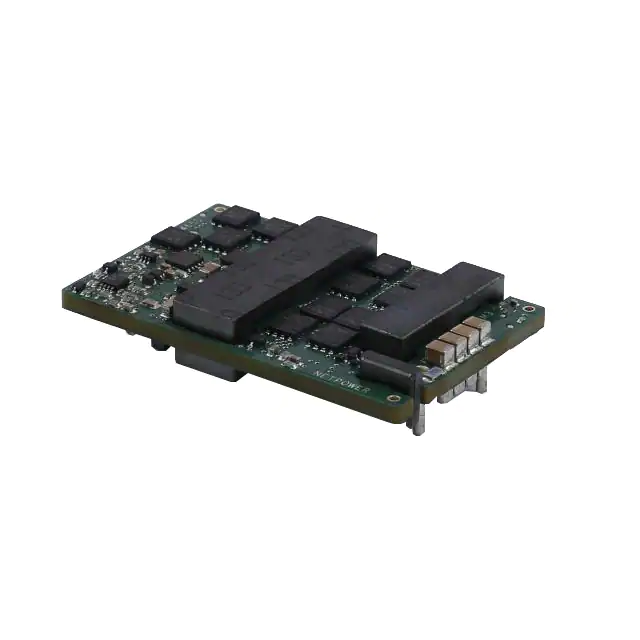

QBC4050N060N75DC DC CONVERTER 5V 300W |
2,888 |
|
Datenblatt |
QBC | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 60A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.29" L x 1.46" W x 0.41" H (58.2mm x 37.1mm x 10.3mm) | Quarter Brick | Enable, Active Low | cURus | - |
|

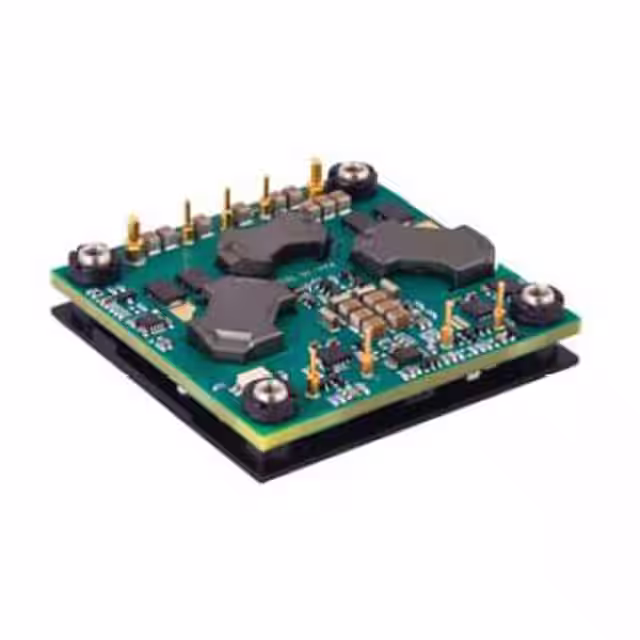

PAH-28/12.5-D24PB-CDC DC CONVERTER 28V 350W |
4,754 |
|
Datenblatt |
PAH (450W) | 9-DIP Module, 1/2 Brick | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 12.5A | 350 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92.5% | - | - | Through Hole | 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm) | - | Enable, Active High | - | - |
|
|
SQ48T04120-PDA0GDC DC CONVERTER 12V 48W |
3,754 |
|
Datenblatt |
SemiQ™ SQ48 | Eighth Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.30" L x 0.90" W x 0.40" H (58.4mm x 22.9mm x 10.2mm) | Eighth Brick | - | - | - |
|
|
SQ48T10050-NBC0GDC DC CONVERTER 5V 50W |
3,712 |
|
Datenblatt |
SemiQ™ SQ48 (50W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 2.30" L x 0.90" W x 0.34" H (58.4mm x 22.9mm x 8.6mm) | Eighth Brick | - | - | - |
|
|
SQ48T04120-NBB0GDC DC CONVERTER 12V 48W |
2,301 |
|
Datenblatt |
SemiQ™ SQ48 | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4A | 48 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm) | - | Enable, Active Low | - | - |
|
|
URF2424QB-100WHR3DC DC CONVERTER 24V 100W |
1,012 |
|
Datenblatt |
URF24_QB-100W (100W) | 8-DIP Module | Bulk | Not For New Designs | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 4.2A | 101 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.43" L x 1.58" W x 1.09" H (61.8mm x 40.2mm x 27.7mm) | - | - | CE, UKCA | 62368-1 |
|

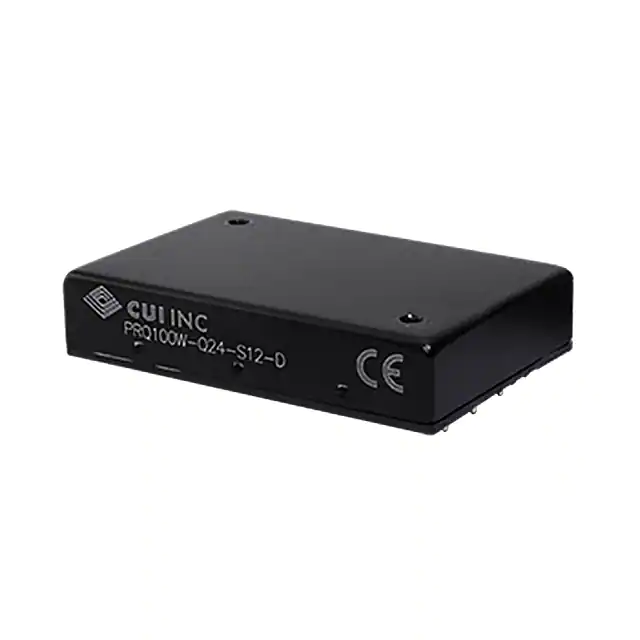

PRQ100W-Q24-S15-DDC DC CONVERTER 15V 101W |
4,560 |
|
Datenblatt |
PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 6.7A | 101 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | CE | - |
|
|
ATMV24V300V20MA16W Isolated DC-DC Power Module |
100 |
|
Datenblatt |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 18V | 36V | 300V | - | - | - | 20mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|

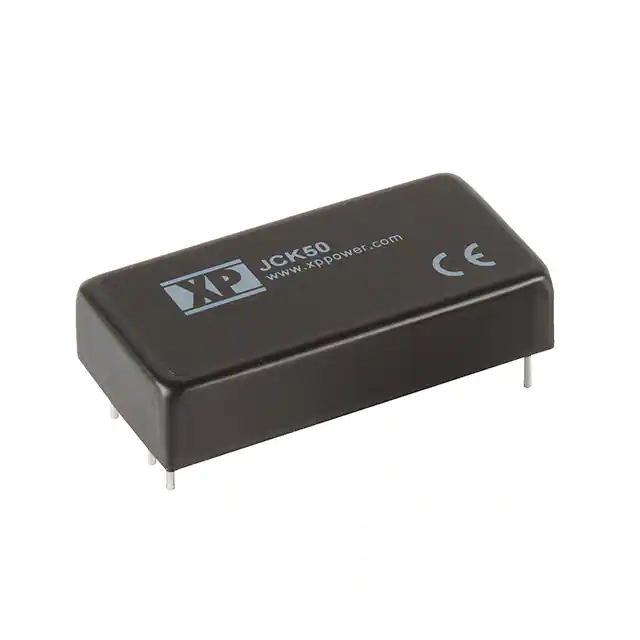

JCK5012S12DC DC CONVERTER 12V 50W |
3,955 |
|
Datenblatt |
JCK50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 4.17A | 50 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 95°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.45" H (50.8mm x 25.4mm x 11.4mm) | 6-DIP | - | - | 62368-1 |
|
|
JCK5048S15DC DC CONVERTER 15V 50W |
3,903 |
|
Datenblatt |
JCK50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 3.33A | 50 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 95°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.45" H (50.8mm x 25.4mm x 11.4mm) | 6-DIP | - | - | 62368-1 |
|
|
PT7721CDC DC CONVERTER 1.3-3.5V 15A |
3,367 |
|
Datenblatt |
PT7720 | 27-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 11V | 14V | 1.3 ~ 3.5V | - | - | - | 17A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 88% | - | - | Surface Mount | - | - | - | - | - |
|
|
PRD25-D48-S12-P-DDC DC CONVERTER 12V 25W |
159 |
|
Datenblatt |
PRD25 (25W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 2.1A | 25 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 1.10" L x 0.96" W x 0.33" H (27.9mm x 24.4mm x 8.4mm) | - | Enable, Active High | - | - |
|

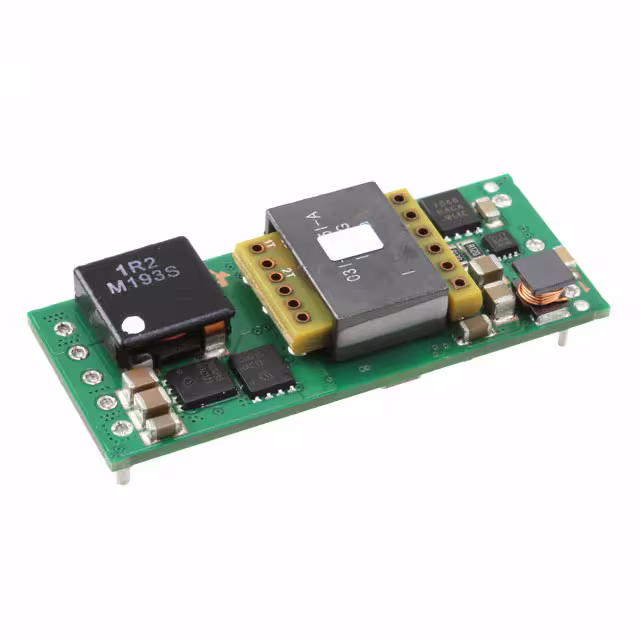

PTEA420033N2ADDC DC CONVERTER 3.3V 66W |
4,934 |
|
Datenblatt |
PTEA420033 | 8-DIP Module, 1/8 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 20A | 66 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.22" L x 0.90" W x 0.52" H (56.4mm x 22.9mm x 13.2mm) | - | - | - | - |
|
|
PTEA420033P2ADDC DC CONVERTER 3.3V 66W |
1,567 |
|
Datenblatt |
PTEA420033 | 8-DIP Module, 1/8 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 20A | 66 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.22" L x 0.90" W x 0.52" H (56.4mm x 22.9mm x 13.2mm) | - | - | - | - |
|
|
PTEA420025P2ADDC DC CONVERTER 2.5V 50W |
4,036 |
|
Datenblatt |
PTEA420025 | 8-DIP Module, 1/8 Brick | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 20A | 50 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.22" L x 0.90" W x 0.52" H (56.4mm x 22.9mm x 13.2mm) | - | - | - | - |
|
PRQ100W-Q48-S15-B-DDC DC CONVERTER 15V 101W |
1,342 |
|
Datenblatt |
PRQ100W-D (100W) | Quarter Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 6.7A | 101 W | 2.25 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 2.44" L x 2.20" W x 0.57" H (62.0mm x 56.0mm x 14.6mm) | Quarter Brick | - | CE | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
