Aluminium-Polymer-Kondensatoren
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Kapazität | Toleranz | Spannung - Nenn | ESR (Äquivalenter Serienwiderstand) | Lebensdauer bei Temperatur | Betriebstemperatur | Bewertungen | Anwendungen | Funktionen | Welligkeitsstrom bei niedriger Frequenz | Welligkeitsstrom bei hoher Frequenz | Impedanz | Leitungsabstand | Größe/Abmessung | Höhe - Sitz (Max) | Größe der Oberflächenmontagefläche | Montageart | Paket/Gehäuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEF-SD0D271RCAP ALUM POLY 270UF 20% 2V SMD |
4,986 |
|
Datenblatt |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-SD0D331RCAP ALUM POLY 330UF 20% 2V SMD |
4,571 |
|
Datenblatt |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-SD0G151RCAP ALUM POLY 150UF 20% 4V SMD |
2,898 |
|
Datenblatt |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
EEF-UE0D391LECAP ALUM POLY 390UF 20% 2V SMD |
3,778 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UE0D471LECAP ALUM POLY 470UF 20% 2V SMD |
1,197 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UE0E391LECAP ALUM POLY 390UF 20% 2.5V SMD |
1,651 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2.5 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218097305E3CAP ALUM POLY 330UF 20% 6.3V SMD |
3,663 |
|
Datenblatt |
180 CPS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.2 A @ 100 kHz | 9 mOhms | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
MAL218097403E3CAP ALUM POLY 150UF 20% 10V SMD |
4,365 |
|
Datenblatt |
180 CPS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | 15 mOhms | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
PLV1J220MCL1TDCAP ALUM POLY 22UF 20% 63V TH |
1,838 |
|
Datenblatt |
PLV | Cut Tape (CT) | Obsolete | Polymer | 22 µF | ±20% | 63 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
PLV1D221MDL1CAP ALUM POLY 220UF 20% 20V TH |
3,092 |
|
Datenblatt |
PLV | Bulk | Obsolete | Polymer | 220 µF | ±20% | 20 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | Radial, Can |
|
|
EEF-UE0J151ERCAP ALUM POLY 150UF 20% 6.3V SMD |
4,947 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218597106E3CAP ALUM POLY 68UF 20% 50V SMD |
2,461 |
|
Datenblatt |
185 CPNZ | Box | Active | Polymer | 68 µF | ±20% | 50 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
|
PCR2A220MCL1GSCAP ALUM POLY 22UF 20% 100V SMD |
4,463 |
|
Datenblatt |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 100 V | 39mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|

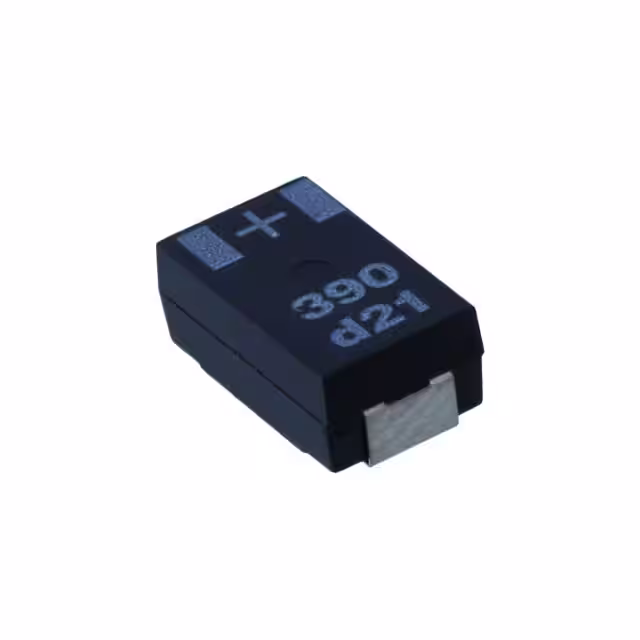

2SW390MCAP ALUM POLY 390UF 20% 2V SMD |
1,933 |
|
Datenblatt |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

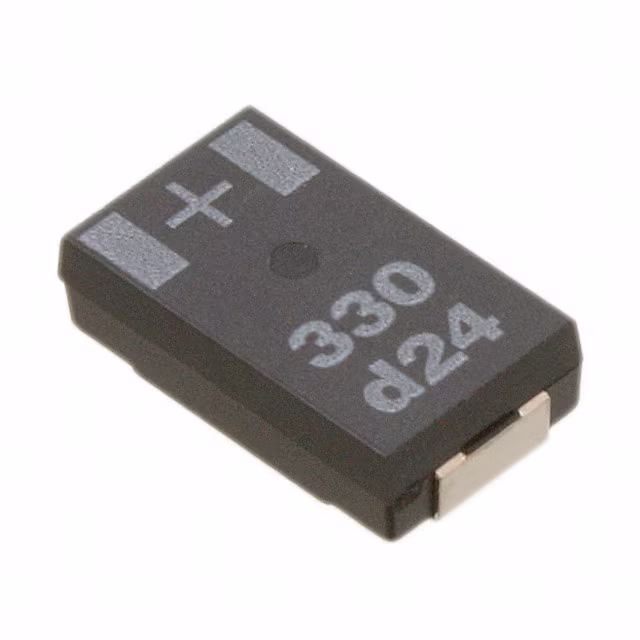

2SWZ330MR06CAP ALUM POLY 330UF 20% 2V SMD |
3,278 |
|
Datenblatt |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

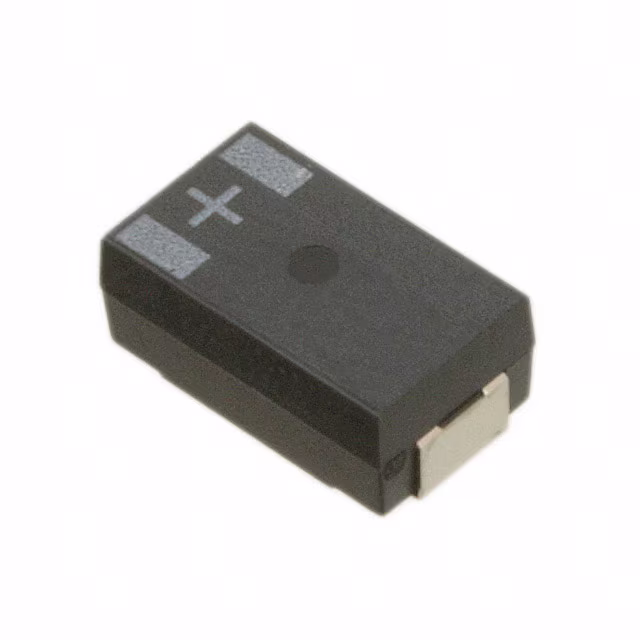

4SW220MCAP ALUM POLY 220UF 20% 4V SMD |
1,590 |
|
Datenblatt |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

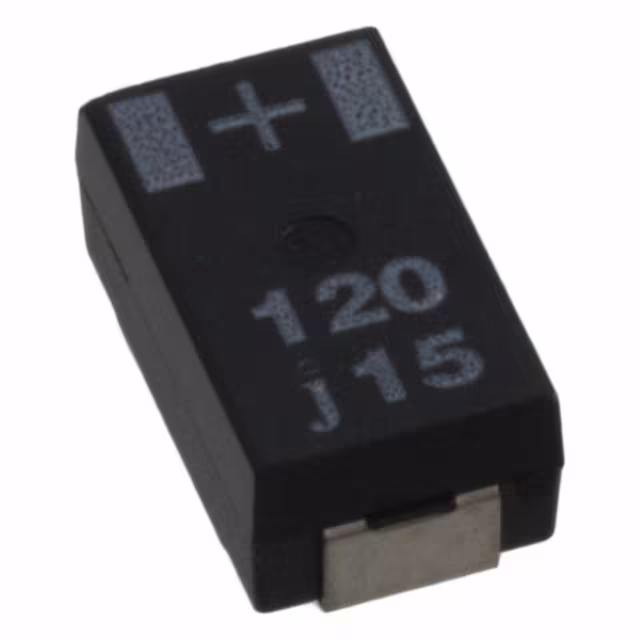

6SW120MCAP ALUM POLY 120UF 20% 6.3V SMD |
1,118 |
|
Datenblatt |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

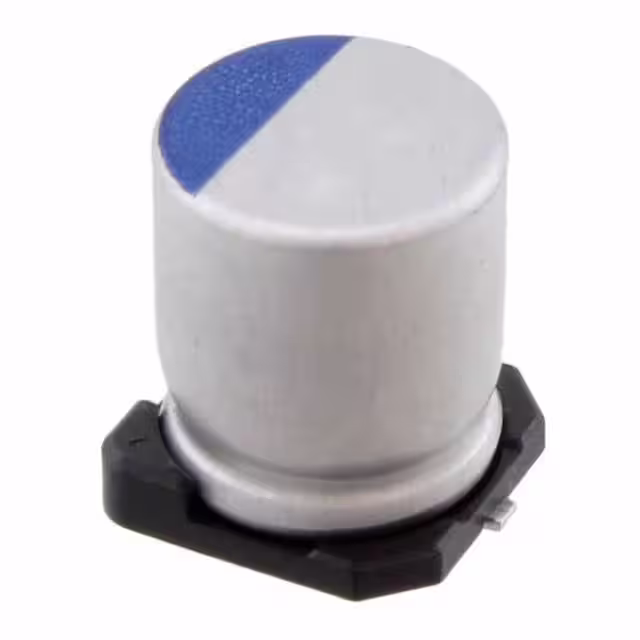

PCX1V390MCL6GSCAP ALUM POLY 39UF 20% 35V SMD |
3,819 |
|
Datenblatt |
PCX | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
2.5SWZ330MR15CAP ALUM POLY 330UF 20% 2.5V SMD |
2,741 |
|
Datenblatt |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218397804E3CAP ALUM HYBRID 56UF 20% 63V SMD |
1,251 |
|
Datenblatt |
183 CPHT | Box | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 140 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
