852-69415941
Aluminium-Polymer-Kondensatoren
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Kapazität | Toleranz | Spannung - Nenn | ESR (Äquivalenter Serienwiderstand) | Lebensdauer bei Temperatur | Betriebstemperatur | Bewertungen | Anwendungen | Funktionen | Welligkeitsstrom bei niedriger Frequenz | Welligkeitsstrom bei hoher Frequenz | Impedanz | Leitungsabstand | Größe/Abmessung | Höhe - Sitz (Max) | Größe der Oberflächenmontagefläche | Montageart | Paket/Gehäuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL218497524E3CAP ALUM POLY 1000UF 20% 16V SMD |
2,859 |
|
Datenblatt |
184 CPNS | Box | Active | Polymer | 1000 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 5.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
|
EEF-UE0E221RCAP ALUM POLY 220UF 20% 2.5V SMD |
3,952 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UE0G181RCAP ALUM POLY 180UF 20% 4V SMD |
2,181 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 4 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UE0D331RCAP ALUM POLY 330UF 20% 2V SMD |
2,052 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

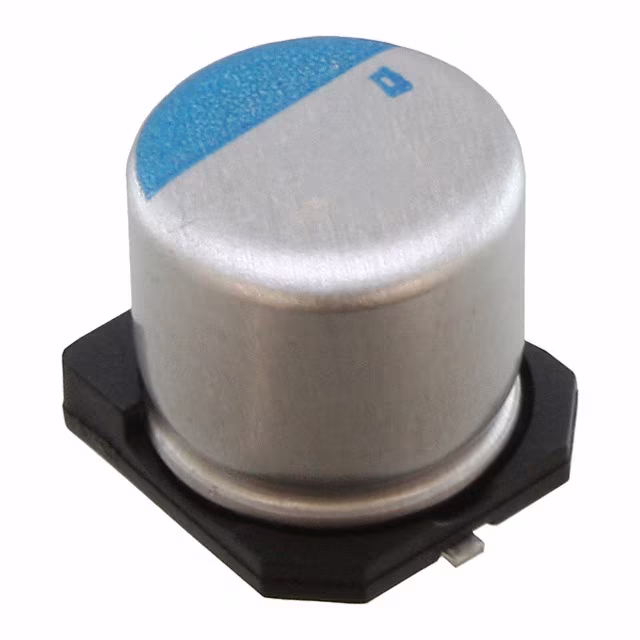

APXE4R0ARA681MH80GCAP ALUM POLY 680UF 20% 4V SMD |
2,716 |
|
Datenblatt |
NPCAP™-PXE | Tape & Reel (TR) | Obsolete | Polymer | 680 µF | ±20% | 4 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
PLV1C271MDL1TDCAP ALUM POLY 270UF 20% 16V TH |
2,423 |
|
Datenblatt |
PLV | Cut Tape (CT) | Obsolete | Polymer | 270 µF | ±20% | 16 V | 24mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | Radial, Can |
|

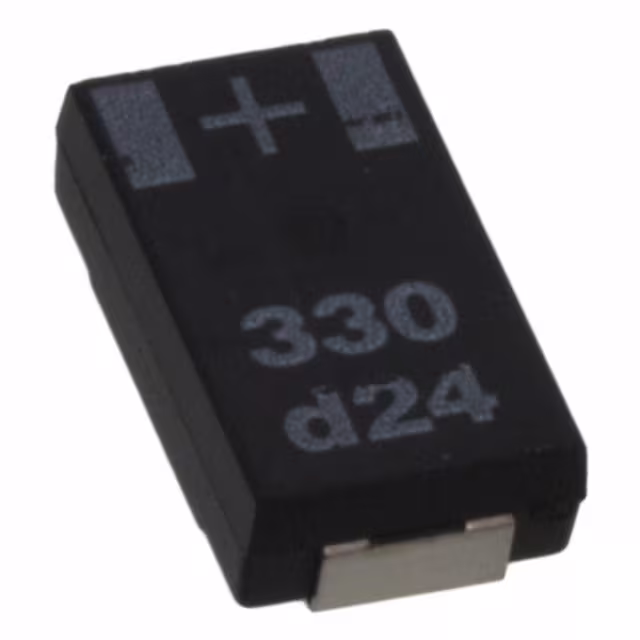

2SWZ330MR15CAP ALUM POLY 330UF 20% 2V SMD |
2,969 |
|
Datenblatt |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218197703E3CAP ALUM POLY 330UF 20% 4V SMD |
2,576 |
|
Datenblatt |
181 CPL | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | 20 mOhms | - | 0.236" Dia (6.00mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
MAL218197301E3CAP ALUM POLY 100UF 20% 6.3V SMD |
2,976 |
|
Datenblatt |
181 CPL | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | 22 mOhms | - | 0.236" Dia (6.00mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
MAL218197303E3CAP ALUM POLY 220UF 20% 6.3V SMD |
2,150 |
|
Datenblatt |
181 CPL | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | 20 mOhms | - | 0.236" Dia (6.00mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
875115652006CAP ALUM POLY 82UF 20% 35V SMD |
4,823 |
|
Datenblatt |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
UGP1C271MP26311CAP ALUM POLY 270UF 20% 16V TH |
4,664 |
|
Datenblatt |
UGP | Active | Polymer | 270 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.492" (12.50mm) | - | Through Hole | Radial, Can | |
|

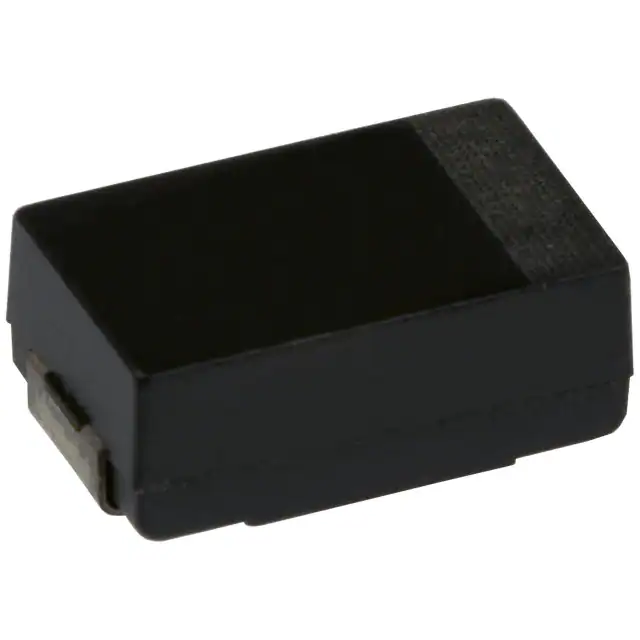

EEF-SD0D391ERCAP ALUM POLY 390UF 20% 2V SMD |
3,854 |
|
Datenblatt |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

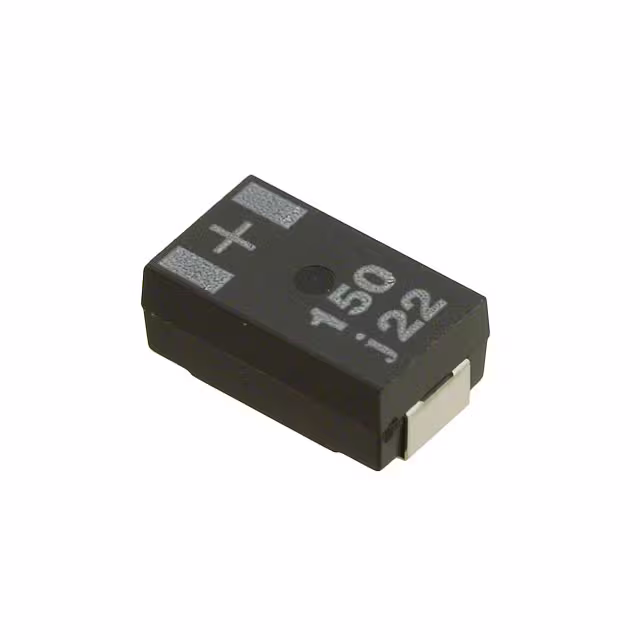

6SW150MCAP ALUM POLY 150UF 20% 6.3V SMD |
4,279 |
|
Datenblatt |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

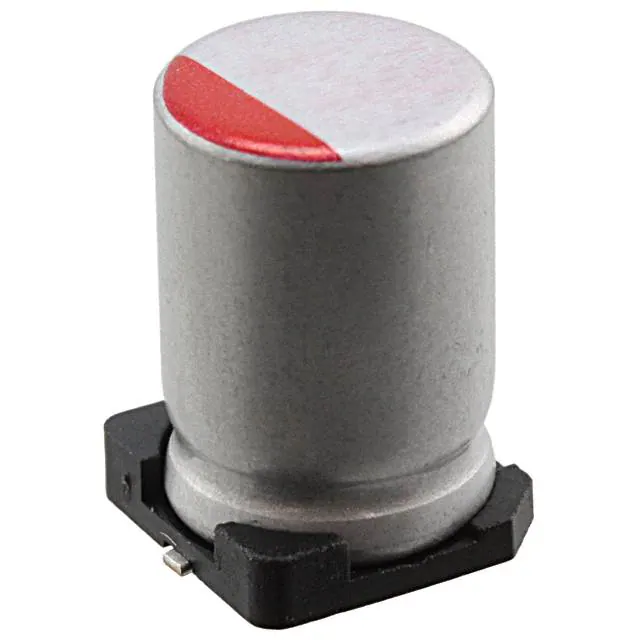

RPS1H390MCN1GSCAP ALUM POLY 39UF 20% 50V SMD |
4,834 |
|
Datenblatt |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 50 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
|
MAL218497565E3CAP ALUM POLY 680UF 20% 20V SMD |
2,331 |
|
Datenblatt |
184 CPNS | Box | Active | Polymer | 680 µF | ±20% | 20 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
|

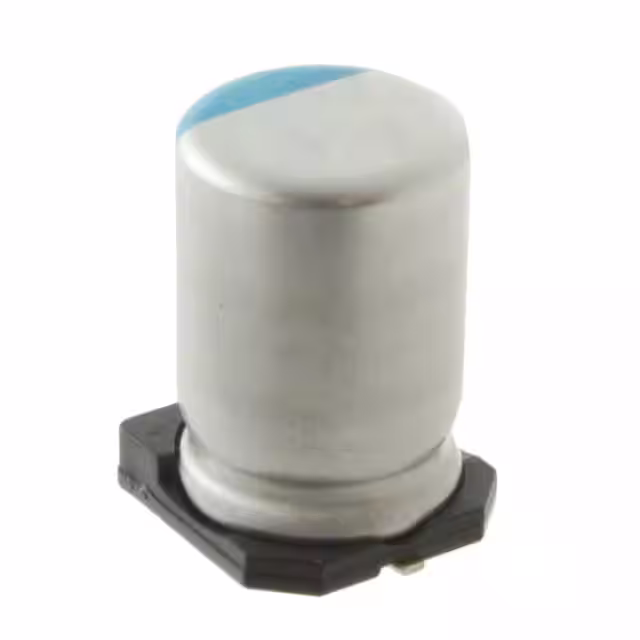

APXE6R3ARA821MHC0GCAP ALUM POLY 820UF 20% 6.3V SMD |
4,156 |
|
Datenblatt |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.15 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
2.5SW330MCAP ALUM POLY 330UF 20% 2.5V SMD |
4,785 |
|
Datenblatt |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218397603E3CAP ALUMHYB 100UF 20% 25V SMD |
2,458 |
|
Datenblatt |
183 CPHT | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount | Radial, Can - SMD |
|
TPUM1E101M656540TRCAP ALUM POLY 100UF 20% 25V SMD |
4,935 |
|
Datenblatt |
UM | Active | Polymer | 100 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.157" (4.00mm) | - | Surface Mount | FlatPack, Tabbed |
