852-69415941
Aluminium-Polymer-Kondensatoren
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Kapazität | Toleranz | Spannung - Nenn | ESR (Äquivalenter Serienwiderstand) | Lebensdauer bei Temperatur | Betriebstemperatur | Bewertungen | Anwendungen | Funktionen | Welligkeitsstrom bei niedriger Frequenz | Welligkeitsstrom bei hoher Frequenz | Impedanz | Leitungsabstand | Größe/Abmessung | Höhe - Sitz (Max) | Größe der Oberflächenmontagefläche | Montageart | Paket/Gehäuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPUM0J221M656530TRCAP ALUM POLY 220UF 20% 6.3V SMD |
4,304 |
|
Datenblatt |
UM | Active | Polymer | 220 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.118" (3.00mm) | - | Surface Mount | FlatPack, Tabbed | |
|
|
TPUM1C151M656530TRCAP ALUM POLY 150UF 20% 16V SMD |
1,715 |
|
Datenblatt |
UM | Active | Polymer | 150 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.118" (3.00mm) | - | Surface Mount | FlatPack, Tabbed | |
|
|
TPUM1T181M656530TRCAP ALUM POLY 180UF 20% 12V SMD |
2,661 |
|
Datenblatt |
UM | Active | Polymer | 180 µF | ±20% | 12 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.118" (3.00mm) | - | Surface Mount | FlatPack, Tabbed | |
|
|
TPUM1C680M505030TRCAP ALUM POLY 68UF 20% 16V SMD |
3,163 |
|
Datenblatt |
UM | Active | Polymer | 68 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.197" Dia (5.00mm) | 0.118" (3.00mm) | - | Surface Mount | FlatPack, Tabbed | |
|
|
TPUM1V560M656540TRCAP ALUM POLY 56UF 20% 35V SMD |
2,832 |
|
Datenblatt |
UM | Active | Polymer | 56 µF | ±20% | 35 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.157" (4.00mm) | - | Surface Mount | FlatPack, Tabbed | |
|
|
TPUM1E470M505030TRCAP ALUM POLY 47UF 20% 25V SMD |
3,670 |
|
Datenblatt |
UM | Active | Polymer | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.197" Dia (5.00mm) | 0.118" (3.00mm) | - | Surface Mount | FlatPack, Tabbed | |
|
MAL218397701E3CAP ALUM HYBRID 33UF 20% 80V SMD |
4,856 |
|
Datenblatt |
183 CPHT | Box | Active | Hybrid | 33 µF | ±20% | 80 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 136 mA @ 120 Hz | 1.36 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|

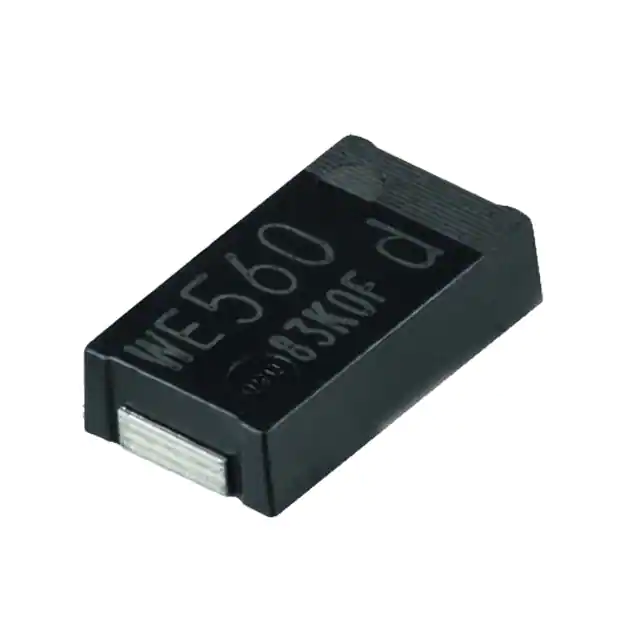

875036319012CAP ALUM POLY 330UF 20% 2.5V SMD |
4,270 |
|
Datenblatt |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

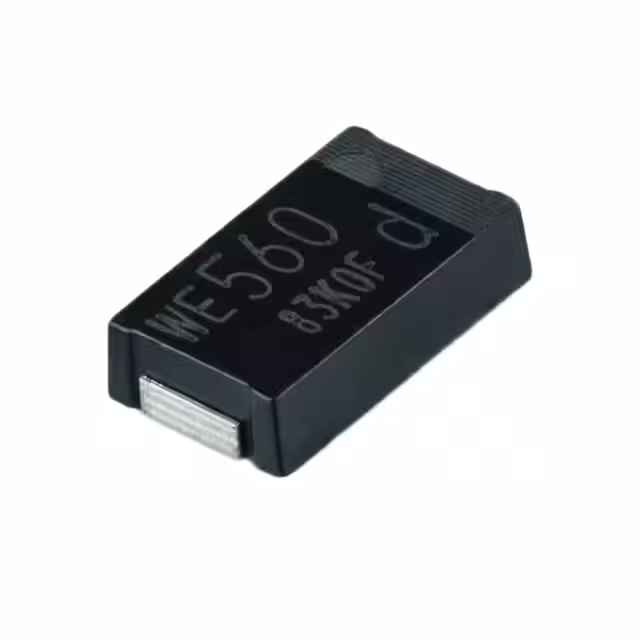

875046219001CAP ALUM POLY 330UF 20% 2V SMD |
1,784 |
|
Datenblatt |
WCAP-PHSE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
EEF-UD0E221LRCAP ALUM POLY 220UF 20% 2.5V SMD |
3,111 |
|
Datenblatt |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UD0J121LRCAP ALUM POLY 120UF 20% 6.3V SMD |
1,204 |
|
Datenblatt |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UD0G151LRCAP ALUM POLY 150UF 20% 4V SMD |
3,687 |
|
Datenblatt |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UD0E271LRCAP ALUM POLY 270UF 20% 2.5V SMD |
1,823 |
|
Datenblatt |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UD0G181LRCAP ALUM POLY 180UF 20% 4V SMD |
1,054 |
|
Datenblatt |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 4 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UD0D471LRCAP ALUM POLY 470UF 20% 2V SMD |
2,803 |
|
Datenblatt |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
EEF-UD0J151LRCAP ALUM POLY 150UF 20% 6.3V SMD |
1,852 |
|
Datenblatt |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218597007E3CAP ALUM POLY 150UF 20% 35V SMD |
3,853 |
|
Datenblatt |
185 CPNZ | Box | Active | Polymer | 150 µF | ±20% | 35 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
|

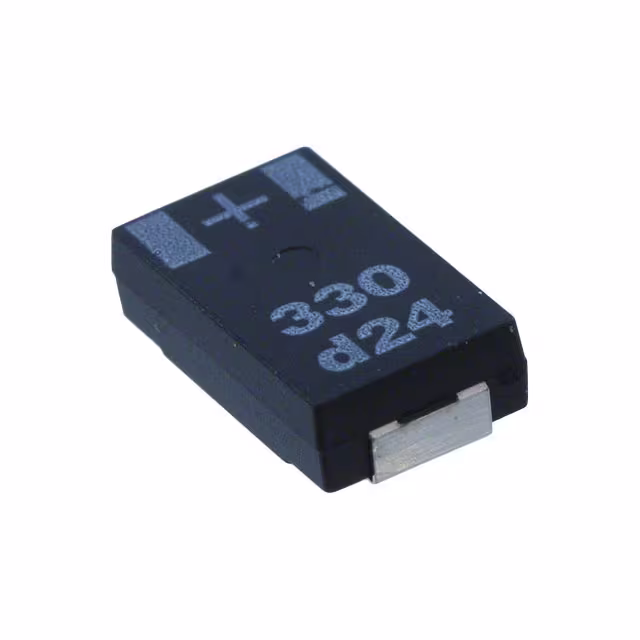

2SWZ330MR09CAP ALUM POLY 330UF 20% 2V SMD |
4,708 |
|
Datenblatt |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
4SWZ180MR09CAP ALUM POLY 180UF 20% 4V SMD |
2,982 |
|
Datenblatt |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218497807E3CAP ALUM POLY 68UF 20% 63V SMD |
3,786 |
|
Datenblatt |
184 CPNS | Box | Active | Polymer | 68 µF | ±20% | 63 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
