ISABELLENHÜTTE (ISA) ISA-PLAN® Präzisions-Leistungswiderstände – SMT-Serie
- Teilenr.:
- SMT-R820-1.0
- Hersteller:
- Isabellenhuette USA
- Kategorie:
- Product information
- Verpackung:
- Nonstandard
- Datenblatt:
-
SMT-R820-1.0.pdf
- Beschreibung:
- RESISTOR - ISA-PLAN SHUNT, 0.82OHM,
- Zahlung:
- Versand:
Artikel Details
ISABELLENHÜTTE (ISA) – Gegründet 1482 mit Hauptsitz in Deutschland, entwickelte ISABELLENHÜTTE 1889 als erstes Unternehmen weltweit den Manganin-Widerstandswerkstoff (Mangan-Nickel-Kupfer-Legierung) und produzierte 1987 den ersten oberflächenmontierten Milliohm-Strommesswiderstand. Heute ist das Unternehmen ein global führender Hersteller von Präzisions-Mikrowiderständen. Es liefert seit langem Produkte und technische Unterstützung an renommierte Kunden wie BOSCH, HELLA und CONTINENTAL. Für Kaufanfragen wenden Sie sich an Bomkey Electronics.

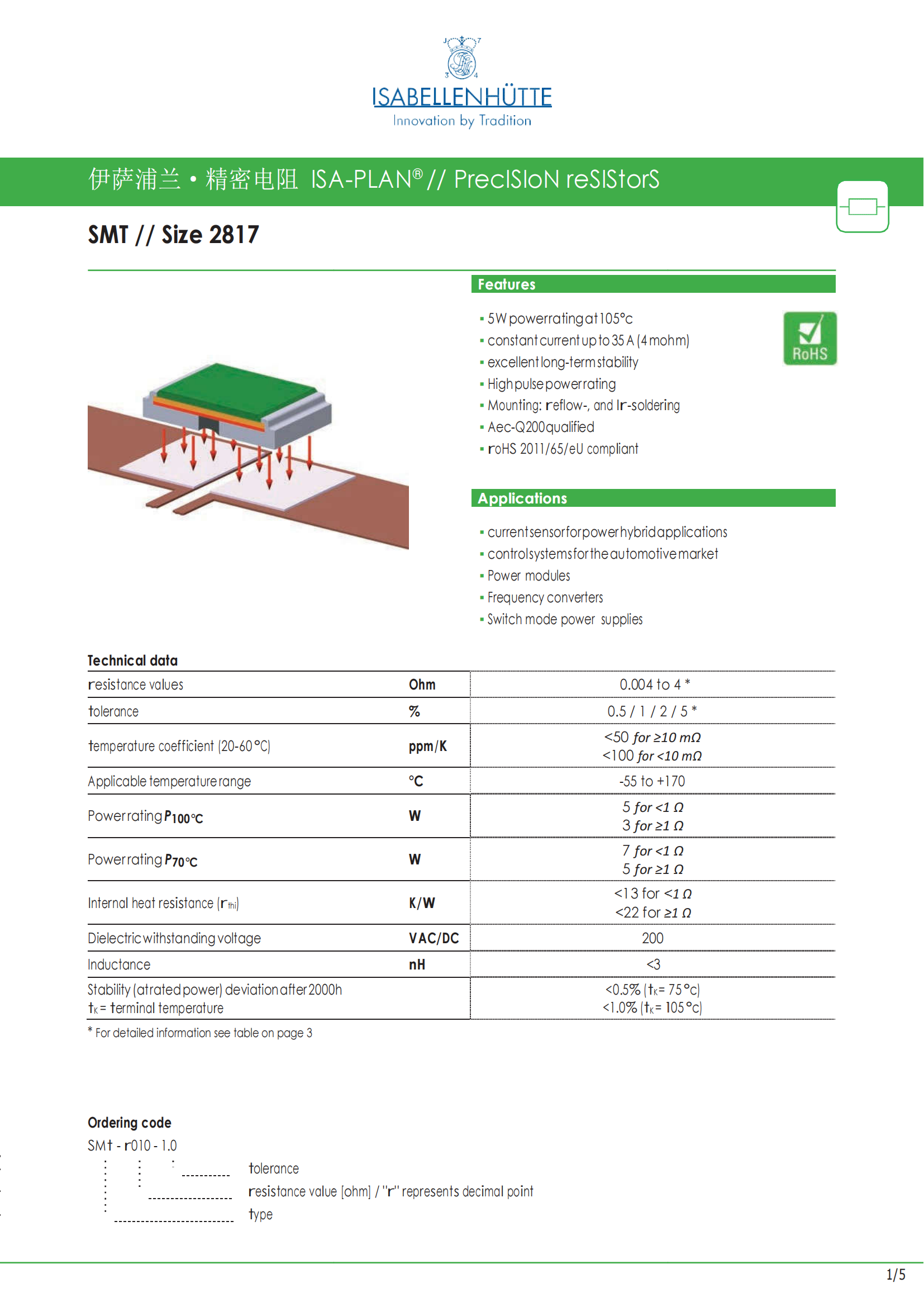

ISA-PLAN® Serie SMT-Widerstand (Bauform 2817)
Technische Merkmale
-
5W Nennleistung
-
Dauerstrom bis 35A
-
Hervorragende Langzeitstabilität
-
Hohe Impulsleistung
Einsatzgebiete in der Automobilindustrie
- Steuersysteme
- Leistungsmodule
- Frequenzumrichter
- Schaltnetzteile
Produktbeschreibung
Typ
| Category | SMT Series Part NO. | Size | Resistance(mΩ、Ω) | Tolerance(%) | Power (Watts) | TRC(ppm/K) |
| Precision Alloy Resistor | SMT-R004-1.0 | 2817 | 4mΩ | ±1% | 7W | ±100ppm/K |
| SMT-R004-5.0 | 2817 | 4mΩ | ±5% | 7W | ±100ppm/K | |
| SMT-R0047-5.0 | 2817 | 4.7mΩ | ±5% | 7W | ±100ppm/K | |
| SMT-R005-0.5 | 2817 | 5mΩ | ±0.5% | 7W | ±100ppm/K | |
| SMT-R005-1.0 | 2817 | 5mΩ | ±1% | 7W | ±100ppm/K | |
| SMT-R005-2.0 | 2817 | 5mΩ | ±2% | 7W | ±100ppm/K | |
| SMT-R005-5.0 | 2817 | 5mΩ | ±5% | 7W | ±100ppm/K | |
| SMT-R0056-1.0 | 2817 | 5.6mΩ | ±1% | 7W | ±100ppm/K | |
| SMT-R0068-1.0 | 2817 | 6.8mΩ | ±1% | 7W | ±100ppm/K | |
| SMT-R0068-2.0 | 2817 | 6.8mΩ | ±2% | 7W | ±100ppm/K | |
| SMT-R0068-5.0 | 2817 | 6.8mΩ | ±5% | 7W | ±100ppm/K | |
| SMT-R008-1.0 | 2817 | 8mΩ | ±1% | 7W | ±100ppm/K | |
| SMT-R008-5.0 | 2817 | 8mΩ | ±5% | 7W | ±100ppm/K | |
| SMT-R0091-1.0 | 2817 | 9.1mΩ | ±1% | 7W | ±100ppm/K | |
| SMT-R010-0.5 | 2817 | 10mΩ | ±0.5% | 7W | ±50ppm/K | |
| SMT-R010-1.0 | 2817 | 10mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R010-2.0 | 2817 | 10mΩ | ±2% | 7W | ±50ppm/K | |
| SMT-R010-5.0 | 2817 | 10mΩ | ±5% | 7W | ±50ppm/K | |
| SMT-R0135-1.0 | 2817 | 13.5mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R014-1.0 | 2817 | 14mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R015-1.0 | 2817 | 15mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R015-5.0 | 2817 | 15mΩ | ±5% | 7W | ±50ppm/K | |
| SMT-R018-1.0 | 2817 | 18mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R018-5.0 | 2817 | 18mΩ | ±5% | 7W | ±50ppm/K | |
| SMT-R020-1.0 | 2817 | 20mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R022-1.0 | 2817 | 22mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R022-5.0 | 2817 | 22mΩ | ±5% | 7W | ±50ppm/K | |
| SMT-R025-0.5 | 2817 | 25mΩ | ±0.5% | 7W | ±50ppm/K | |
| SMT-R025-1.0 | 2817 | 25mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R027-1.0 | 2817 | 27mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R030-1.0 | 2817 | 30mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R033-0.5 | 2817 | 33mΩ | ±0.5% | 7W | ±50ppm/K | |
| SMT-R033-1.0 | 2817 | 33mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R039-1.0 | 2817 | 39mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R040-1.0 | 2817 | 40mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R047-1.0 | 2817 | 47mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R047-2.0 | 2817 | 47mΩ | ±2% | 7W | ±50ppm/K | |
| SMT-R047-5.0 | 2817 | 47mΩ | ±5% | 7W | ±50ppm/K | |
| SMT-R050-0.5 | 2817 | 50mΩ | ±0.5% | 7W | ±50ppm/K | |
| SMT-R050-1.0 | 2817 | 50mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R056-1.0 | 2817 | 56mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R068-0.5 | 2817 | 68mΩ | ±0.5% | 7W | ±50ppm/K | |
| SMT-R068-1.0 | 2817 | 68mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R068-2.0 | 2817 | 68mΩ | ±2% | 7W | ±50ppm/K | |
| SMT-R082-1.0 | 2817 | 82mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R100-0.5 | 2817 | 100mΩ | ±0.5% | 7W | ±50ppm/K | |
| SMT-R100-1.0 | 2817 | 100mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R100-2.0 | 2817 | 100mΩ | ±2% | 7W | ±50ppm/K | |
| SMT-R100-5.0 | 2817 | 100mΩ | ±5% | 7W | ±50ppm/K | |
| SMT-R120-1.0 | 2817 | 120mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R150-1.0 | 2817 | 150mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R170-1.0 | 2817 | 170mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R170-2.0 | 2817 | 170mΩ | ±2% | 7W | ±50ppm/K | |
| SMT-R180-1.0 | 2817 | 180mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R200-1.0 | 2817 | 200mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R220-1.0 | 2817 | 220mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R220-5.0 | 2817 | 220mΩ | ±5% | 7W | ±50ppm/K | |
| SMT-R250-1.0 | 2817 | 250mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R270-1.0 | 2817 | 270mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R270-2.0 | 2817 | 270mΩ | ±2% | 7W | ±50ppm/K | |
| SMT-R330-1.0 | 2817 | 330mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R390-1.0 | 2817 | 390mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R400-0.5 | 2817 | 400mΩ | ±0.5% | 7W | ±50ppm/K | |
| SMT-R470-1.0 | 2817 | 470mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R470-2.0 | 2817 | 470mΩ | ±2% | 7W | ±50ppm/K | |
| SMT-R500-0.5 | 2817 | 500mΩ | ±0.5% | 7W | ±50ppm/K | |
| SMT-R500-1.0 | 2817 | 500mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R560-1.0 | 2817 | 560mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R680-1.0 | 2817 | 680mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-R820-1.0 | 2817 | 820mΩ | ±1% | 7W | ±50ppm/K | |
| SMT-1R00-0.5 | 2817 | 1Ω | ±0.5% | 5W | ±50ppm/K | |
| SMT-1R00-1.0 | 2817 | 1Ω | ±1% | 5W | ±50ppm/K | |
| SMT-1R50-1.0 | 2817 | 1.5Ω | ±1% | 5W | ±50ppm/K | |
| SMT-1R80-1.0 | 2817 | 1.8Ω | ±1% | 5W | ±50ppm/K | |
| SMT-2R00-1.0 | 2817 | 2Ω | ±1% | 5W | ±50ppm/K | |
| SMT-2R20-1.0 | 2817 | 2.2Ω | ±1% | 5W | ±50ppm/K | |
| SMT-2R70-1.0 | 2817 | 2.7Ω | ±1% | 5W | ±50ppm/K | |
| SMT-3R00-5.0 | 2817 | 3Ω | ±5% | 5W | ±50ppm/K | |
| SMT-3R30-1.0 | 2817 | 3.3Ω | ±1% | 5W | ±50ppm/K | |
| SMT-3R90-1.0 | 2817 | 3.9Ω | ±1% | 5W | ±50ppm/K | |
| SMT-4R00-1.0 | 2817 | 4Ω | ±1% | 5W | ±50ppm/K | |
| SMT-4R70-1.0 | 2817 | 4.7Ω | ±1% | 5W | ±50ppm/K | |
| SMT-R000 | 2817 | 0Ω | - | 2W | - |

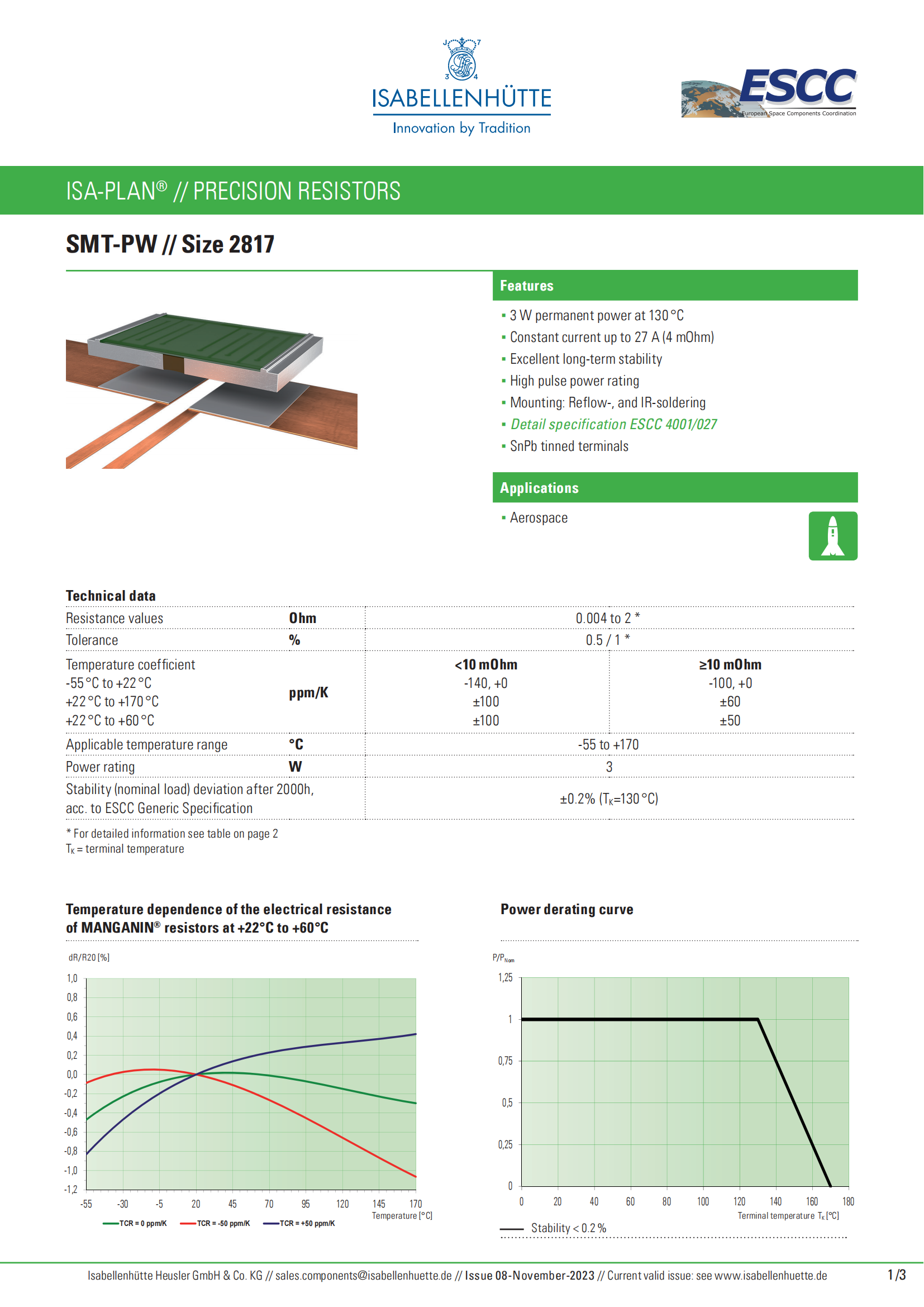

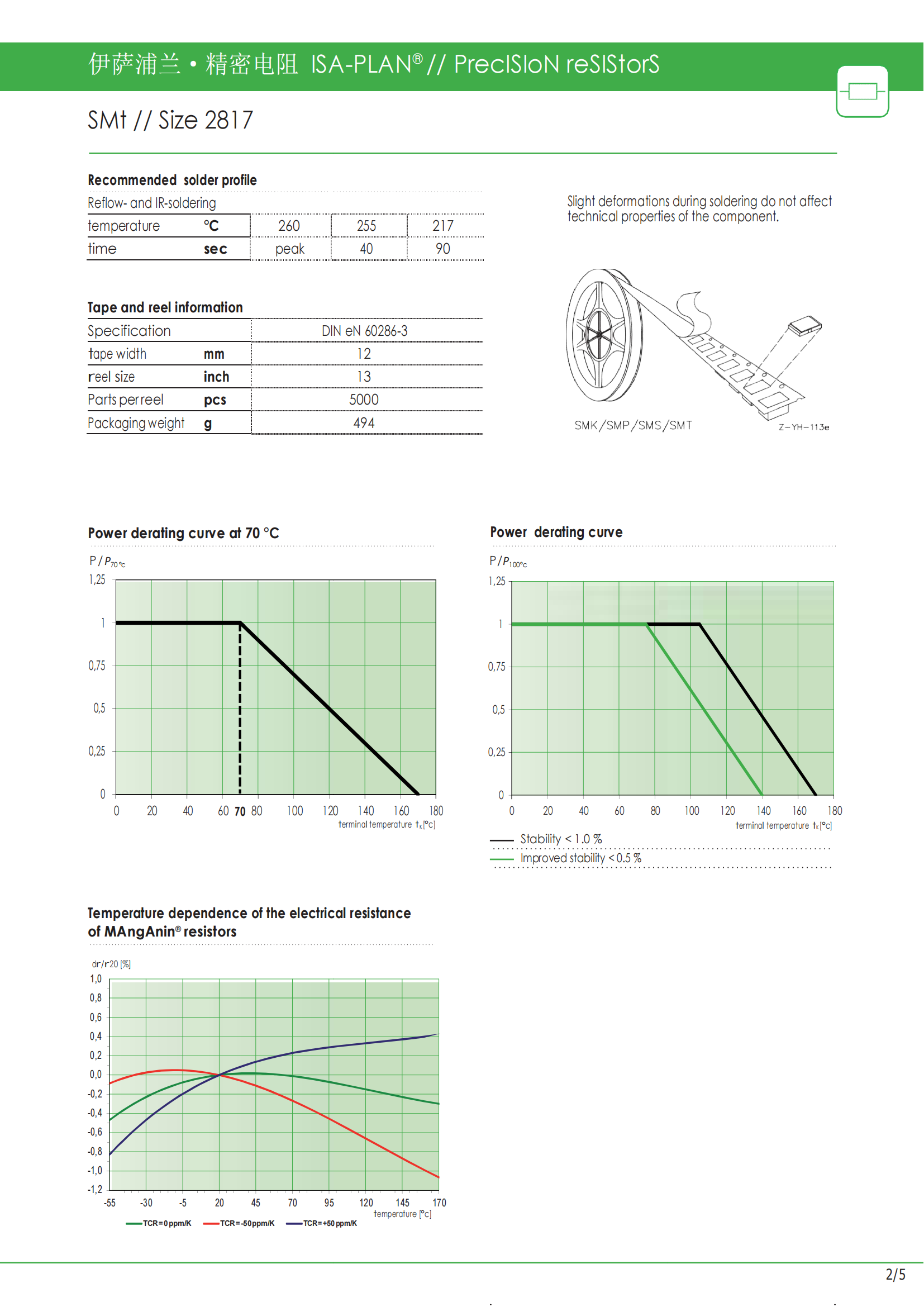

Die ISA-PLAN® Präzisionswiderstände der SMT-PW-Serie erfüllen die höchsten Anforderungen an Zuverlässigkeit, Präzision und Langlebigkeit, entsprechen den ESCC 4001-Qualitätsstandards und werden in zahlreichen Luft- und Raumfahrtprojekten eingesetzt, darunter das Galileo-Navigationssystem und das Jules-Verne-Automatentransportfahrzeug.
Merkmale
- Dauerleistung 3 W bei 130 °C
- Dauerstrom bis 27 A (4 mΩ)
- Hervorragende Langzeitstabilität
- Hohe Impulsleistung
- Montage: Reflow- und IR-Lötung
- Detaillierte Spezifikation ESCC 4001/027
- SnPb-verzinnte Anschlüsse
Anwendungen
- Luft- und Raumfahrt
Produktbeschreibung
Typ
| Category | SMT-PW Series Part NO. | Size | Resistance(mΩ、Ω) | Tolerance(%) | Power (Watts) | TRC(ppm/K) | ESCC NO. |
| Aerospace-Grade Precision Alloy Resistor | SMT-R004-1.0-PW | 2817 | 4mΩ | ±1% | 3W | ±100ppm/K | 400102706R004F |
| SMT-R005-0.5-PW | 2817 | 5mΩ | ±0.5% | 3W | ±100ppm/K | 400102706R005D | |
| SMT-R005-1.0-PW | 2817 | 5mΩ | ±1% | 3W | ±100ppm/K | 400102706R005F | |
| SMT-R0068-1.0-PW | 2817 | 6.8mΩ | ±1% | 3W | ±100ppm/K | 400102706R0068F | |
| SMT-R008-0.5-PW | 2817 | 8mΩ | ±0.5% | 3W | ±100ppm/K | 400102706R008D | |
| SMT-R010-0.5-PW | 2817 | 10mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R010D | |
| SMT-R010-1.0-PW | 2817 | 10mΩ | ±1% | 3W | ±50ppm/K | 400102703R010F | |
| SMT-R015-0.5-PW | 2817 | 15mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R015D | |
| SMT-R015-1.0-PW | 2817 | 15mΩ | ±1% | 3W | ±50ppm/K | 400102703R015F | |
| SMT-R018-0.5-PW | 2817 | 18mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R018D | |
| SMT-R020-0.5-PW | 2817 | 20mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R020D | |
| SMT-R020-1.0-PW | 2817 | 20mΩ | ±1% | 3W | ±50ppm/K | 400102703R020F | |
| SMT-R022-0.5-PW | 2817 | 22mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R022D | |
| SMT-R022-1.0-PW | 2817 | 22mΩ | ±1% | 3W | ±50ppm/K | 400102703R022F | |
| SMT-R025-1.0-PW | 2817 | 25mΩ | ±1% | 3W | ±50ppm/K | 400102703R025F | |
| SMT-R027-0.5-PW | 2817 | 27mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R027D | |
| SMT-R030-0.5-PW | 2817 | 30mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R030D | |
| SMT-R033-1.0-PW | 2817 | 33mΩ | ±1% | 3W | ±50ppm/K | 400102703R033F | |
| SMT-R039-0.5-PW | 2817 | 39mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R039D | |
| SMT-R039-1.0-PW | 2817 | 39mΩ | ±1% | 3W | ±50ppm/K | 400102703R039F | |
| SMT-R040-1.0-PW | 2817 | 40mΩ | ±1% | 3W | ±50ppm/K | 400102703R040F | |
| SMT-R047-0.5-PW | 2817 | 47mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R047D | |
| SMT-R047-1.0-PW | 2817 | 47mΩ | ±1% | 3W | ±50ppm/K | 400102703R047F | |
| SMT-R050-0.5-PW | 2817 | 50mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R050D | |
| SMT-R050-1.0-PW | 2817 | 50mΩ | ±1% | 3W | ±50ppm/K | 400102703R050F | |
| SMT-R056-0.5-PW | 2817 | 56mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R056D | |
| SMT-R068-1.0-PW | 2817 | 68mΩ | ±1% | 3W | ±50ppm/K | 400102703R068F | |
| SMT-R082-0.5-PW | 2817 | 82mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R082D | |
| SMT-R100-0.5-PW | 2817 | 100mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R100D | |
| SMT-R100-1.0-PW | 2817 | 100mΩ | ±1% | 3W | ±50ppm/K | 400102703R100F | |
| SMT-R120-1.0-PW | 2817 | 120mΩ | ±1% | 3W | ±50ppm/K | 400102703R120F | |
| SMT-R150-1.0-PW | 2817 | 150mΩ | ±1% | 3W | ±50ppm/K | 400102703R150F | |
| SMT-R180-0.5-PW | 2817 | 180mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R180D | |
| SMT-R180-1.0-PW | 2817 | 180mΩ | ±1% | 3W | ±50ppm/K | 400102703R180F | |
| SMT-R200-0.5-PW | 2817 | 200mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R200D | |
| SMT-R220-0.5-PW | 2817 | 220mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R220D | |
| SMT-R220-1.0-PW | 2817 | 220mΩ | ±1% | 3W | ±50ppm/K | 400102703R220F | |
| SMT-R270-0.5-PW | 2817 | 270mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R270D | |
| SMT-R270-1.0-PW | 2817 | 270mΩ | ±1% | 3W | ±50ppm/K | 400102703R270F | |
| SMT-R330-0.5-PW | 2817 | 330mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R330D | |
| SMT-R330-1.0-PW | 2817 | 330mΩ | ±1% | 3W | ±50ppm/K | 400102703R330F | |
| SMT-R390-1.0-PW | 2817 | 390mΩ | ±1% | 3W | ±50ppm/K | 400102703R390F | |
| SMT-R470-0.5-PW | 2817 | 470mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R470D | |
| SMT-R470-1.0-PW | 2817 | 470mΩ | ±1% | 3W | ±50ppm/K | 400102703R470F | |
| SMT-R500-0.5-PW | 2817 | 500mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R500D | |
| SMT-R560-1.0-PW | 2817 | 560mΩ | ±1% | 3W | ±50ppm/K | 400102703R560F | |
| SMT-R680-0.5-PW | 2817 | 680mΩ | ±0.5% | 3W | ±50ppm/K | 400102703R680D | |
| SMT-R820-1.0-PW | 2817 | 820mΩ | ±1% | 3W | ±50ppm/K | 400102703R820F | |
| SMT-1R00-0.5-PW | 2817 | 1Ω | ±0.5% | 3W | ±50ppm/K | 4001027031R00D | |
| SMT-1R00-1.0-PW | 2817 | 1Ω | ±1% | 3W | ±50ppm/K | 4001027031R00F | |
| SMT-1R20-1.0-PW | 2817 | 1.2Ω | ±1% | 3W | ±50ppm/K | 4001027031R20F | |
| SMT-1R50-1.0-PW | 2817 | 1.5Ω | ±1% | 3W | ±50ppm/K | 4001027031R50F | |
| SMT-1R80-1.0-PW | 2817 | 1.8Ω | ±1% | 3W | ±50ppm/K | 4001027031R80F | |
| SMT-2R00-0.5-PW | 2817 | 2Ω | ±0.5% | 3W | ±50ppm/K | 4001027032R00D | |
| SMT-2R00-1.0-PW | 2817 | 2Ω | ±1% | 3W | ±50ppm/K | 4001027032R00F |
Datenblatt Download
SMT-R820-1.0 Spezifikationen
Isabellenhuette USA SMT-R820-1.0 technische Spezifikationen, Eigenschaften, Parameter und Teile mit ähnlichen Spezifikationen wie Isabellenhuette USA SMT-R820-1.0.
- Eigenschaften
- Eigenschaftswert
- Hersteller
- Isabellenhuette USA
- Serie:
- SMT
- Verpackung/Gehäuse:
- Nonstandard
- Verpackung:
- Tape & Reel (TR)
- Produktstatus:
- Active
- Widerstand:
- 820 mOhms
- Toleranz:
- ±1%
- Leistung (Watt):
- 7W
- Zusammensetzung:
- -
- Funktionen:
- Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
- Temperaturkoeffizient:
- ±50ppm/°C
- Betriebstemperatur:
- -65°C ~ 170°C
- Lieferant Gerätepaket:
- AEC-Q200
- Bewertungen:
- 2817
- Größe/Abmessung:
- 0.280" L x 0.165" W (7.10mm x 4.20mm)
- Höhe - Sitz (Max):
- 0.039" (1.00mm)
- Anzahl der Abschlüsse:
- 2
- Ausfallrate:
- -
- Kategorie:
- Product information
Alle zurücksetzen
Ähnliche suchen
Ergebnis:
Die Beiträge
-
LR44 vs. 357 Batterie: Unterschiede, Austauschbarkeit und wie man die richtige wählt
Fragen Sie sich, ob LR44- und 357-Batterien gleich sind? Dieser umfassende Leitfaden erklärt die Unterschiede, Gemeinsamkeiten, Spannung, Kompatibilität und hilft Ihnen, die richtige Batterie für Geräte wie Uhren
Lagerbestand: 49,197
Einzelpreis:$0
Gesamtpreis:$0
| Menge | Einzelpreis | Gesamtpreis |
| 1+ | $2.000000 | $2.000000 |
Inventar:49,197
Senden Sie uns Ihre Anfrage, wir werden sofort antworten.
;;1,6x0,8x0,55.JPG)
-
RK73H1JTTD1002F
KOA Speer Electronics, Inc.
-
ERJ-2GE0R00X
Panasonic Electronic Components
-
RC0402JR-0710KL
YAGEO
.jpg)
-
RC0402JR-074K7L
YAGEO
-
RC1005F103CS
Samsung Electro-Mechanics
-
RC0402JR-071KL
YAGEO
-
RC0402FR-07100KL
YAGEO
-
RC0402JR-070RL
YAGEO
-
RC0402JR-07100KL
YAGEO
-
RC0201FR-0710KL
YAGEO
-
ERJ-2RKF1002X
Panasonic Electronic Components
.jpg)
-
RC0603FR-0747KL
YAGEO
.jpg)
-
RC1005J000CS
Samsung Electro-Mechanics
-
RC0603FR-0710KL
YAGEO
-
ERJ-2RKF1001X
Panasonic Electronic Components
-
RMCF0603JT10K0
Stackpole Electronics Inc
-
RC0402FR-0710KL
YAGEO
-Metric).jpg)
-
RK73Z1HTTC
KOA Speer Electronics, Inc.
-
RC0603FR-071KL
YAGEO
-
RMCF0603ZT0R00
Stackpole Electronics Inc
Neueste Nachrichten
- Taiwans erster MEMS-Drucksensorhersteller — Metrodyne Microsystems
-
2019.09.11
Bomkey Electronics Co., Ltd. ist der autorisierte Vertriebspartner für das gesamte Sortiment der Metrodyne-Drucksensoren
- Murata bringt weltweit ersten 10µF/50Vdc-MLCC in 0805-Baugröße für Automotive-Anwendungen auf den Markt
-
2025.08.15
Bomkey Electronics – autorisierter Vertriebspartner für Murata Automotive-Chipkondensatoren (Typ GCM21BE71H106KE02L)
- Murata startet die Serienproduktion der weltweit ersten 0402-Zoll-47µF-Multilayer-Keramikkondensatoren
-
2025.07.18
bomkey electronics vertreibt die neuen 0402-Zoll-47uF-Multilayer-Keramikkondensatoren GRM158C80E476ME01D und GRM158R60E476ME01D von Murata
- The server is busy. Please try again later.
-
2025.01.15
The server is busy. Please try again later.
Kontaktieren Sie uns
Mehr Produktinformationen erhalten!
- Günstige Preise jeden Tag, sorgenfreie Auswahl.
- Echte lizenzierte Waren, exzellenter Service.
- Direktlieferung aus mehreren Lagern, schnelle Lieferung.
- Vollständige Produktpalette für einfaches Einkaufen.
