Bomkey (HK) Elektronik GmbH!

    BNX029-01L: muRata Block-EMI-Störfilter (EMIFIL)

    BNX029-01L
    Teilenr.:
    BNX029-01L
    Hersteller:
    Murata Electronics
    Kategorie:
    Product information
    Verpackung:
    4-SMD, No Lead
    Datenblatt:
    BomKey ElektronikBNX029-01L.pdf
    Beschreibung:
    FILTER LC 100UF SMD 6.3V 20A
    Zahlung:
    Payment
    Versand:
    Shipping

    Artikel Details

    One requirement under the noise standard (CISPR 11*) that applies to medical and healthcare equipment deals with conductive noise (noise terminal voltage). The level of such conductive noise in the frequency band from 150 kHz to 30 MHz must comply with the standard.

    This article introduces an example of the use of a BNX series block type EMI filter to suppress conductive noise.

    * CISPR 11 is a noise standard that applies to medical and healthcare equipment.

    Image of CISPR11 Ex.

    Verification using DC-DC converter

    For verification, we prepared a measuring environment with a DC-DC converter as the EUT in order to evaluate conductive noise as specified in CISPR 11.

    (Note)
    The measurement system and measurement method stipulated by CISPR 11 are used to evaluate leakage of conductive noise into the DC power line.

    Image of Measurement System, EUT

    Conductive noise measurement results

    We observed the noise spectrum of frequencies that are integral multiples of 500 kHz, the switching frequency. In addition, noise exceeding the allowable level for CISPR 11 Class A Group 1 (industrial settings) was measured.

    It seems likely that noise due to switching by the DC-DC converter (switching noise) was transmitted onto the DC line.

    (Reference)
    Allowable noise values for Class A (industrial settings) and Class B (residential settings)

    Noise measurement resultsGraph of Noise measurement results

    Countermeasure using noise filter

    We inserted a BNX029-01 block type filter on the input side to suppress the conductive noise. The BNX029-01 is a filter product that comprises an LC π-type filter as a single component. This filter provides noise suppression over a wide frequency band from 15 kHz to 1 GHz. It can tolerate large currents of 20 A and is a suitable noise countermeasure for DC power lines.

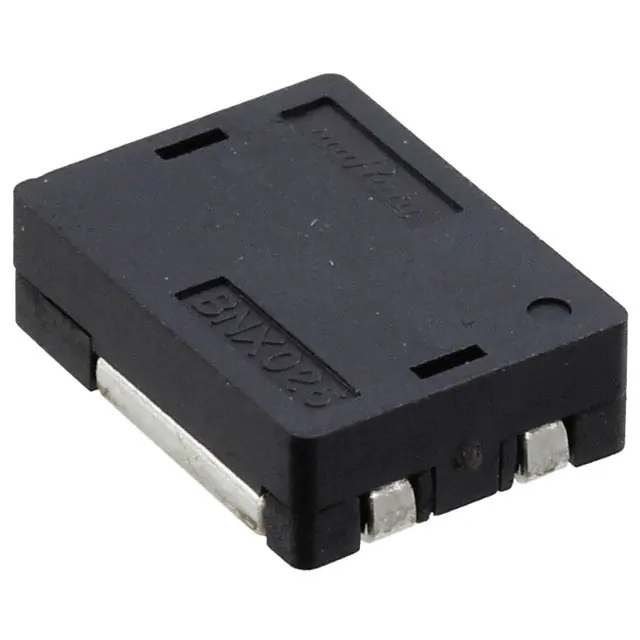

    Image of BNX029-01
    Part Number Size Rated Current Insertion Loss
    BNX029-01 12.1 × 9.1 mm 20 A Graph of Insertion Loss

    Countermeasure results

    Inserting the BNX029-01 on the input side brought noise into compliance with the allowable value over the entire frequency band.

    Graph of Countermeasure results

    Conclusion

    Noise due to switching by the DC-DC converter can be transmitted onto the DC line. This conductive noise can be suppressed by using a BNX series filter with a wide frequency band. The BNX series is a filter product that comprises an LC π-type filter as a single component, allowing noise countermeasures to be implemented quickly and using very limited space.

    Image of BNX029-01

    The following SMD/DIP type versions of BNX series products are available. Choose the one that best matches the usage environment and noise conditions.



    Insertion Loss Characteristics

    Insertion Loss Characteristics

    High insertion loss at wide frequency range.


    Part Number Type and Appearance Rated Voltage (Vdc) Rated Current (Adc) Insertion Loss (dB)
    BNX002-11 Standard Type BNX Standard TypeW12 x D11 x H12.5 / H13

    50 10 40dB min.
    1MHz to 1GHz
    BNX003-11
    High Rated Voltage
    150 10 40dB min.
    5MHz to 1GHz
    BNX005-11
    High Rated Voltage
    50 15 40dB min.
    1MHz to 1GHz
    BNX012-01
    Lower Profile BMX Lower ProfileW12 x D11 x H8
    50 15 40dB min.
    1MHz to 1GHz
    BNX012H01
    Automotive
    50 15 40dB min.
    1MHz to 1GHz
    BNX016-01 25 15 40dB min.
    100kHz to 1GHz
    BNX022-01L SMD Type BNX SMD TypeL12.1 x W9.1 x T3.1 /T3.5

    50 20 35dB min.
    1MHz to 1GHz
    BNX023-01L 100 20 35dB min.
    1MHz to 1GHz
    BNX024H01L
    Automotive
    50 20 35dB min.
    100kHz to 1GHz
    BNX025H01L
    Automotive
    25 20 35dB min.
    50kHz to 1GHz
    BNX026H01L
    Automotive
    50 20 35dB min.
    50kHz to 1GHz
    BNX027H01L
    Automotive
    16 20 35dB min.
    40kHz to 1GHz
    BNX028-01L 16 20 35dB min.
    30kHz to 1GHz
    BNX029-01L 6.3 20 35dB min.
    15kHz to 1GHz


    BNX029-01L Spezifikationen

    Murata Electronics BNX029-01L technische Spezifikationen, Eigenschaften, Parameter und Teile mit ähnlichen Spezifikationen wie Murata Electronics BNX029-01L.
    Eigenschaften
    Eigenschaftswert
    Hersteller
    Murata Electronics
    Serie:
    EMIFIL®, BNX
    Verpackung/Gehäuse:
    4-SMD, No Lead
    Verpackung:
    Tape & Reel (TR)
    Produktstatus:
    Active
    Typ:
    Low Pass
    Filterreihenfolge:
    5th
    Technologie:
    LC
    Anzahl der Kanäle:
    2
    Mitten-/Grenzfrequenz:
    -
    Dämpfungswert:
    35dB @ 15kHz ~ 1GHz
    Widerstand – Kanal (Ohm):
    0.00043
    Strom:
    20 A
    Werte:
    C = 100µF
    ESD-Schutz:
    No
    Betriebstemperatur:
    -40°C ~ 125°C
    Anwendungen:
    Data Lines for Mobile Devices
    Spannung - Nenn:
    6.3V
    Klasse:
    -
    Qualifizierung:
    -
    Montageart:
    Surface Mount
    Größe/Abmessung:
    0.476" L x 0.358" W (12.10mm x 9.10mm)
    Höhe:
    0.146" (3.70mm)
    Kategorie:
    Product information
    Alle zurücksetzen
    Ähnliche suchen
    Ergebnis:

    Die Beiträge

    SEMITEC Konstantstromdiode (CRD) Anwendungsreferenzhandbuch
    SEMITEC Konstantstromdiode (CRD) Anwendungsreferenzhandbuch

    LR44 vs. 357 Batterie: Unterschiede, Austauschbarkeit und wie man die richtige wählt
    LR44 vs. 357 Batterie: Unterschiede, Austauschbarkeit und wie man die richtige wählt

    Fragen Sie sich, ob LR44- und 357-Batterien gleich sind? Dieser umfassende Leitfaden erklärt die Unterschiede, Gemeinsamkeiten, Spannung, Kompatibilität und hilft Ihnen, die richtige Batterie für Geräte wie Uhren

    Lagerbestand: 9,973

    Menge Einzelpreis Gesamtpreis
    1+$2.800000$2.800000
    10+$2.600000$26.000000
    50+$2.400000$120.000000
    100+$2.250000$225.000000
    300+$2.050000$615.000000
    600+$1.900000$1140.000000
    1200+$1.780000$2136.000000

    Inventar:9,973
