DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRV 1-1521MDC DC CONVERTER +/-5V 1W |
1,005 |
|
Datenblatt |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 18V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
|
TRV 1-1522MDC DC CONVERTER +/-12V 1W |
3,517 |
|
Datenblatt |
TRV 1M (1W) | 9-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12V | 18V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 5 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) | - | - | CB, cURus | - |
|
BTB48-05S60DDC DC CONVERTER 5V 3W |
1,855 |
|
Datenblatt |
BTB (3W) | Module | Bulk | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm) | - | - | cUL, UL | - |
|
CC6-2412SR-EDC DC CONVERTER 12-15V 6W |
2,531 |
|
Datenblatt |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12 ~ 15V | - | - | - | 500mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
|
CC6-0503SF-EDC DC CONVERTER 3.3V 6W |
1,967 |
|
Datenblatt |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC6-0505SF-EDC DC CONVERTER 5V 5W |
2,449 |
|
Datenblatt |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|

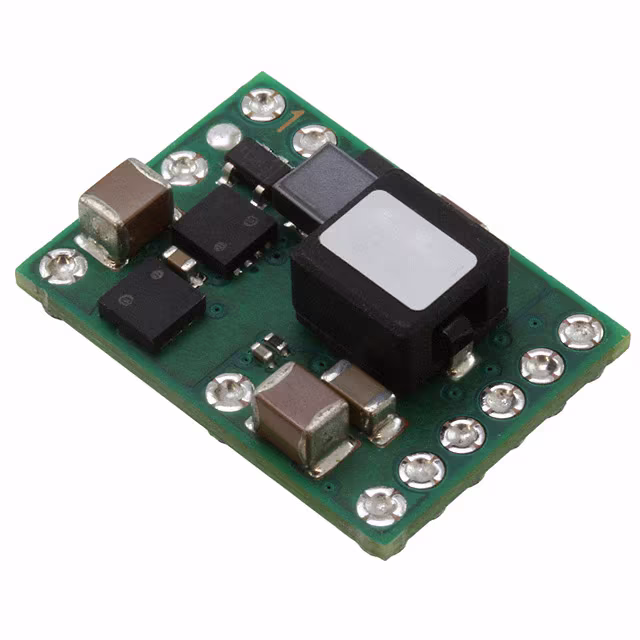

PTH04T240WASDC DC CONVERTER 0.69-3.6V |
2,523 |
|
Datenblatt |
PTH04040W | 11-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.87" L x 0.62" W x 0.35" H (22.1mm x 15.7mm x 8.9mm) | - | - | - | - |
|

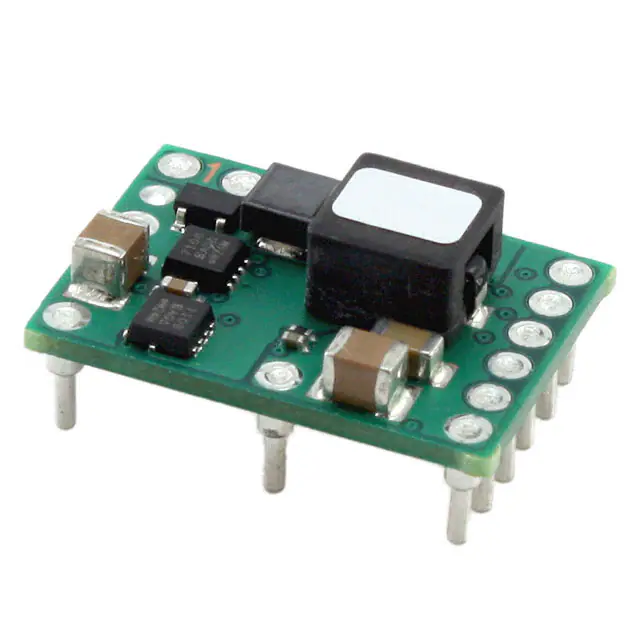

PTH04T240WADDC DC CONVERTER 0.69-3.6V |
3,940 |
|
Datenblatt |
PTH04040W | 11-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.2V | 5.5V | 0.69 ~ 3.6V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.87" L x 0.62" W x 0.33" H (22.1mm x 15.7mm x 8.4mm) | - | - | - | - |
|
PTN78000AASDC DC CONVERTER -15 TO -3V |
2,540 |
|
Datenblatt |
PTN78000A | 5-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 7V | 28.7V | -15 ~ -3V | - | - | - | 1.5A | - | - | ITE (Commercial) | OTP, UVLO | -40°C ~ 85°C | 84% | - | - | Surface Mount | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
TDN 1-4811WIDC DC CONVERTER 5V 1W |
1,811 |
|
Datenblatt |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 78% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
|
TDN 1-4812WIDC DC CONVERTER 12V 1.1W |
3,653 |
|
Datenblatt |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 90mA | 1.1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 81% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
EC3AW01HMDC DC CONVERTER 5V 3W |
2,146 |
|
Datenblatt |
EC3AW (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
MEZD41501A-ADC DC CONVERTER 5V |
4,944 |
|
Datenblatt |
- | 6-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 4.2V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | OTP | 0°C ~ 85°C | 97.5% | - | - | Through Hole | 1.06" L x 0.79" W x 0.21" H (27.0mm x 20.0mm x 5.4mm) | - | - | - | - |
|
|
MEZD41502A-ADC DC CONVERTER 5V |
3,504 |
|
Datenblatt |
- | 6-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 4.2V | 5V | - | - | - | 2A | - | - | ITE (Commercial) | OTP | 0°C ~ 85°C | 97.2% | - | - | Through Hole | 1.06" L x 0.79" W x 0.21" H (27.0mm x 20.0mm x 5.4mm) | - | - | - | - |
|
TMR 3-2412WIEDC DC CONVERTER 12V 3W |
1,752 |
|
Datenblatt |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
TMR 3-2410WIEDC DC CONVERTER 3.3V 2.3W |
1,674 |
|
Datenblatt |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
TMR 3-1211WIEDC DC CONVERTER 5V 3W |
1,822 |
|
Datenblatt |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
|
TMR 3-1210WIEDC DC CONVERTER 3.3V 2.3W |
3,169 |
|
Datenblatt |
TMR 3WIE (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 3.3V | - | - | - | 700mA | 2.3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | - | - |
|
EC4AW03HDC DC CONVERTER 15V 6W |
2,818 |
|
Datenblatt |
EC4AW (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|

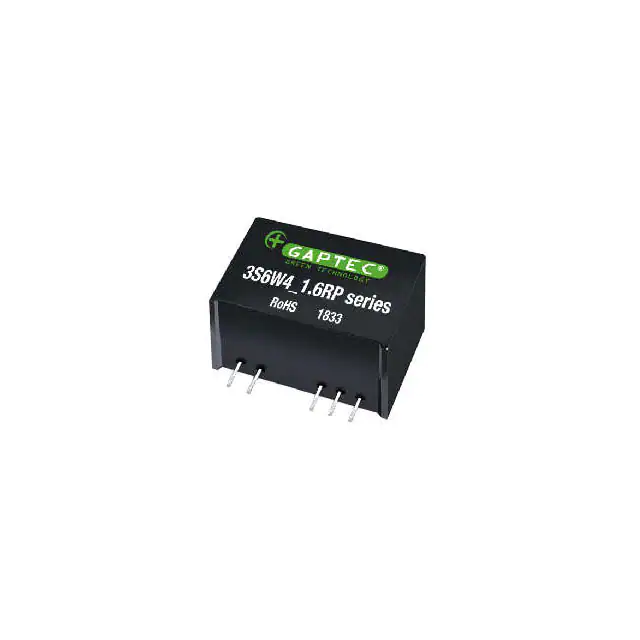

3S6W4_2405S1.6RPISOLATED MODULE DC DC CONVERTERS |
4,462 |
|
Datenblatt |
3S6W4_1.6RP (3W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 76°C (With Derating) | 82% | - | - | Through Hole | 0.67" L x 0.39" W x 0.48" H (17.0mm x 10.0mm x 12.2mm) | - | - | CE | 60950-1; 62368-1 |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
