DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

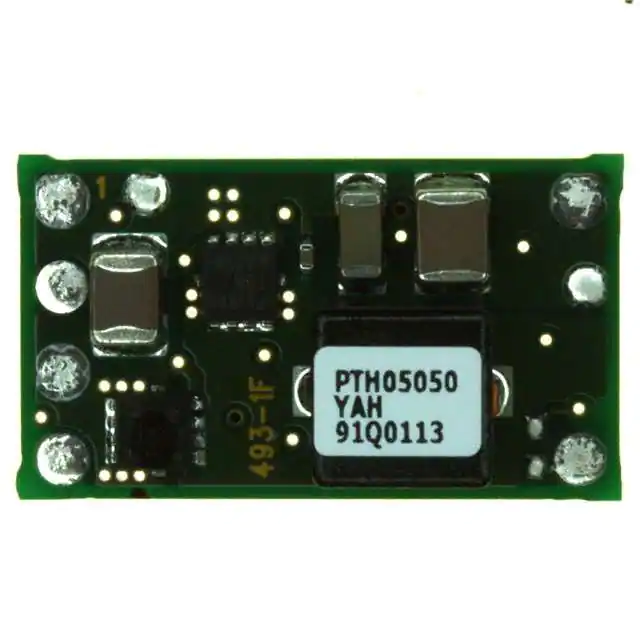

PTH05050YAHDC DC CONVERTER 0.55-1.8V |
2,303 |
|
Datenblatt |
PTH05050Y | 6-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.55 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.6mm) | - | - | - | - |
|
SUW32412CDC DC CONVERTER +/-12V |
1,244 |
|
Datenblatt |
SUW (3W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 130mA, 130mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
SUW30515BDC DC CONVERTER +/-15V 3W |
4,322 |
|
Datenblatt |
SUW (3W) | 7-SMD Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
SUS34805BDC DC CONVERTER 5V |
2,725 |
|
Datenblatt |
SUS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 600mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
SUS32405CDC DC CONVERTER 5V |
2,737 |
|
Datenblatt |
SUS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUS31205CDC DC CONVERTER 5V |
3,424 |
|
Datenblatt |
SUS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUS32405BDC DC CONVERTER 5V |
3,726 |
|
Datenblatt |
SUS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUS32405BPDC DC CONVERTER 5V 3W |
1,197 |
|
Datenblatt |
SUS (3W) | 6-SMD Module | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUS31215CDC DC CONVERTER 15V |
1,334 |
|
Datenblatt |
SUS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUS3053R3CDC DC CONVERTER 3.3V 2W |
3,586 |
|
Datenblatt |
SUS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 600mA | 2 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUW31215CDC DC CONVERTER +/-15V |
4,870 |
|
Datenblatt |
SUW (3W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
|
SUS34812CDC DC CONVERTER 12V |
4,169 |
|
Datenblatt |
SUS (3W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 250mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.94" L x 0.59" W x 0.26" H (24.0mm x 15.1mm x 6.5mm) | - | - | - | - |
|
EC3AB11HDC DC CONVERTER 5V 3W |
2,477 |
|
Datenblatt |
EC3AB (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | CE, cURus | - |
|
RS6-2405DDC DC CONVERTER +/-5V 6W |
1,398 |
|
Datenblatt |
ECONOLINE RS6 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 75°C | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TMR 4822DC DC CONVERTER +/-12V 2W |
4,133 |
|
Datenblatt |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
TEN 3-2423WINDC DC CONVERTER +/-15V 3W |
1,001 |
|
Datenblatt |
TEN 3WIN (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cCSAus | - |
|

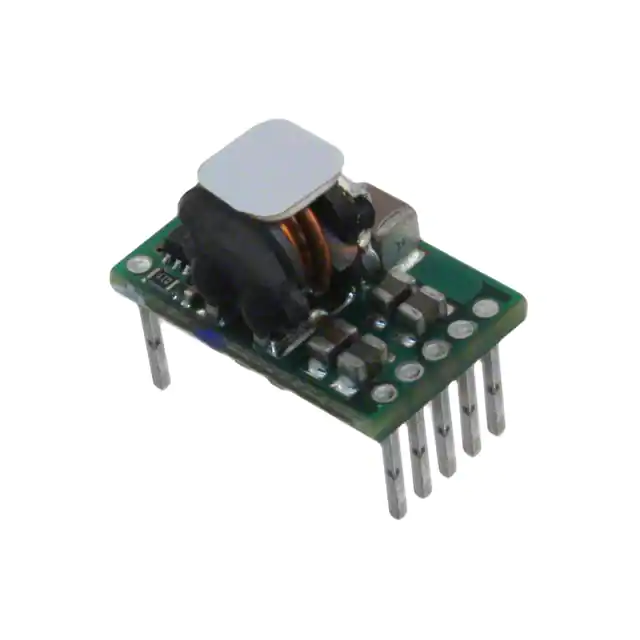

LDO10C-005W05-SJDC DC CONVERTER 0.59-5.1V 50W |
1,924 |
|
Datenblatt |
LDO10C (50W) | Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 13.8V | 0.59 ~ 5.1V | - | - | - | 10A | 50 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.65" L x 0.41" W x 0.52" H (16.5mm x 10.4mm x 13.1mm) | - | Enable, Active High | - | - |
|
LDO10C-005W05-VJDC DC CONVERTER 0.59-5.1V 50W |
1,624 |
|
Datenblatt |
LDO10C (50W) | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 13.8V | 0.59 ~ 5.1V | - | - | - | 10A | 50 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.46" L x 0.41" W x 0.65" H (11.7mm x 10.4mm x 16.5mm) | - | Enable, Active High | - | - |
|
RS3-2415SDC DC CONVERTER 15V 3W |
3,734 |
|
Datenblatt |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|
TMR 4-2422WI4 WATT DC/DC CONVERTER, INDUSTRI |
3,499 |
|
Datenblatt |
TMR 4WI (4W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 166mA, 166mA | 4 W | 1.92 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm) | - | - | CB, cURus, UL | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
