852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MEE3S0512SCDC DC CONVERTER 12V 3W |
3,913 |
|
Datenblatt |
MEE3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 250mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.56" L x 0.32" W x 0.40" H (14.2mm x 8.2mm x 10.2mm) | - | - | - | - |
|
SUW1R52412BDC DC CONVERTER +/-12V 24V 1.6W |
4,799 |
|
Datenblatt |
SUW (1.5W) | 6-SMD Module | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 65mA, 65mA | 1.6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Surface Mount | 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm) | - | - | - | - |
|
|
SUW1R51212BDC DC CONVERTER +/-12V 24V 1.6W |
2,582 |
|
Datenblatt |
SUW (1.5W) | 6-SMD Module | Box | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 65mA, 65mA | 1.6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Surface Mount | 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm) | - | - | - | - |
|
|
MEE3S1215SCDC DC CONVERTER 15V 3W |
4,765 |
|
Datenblatt |
MEE3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | 0.56" L x 0.32" W x 0.40" H (14.2mm x 8.2mm x 10.2mm) | - | - | - | - |
|
TEC 2-0922DC DC CONVERTER +/-12V 2W |
2,859 |
|
Datenblatt |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TES 1-2411VDC DC CONVERTER 5V 1W |
2,998 |
|
Datenblatt |
TES 1V (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | 0.64" L x 0.31" W x 0.31" H (16.3mm x 8.0mm x 8.0mm) | - | - | - | - |
|

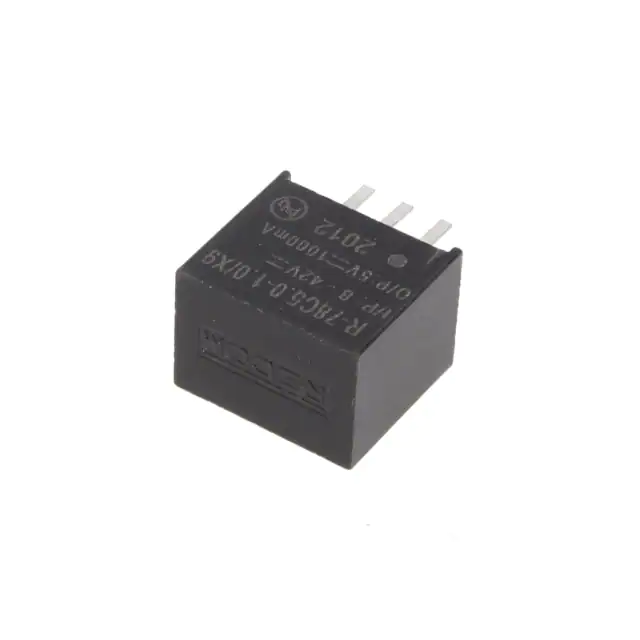

R-78C5.0-1.0/X9DC DC CONVERTER 5V 5W |
3,438 |
|
Datenblatt |
INNOLINE R-78C-1.0 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 8V | 42V | 5V | - | - | - | 1A | 5 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | - | - | EAC | - |
|
RI3-2405SDC DC CONVERTER 5V 3W |
3,553 |
|
Datenblatt |
ECONOLINE RI3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
EC4A12DC DC CONVERTER 12V 5.6W |
3,495 |
|
Datenblatt |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 470mA | 5.6 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 84% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEC 2-2423DC DC CONVERTER +/-15V 2W |
4,849 |
|
Datenblatt |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 86% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TEC 2-2422DC DC CONVERTER +/-12V 2W |
1,310 |
|
Datenblatt |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
|
TEC 2-1222DC DC CONVERTER +/-12V 2W |
1,513 |
|
Datenblatt |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|
TES 1-1222VDC DC CONVERTER +/-12V 1W |
2,734 |
|
Datenblatt |
TES 1V (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.64" L x 0.31" W x 0.31" H (16.3mm x 8.0mm x 8.0mm) | - | - | - | - |
|
TMV 2-2415SHIDC DC CONVERTER 15V 2W |
1,844 |
|
Datenblatt |
TMV 2HI (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 132mA | 2 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
TES 1-0523VDC DC CONVERTER +/-15V 1W |
1,416 |
|
Datenblatt |
TES 1V (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.64" L x 0.31" W x 0.31" H (16.3mm x 8.0mm x 8.0mm) | - | - | - | - |
|
|
TES 1-2422VDC DC CONVERTER +/-12V 1W |
3,850 |
|
Datenblatt |
TES 1V (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | 0.64" L x 0.31" W x 0.31" H (16.3mm x 8.0mm x 8.0mm) | - | - | - | - |
|
|
TES 1-1221VDC DC CONVERTER +/-5V 1W |
2,553 |
|
Datenblatt |
TES 1V (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 76% | - | - | Surface Mount | 0.64" L x 0.31" W x 0.31" H (16.3mm x 8.0mm x 8.0mm) | - | - | - | - |
|
RKZ-2415S/HPDC DC CONVERTER 15V 2W |
4,844 |
|
Datenblatt |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 132mA | 2 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
R2D-0515DC DC CONVERTER +/-15V 2W |
3,498 |
|
Datenblatt |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|
|
R2D-1209DC DC CONVERTER +/-9V 2W |
3,179 |
|
Datenblatt |
ECONOLINE R2D (2W) | 10-SMD Module, 6 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 111mA, 111mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
