852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CC1R5-0512SF-EDC DC CONVERTER 12-15V 1W |
4,503 |
|
Datenblatt |
CC-E (1.5W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 12 ~ 15V | - | - | - | 125mA | 1 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
EC2SA-48S05NDC DC CONVERTER 5V 2W |
3,913 |
|
Datenblatt |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 79% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE | 60950-1 |
|
|
EC2SA-48D15NDC DC CONVERTER +/-15V 2W |
3,448 |
|
Datenblatt |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE | 60950-1 |
.jpg)
|
RJZ-0505SDC DC CONVERTER 5V 2W |
2,843 |
|
Datenblatt |
ECONOLINE RJZ (2W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.1mm) | - | - | - | - |
|
|
RJZ-1224SDC DC CONVERTER 24V 2W |
2,389 |
|
Datenblatt |
ECONOLINE RJZ (2W) | 14-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.78" L x 0.39" W x 0.28" H (19.7mm x 10.0mm x 7.1mm) | - | - | - | - |
|
RI3-0515SDC DC CONVERTER 15V 3W |
3,485 |
|
Datenblatt |
ECONOLINE RI3 (3W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 200mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.4mm x 7.6mm x 10.2mm) | - | - | - | - |
|
R-78B1.8-1.0DC DC CONVERTER 1.8V 2W |
4,819 |
|
Datenblatt |
INNOLINE R-78B-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 26V | 1.8V | - | - | - | 1A | 2 W | - | ITE (Commercial), Medical | OTP, SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.33" W x 0.69" H (11.5mm x 8.5mm x 17.5mm) | - | - | - | - |
|
R05CT05S-CTDC DC CONVERTER 5V 500MW |
4,364 |
|
Datenblatt |
ECONOLINE R05CT05S (0.5W) | 16-SOIC (0.295", 7.50mm Width) | Bag | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 100mA | 500 mW | 5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 140°C (With Derating) | 60% | - | - | Surface Mount | 0.41" L x 0.30" W x 0.10" H (10.3mm x 7.5mm x 2.7mm) | 16-SOIC | - | - | - |
|
RKZ-2405S/HDC DC CONVERTER 5V 2W |
3,735 |
|
Datenblatt |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 4 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
|
EC2SA-24D15NDC DC CONVERTER +/-15V 2W |
1,684 |
|
Datenblatt |
EC2SA (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | CE | 60950-1 |
|
IH2415SHDC DC CONVERTER +/-15V 2W |
4,448 |
|
Datenblatt |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
IH1224SHDC DC CONVERTER +/-24V 2W |
2,610 |
|
Datenblatt |
IH (2W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
NTV1215MCDC DC CONVERTER +/-15V 1W |
1,098 |
|
Datenblatt |
NTV (1W) | 22-SMD Module, 10 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm) | - | - | - | - |
|
EC3A11HDC DC CONVERTER 5V 3W |
1,569 |
|
Datenblatt |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|

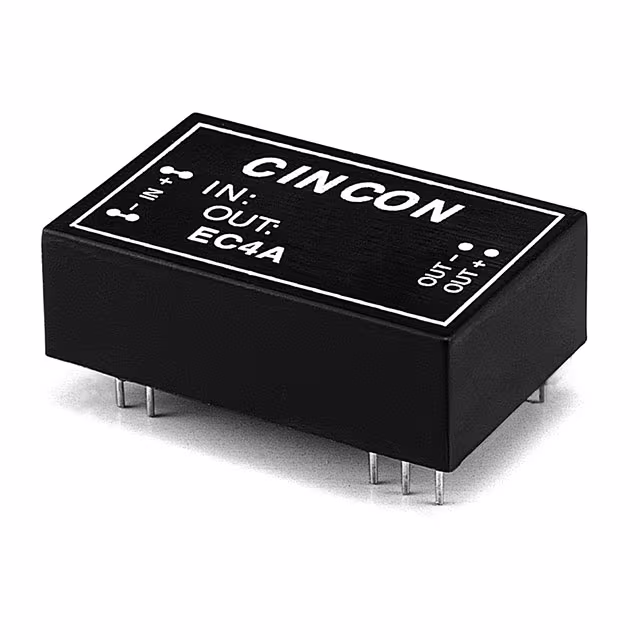

EC4A26DC DC CONVERTER +/-5V 5W |
1,785 |
|
Datenblatt |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 36V | 72V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
ITW2415SDC DC CONVERTER +/-15V 1W |
3,954 |
|
Datenblatt |
ITW (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.67" L x 0.30" W x 0.43" H (17.0mm x 7.6mm x 11.0mm) | - | - | - | 62368-1 |
|
|
EC3A01HDC DC CONVERTER 5V 3W |
3,253 |
|
Datenblatt |
EC3A (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 6V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 75% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
EC3A23H-EDC DC CONVERTER 15V 3W |
2,329 |
|
Datenblatt |
EC3A-E (3W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, cURus | 60950-1 |
|
|
EC4A02DC DC CONVERTER 12V 5.6W |
1,593 |
|
Datenblatt |
EC4A (6W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 470mA | 5.6 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEC 2-1211DC DC CONVERTER 5V 2W |
3,995 |
|
Datenblatt |
TEC 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
