852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THN 20-2411WIR20 WATT DC/DC CONVERTER, RAILWAY |
1,872 |
|
Datenblatt |
THN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5.1V | - | - | - | 4A | 20 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 50155; 62368-1 |
|

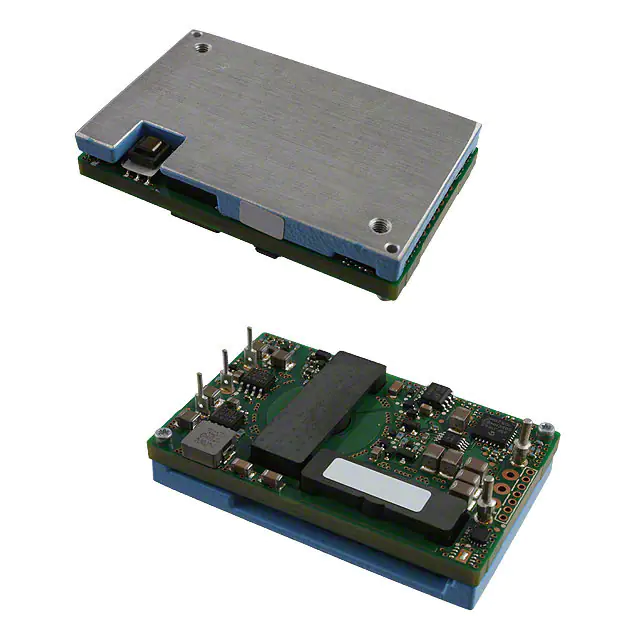

QBVW033A0B41ZDC DC CONVERTER 12V 400W |
4,594 |
|
Datenblatt |
Barracuda™ QBVW033A0B (400W) | 5-DIP Module, 1/4 Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 33A | 400 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm) | - | Enable, Active Low | - | - |
|
TEN 25-2423DC DC CONVERTER +/-15V 30W |
3,991 |
|
Datenblatt |
TEN 25 (30W) | 7-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.60" W x 0.37" H (50.8mm x 40.6mm x 9.5mm) | - | - | - | - |
|
CHB75-24S12DC DC CONVERTER 12V 75W |
2,404 |
|
Datenblatt |
CHB75 (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
THN 30-1210DC DC CONVERTER 3.3V 23W |
2,063 |
|
Datenblatt |
THN 30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 7A | 23 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
BYH12-100S02DC DC CONVERTER 100V 200MW |
3,429 |
|
Datenblatt |
BYH | 24-DIP Module, 5 Leads | Bulk | Active | High Voltage - Isolated Module | 1 | 11V | 16V | 100V | - | - | - | 2mA | 200 mW | 250 V | ITE (Commercial) | Adjustable Output | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | 1.28" L x 0.80" W x 0.41" H (32.6mm x 20.4mm x 10.3mm) | - | - | - | - |
|
TRI 20-2415DC DC CONVERTER 24V 20W |
4,986 |
|
Datenblatt |
TRI 20 (20W) | 5-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 840mA | 20 W | 8 kV | ITE (Commercial) | - | -40°C ~ 76°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 12.0mm) | - | - | CB, cURus | - |
|
THM 30-1211DC DC CONVERTER 5V 30W |
2,068 |
|
Datenblatt |
THM 30 (30W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 6A | 30 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 88.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|

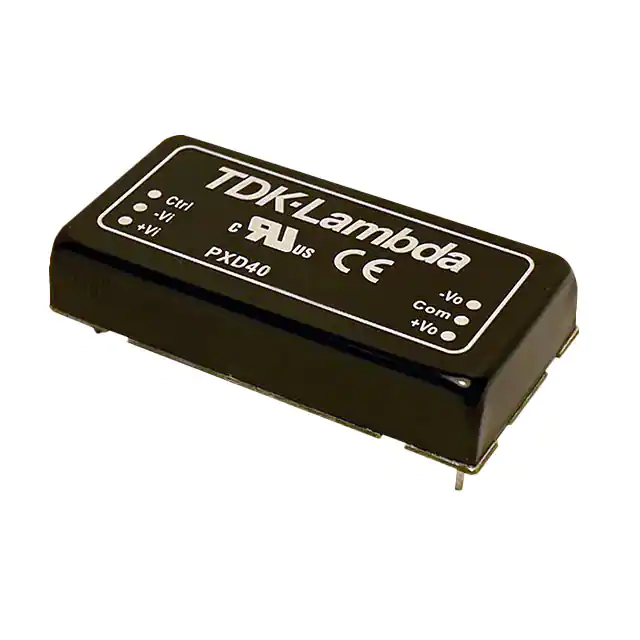

PXD40-24WS12DC DC CONVERTER 12V 40W |
3,657 |
|
Datenblatt |
PXD40 (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, UKCA | 62368-1 |
|
TEN 20-2413WIRDC DC CONVERTER 15V 20W |
4,505 |
|
Datenblatt |
TEN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.33A | 20 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
EC7BW18-72S05DC DC CONVERTER 5V 20W |
4,844 |
|
Datenblatt |
EC7BW18 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 8.5V | 160V | 5V | - | - | - | 4A | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CB, CE, cURus | 50155; 62368-1 |
|
RGB4W500W033A-003DC/DC CONVERTER 3.3-24V 500W |
3,492 |
|
Datenblatt |
RGB (500W) | 10-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 18V | 60V | 3.3 ~ 24V | - | - | - | 33A | 500 W | - | - | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 98% | - | - | Through Hole | 1.95" L x 1.50" W x 0.51" H (49.5mm x 38.1mm x 13.0mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | - |
|

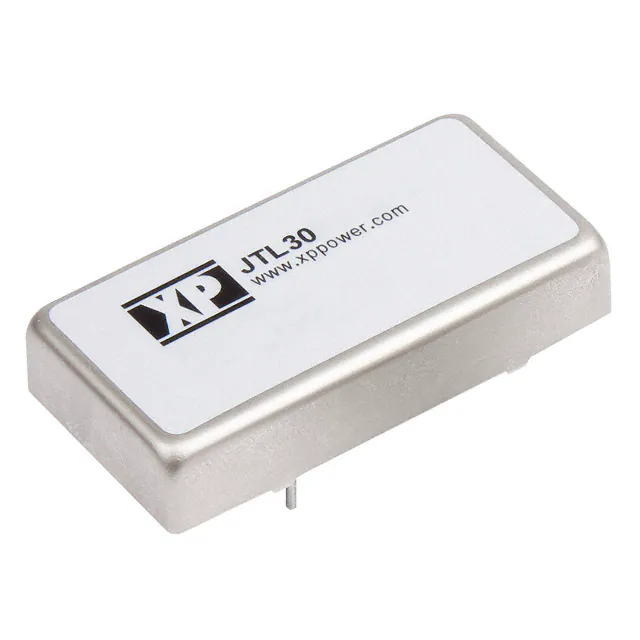

JTL3024T0512DC DC CONVERTER 5V +/-12V 30W |
3,048 |
|
Datenblatt |
JTL (30W) | 7-DIP Module | Tube | Active | Isolated Module | 3 | 9V | 36V | 5V | 12V | -12V | - | 4A, 420mA, 420mA | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 75°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
.jpg)
|
MGFW400515DC DC CONVERTER +/-15V 30W |
4,856 |
|
Datenblatt |
MGFW (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 13V | 15V or 30V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
|

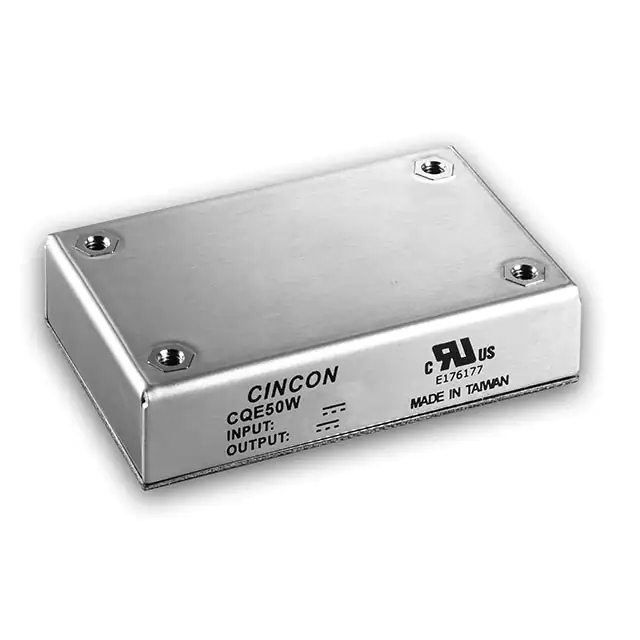

CQE50W-48S24DC DC CONVERTER 24V 50W |
2,212 |
|
Datenblatt |
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 90.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
VTM48ET240T012A00DC DC CONVERTER 24V 300W |
4,641 |
|
Datenblatt |
VI Chip® VTM® | Module | Bulk | Active | Voltage Transformation Module | 1 | 26V | 55V | 24V | - | - | - | 12A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 125°C | 95.5% | - | - | Through Hole | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
CHB75W-24S24DC DC CONVERTER 24V 75W |
1,732 |
|
Datenblatt |
CHB75W (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 3.12A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
THN 30-7215WIR50 WATT DC/DC CONVERTER, RAILWAY |
1,185 |
|
Datenblatt |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 1.25A | 30 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|
TEN 30-2431WINDC DC CONVERTER 5V +/-12V 30W |
2,158 |
|
Datenblatt |
TEN 30WIN (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 3 | 9V | 36V | 5V | 12V | -12V | - | 4A, 416mA, 416mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 75°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
TEN 20-2422WIRDC DC CONVERTER +/-12V 20W |
2,149 |
|
Datenblatt |
TEN 20WIR (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
