DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THM 15-2423DC DC CONVERTER +/-15V 15W |
2,685 |
|
Datenblatt |
THM 15 (15W) | 5-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
.jpg)
|
MGFW404812DC DC CONVERTER +/-12V 41W |
3,429 |
|
Datenblatt |
MGFW (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 76V | 12V or 24V | -12V | - | - | 1.7A, 1.7A | 41 W | 1.5 kV | ITE (Commercial) | Bridgeable | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CE, cURus, DEMKO | - |
|

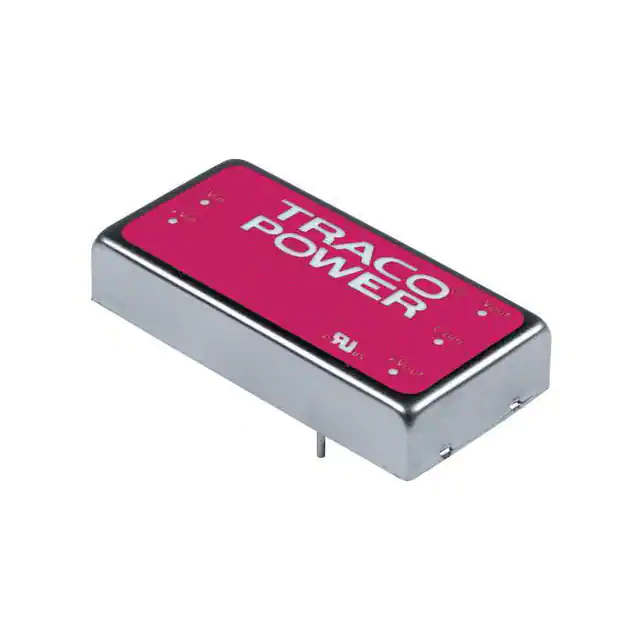

TEN 15-1212DC DC CONVERTER 12V 15W |
1,043 |
|
Datenblatt |
TEN 15 (15W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1.25A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 40-1210EDC DC CONVERTER 3.3V 40W |
3,594 |
|
Datenblatt |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 12.2A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|
|
TEN 40-2423EDC DC CONVERTER +/-15V 40W |
2,163 |
|
Datenblatt |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 1.333A, 1.333A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|
|
TEN 40-1211EDC DC CONVERTER 5V 40W |
3,500 |
|
Datenblatt |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|

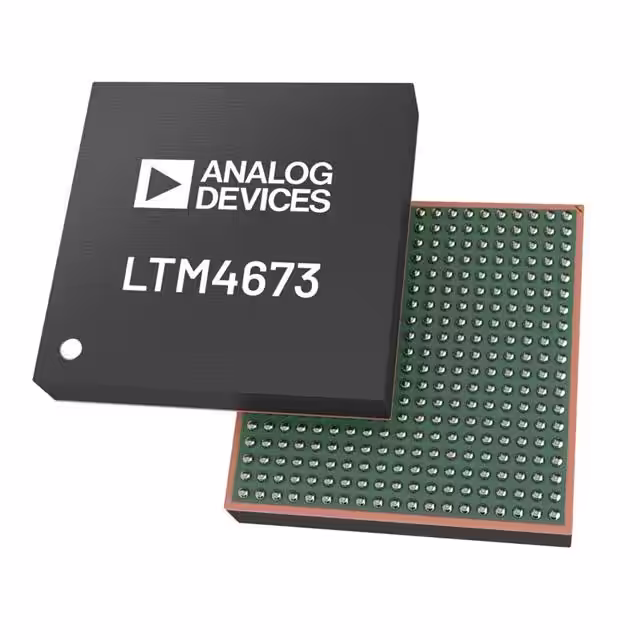

LTM4673IY#PBFHIGH DENSITY QUAD OUTPUT MODULE |
4,251 |
|
Datenblatt |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

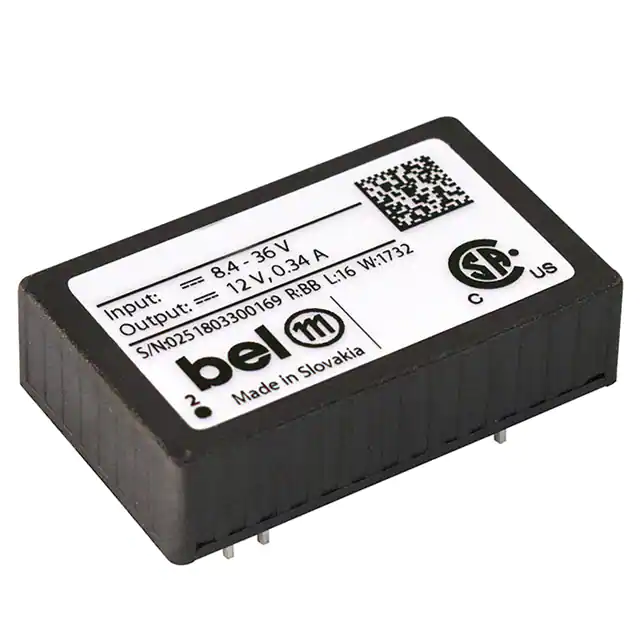

20IMX4-0505-8GDC DC CONVERTER +/-5V 4W |
4,698 |
|
Datenblatt |
Melcher IMX4 (4W) | 24-DIP Module, 13 Leads | Tube | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 5V | -5V | - | - | 350mA, 350mA | 4 W | 2 kV | ITE (Commercial), Railway | OTP, OVP, SCP | -40°C ~ 85°C | 81% | - | - | Through Hole | 1.30" L x 0.79" W x 0.33" H (33.0mm x 20.1mm x 8.4mm) | - | - | - | - |
|
THL 25-1212DC DC CONVERTER 12V 25W |
4,806 |
|
Datenblatt |
THL 25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 2.09A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
THL 25-4811DC DC CONVERTER 5V 25W |
4,005 |
|
Datenblatt |
THL 25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
RP15-243.3SAWDC DC CONVERTER 3.3V 15W |
2,126 |
|
Datenblatt |
POWERLINE RP15-AW (15W) | 6-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 4A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
I7C4W008A120V-PF3-RDC DC CONVERTER 10-48V 300W |
2,642 |
|
Datenblatt |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 384 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 60950-1; 62368-1 |
|
|
I7C4W012A050V-0F3-RDC DC CONVERTER 5-28V 300W |
4,931 |
|
Datenblatt |
I7c (300W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 36V | 5 ~ 28V | - | - | - | 12A | 336 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C | 96% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 60950-1; 62368-1 |
|
|
I7C4W012A050V-PC3-RDC DC CONVERTER 5-28V 300W |
4,195 |
|
Datenblatt |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 28V | - | - | - | 12.5A | 350 W | - | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C | 96% | - | - | Through Hole | 1.45" L x 1.34" W x 0.51" H (36.8mm x 34.0mm x 13.0mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 60950-1; 62368-1 |
|
|
I7C2W020A120V-0F3-RDC DC CONVERTER 8-24V 300W |
2,882 |
|
Datenblatt |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 36V | 8 ~ 24V | - | - | - | 20A | 480 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 60950-1; 62368-1 |
|
CHB50-48S12DC DC CONVERTER 12V 50W |
2,686 |
|
Datenblatt |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 4.16A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
THN 30-2415WIR34 WATT DC/DC CONVERTER, RAILWAY |
4,054 |
|
Datenblatt |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 1.25A | 30 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|
|
THN 15-3615UIR15 WATT RAILWAY DC/DC CONVERTER |
1,626 |
|
Datenblatt |
THN 15UIR (15W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 75V | 24V | - | - | - | 625mA | 15 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|

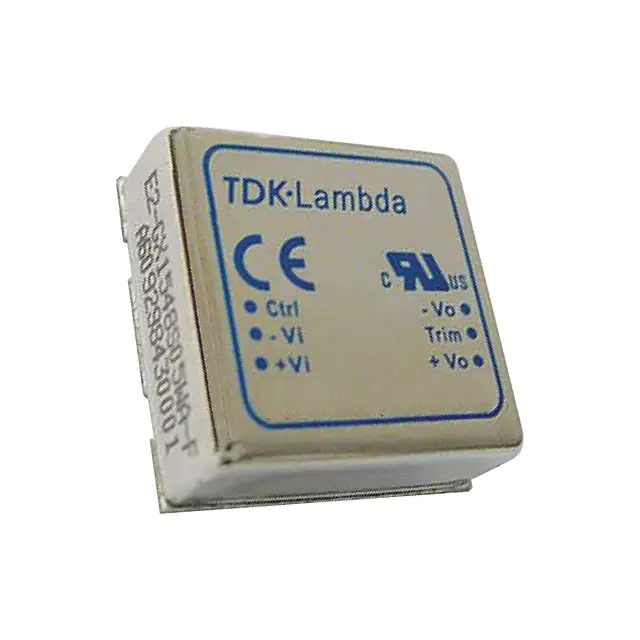

PXB15-48WD05/NDC DC CONVERTER +/-5V 15W |
4,702 |
|
Datenblatt |
PXB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | - | - |
|
THM 15-2415WIDC DC CONVERTER 24V 15W |
2,379 |
|
Datenblatt |
THM 15WI (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 625mA | 15 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
