DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPA150E-4824SEW/PDC DC CONVERTER 24V 144W |
3,119 |
|
Datenblatt |
RPA150E (150W) | Eighth Brick | Box | Active | Isolated Module | 1 | 9V | 60V | 24V | - | - | - | 6A | 144 W | 3 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.53" H (58.4mm x 22.8mm x 13.5mm) | Eighth Brick | Enable, Active High | cURus | 62368-1 |
|
FS02-12DC DC CONVERTER 200V 10W |
3,588 |
|
Datenblatt |
XP EMCO - FS (10W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 200V | - | - | - | 50mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | 2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm) | - | - | - | - |
|
HQA2W085W120V-007-SDC DC CONVERTER 12V 85W |
3,484 |
|
Datenblatt |

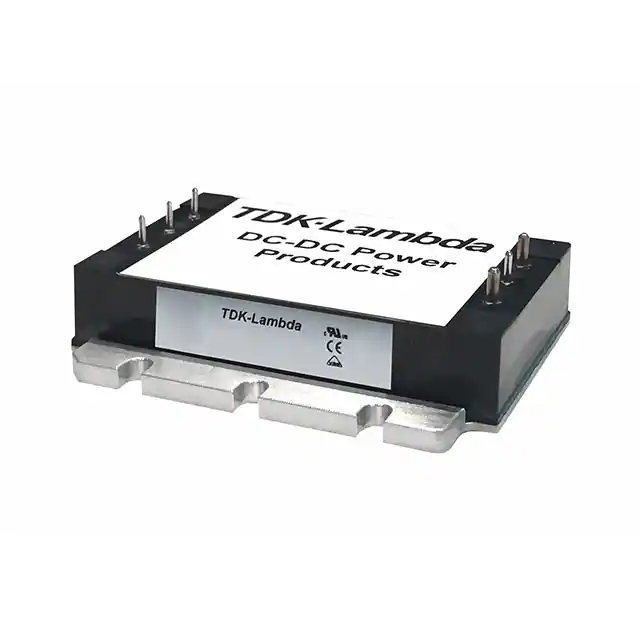

HQA85 (85W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 40V | 12V | - | - | - | 7.1A | 85 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 115°C | 90% | - | - | Through Hole | 2.39" L x 2.20" W x 0.50" H (60.6mm x 55.9mm x 12.7mm) | - | Enable, Active Low | CE | - |
|
CFB600-24S28DC DC CONVERTER 28V 602W |
4,474 |
|
Datenblatt |

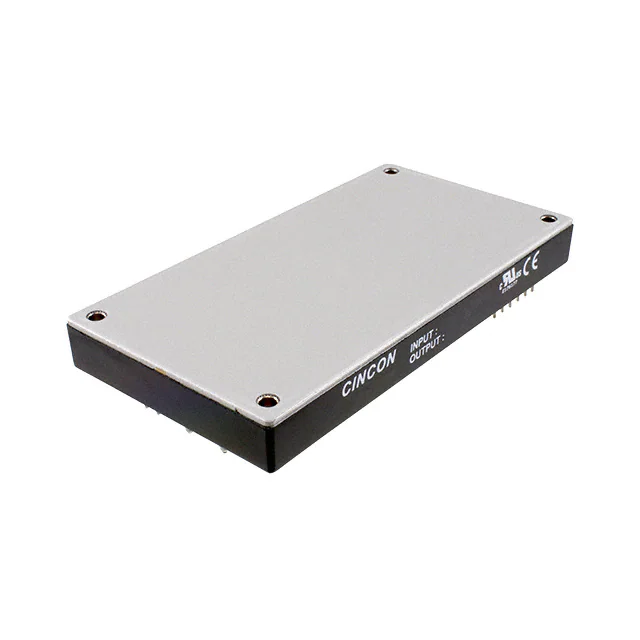

CFB600 (600W) | Full Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 21.5A | 602 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | Full Brick | Enable, Active Low | CE, cURus | 60950-1 |
|
FS05CT-12DC DC CONVERTER +/-250V 10W |
2,763 |
|
Datenblatt |

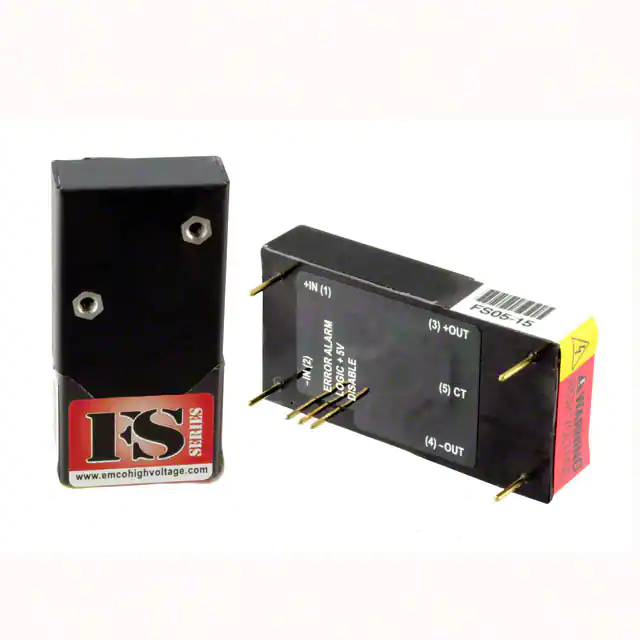

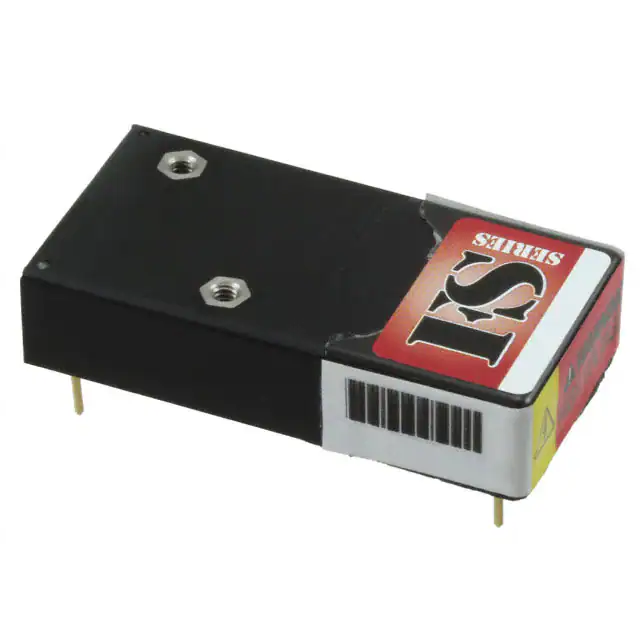

XP EMCO - FS (10W) | 8-DIP Module | Box | Active | High Voltage - Isolated Module | 2 | 0.7V | 12V | 250V | -250V | - | - | 20mA, 20mA | 10 W | 2.5 kV | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | 85% | - | - | Through Hole | 2.25" L x 1.12" W x 0.50" H (57.2mm x 28.5mm x 12.7mm) | - | - | - | - |
|
MHV12-1.5K1300PDC DC CONVERTER 1500V 2W |
2,535 |
|
Datenblatt |
MHV | 7-SIP Module | Bulk | Active | High Voltage - Non-Isolated Module | 1 | 10.8V | 16.5V | 1500V | - | - | - | 1.3mA | 2 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -10°C ~ 60°C (With Derating) | - | - | - | Through Hole | 4.33" L x 0.47" W x 0.78" H (110.0mm x 12.0mm x 19.8mm) | - | Enable, Active High | cURus | - |
|
DCM3623TA5N13B4T70DC DC CONVERTER 12V 240W |
3,323 |
|
Datenblatt |
VI Chip® DCM® (240W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 43V | 154V | 12V | - | - | - | 20A | 240 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 92.5% | - | - | Through Hole | 1.52" L x 0.90" W x 0.28" H (38.72mm x 22.8mm x 7.2mm) | - | - | - | - |
|
BCM380P475T800A30DC DC CONVERTER 47.5V 800W |
3,746 |
|
Datenblatt |
VI Chip® BCM® (800W) | 9-DIP Module | Tray | Active | Bus Converter Module | 1 | 260V | 410V | 47.5V | - | - | - | 16A | 800 W | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97.5% | - | - | Through Hole | 2.49" L x 0.90" W x 0.29" H (63.3mm x 22.8mm x 7.3mm) | - | - | - | - |
|
Q20-5DC DC CONVERTER 2000V 500MW |
1,008 |
|
Datenblatt |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 2000V | - | - | - | 250µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
|
|
DCM3623TA5N53B4T00DC DC CONVERTER 48V 240W |
4,951 |
|
Datenblatt |
VI Chip® DCM® (240W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 43V | 154V | 48V | - | - | - | 5A | 240 W | 3 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 90.7% | - | - | Through Hole | 1.52" L x 0.90" W x 0.28" H (38.72mm x 22.8mm x 7.2mm) | - | - | - | - |
|
E30DC DC CONVERTER 3000V 3W |
2,833 |
|
Datenblatt |

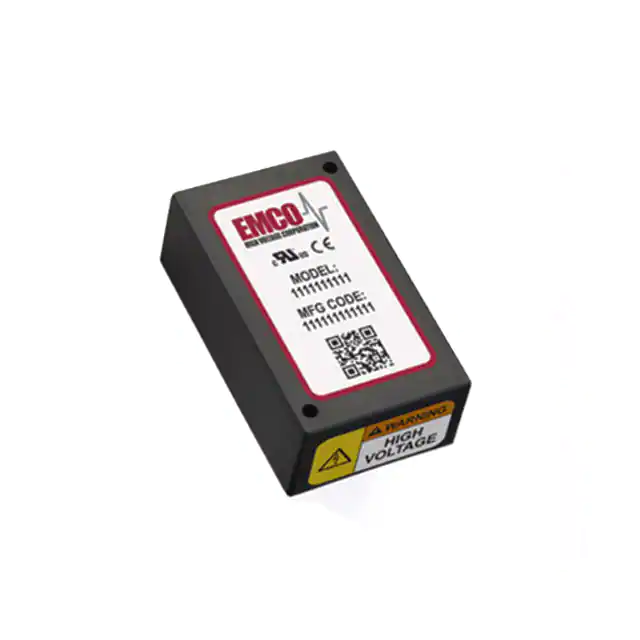

XP EMCO - E (3W) | 5-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 0.7V | 15V | 3000V | - | - | - | 1mA | 3 W | 3.5 kV | ITE (Commercial) | Proportional Output | -10°C ~ 60°C | - | - | - | Through Hole | 2.50" L x 1.50" W x 0.85" H (63.5mm x 38.1mm x 21.6mm) | - | - | - | - |
|
TEP 160-2412WIRDC DC CONVERTER 12V 144W |
1,458 |
|
Datenblatt |
TEP 160WIR (196W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 12A | 144 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | - | - |
|
CFB800-24S28DC/DC CONVERTER |
1,274 |
|
Datenblatt |

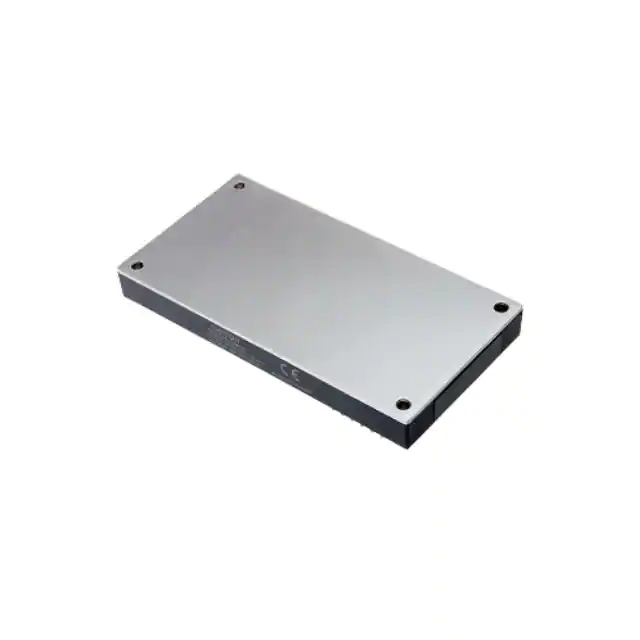

CFB800 (800W) | Full Brick | Box | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 28.5A | 800 W | 1.5 kV | ITE (Commercial) | Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | Full Brick | Enable, Active Low | CE | 62368-1 |
|
|
DCM3623T50T31A6T00DC DC CONVERTER 28V 160W |
4,393 |
|
Datenblatt |
VI Chip® DCM® (160W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 28V | - | - | - | 5.8A | 160 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 91.6% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
|
DCM3623T50T31A6T70DC DC CONVERTER 28V 162W |
2,182 |
|
Datenblatt |
VI Chip® DCM® (160W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 28V | - | - | - | 5.8A | 162 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 91.8% | - | - | Through Hole | 1.52" L x 0.90" W x 0.28" H (38.72mm x 22.8mm x 7.2mm) | - | - | - | - |
|
|
BCM6123TD1E5126T00DC DC CONVERTER 47.5V |
4,076 |
|
Datenblatt |
VI Chip® BCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 260V | 410V | 47.5V | - | - | - | 25.7A | - | 4.242 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 97.7% | - | - | Through Hole | - | - | - | - | - |
|
|
DCM3623T50T13A6T00DC DC CONVERTER 12V 160W |
2,319 |
|
Datenblatt |
VI Chip® DCM® (160W) | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 12V | - | - | - | 13.4A | 160 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 91.4% | - | - | Through Hole | 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm) | - | - | - | - |
|
MPRM28AT360M120A00MIL PRM DC-DC CONVERTER, 50VIN 3 |
1,929 |
|
Datenblatt |
- | 56-DIP Module | Tray | Active | Pre-Regulator Module | 1 | 14V | 50V | 26 ~ 50V | - | - | - | 5.56A | 278 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote Sense, Standby Output | -55°C ~ 125°C (With Derating) | 95.5% | - | - | Through Hole | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | CE | - |
|
CFB400W-24S48DC DC CONVERTER 48V 399W |
4,833 |
|
Datenblatt |
CFB400W (400W) | Full Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 8.3A | 399 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 100°C (With Derating) | 86.5% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | Full Brick | Enable, Active Low | CE, cURus | 60950-1 |
|
|
Q30-5DC DC CONVERTER 3000V 500MW |
3,751 |
|
Datenblatt |
XP EMCO - Q (0.5W) | 6-DIP Module, 5 Leads | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 3000V | - | - | - | 167µA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 60°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
