DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
I7C4W008A120V-0C3-RDC-DC CONVERTER 9.6-48V 300W |
1,881 |
|
Datenblatt |
I7c (300W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 9.6 ~ 48V | - | - | - | 8A | 384 W | - | ITE (Commercial) | Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.51" H (36.8mm x 34.0mm x 13.0mm) | Sixteenth Brick | - | CE, CSA, UL | 60950-1; 62368-1 |
|
I7C4W012A050V-0F1-RDC DC CONVERTER 5-28V 300W |
3,787 |
|
Datenblatt |
I7c (300W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 28V | - | - | - | 12.5A | 300 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1; 60950-1 |
|
CHB50-24S12DC DC CONVERTER 12V 50W |
4,985 |
|
Datenblatt |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.16A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
PXD20-24S12DC DC CONVERTER 12V 20W |
4,772 |
|
Datenblatt |
PXD (20W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | - | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THM 15-2411DC DC CONVERTER 5V 15W |
3,483 |
|
Datenblatt |
THM 15 (15W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 40-2412EDC DC CONVERTER 12V 40W |
1,851 |
|
Datenblatt |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|
CHB50W-24S12DC DC CONVERTER 12V 50W |
3,400 |
|
Datenblatt |
CHB50W (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 4.16A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
IRE-24/5-Q12P-CDC DC CONVERTER 24V 120W |
4,951 |
|
Datenblatt |
IRE-Q12 (120W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 5A | 120 W | 2.828 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 92% | - | - | Through Hole | 2.41" L x 1.01" W x 0.50" H (61.2mm x 25.7mm x 12.7mm) | Eighth Brick | Enable, Active High | cURus | - |
|
|
IRE-5/24-Q12P-CDC DC CONVERTER 5V 120W |
3,361 |
|
Datenblatt |
IRE-Q12 (120W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 24A | 120 W | 2.828 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 92% | - | - | Through Hole | 2.41" L x 1.01" W x 0.50" H (61.2mm x 25.7mm x 12.7mm) | Eighth Brick | Enable, Active High | cURus | - |
|
VTM48EF120T025A00DC DC CONVERTER 12V 300W |
3,696 |
|
Datenblatt |
VI Chip® VTM® | Module | Tray | Active | Voltage Transformation Module | 1 | 26V | 55V | 12V | - | - | - | 25A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 125°C | 96% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
|
VTM48EF480T006A00DC DC CONVERTER 48V 300W |
1,099 |
|
Datenblatt |
VI Chip® VTM® | Module | Tray | Active | Voltage Transformation Module | 1 | 26V | 55V | 48V | - | - | - | 6.3A | 300 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 125°C | 92.8% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|

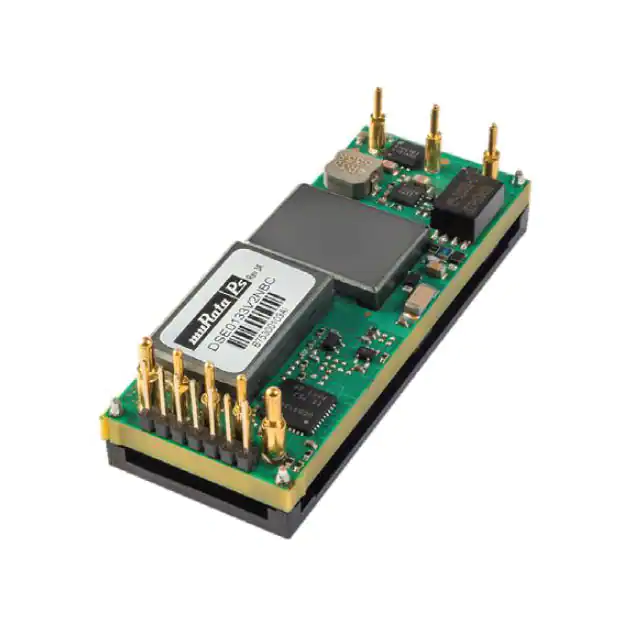

DSE0133V2NBCDC DC CONVERTER 12V 396W |
3,072 |
|
Datenblatt |
DSE (400W) | Eighth Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 95.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.52" H (58.4mm x 22.9mm x 13.2mm) | Eighth Brick | - | CE, cURus | - |
|

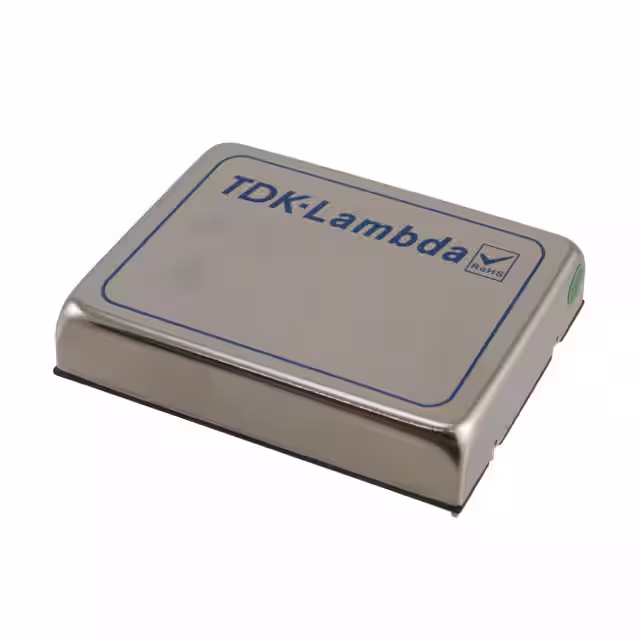

PXE20-24WD05DC DC CONVERTER +/-5V 20W |
4,788 |
|
Datenblatt |
PXE (20W) | 8-DIP Module, 7 Leads | Bulk | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 2A, 2A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C | 79% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 8.6mm) | - | - | - | - |
|

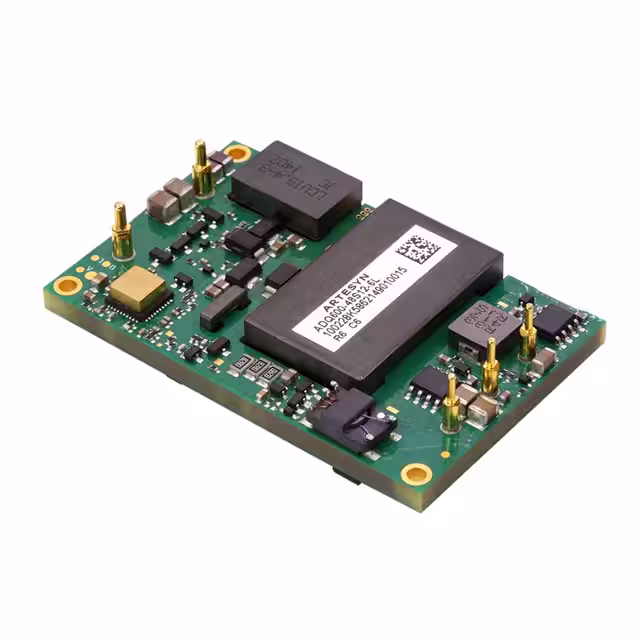

ADQ600B-48S12B-6LK600W, 36 - 75VIN, 12V@50A, QUART |
4,807 |
|
Datenblatt |
ADQ600 (600W) | Quarter Brick | Box | Active | Isolated Module | 1 | 40V | 60V | 12V | - | - | - | 50A | 600 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 85°C | 95.6% | - | - | Through Hole | 2.30" L x 1.45" W x 0.52" H (58.4mm x 36.8mm x 13.3mm) | Quarter Brick | Enable, Active Low | CE, cUL, TUV, UL | 60950-1; 62368-1 |
|
NBM2317S60D1580T0RDC DC CONVERTER 13.5V 1080W |
4,446 |
|
Datenblatt |
NBM™ | 6-SMD Module | Tray | Active | Bus Converter Module | 1 | 40V | 60V | 13.5V | - | - | - | 80A | 1.08 kW | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 97.8% | - | - | Surface Mount | 0.90" L x 0.68" W x 0.29" H (22.8mm x 17.3mm x 7.4mm) | - | - | CE, cTUVus, UKCA | 62368-1 |
|
LTM4676AIY#PBFDC DC CNVRTR 0.5-5.4V 0.5-5.4V |
3,945 |
|
Datenblatt |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 26.5V | 0.5 ~ 5.4V | 0.5 ~ 5.4V | - | - | 13A, 13A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) | 144-BGA (16x16) | - | - | - |
|
PXD-M30-24WS24DC DC CONVERTER 24V 30W |
2,713 |
|
Datenblatt |
PXD-M (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 1.25A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CE | - |
|

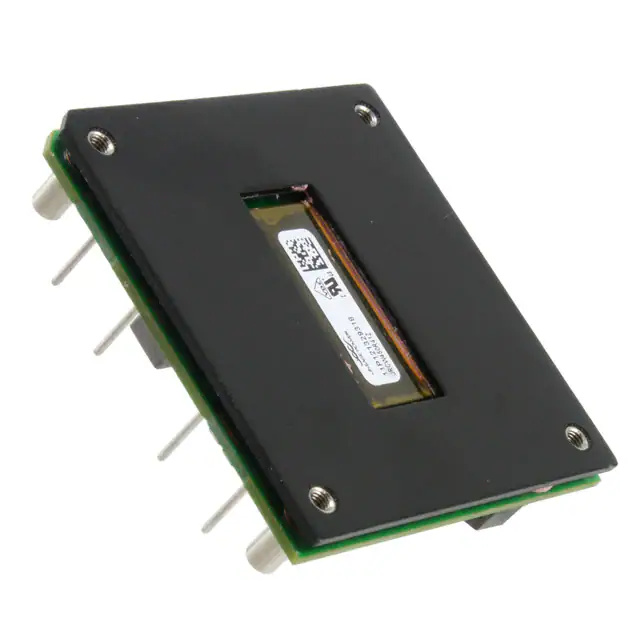

JRCW016A0R41ZDC DC CONVERTER 28V 448W |
3,643 |
|
Datenblatt |
ORCA™ JRCW016A0R | 9-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 16A | 448 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93.5% | - | - | Through Hole | 2.39" L x 2.27" W x 0.50" H (60.7mm x 57.7mm x 12.7mm) | - | Enable, Active Low | - | - |
|

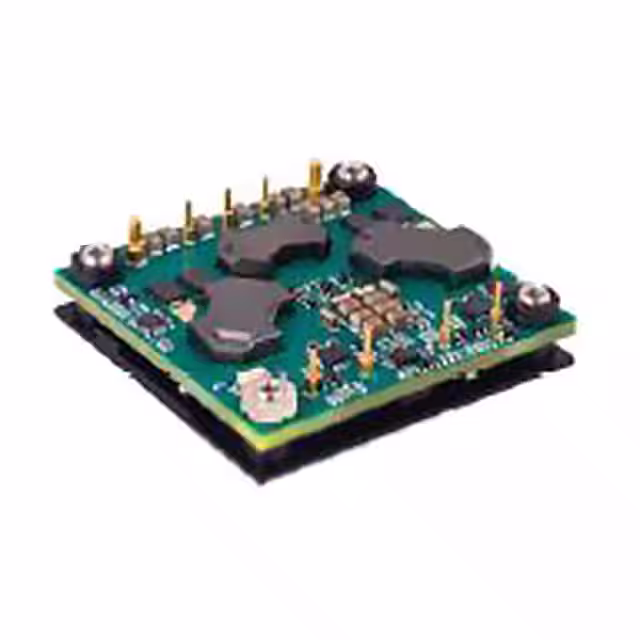

PAH-48/8.5-D48NB-CDC DC CONVERTER 48V 450W |
2,612 |
|
Datenblatt |
PAH (450W) | 9-DIP Module, 1/2 Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 48V | - | - | - | 8.5A | 450 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm) | - | Enable, Active Low | - | - |
|
AGH02P-5DC DC CONVERTER 200V 1.5W |
3,500 |
|
Datenblatt |
XP EMCO - AGH (1.5W) | 5-SMD Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 200V | - | - | - | 7.5mA | 1.5 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Surface Mount | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | - | 62368-1 |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
