DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R12P21503DDC DC CONVERTER 15V -3V 2W |
1,141 |
|
Datenblatt |
RxxP2xxyyD (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -3V | - | - | 93mA, 185mA | 2 W | 5.2 kV | ITE (Commercial) | - | -40°C ~ 90°C | 84% | - | - | Through Hole | 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.8mm x 12.5mm) | - | - | - | - |
|
ADUM6028-5BRIZDC DC CONVERTER 3.3V 5V 300MW |
2,501 |
|
Datenblatt |
IsoPower®, iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V, 5V | - | - | - | 60mA | - | 5 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | 33% | - | - | Surface Mount | 0.23" L x 0.30" W x 0.10" H (5.9mm x 7.5mm x 2.7mm) | 8-SOIC-IC | - | - | - |
|
|
ADUM6028-5BRIZ-RLDC DC CONVERTER 3.3V 5V 300MW |
740 |
|
Datenblatt |
IsoPower®, iCoupler® | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V, 5V | - | - | - | 60mA | - | 5 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 125°C | 33% | - | - | Surface Mount | 0.23" L x 0.30" W x 0.10" H (5.9mm x 7.5mm x 2.7mm) | 8-SOIC-IC | - | - | - |
|
DPBW03F-15DC DC CONVERTER +/-15V 3W |
625 |
|
Datenblatt |
DPBW03 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|

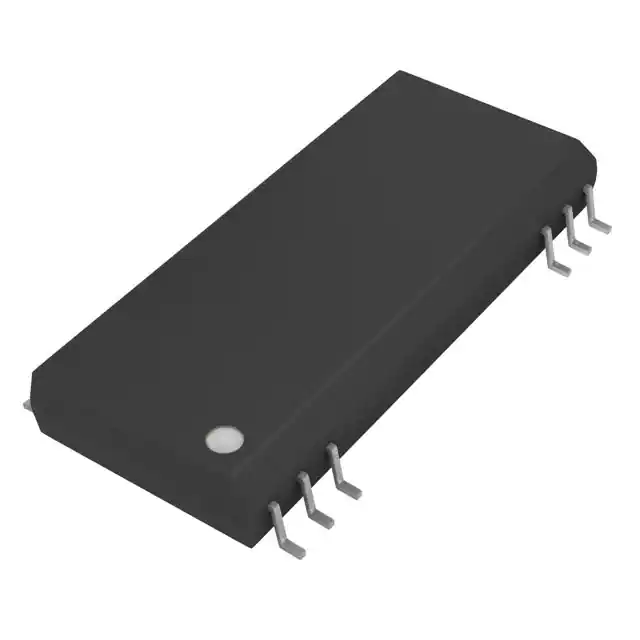

DCP020505U/1KDC DC CONVERTER 5V 2W |
1,249 |
|
Datenblatt |
DCP02 (2W) | 28-SOIC (0.295", 7.50mm Width), 12 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm) | 12-SOP | - | - | - |
|

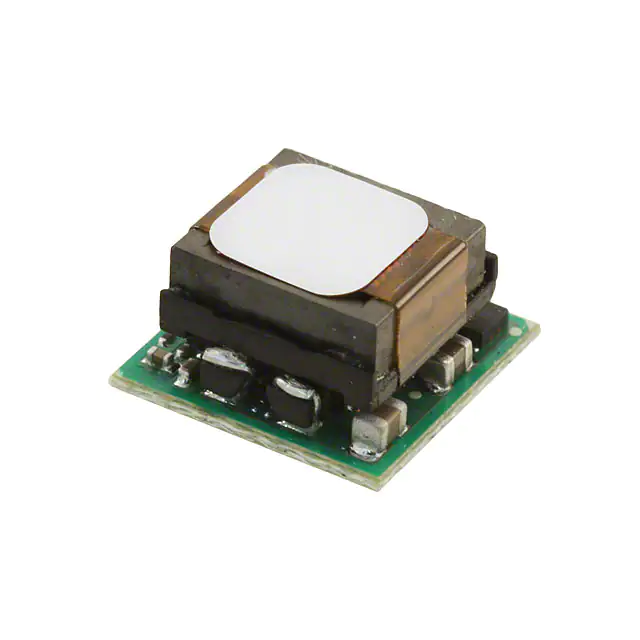

PDT006A0X3-SRZDC DC CONVERTER 0.5-5.5V |
1,035 |
|
Datenblatt |
PicoDLynx™ | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 3V | 14.4V | 0.5 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | Digital with Remote On/Off and UVLO | -40°C ~ 85°C | 93.8% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.29" H (12.2mm x 12.2mm x 7.3mm) | - | Enable, Active Low | - | - |
|
CC3-0512DF-EDC DC CNVRTR +/-12V TO +/-15V 3W |
1,534 |
|
Datenblatt |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 9V | 12 ~ 15V | -12 ~ -15V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-2405SF-EDC DC CONVERTER 5V 3W |
979 |
|
Datenblatt |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-2412SF-EDC DC CONVERTER 12-15V 3W |
686 |
|
Datenblatt |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12 ~ 15V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC3-1205SF-EDC DC CONVERTER 5V 3W |
653 |
|
Datenblatt |
CC-E (3W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.65" W x 0.34" H (22.9mm x 16.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
CC3-0512DR-EDC DC CNVRTR +/-12V TO +/-15V 3W |
512 |
|
Datenblatt |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 4.5V | 9V | 12 ~ 15V | -12 ~ -15V | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC3-0503SR-EDC DC CONVERTER 3.3V 3W |
212 |
|
Datenblatt |
CC-E (3W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 800mA | 3 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.65" W x 0.35" H (22.9mm x 16.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
R2S-0524DC DC CONVERTER 24V 2W |
430 |
|
Datenblatt |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|
TSR 2-24120DC DC CONVERTER 12V 24W |
1,004 |
|
Datenblatt |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 2A | 24 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
|
|
R2S-0505-RDC DC CONVERTER 5V 2W |
663 |
|
Datenblatt |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.35" H (12.8mm x 10.7mm x 9.0mm) | - | - | - | - |
|

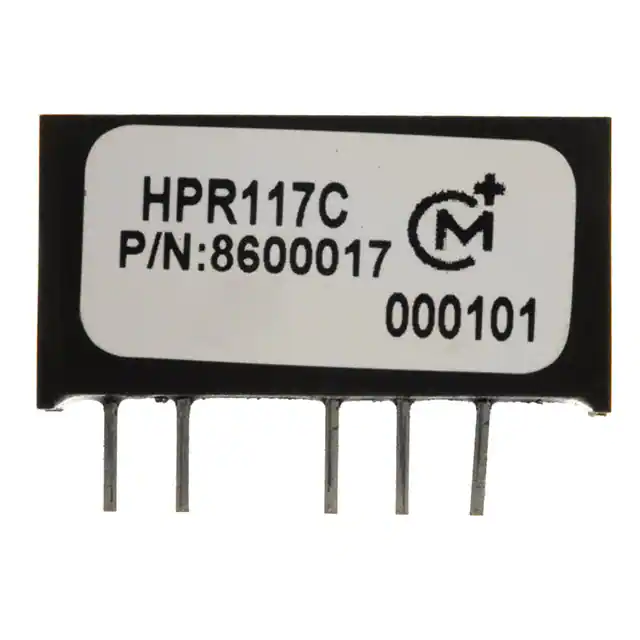

HPR117CDC DC CONVERTER +/-15V 1W |
3,688 |
|
Datenblatt |
HPR1xxC (0.75W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 25mA, 25mA | 1 W | 750 V | ITE (Commercial) | - | -40°C ~ 100°C | 79% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | - | - |
|

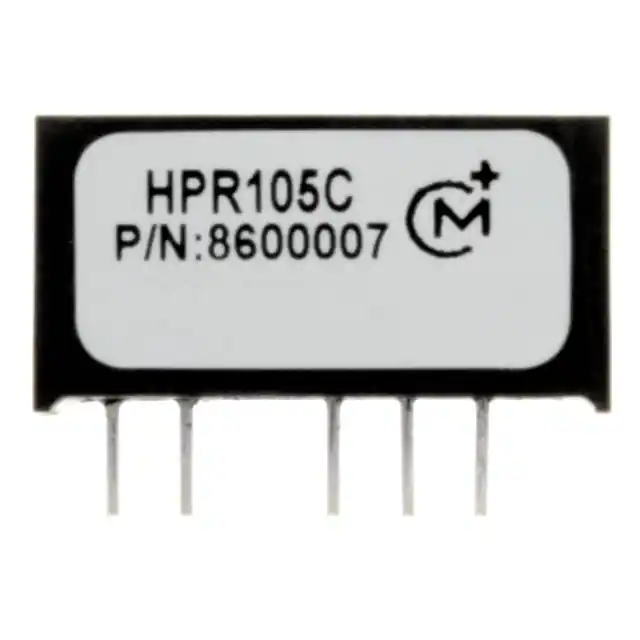

HPR105CDC DC CONVERTER +/-15V 1W |
969 |
|
Datenblatt |
HPR1xxC (0.75W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 25mA, 25mA | 1 W | 750 V | ITE (Commercial) | - | -40°C ~ 100°C | 75% | - | - | Through Hole | 0.77" L x 0.24" W x 0.40" H (19.6mm x 6.1mm x 10.2mm) | - | - | - | - |
|

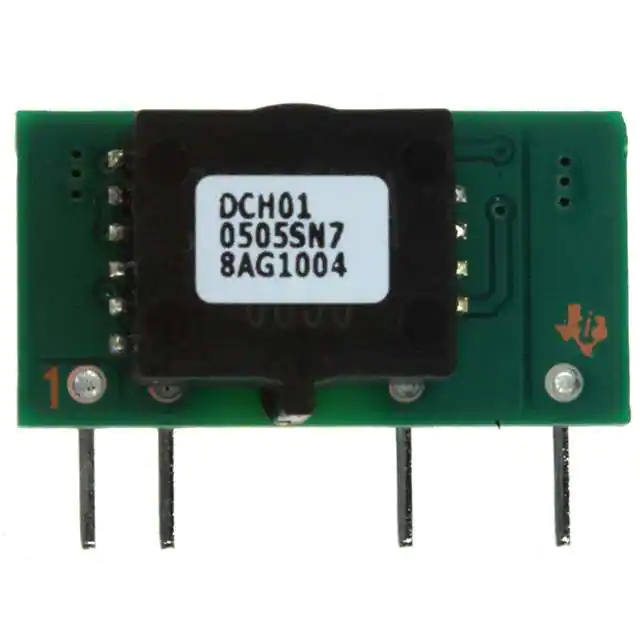

DCH010505SN7DC DC CONVERTER 5V 1W |
1,185 |
|
Datenblatt |
DCH01 (1W) | 7-SIP Module, 4 Leads | Tray | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|

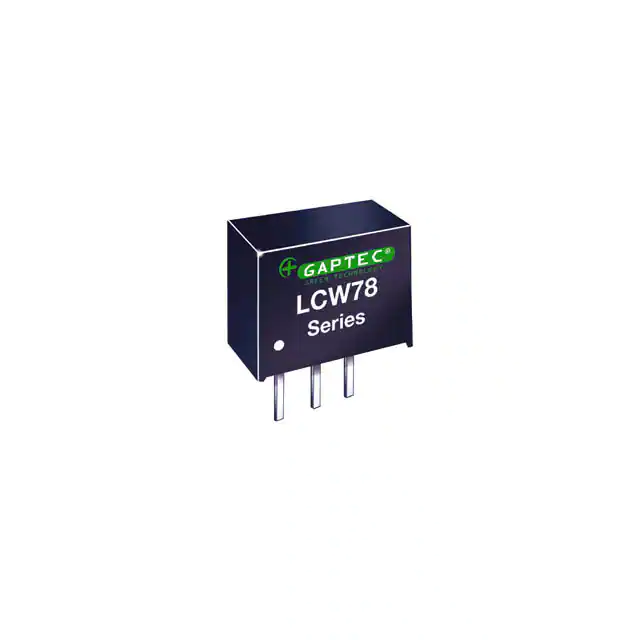

LCW78_12-0.5NON-ISOLATED POL MODULE DC DC CO |
532 |
|
Datenblatt |
LCW78_0.5 | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 17V | 75V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | - | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm) | - | - | - | - |
|

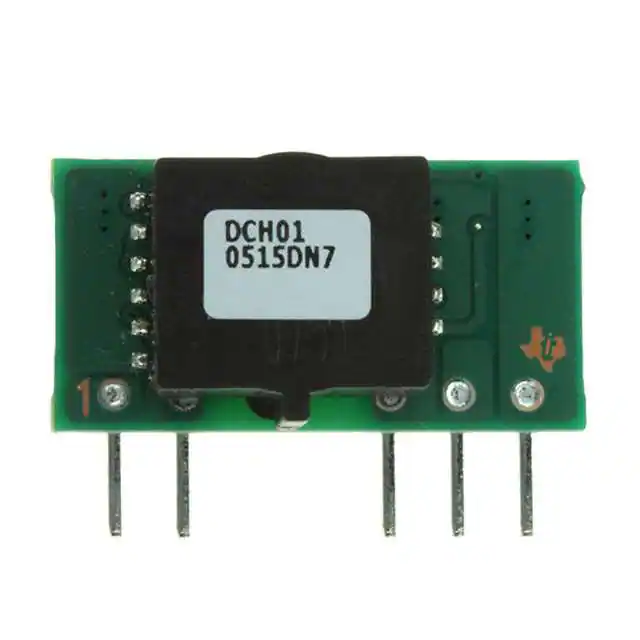

DCH010515DN7DC DC CONVERTER +/-15V 1W |
358 |
|
Datenblatt |
DCH01 (1W) | 7-SIP Module, 5 Leads | Tray | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
