DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCWN06A-05DC DC CONVERTER 5V 5W |
546 |
|
Datenblatt |
SCWN06 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1A | 5 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, EAC | - |
|

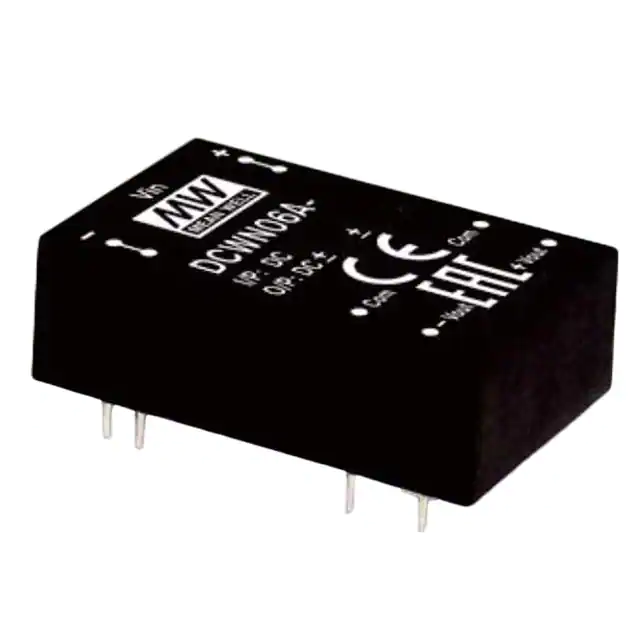

DCWN06B-15DC DC CONVERTER +/-15V 6W |
432 |
|
Datenblatt |
DCWN06 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
SCWN06B-12DC DC CONVERTER 12V 6W |
130 |
|
Datenblatt |
SCWN06 (6W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, EAC | - |
|
LMZ14201TZX-ADJ/NOPBDC DC CONVERTER 0.8-6V |
357 |
|
Datenblatt |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 42V | 0.8 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 90% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|

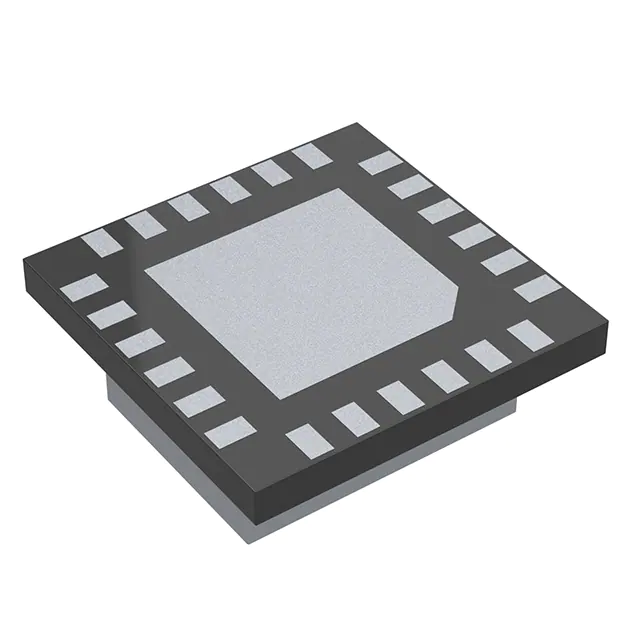

MAXM17635AMG+TMAXM17635 4.5V TO 36V INPUT 2A A |
2,532 |
|
Datenblatt |
Himalaya | 24-SMD Module Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 0.9 ~ 12V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | - | 24-eMGA (4x4) | - | - | - |
|
|
MAXM17633AMG+TMAXM17633 4.5V TO 36V INPUT 2A 3 |
2,013 |
|
Datenblatt |
Himalaya | 24-SMD Module Exposed Pad | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 24-eMGA (4x4) | - | - | - |
|
EC4SAW-24S15NDC DC CONVERTER 15V 6W |
169 |
|
Datenblatt |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | CE | - |
|
|
R-78C12-1.0DC DC CONVERTER 12V 12W |
2,968 |
|
Datenblatt |
INNOLINE R-78C-1.0 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 15V | 42V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 96% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | - | - | - | - |
|
7805SR-CDC DC CONVERTER 5V 2W |
959 |
|
Datenblatt |
78xxSR | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 7.5V | 36V | 5V | - | - | - | 500mA | 2 W | - | ITE (Commercial) | SCP | -40°C ~ 70°C | - | - | - | Through Hole | 0.41" L x 0.42" W x 0.75" H (10.4mm x 10.7mm x 19.1mm) | - | - | - | - |
|

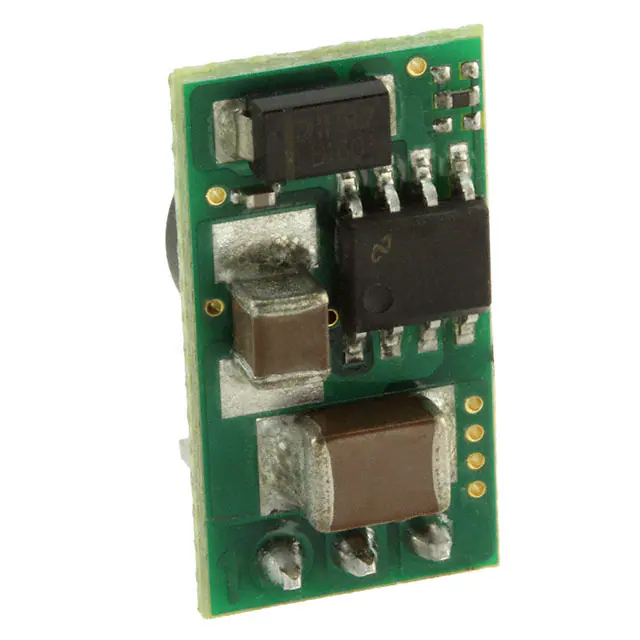

7812SRH-CDC DC CONVERTER 12V 4.8W |
133 |
|
Datenblatt |
78xxSR | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 15V | 36V | 12V | - | - | - | 400mA | 4.8 W | - | ITE (Commercial) | SCP | -40°C ~ 70°C | - | - | - | Through Hole | 0.75" L x 0.41" W x 0.37" H (19.1mm x 10.4mm x 9.3mm) | - | - | - | - |
|
TSM 0512SDC DC CONVERTER 12V 960MW |
594 |
|
Datenblatt |
TSM (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 80mA | 960 mW | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.50" L x 0.31" W x 0.32" H (12.7mm x 8.0mm x 8.1mm) | - | - | - | - |
|

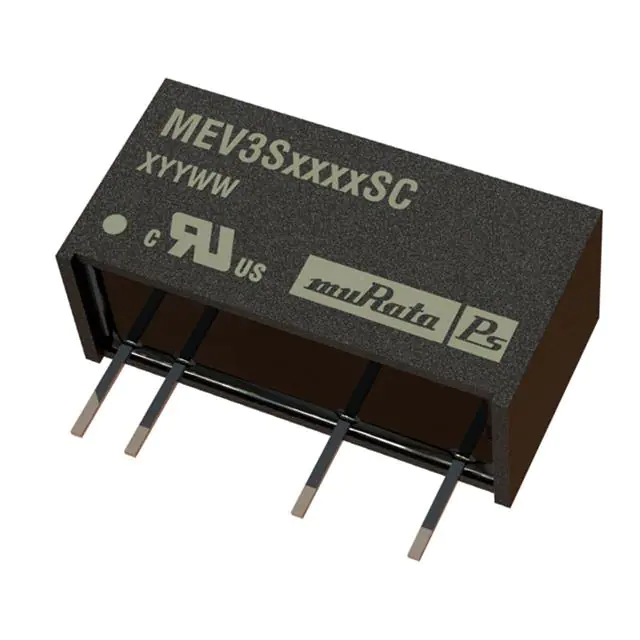

MEV3S0512SCDC DC CONVERTER 12V 3W |
265 |
|
Datenblatt |
MEV3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85.5% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
MEV3S1212SCDC DC CONVERTER 12V 3W |
247 |
|
Datenblatt |
MEV3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
MEV3S0509SCDC DC CONVERTER 9V 3W |
181 |
|
Datenblatt |
MEV3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 333mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
MEV3S1205SCDC DC CONVERTER 5V 3W |
144 |
|
Datenblatt |
MEV3 (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
TSR 2-2450DC DC CONVERTER 5V 10W |
5,213 |
|
Datenblatt |
TSR 2 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 36V | 5V | - | - | - | 2A | 10 W | - | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm) | - | - | - | - |
|
LMZ31506RUQTDC DC CONVERTER 0.6-5.5V 33W |
434 |
|
Datenblatt |
SIMPLE SWITCHER® | 47-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.6V | 14.5V | 0.6 ~ 5.5V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.60" L x 0.36" W x 0.11" H (15.2mm x 9.2mm x 2.9mm) | 47-B1QFN (15x9) | Enable, Active High | - | - |
|

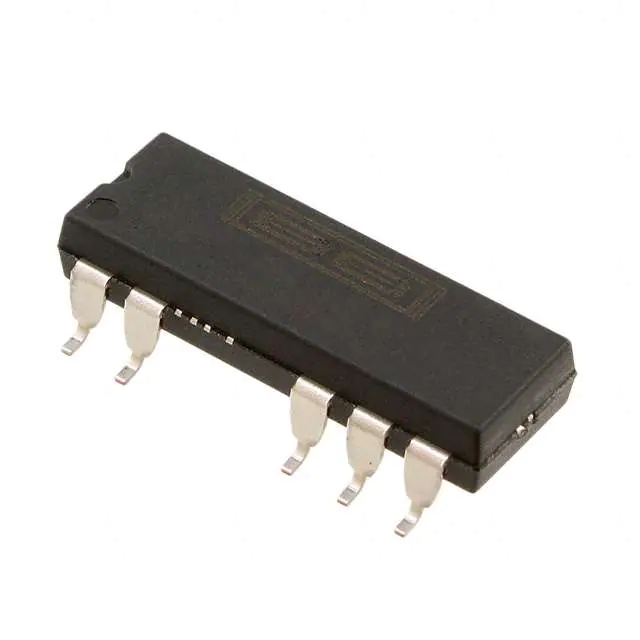

DCP010505BP-U/700DC DC CONVERTER 5V 1W |
1,376 |
|
Datenblatt |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|
LTM8074EY#PBFIC REG BUCK ADJ 1.2A 25BGA |
1,695 |
|
Datenblatt |
µModule® | 25-FBGA | Tray | Active | Non-Isolated PoL Module | 1 | 3.2V | 40V | 0.8 ~ 12V | - | - | - | 1.2A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.16" L x 0.16" W x 0.07" H (4.0mm x 4.0mm x 1.82mm) | 25-BGA (4x4) | - | - | - |
|

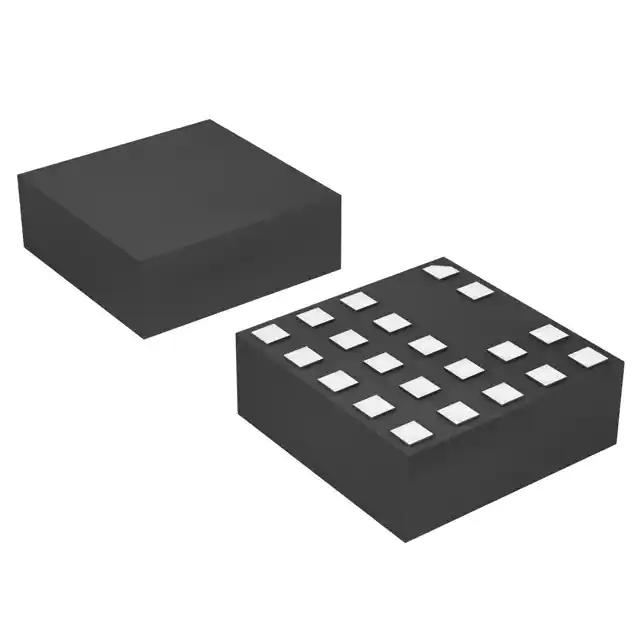

LTM8020EV#PBFDC DC CONVERTER 1.25-5V |
2,808 |
|
Datenblatt |
µModule® | 21-LGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 36V | 1.25 ~ 5V | - | - | - | 200mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.09" H (6.3mm x 6.3mm x 2.3mm) | 21-LGA (6.25x6.25) | Enable, Active High | - | - |
