852-69415941
AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI90-48-UC-P6AC/DC DESKTOP ADAPTER 48V 90W |
3,165 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI90-48-UC-P5RAC/DC DESKTOP ADAPTER 48V 90W |
3,115 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI90-48-UC-P6RAC/DC DESKTOP ADAPTER 48V 90W |
1,078 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
KTPS90-1207-P1AC/DC DESKTOP ADAPTER 12V 90W |
3,044 |
|
Datenblatt |
KTPS90 (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 7A | 90 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | IEC | 62368-1 |
|
SDI90B-48-TC-P6AC-DC, 48 VDC, 1.88A, SW, C6 DES |
2,989 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-TC-P5AC-DC, 56 VDC, 1.60A, SW, C6 DES |
4,813 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-TC-P6AC-DC, 56 VDC, 1.60A, SW, C6 DES |
2,097 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-TC-P11AC-DC, 48 VDC, 1.88A, SW, C6 DES |
3,047 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-TC-P10AC-DC, 56 VDC, 1.60A, SW, C6 DES |
3,944 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-TC-P5RAC-DC, 56 VDC, 1.60A, SW, C6 DES |
1,580 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-TC-P5RAC-DC, 48 VDC, 1.88A, SW, C6 DES |
3,070 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-TC-P10AC-DC, 48 VDC, 1.88A, SW, C6 DES |
1,611 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-TC-P11AC-DC, 56 VDC, 1.60A, SW, C6 DES |
1,845 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-TC-P6RAC-DC, 48 VDC, 1.88A, SW, C6 DES |
3,390 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-TC-P5AC-DC, 48 VDC, 1.88A, SW, C6 DES |
2,417 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|

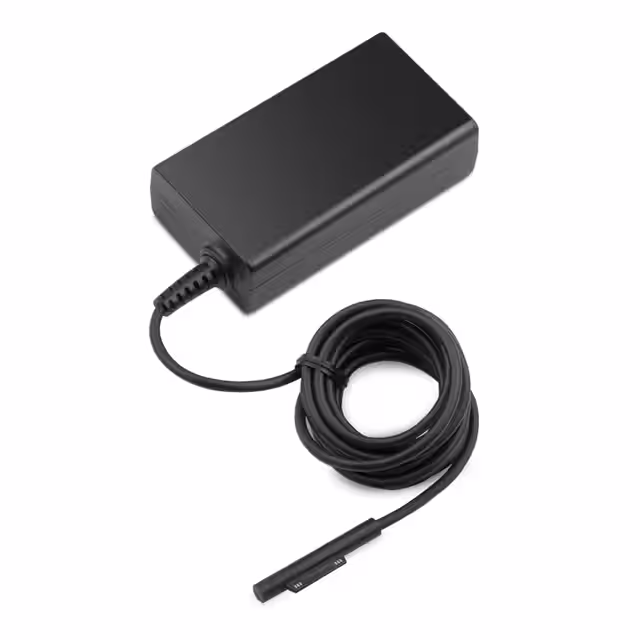

PWH-Q5N-00001AC/DC ADAPTER 15V 60W |
2,173 |
|
Datenblatt |
- | Box | Active | - | - | - | 100 ~ 240 VAC | 15V | 4A | 60 W | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SDI90-48-U2-P5AC/DC DESKTOP ADAPTER 48V 90W |
4,917 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, FCC, GS, PSE | - |
|
|
SDI90-48-U2-P6AC/DC DESKTOP ADAPTER 48V 90W |
4,335 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | Europe | Desktop (Class I) | Cord | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, FCC, GS, PSE | - |
|
|
SDI90B-15-UC-P11AC-DC, 15 VDC, 6A, SW, C14 DESK- |
1,924 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-T2-P5RAC-DC, 56 VDC, 1.60A, SW, C6 DES |
3,613 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
