AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI90B-48-UC-P11AC-DC, 48 VDC, 1.88A, SW, C14 DE |
4,736 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-UC-P5RAC-DC, 56 VDC, 1.60A, SW, C14 DE |
2,227 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-UC-P6RAC-DC, 56 VDC, 1.60A, SW, C14 DE |
3,925 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-UC-P5RAC-DC, 48 VDC, 1.88A, SW, C14 DE |
3,943 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90-24-U9-P6AC-DC, 24 VDC, 3.75 A, SW, C14 D |
2,942 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CE, cULus, FCC, LPS, PSE, UKCA | 60950-1; 62368-1 |
|
|
SDI90B-48-U2-P6RAC-DC, 48 VDC, 1.88A, SW, C14 DE |
1,880 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-U2-P11AC-DC, 48 VDC, 1.88A, SW, C14 DE |
3,575 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-U2-P5AC-DC, 48 VDC, 1.88A, SW, C14 DE |
3,236 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-U2-P6RAC-DC, 56 VDC, 1.60A, SW, C14 DE |
4,454 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-U2-P11AC-DC, 56 VDC, 1.60A, SW, C14 DE |
3,563 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-U2-P6AC-DC, 48 VDC, 1.88A, SW, C14 DE |
3,455 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-U2-P6AC-DC, 56 VDC, 1.60A, SW, C14 DE |
1,584 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-U2-P10AC-DC, 56 VDC, 1.60A, SW, C14 DE |
4,558 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-U2-P5RAC-DC, 56 VDC, 1.60A, SW, C14 DE |
1,040 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-56-U2-P5AC-DC, 56 VDC, 1.60A, SW, C14 DE |
2,523 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 1.6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-U2-P10AC-DC, 48 VDC, 1.88A, SW, C14 DE |
4,498 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-48-U2-P5RAC-DC, 48 VDC, 1.88A, SW, C14 DE |
1,919 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|

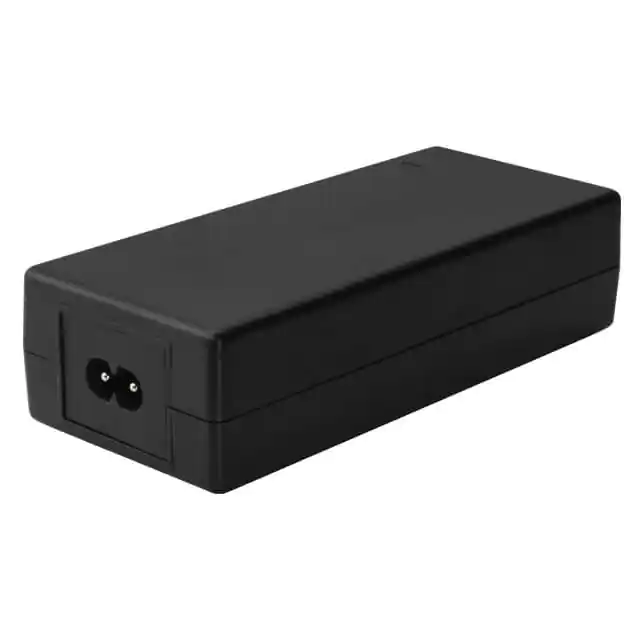

SDM120-24-UD-P6AC/DC DESKTOP ADAPTER 24V 120W |
3,103 |
|
Datenblatt |
SDM120-UD (130W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5A | 120 W | 210mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.39" L x 2.32" W x 1.34" H (137.0mm x 59.0mm x 34.0mm) | CE, cULus, FCC, TUV | 60601-1 |
|
|
SDM120-19-UD-P5AC/DC DESKTOP ADAPTER 19V 120W |
4,758 |
|
Datenblatt |
SDM120-UD (130W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 6.31A | 120 W | 210mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.39" L x 2.32" W x 1.34" H (137.0mm x 59.0mm x 34.0mm) | CE, cULus, FCC, TUV | 60601-1 |
|
|
SDM120-19-UD-P5RAC-DC, 19 VDC, 6.31 A, SW, C8 DE |
1,483 |
|
Datenblatt |
SDM120-UD (130W) | Box | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 19V | 6.31A | 120 W | 210mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C8 | - | 5.39" L x 2.32" W x 1.34" H (137.0mm x 59.0mm x 34.0mm) | CE, cULus, FCC, TUV, UKCA | 60601-1 |
