AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R60D-120-C8AC/DC DESKTOP ADAPTER 12V 65W |
4,849 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5.41A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-240-C8AC/DC DESKTOP ADAPTER 24V 65W |
4,993 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.71A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
SMI36-9-E-P6AC-DC, 9 VDC, 3.34 A, SW, MULTI- |
1,418 |
|
Datenblatt |
SMI36 (36W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 3.34A | 30 W | 70mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | KSC 8305 | - | 3.11" L x 1.38" W x 2.60" H (79.0mm x 35.0mm x 66.0mm) | CCC, CE, cULus, FCC, PSE, UKCA | 60950-1; 62368-1 |
|
SDI30C-Q-UTW-CUBAC/DC DESKTOP ADAPTER 5V-20V 30W |
3,111 |
|
Datenblatt |
SDI30C-UT (30W) | Box | Active | - | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 9V, 15V, 20V | 3A, 3A, 2A, 1.5A | 30 W | 100mW | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | - | 47" (1.20m) | IEC 320-C6 | - | 4.154" L x 1.791" W (105.50mm x 45.50mm) | CE, cUL, cULus, FCC, UKCA, UL | 62368-1 |
|

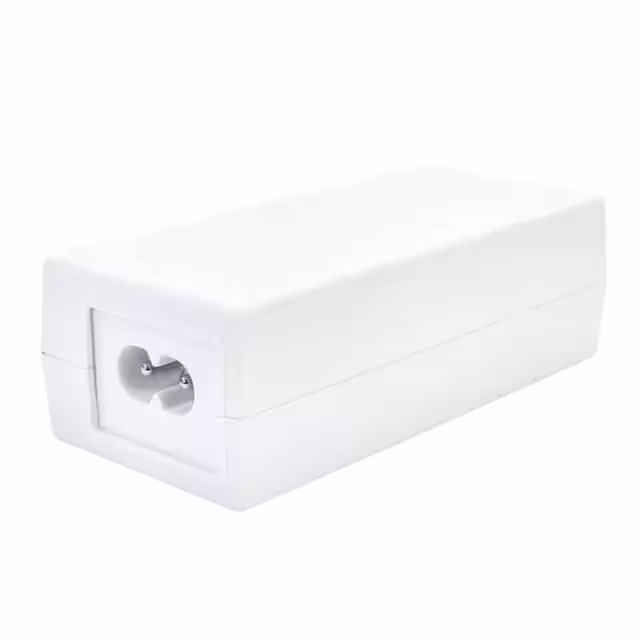

SDM24-12-UDW-P5AC/DC DESKTOP ADAPTER 12V 24W |
2,303 |
|
Datenblatt |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM24-12-UDW-P5RAC/DC DESKTOP ADAPTER 12V 24W |
1,182 |
|
Datenblatt |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM24-12-UDW-P6RAC/DC DESKTOP ADAPTER 12V 24W |
2,001 |
|
Datenblatt |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM24-12-UDW-P6AC/DC DESKTOP ADAPTER 12V 24W |
1,459 |
|
Datenblatt |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
SMM30-24-K-MUBAC/DC WALL MOUNT ADAPTER 24V 36W |
4,291 |
|
Datenblatt |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | USB Micro | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
SGA25E24-P1JAC/DC WALL MOUNT ADAPTER 24V 25W |
4,081 |
|
Datenblatt |
SGA25E (25W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.04A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | CEE 7/16 | - | 2.97" L x 1.26" W x 1.87" H (75.5mm x 32.0mm x 47.5mm) | CB, CE, GS | - |
|
SDI24-12-UC-P5AC/DC DESKTOP ADAPTER 12V 24W |
2,531 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-12-UC-P5RAC/DC DESKTOP ADAPTER 12V 24W |
3,412 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-12-UC-P6AC/DC DESKTOP ADAPTER 12V 24W |
4,467 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-12-UC-P6RAC/DC DESKTOP ADAPTER 12V 24W |
3,101 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 2A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-15-UC-P5AC/DC DESKTOP ADAPTER 15V 24W |
1,106 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-15-UC-P5RAC/DC DESKTOP ADAPTER 15V 24W |
3,225 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-15-UC-P6AC/DC DESKTOP ADAPTER 15V 24W |
3,809 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-15-UC-P6RAC/DC DESKTOP ADAPTER 15V 24W |
4,371 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-24-UC-P5AC/DC DESKTOP ADAPTER 24V 24W |
1,430 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-24-UC-P5RAC/DC DESKTOP ADAPTER 24V 24W |
1,035 |
|
Datenblatt |
SDI24-U (24W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
