AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWI36-5-N-P5RAC-DC, 5 VDC, 5 A, SW, WALL-PLUG |
2,828 |
|
Datenblatt |
SWI36-N (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 5A | 25 W | 100mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.11" L x 1.34" W x 2.20" H (79.0mm x 34.0mm x 56.0mm) | cULus, PSE | 62368-1 |
|
|
SWI36-9-N-P7AC-DC, 9 VDC, 3.34 A, SW, WALL-P |
4,791 |
|
Datenblatt |
SWI36-N (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 3.34A | 30 W | 100mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.11" L x 1.34" W x 2.20" H (79.0mm x 34.0mm x 56.0mm) | cULus, PSE | 62368-1 |
|
|
SWI36-9-N-P7RAC-DC, 9 VDC, 3.34 A, SW, WALL-P |
2,470 |
|
Datenblatt |
SWI36-N (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 3.34A | 30 W | 100mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug R/A, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.11" L x 1.34" W x 2.20" H (79.0mm x 34.0mm x 56.0mm) | cULus, PSE | 62368-1 |
|

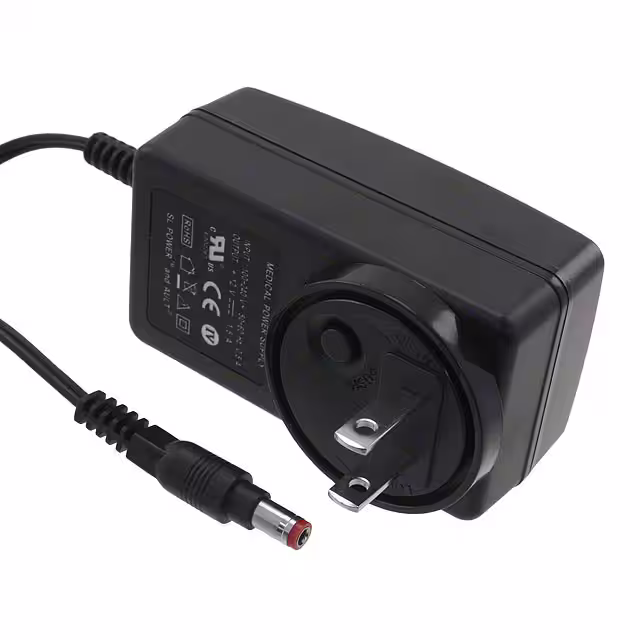

MW172KB0903B01AC/DC WALL MOUNT ADAPTER 9V 18W |
4,977 |
|
Datenblatt |
MW172KB (15-18W) | Box | Not For New Designs | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 9V | 2A | 18 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.30" L x 1.81" W x 1.26" H (84.6mm x 46.0mm x 33.0mm) | CE, cULus | - |
|
|
MW172KB2403B01AC/DC WALL MOUNT ADAPTER 24V 18W |
4,477 |
|
Datenblatt |
MW172KB (15-18W) | Box | Not For New Designs | North America | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 100 ~ 240 VAC | 24V | 750mA | 18 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 3.30" L x 1.81" W x 1.26" H (84.6mm x 46.0mm x 33.0mm) | CE, cULus | - |
|
L6R60D-090-C6AC/DC DESKTOP ADAPTER 9V 63W |
2,452 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 7A | 63 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C6 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-180-C6AC/DC DESKTOP ADAPTER 18V 65W |
1,832 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.61A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C6 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-300-C6AC/DC DESKTOP ADAPTER 30V 65W |
4,804 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 30V | 2.16A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C6 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-360-C6AC/DC DESKTOP ADAPTER 36V 65W |
1,524 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 36V | 1.81A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C6 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-420-C6AC/DC DESKTOP ADAPTER 42V 65W |
4,207 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 42V | 1.55A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C6 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-480-C6AC/DC DESKTOP ADAPTER 48V 65W |
3,466 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.35A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C6 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-090-C8AC/DC DESKTOP ADAPTER 9V 63W |
3,710 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 7A | 63 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-180-C8AC/DC DESKTOP ADAPTER 18V 65W |
3,153 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.61A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-300-C8AC/DC DESKTOP ADAPTER 30V 65W |
3,636 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 30V | 2.16A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-360-C8AC/DC DESKTOP ADAPTER 36V 65W |
3,719 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 36V | 1.81A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-420-C8AC/DC DESKTOP ADAPTER 42V 65W |
2,689 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 42V | 1.55A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-090-C14AC/DC DESKTOP ADAPTER 9V 63W |
1,286 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 7A | 63 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-300-C14AC/DC DESKTOP ADAPTER 30V 65W |
1,365 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 30V | 2.16A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-360-C14AC/DC DESKTOP ADAPTER 36V 65W |
1,969 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 36V | 1.81A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
|
|
L6R60D-420-C14AC/DC DESKTOP ADAPTER 42V 65W |
4,751 |
|
Datenblatt |
Tri-Mag®, L6R60D (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 42V | 1.55A | 65 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | cUL, FCC, UL | 62368-1 |
