Thermoelektrische, Peltier-Baugruppen
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Wärmeübertragungstyp | Leistung - Kühlung | Strom | Spannung | Lüfterposition | Leistung - Eingang | Betriebstemperatur | Gewicht | Abmessungen - Gesamt |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA-115-24-02-00-00THERMOELECT ASSY LIQUID-AIR 113W |
3,965 |
|
Datenblatt |
Liquid | Box | Active | Liquid to Air | 113 W | 5.8 A | 24 V | Warm Side | 139 W | -10°C ~ 47°C | 6.6 lbs (3.0 kg) | 300mm L x 152mm W x 98mm H |
|
387003324THERMOELECT ASSY AIR-AIR 113W |
4,467 |
|
Datenblatt |
SuperCool | Bulk | Active | Air to Air | 113 W | 4.9 A | 24 V | Cold Side / Warm Side | - | -20°C ~ 70°C | 6.0 lbs (2.7 kg) | 230mm L x 150mm W x 139mm H |
|
387006702SAAX,175,24,22 |
4,880 |
|
Datenblatt |
SuperCool | Box | Active | Air to Air | 175 W | 10.4 A | 24 V | Cold Side / Warm Side | 201 W | -20°C ~ 60°C | - | 300mm L x 180mm W x 163mm H |
|

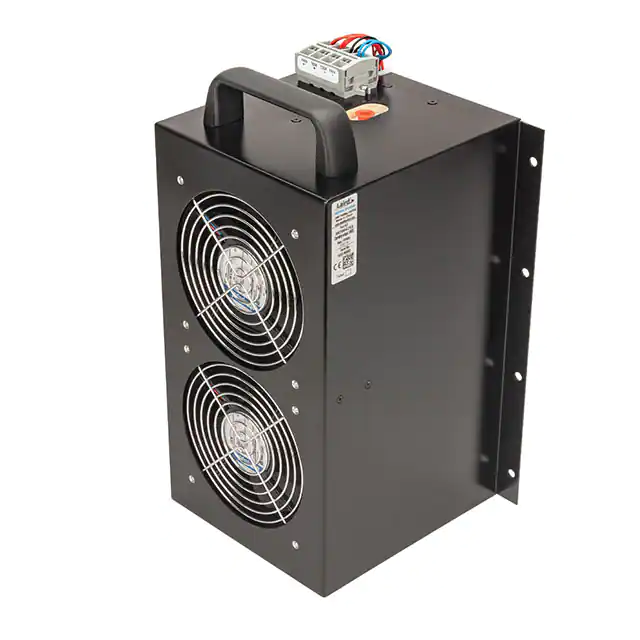

387004253SLA-400-24-02-00-00 SUPERCOOL |
3,049 |
|
Datenblatt |
SuperCool | Box | Active | Liquid to Air | 325.81 W | 13.3 A | 24 V | Cold Side / Warm Side | 319 W | -20°C ~ 60°C | - | 329.3mm L x 157.2mm W x 173.6mm H |
|

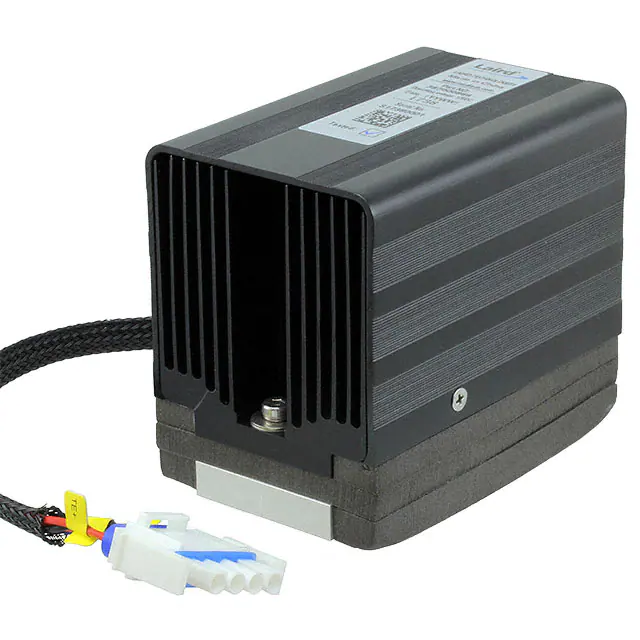

387000866THERMOELECT ASSY DIRECT-AIR 29W |
2,420 |
|
Datenblatt |
Tunnel | Box | Active | Direct to Air | 29 W | 2.7 A | 12 V | Cold Side / Warm Side | - | -10°C ~ 50°C | 115 lbs (52.2 kg) | 97.5mm L x 65mm W x 86.5mm H |
|

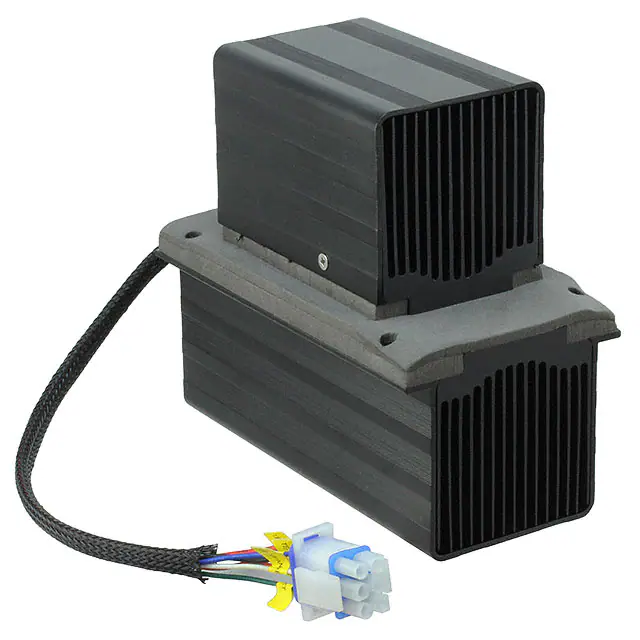

387000919THERMOELECT ASSY AIR-AIR 27W |
3,207 |
|
Datenblatt |
Tunnel | Box | Active | Air to Air | 27 W | 2.3 A | 12 V | Cold Side / Warm Side | - | -10°C ~ 50°C | 2.3 lbs (1.0 kg) | 115mm L x 84mm W x 142mm H |
|
AA-040-12-22-00-00THERMOELECT ASSY AIR-AIR 41W |
2,705 |
|
Datenblatt |
PowerCool | Box | Active | Air to Air | 41 W | 6.3 A | 12 V | Cold Side / Warm Side | 76 W | -10°C ~ 48°C | 4.0 lbs (1.8 kg) | 160mm L x 122mm W x 146.9mm H |
|

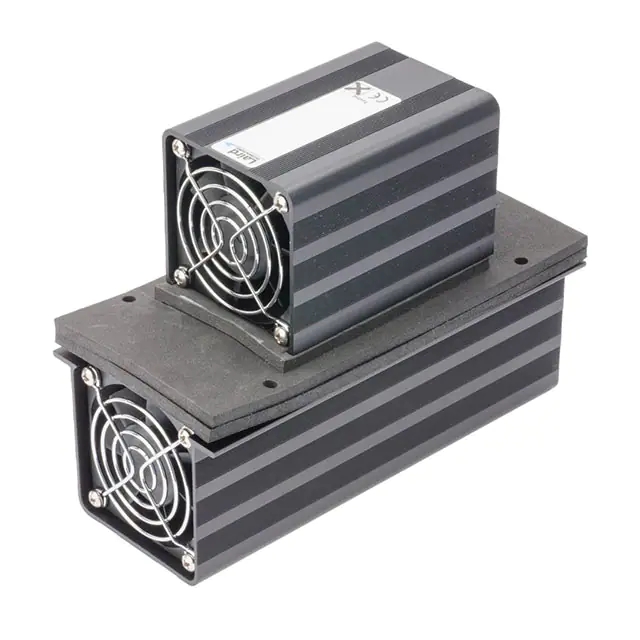

AA-035-24-22-00-00THERMOELECT ASSY AIR-AIR 33W |
3,776 |
|
Datenblatt |
Tunnel | Box | Active | Air to Air | 33 W | 2.2 A | 24 V | Cold Side / Warm Side | 50.4 W | -10°C ~ 52°C | 2.2 lbs (997.9 g) | 180mm L x 83.3mm W x 137.8mm H |
|
AA-027-12-22-00-00THERMOELECT ASSY AIR-AIR 28.5W |
4,259 |
|
Datenblatt |
Tunnel | Box | Active | Air to Air | 28.5 W | 3.1 A | 12 V | Cold Side / Warm Side | 37.2 W | -10°C ~ 39°C | 2.2 lbs (997.9 g) | 107mm L x 84mm W x 138.2mm H |
|
DA-045-12-02-00-00THERMOELECT ASSY DIRECT-AIR 48W |
3,332 |
|
Datenblatt |
PowerCool | Box | Active | Direct to Air | 48 W | 6.1 A | 12 V | Warm Side | 73 W | -10°C ~ 46°C | 2.6 lbs (1.2 kg) | 160mm L x 122mm W x 86mm H |
|
LA-045-12-02-00-00THERMOELECT ASSY LIQUID-AIR 43W |
4,968 |
|
Datenblatt |
Liquid | Box | Active | Liquid to Air | 43 W | 4.1 A | 12 V | Warm Side | 49 W | -10°C ~ 52°C | 2.6 lbs (1.2 kg) | 160mm L x 122mm W x 91mm H |
|
387000918THERMOELECT ASSY DIRECT-AIR 103W |
3,063 |
|
Datenblatt |
Tunnel | Box | Active | Direct to Air | 103 W | 8 A | 12 V | Warm Side | - | -10°C ~ 50°C | 3.8 lbs (1.7 kg) | 248mm L x 83mm W x 98mm H |
|
DAC035-12-02-00-00THERMOELECT ASSY DIRECT-AIR 31W |
2,865 |
|
Datenblatt |
Cascade | Box | Active | Direct to Air | 31 W | 4.8 A | 12 V | Warm Side | 58 W | -10°C ~ 54°C | 2.6 lbs (1.2 kg) | 160mm L x 122mm W x 91mm H |
|
LL-120-24-00-00-00THERMOELECT ASSY LIQUID-LIQ 122W |
3,413 |
|
Datenblatt |
Liquid | Box | Active | Liquid to Liquid | 122 W | 4.2 A | 24 V | - | 101 W | -10°C ~ 62°C | 1.8 lbs (816.5 g) | 140mm L x 60mm W x 44mm H |
|
DA-115-24-02-00-00THERMOELECT ASSY DIRECT-AIR 113W |
4,055 |
|
Datenblatt |
PowerCool | Box | Active | Direct to Air | 113 W | 5.8 A | 24 V | Warm Side | 139 W | -10°C ~ 47°C | 6.4 lbs (2.9 kg) | 300mm L x 152mm W x 94mm H |
|
LL-210-24-00-00-00THERMOELECT ASSY LIQUID-LIQ 208W |
2,877 |
|
Datenblatt |
Liquid | Box | Active | Liquid to Liquid | 208 W | 8.1 A | 24 V | - | 194 W | -10°C ~ 62°C | 3.1 lbs (1.4 kg) | 240mm L x 60mm W x 44mm H |
|

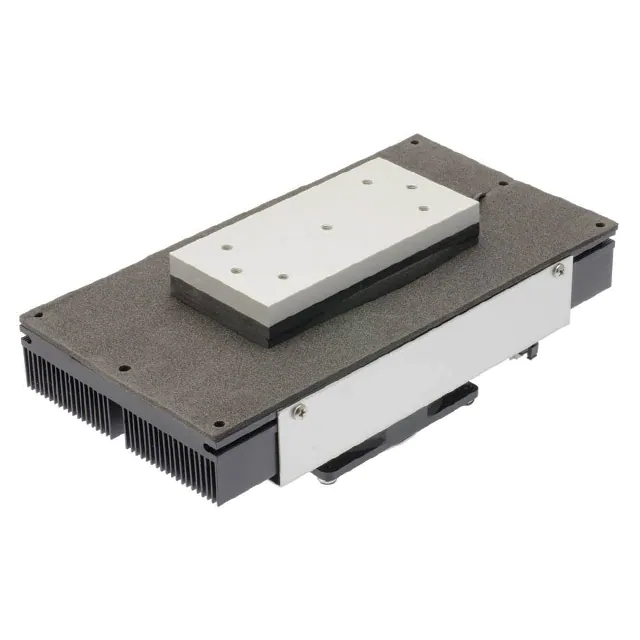

DAC060-24-02-00-00THERMOELECT ASSY DIRECT-AIR 58W |
3,170 |
|
Datenblatt |
Cascade | Box | Active | Direct to Air | 58 W | 4.6 A | 24 V | Warm Side | 110 W | -10°C ~ 48°C | 4.0 lbs (1.8 kg) | 230mm L x 122mm W x 91mm H |
|
387003325THERMOELECT ASSY DIRECT-AIR 130W |
3,144 |
|
Datenblatt |
SuperCool | Bulk | Active | Direct to Air | 130 W | 5 A | 24 V | Cold Side / Warm Side | - | -20°C ~ 70°C | 5 lbs (2.3 kg) | 230mm L x 119mm W x 103mm H |
|

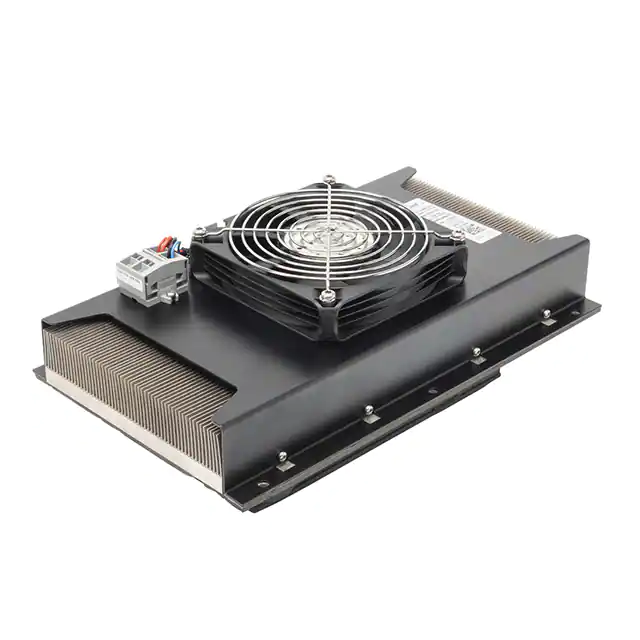

387000639THERMOELECT ASSY LIQUID-AIR 202W |
1,852 |
|
Datenblatt |
SuperCool | Bulk | Active | Liquid to Air | 202 W | 6.9 A | 24 V | Cold Side / Warm Side | 100 W | -20°C ~ 70°C | - | 300mm L x 180mm W x 108mm H |
|
HET400PATHERMOELECT ASSY AIR-AIR 400W |
3,665 |
|
Datenblatt |
HET400PA | Box | Active | Air to Air | 400 W | 13.5 A | 48 V | Cold Side / Warm Side | - | -40°C ~ 55°C | 24 lbs (10.9 kg) | 450mm L x 228mm W x 210mm H |
