DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMZ12003EXTTZE/NOPBDC DC CONVERTER 0.8-6V |
152 |
|
Datenblatt |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tube | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 3A | - | - | ITE (Commercial) | UVLO | -55°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
.JPG)
|

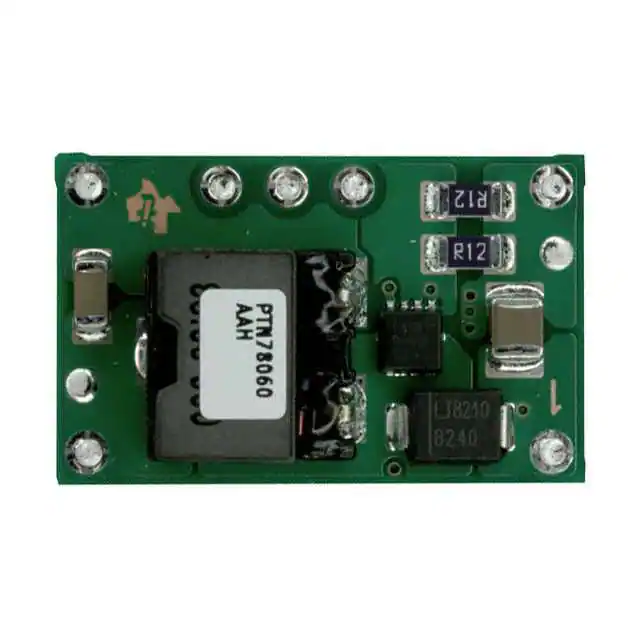

PTN78060AAHDC DC CONVERTER -15 TO -3V |
269 |
|
Datenblatt |
PTN78060A (15W) | 7-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 28.7V | -15 ~ -3V | - | - | - | 3A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm) | - | - | - | - |
|
UEI15-120-Q12P-CDC DC CONVERTER 12V 15W |
233 |
|
Datenblatt |
UEI15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 15 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 84.5% | - | - | Through Hole | 1.10" L x 0.96" W x 0.32" H (27.9mm x 24.4mm x 8.1mm) | - | - | - | - |
|
|
UEI15-033-Q12P-CDC DC CONVERTER 3.3V 15W |
116 |
|
Datenblatt |
UEI15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 4.5A | 15 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.10" L x 0.96" W x 0.32" H (27.9mm x 24.4mm x 8.1mm) | - | - | - | - |
|

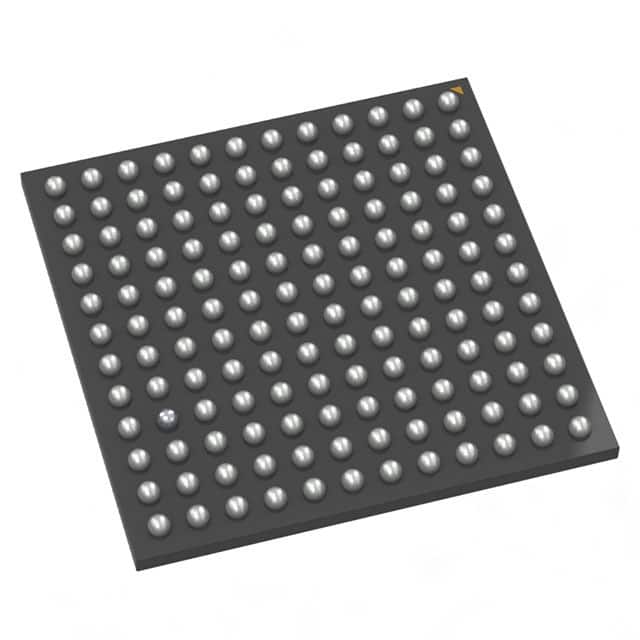

MPM3690GBF-30B-TDC DC CONVERTER 3.3V |
339 |
|
Datenblatt |
MPM | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 16V | 0.6 ~ 3.3V | - | - | - | 36A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 125°C (TJ) | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.2mm) | 144-BGA (16x16) | Enable, Active Floating | - | - |
|
TSR 3-24150DC DC CONVERTER 5-15V 45W |
647 |
|
Datenblatt |
TSR-3 | 5-SIP Module | Box | Active | Linear Regulator Replacement | 1 | 10V | 30V | 5 ~ 15V | - | - | - | 3A | 45 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 0.61" L x 0.37" W x 0.24" H (15.5mm x 9.4mm x 6.2mm) | - | - | - | - |
|
|
TSR 3-2450DC DC CONVERTER 3-6V 18W |
416 |
|
Datenblatt |
TSR-3 | 5-SIP Module | Box | Active | Linear Regulator Replacement | 1 | 10V | 30V | 3 ~ 6V | - | - | - | 3A | 18 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 0.65" L x 0.41" W x 0.24" H (16.5mm x 10.4mm x 6.2mm) | - | - | - | - |
|

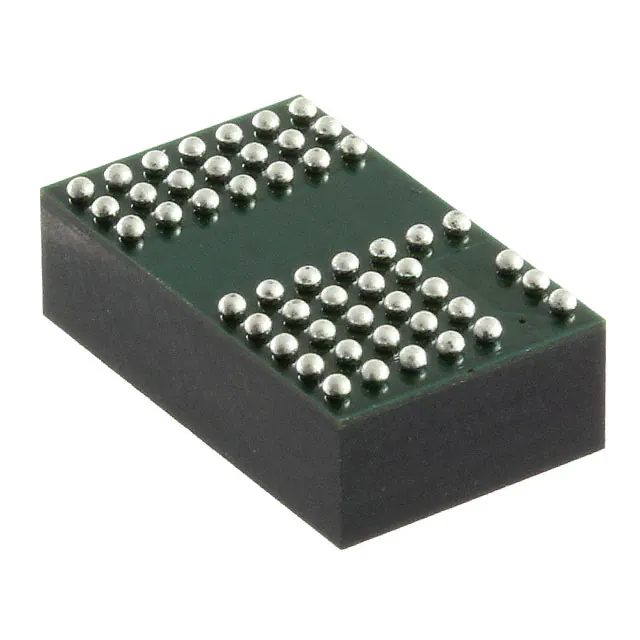

LTM8046EY#PBFDC DC CONVERTER 1.8-12V |
978 |
|
Datenblatt |
µModule® | 51-BBGA Module | Tray | Active | Isolated Module | 1 | 3.1V | 31V | 1.8 ~ 12V | - | - | - | 550mA | - | 3 kV | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.19" H (15.0mm x 11.3mm x 4.9mm) | 51-BGA (15x9) | - | - | - |
|
TDR 3-2423SMDC DC CONVERTER +/-15V 3W |
221 |
|
Datenblatt |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TEN 5-2411WIDC DC CONVERTER 5V 5W |
168 |
|
Datenblatt |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
REC8-1205SRW/H3/A/MDC DC CONVERTER 5V 8W |
101 |
|
Datenblatt |
ECONOLINE REC8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.6A | 8 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|

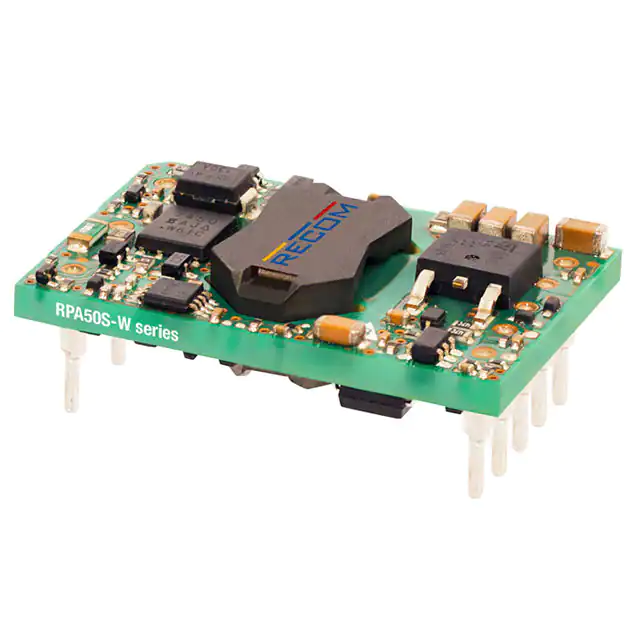

RPA50S-4805SW/PDC DC CONVERTER 5V 50W |
719 |
|
Datenblatt |
RPA50S-W (50W) | Sixteenth Brick | Box | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 54°C | 91% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.3mm) | - | - | - | - |
|

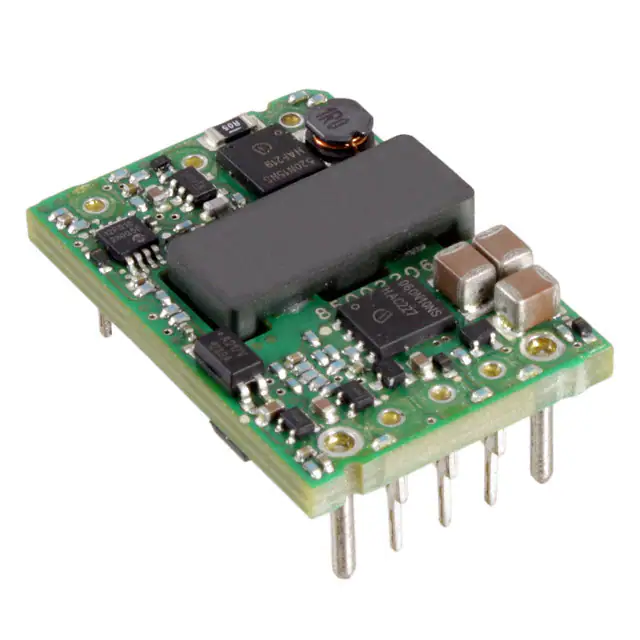

KBVW006A0B41ZDC DC CONVERTER 12V 72W |
539 |
|
Datenblatt |
Barracuda™ KBVW006A0B | 8-DIP Module, 1/16 Brick | Bulk | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 6A | 72 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90.5% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm) | - | Enable, Active Low | - | - |
|
LTM4648IY#PBFDC DC CONVERTER 0.6-5V |
3,399 |
|
Datenblatt |
µModule® | 68-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.375V | 5.5V | 0.6 ~ 5V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 68-BGA (15x9) | - | - | - |
|
LTM8064EY#PBFDC DC CONVERTER 1.2-36V |
3,410 |
|
Datenblatt |
µModule® | 108-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 58V | 1.2 ~ 36V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | 0°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.47" W x 0.19" H (16.0mm x 12.0mm x 4.9mm) | 108-BGA (16x11.9) | - | - | - |
|
LTM4600EV#PBFDC DC CONVERTER 0.6-5V |
2,938 |
|
Datenblatt |
µModule® | 104-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 104-LGA (15x15) | - | - | - |
|
LTM4651EY#PBFDC DC CNVRTR -0.5 TO -26.5V 24W |
133 |
|
Datenblatt |
µModule® | 77-BBGA | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 58V | -0.5 ~ -26.5V | - | - | - | - | 24 W | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.21" H (15.0mm x 9.0mm x 5.2mm) | 77-BGA (15x9) | Enable, Active High | - | - |
|
|
UEI15-150-Q12P-CDC DC CONVERTER 15V 15W |
286 |
|
Datenblatt |
UEI15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.1A | 15 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.10" L x 0.96" W x 0.32" H (27.9mm x 24.4mm x 8.1mm) | - | - | - | - |
|
LTM4603IV#PBFDC DC CONVERTER 0.6-5V |
121 |
|
Datenblatt |
µModule® | 118-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 118-LGA (15x15) | - | - | - |
|

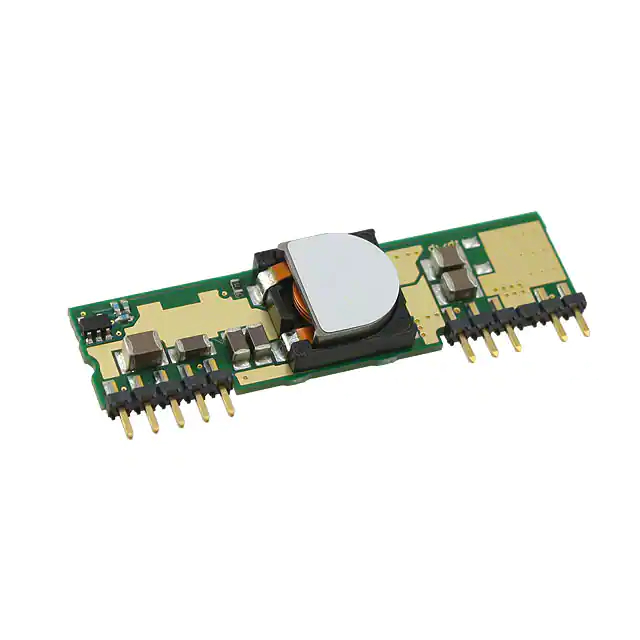

YNV12T10-0GDC DC CONVERTER 0.75-5.5V 55W |
657 |
|
Datenblatt |
Y (55W) | 10-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 9.6V | 14V | 0.75 ~ 5.5V | - | - | - | 10A | 55 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 94% | - | - | Through Hole | 2.00" L x 0.28" W x 0.54" H (50.8mm x 7.1mm x 13.7mm) | - | - | - | - |
