DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD-1212D/PDC DC CONVERTER +/-12V 2W |
3,402 |
|
Datenblatt |
ECONOLINE RD (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 84mA, 84mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
SPAN02B-12DC DC CONVERTER 12V 2W |
2,690 |
|
Datenblatt |
SPAN02 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|

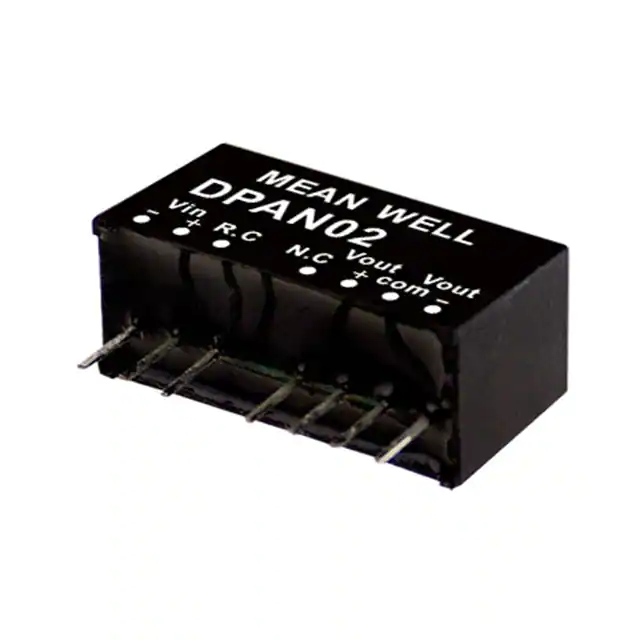

DPAN02A-12DC DC CONVERTER +/-12V 2W |
3,320 |
|
Datenblatt |
DPAN02 (2W) | 8-SIP Module, 7 Leads | - | Active | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|

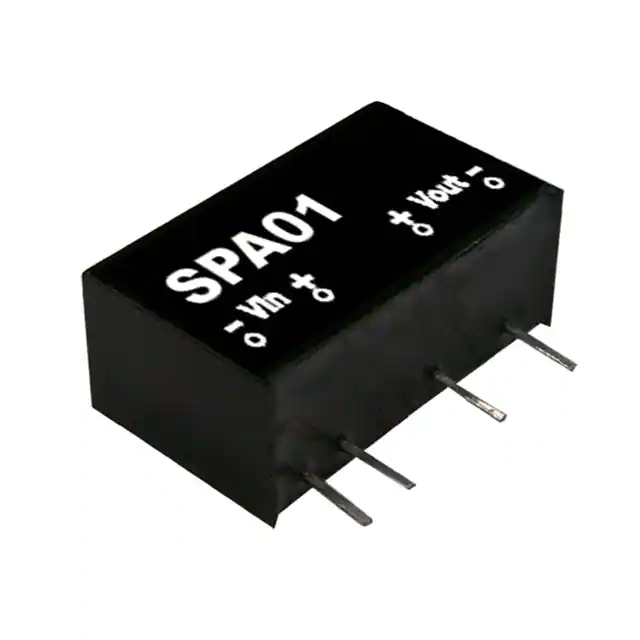

SPA01A-15DC DC CONVERTER 15V 1W |
1,405 |
|
Datenblatt |
SPA01 (1W) | 6-SIP Module, 4 Leads | Box | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | 0.69" L x 0.31" W x 0.44" H (17.4mm x 7.8mm x 11.1mm) | - | - | - | - |
|
|
SPAN02C-12DC DC CONVERTER 12V 2W |
2,095 |
|
Datenblatt |
SPAN02 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 167mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|

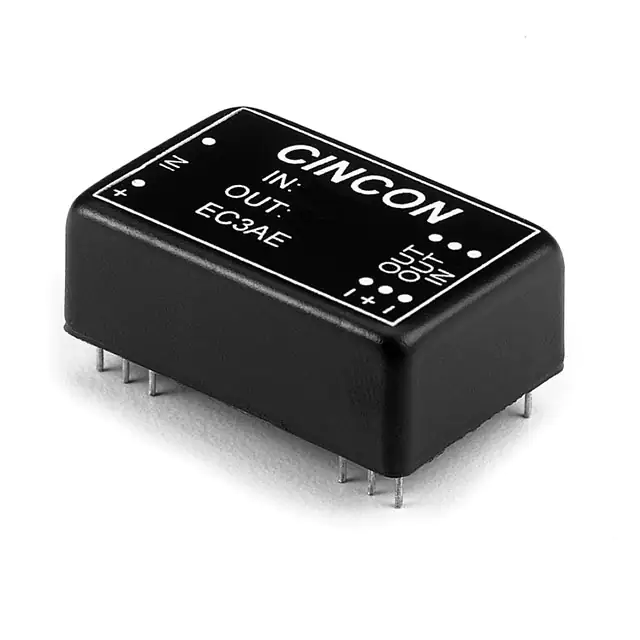

EC3AE01MDC DC CONVERTER 5V 3W |
4,920 |
|
Datenblatt |
EC3AE (3W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 100°C (With Derating) | 61% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
MEZD72402A-DDC DC CONVERTER 1.8V |
1,886 |
|
Datenblatt |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 36V | 1.8V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 0.79" L x 0.39" W x 0.16" H (20.0mm x 10.0mm x 4.0mm) | - | - | - | - |
|
|
MEZD72402A-ADC DC CONVERTER 1V |
3,394 |
|
Datenblatt |
- | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 36V | 1V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Through Hole | 0.79" L x 0.39" W x 0.16" H (20.0mm x 10.0mm x 4.0mm) | - | - | - | - |
|
RI-1515SDC DC CONVERTER 15V 2W |
2,464 |
|
Datenblatt |
ECONOLINE RI (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 133mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
|
EC2SA24NHDC DC CONVERTER +/-12V 2W |
4,638 |
|
Datenblatt |
EC2SANH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 87% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.6mm x 7.2mm x 10.2mm) | - | - | CE | - |
|
TMV 1209SHIDC DC CONVERTER 9V 999MW |
1,394 |
|
Datenblatt |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 12V | 13.2V | 9V | - | - | - | 111mA | 999 mW | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 76% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
TMV 0509SHIDC DC CONVERTER 9V 1W |
1,985 |
|
Datenblatt |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 75% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
TMV 1215SHIDC DC CONVERTER 15V 1W |
4,769 |
|
Datenblatt |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 66mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 79% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
R1S-3.305/PDC DC CONVERTER 5V 1W |
3,820 |
|
Datenblatt |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 78% | - | - | Surface Mount | 0.50" L x 0.42" W x 0.28" H (12.8mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
TMV 1203SHIDC DC CONVERTER 3.3V 1W |
4,703 |
|
Datenblatt |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 3.3V | - | - | - | 303mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 71% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
TMV 1212SHIDC DC CONVERTER 12V 1W |
4,994 |
|
Datenblatt |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
|
TMV 1205SHIDC DC CONVERTER 5V 1W |
1,965 |
|
Datenblatt |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 12V | 13.2V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 71% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm) | - | - | - | - |
|
RKZ-1215SDC DC CONVERTER 15V 2W |
2,875 |
|
Datenblatt |
ECONOLINE RKZ (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 132mA | 2 W | 3 kV | ITE (Commercial), Medical | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) | - | - | - | - |
|
IW0505SADC DC CONVERTER 5V 1W |
3,250 |
|
Datenblatt |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 67% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | - | 62368-1 |
|
|
IW2412SADC DC CONVERTER 12V 1W |
3,676 |
|
Datenblatt |
IW (1W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm) | - | - | - | 62368-1 |
