852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 6-2410WIRDC DC CONVERTER 3.3V 5W |
3,316 |
|
Datenblatt |
TMR 6WIR (6W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.5A | 5 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
TEL 12-2412WI12 WATT DC/DC CONVERTER, INDUSTR |
4,356 |
|
Datenblatt |
TEL 12WI (12W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1A | 12 W | 1.8 kV | ITE (Commercial) | Baseplate | -40°C ~ 85°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | - |
|
TDR 2-1223WISMDC DC CONVERTER +/-15V 2W |
1,835 |
|
Datenblatt |
TDR 2WISM (2W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 81% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|

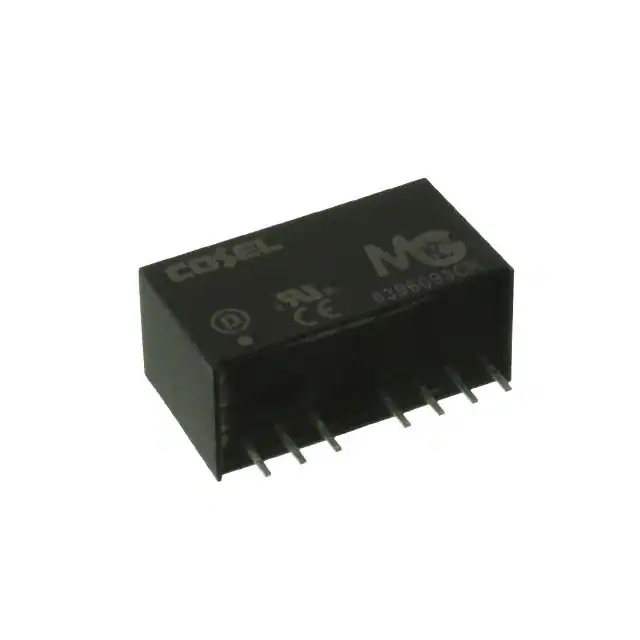

MGXS62405DC DC CONVERTER 5V 6W |
2,278 |
|
Datenblatt |
MGX (6W) | 8-SIP Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 6V | 60V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|

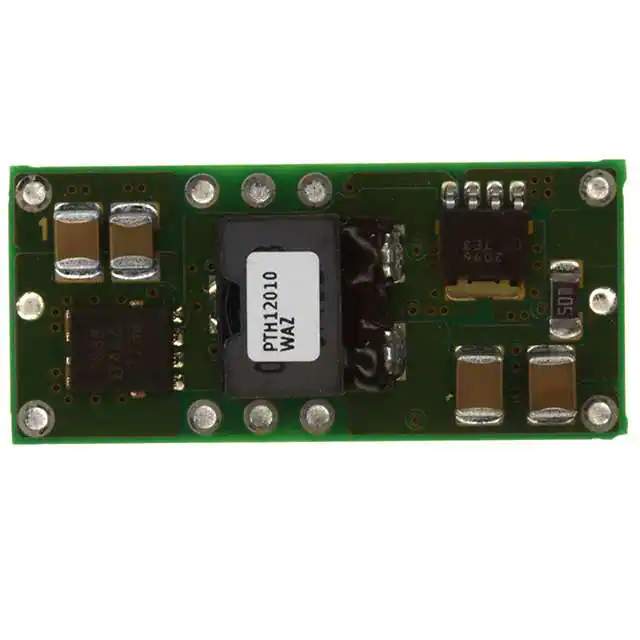

PTH12010WAZDC DC CONVERTER 1.2-5.5V 66W |
3,024 |
|
Datenblatt |
PTH12010 | 10-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 12A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 1.37" L x 0.62" W x 0.38" H (34.8mm x 15.8mm x 9.6mm) | - | - | - | - |
|
TMR 3-2410WIRDC DC CONVERTER 3.3V 2.3W |
1,867 |
|
Datenblatt |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 2.3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 76% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
TEL 10-2415DC DC CONVERTER 24V 10W |
3,342 |
|
Datenblatt |
TEL 10 (10W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 416mA | 10 W | 1.8 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm) | - | - | cURus | - |
|

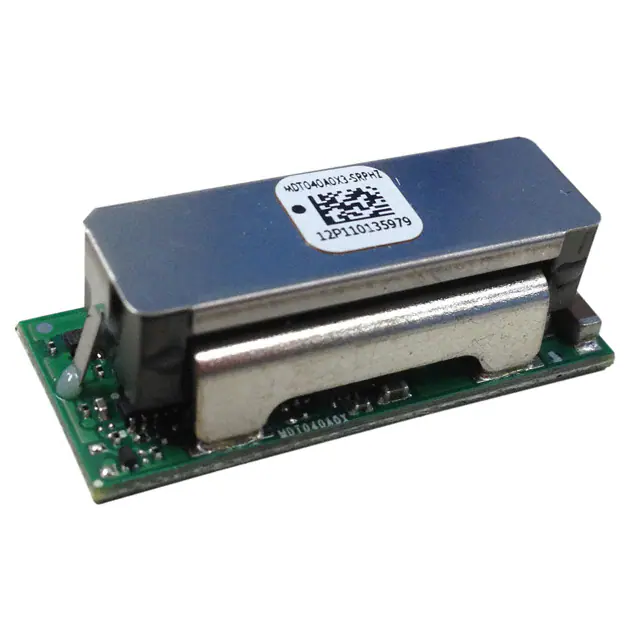

MVT040A0X3-SRPHZDC DC CONVERTER 0.6-2V |
4,095 |
|
Datenblatt |
MegaDLynx™ | 19-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14.4V | 0.6 ~ 2V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 105°C | 91.5% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.43" H (33.0mm x 13.5mm x 10.9mm) | - | Enable, Active Low | - | - |
.jpg)
|

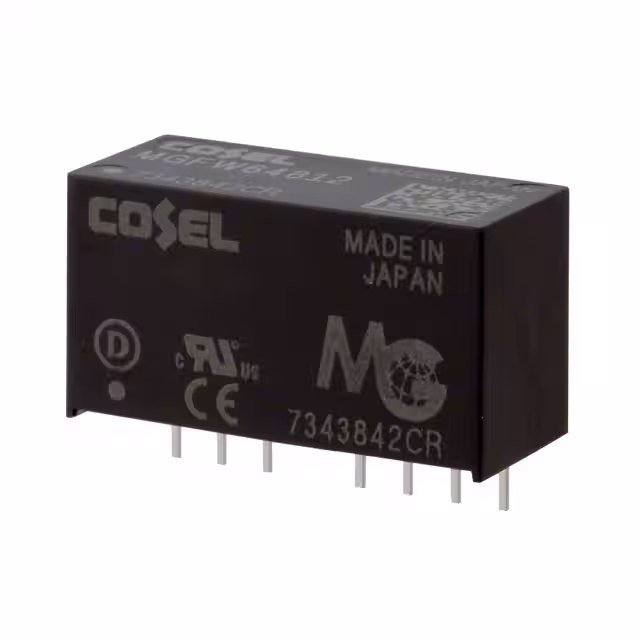

MGFW102412DC DC CONVERTER +/-12V 10W |
2,517 |
|
Datenblatt |
MGFW (10W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 420mA, 420mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
PKU4815CPIDC DC CONVERTER 15V 86W |
1,761 |
|
Datenblatt |
PKU 4800C (86W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 5.7A | 86 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (With Derating) | 91.6% | - | - | Through Hole | 1.30" L x 0.90" W x 0.38" H (33.0mm x 22.9mm x 9.6mm) | Sixteenth Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
TEN 5-1210DC DC CONVERTER 3.3V 4W |
3,126 |
|
Datenblatt |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 4 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
|
TEL 15-2412NULTRA COMPACT 15 WATT CONVERTER |
3,039 |
|
Datenblatt |
TEL 15N (15W) | 16-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Baseplate | -40°C ~ 80°C | 87% | - | - | Through Hole | 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm) | - | - | CB, cURus | 62368-1 |
|

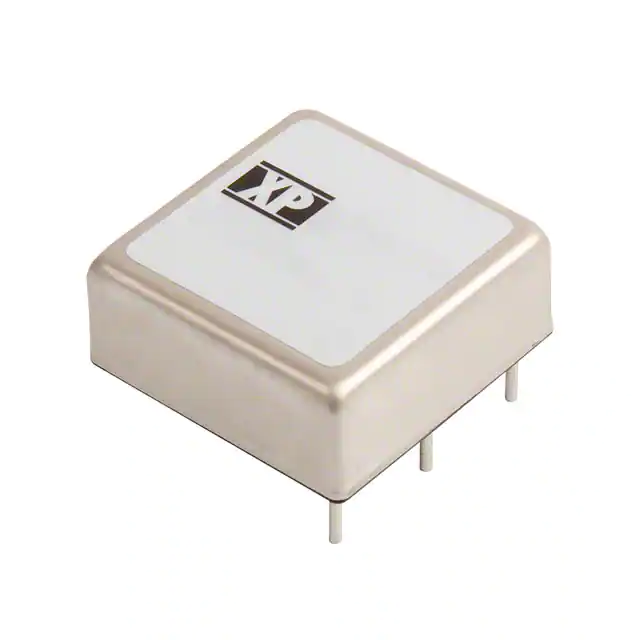

JCM1512S05DC DC CONVERTER 5V 15W |
4,971 |
|
Datenblatt |
JCM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | - | 62368-1 |
|
TDR 3-2413SMDC DC CONVERTER 15V 3.8W |
2,567 |
|
Datenblatt |
TDR 3SM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 250mA | 3.8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 83% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TMR 6-2422WIRDC DC CONVERTER +/-12V 6W |
2,419 |
|
Datenblatt |
TMR 6WIR (6W) | 8-SIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP | -40°C ~ 80°C (With Derating) | 87% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
|
DKM30F-15N30W; 9-36VIN; 15VOUT @0~1000MA |
1,873 |
|
Datenblatt |
DKM30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.44" H (50.8mm x 25.4mm x 11.2mm) | - | - | CE, EAC, UKCA | - |
|
|
RPMGE12-1010A DC/DC-CONVERTER 'INNOLINE' 1 |
1,243 |
|
Datenblatt |
RPMGE-10 | Eighth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 75V | 12V | - | - | - | 10A | 120 W | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 120°C (With Derating) | 95% | - | - | Through Hole | 2.22" L x 0.90" W x 0.47" H (56.4mm x 22.9mm x 12.0mm) | Eighth Brick | - | - | - |
|
RPMA5.0-8.0/OFDC DC CONVERTER 3.3-16.5V |
3,256 |
|
Datenblatt |
RPMA-4.5 | Thirty-Second Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 16.5V | - | - | - | 8A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 96.5% | - | - | Through Hole | 0.92" L x 0.75" W x 0.38" H (23.4mm x 19.1mm x 9.6mm) | Thirty-Second Brick | - | - | - |
|
RPMA5.0-4.5/OFDC DC CONVERTER 5-30V |
2,947 |
|
Datenblatt |
RPMA-4.5 | Thirty-Second Brick | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 5 ~ 30V | - | - | - | 4.5A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 96.5% | - | - | Through Hole | 0.92" L x 0.75" W x 0.38" H (23.4mm x 19.1mm x 9.6mm) | Thirty-Second Brick | - | - | - |
|

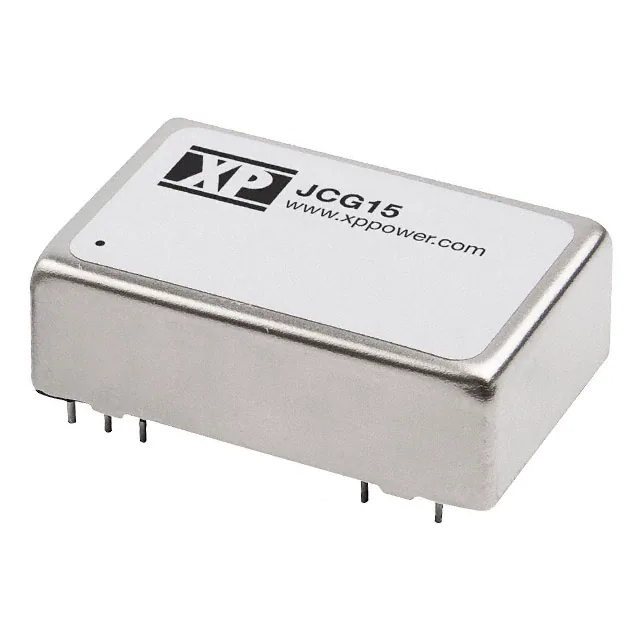

JCG1524D15DC DC CONVERTER +/-15V 15W |
3,546 |
|
Datenblatt |
JCG (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
