DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REC5-2415DRW/H4/ADC DC CONVERTER +/-15V 5W |
643 |
|
Datenblatt |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 170mA, 170mA | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 86% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
LTM4702IY#PBF18 VIN, 8A SILENT SWITCHER UMODU |
475 |
|
Datenblatt |
µModule® | 49-BFBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3V | 16V | 0.3 ~ 5.7V | - | - | - | 8A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.20" H (6.3mm x 6.3mm x 5.0mm) | 49-BGA (6.25x6.25) | - | - | - |
|
VAWQ3-Q24-D15HDC DC CONVERTER +/-15V 3W |
232 |
|
Datenblatt |
VAWQ3 (3W) | 24-DIP Module, 15 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 72% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|

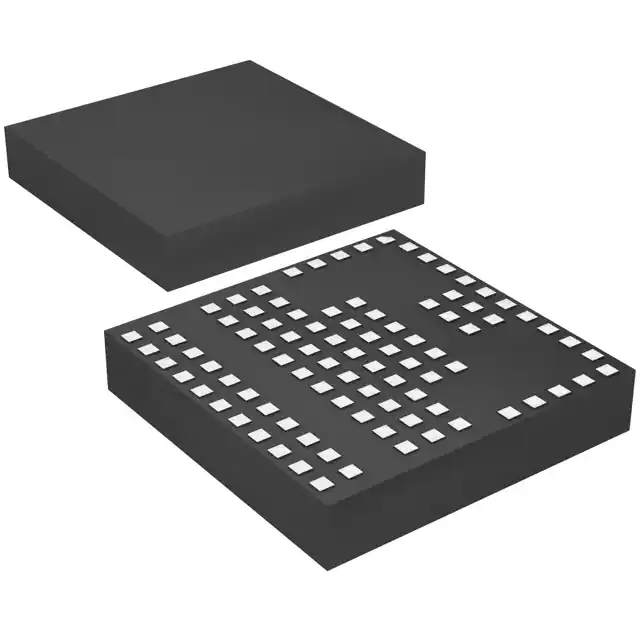

LTM4602EV#PBFDC DC CONVERTER 0.6-5V |
174 |
|
Datenblatt |
µModule® | 104-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.6 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 104-LGA (15x15) | - | - | - |
|
CC10-2403SF-EDC DC CONVERTER 3.3V 10W |
4,053 |
|
Datenblatt |
CC-E (10W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 2.5A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
CC10-2403SR-EDC DC CONVERTER 3.3V 10W |
903 |
|
Datenblatt |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 2.5A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC10-2405SR-EDC DC CONVERTER 5V 10W |
535 |
|
Datenblatt |
CC-E (10W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 1.40" L x 0.89" W x 0.35" H (35.6mm x 22.6mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC10-1212DF-EDC DC CNVRTR +/-12V +/-15V 10W |
464 |
|
Datenblatt |
CC-E (10W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 12 ~ 15V | -12 ~ -15V | - | - | 450mA, 450mA | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC10-0505SF-EDC DC CONVERTER 5V 10W |
435 |
|
Datenblatt |
CC-E (10W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 2A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|

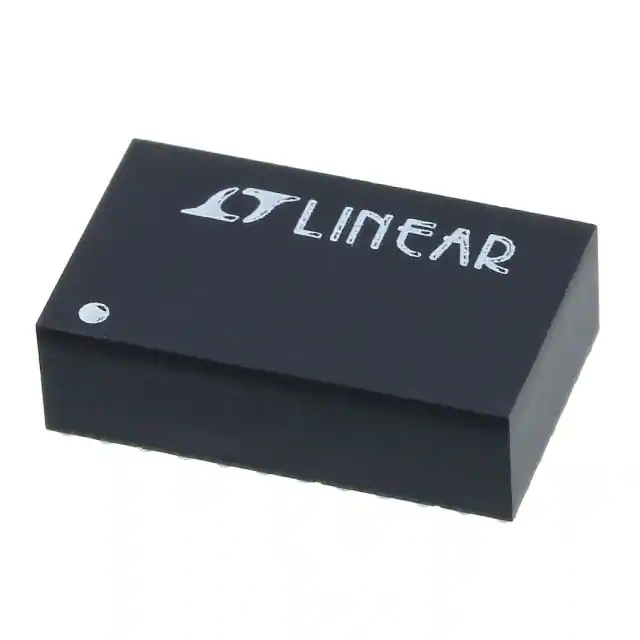

LTM4618EY#PBFDC DC CONVERTER 0.8-5V |
392 |
|
Datenblatt |
µModule® | 84-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 26.5V | 0.8 ~ 5V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.17" H (15.0mm x 9.0mm x 4.3mm) | 84-BGA (15x9) | - | - | - |
|
|
CC10-0512DF-EDC DC CNVRT +/-12V TO +/-15V 10W |
390 |
|
Datenblatt |
CC-E (10W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 4.5V | 9V | 12 ~ 15V | -12 ~ -15V | - | - | 400mA, 400mA | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC10-2412SF-EDC DC CONVERTER 12-15V 10W |
144 |
|
Datenblatt |
CC-E (10W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 12 ~ 15V | - | - | - | 1A | 10 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.40" L x 0.89" W x 0.33" H (35.6mm x 22.6mm x 8.5mm) | - | Enable, Active Low | - | - |
|

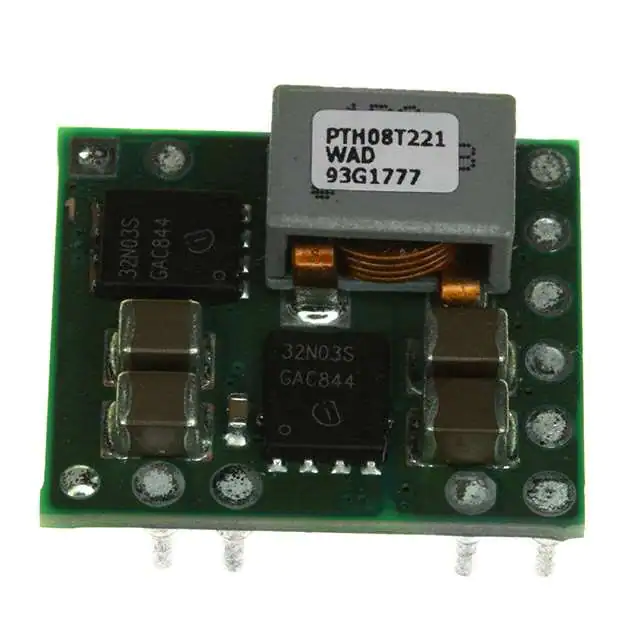

PTH08T221WADDC DC CONVERTER 0.69-5.5V |
181 |
|
Datenblatt |
PTH08T221W | 11-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.69 ~ 5.5V | - | - | - | 16A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.87" L x 0.75" W x 0.34" H (22.1mm x 19.1mm x 8.6mm) | - | - | - | - |
|
LTM8067IY#PBFDC DC CONVERTER 2.5-24V |
3,478 |
|
Datenblatt |
µModule® | 38-BBGA Module | Tray | Active | Isolated Module | 1 | 2.8V | 40V | 2.5 ~ 24V | - | - | - | 450mA | - | 2 kV | ITE (Commercial) | UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm) | 38-BGA (11.25x9) | - | - | - |
|
TES 2N-2422DC DC CONVERTER +/-12V 2W |
452 |
|
Datenblatt |
TES 2N (2W) | 16-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 85mA, 85mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Surface Mount | 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm) | - | - | - | - |
|
TMR 3-2410WIDC DC CONVERTER 3.3V 2.3W |
176 |
|
Datenblatt |
TMR 3WI (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 700mA | 2.3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | - | - | - |
|
CCG15-48-05SDC DC CONVERTER 5V 15W |
615 |
|
Datenblatt |
CCG15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG15-24-15DDC DC CONVERTER +/-15V 15W |
467 |
|
Datenblatt |
CCG15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG15-24-05SDC DC CONVERTER 5V 15W |
341 |
|
Datenblatt |
CCG15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
|
CCG15-24-12DDC DC CONVERTER +/-12V 16W |
259 |
|
Datenblatt |
CCG15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 650mA, 650mA | 16 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
