DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KDHM-B-5S1000P-VDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 5-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 7V | 0 ~ 1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
KDHM-B-24S1000P-RDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 6-DIP Module, 5 Leads | Tray | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ 1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
KDHM-B-12S1000N-VDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 5-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 0 ~ -1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
KDHM-B-24S1000P-VDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 5-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ 1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
KDHM-B-5S1000N-RDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 6-DIP Module, 5 Leads | Tray | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 7V | 0 ~ -1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
KDHM-B-5S1000N-VDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 5-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 4.5V | 7V | 0 ~ -1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
KDHM-B-12S1000P-VDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 5-DIP Module | Tray | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 0 ~ 1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
KDHM-B-12S1000P-RDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 6-DIP Module, 5 Leads | Tray | Active | High Voltage - Non-Isolated Module | 1 | 11V | 16V | 0 ~ 1000V | - | - | - | 0.5mA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
KDHM-B-24S1000N-RDC DC CONVERTER |
100 |
|
Datenblatt |
KDHM-B | 6-DIP Module, 5 Leads | Tray | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ -1000V | - | - | - | 500µA | 500 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 1.00" L x 0.60" W x 0.41" H (25.4mm x 15.2mm x 10.5mm) | - | - | - | - |
|
|
ATMV12VPN300V6R6MA24W Isolated DC-DC Power Module |
100 |
|
Datenblatt |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 2 | 10V | 18V | 300V | -300V | - | - | 6.6mA, 6.6mA | 4 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|
|
ATMV24VPN300V6R6MA24W Isolated DC-DC Power Module |
100 |
|
Datenblatt |
- | 5-DIP Module | Tape & Box (TB) | Active | Isolated Module | 2 | 18V | 36V | 300V | -300V | - | - | 6.6mA, 6.6mA | 4 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 71% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | - | - |
|
|
AHV12VN1KVR5MAPDIP High Voltage - Non-Isolated |
1,300 |
|
Datenblatt |
- | 7-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ -1000V | - | - | - | 500µA | - | - | ITE (Commercial) | Adjustable Output | -20°C ~ 55°C | 70% | - | - | Through Hole | 1.97" L x 1.38" W x 0.79" H (50.0mm x 35.0mm x 20.1mm) | - | - | - | - |
|

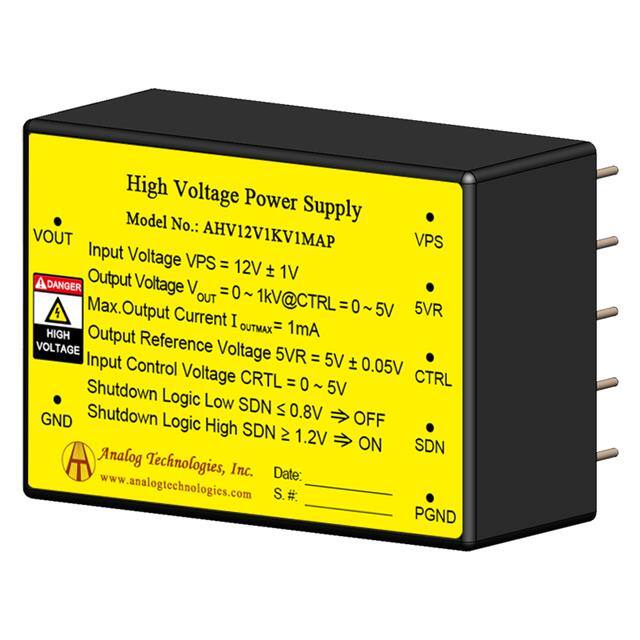

AHV12V1KV1MAPHigh Voltage - Non-Isolated |
2,588 |
|
Datenblatt |
* | - | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AM01HV12VN1KV1MAPDIP High Voltage - Non-Isolated |
4,325 |
|
Datenblatt |
- | 9-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ -1000V | - | - | - | 1mA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | 1.77" L x 0.91" W x 0.59" H (45.0mm x 23.0mm x 15.0mm) | - | - | - | - |
|
|
KDHM-A-24S100P-VDC DC CONVERTER 100V 250MW |
100 |
|
Datenblatt |
KDHM-A | 6-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ 100V | - | - | - | 2mA | 200 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 0.47" L x 0.47" W x 0.47" H (12.0mm x 12.0mm x 12.0mm) | - | - | - | - |
|
|
KDHM-A-24S100N-VDC DC CONVERTER -100V 250MW |
100 |
|
Datenblatt |
KDHM-A | 6-DIP Module | Retail Package | Active | High Voltage - Non-Isolated Module | 1 | 21V | 28V | 0 ~ -100V | - | - | - | 2mA | 200 mW | - | ITE (Commercial) | Adjustable Output | -20°C ~ 65°C | - | - | - | Through Hole | 0.47" L x 0.47" W x 0.47" H (12.0mm x 12.0mm x 12.0mm) | - | - | - | - |
|
|
AM01HV12VP3KVR5MAPDIP High Voltage - Non-Isolated |
4,724 |
|
Datenblatt |
- | 9-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ 3000V | - | - | - | 500µA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | 1.77" L x 0.91" W x 0.59" H (45.0mm x 23.0mm x 15.0mm) | - | - | - | - |
|
|
AM01HV12VP500V4MAPDIP High Voltage - Non-Isolated |
1,646 |
|
Datenblatt |
- | 9-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ 500V | - | - | - | 4mA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | 1.77" L x 0.91" W x 0.59" H (45.0mm x 23.0mm x 15.0mm) | - | - | - | - |
|
|
AHVR15V3KV3R3MAPI/O Proportional High Voltage |
1,058 |
|
Datenblatt |
- | 4-DIP Module | Tape & Box (TB) | Active | Isolated Module | 1 | 0V | 15V | 3000V | - | - | - | 3.3mA | - | 3.5 kV | ITE (Commercial) | Adjustable Output | -10°C ~ 70°C | 70% | - | - | Through Hole | 2.80" L x 1.70" W x 0.85" H (71.1mm x 43.2mm x 21.6mm) | 4-DIP Module | - | - | - |
|
|
AM01HV12VP2KV1MAPDIP High Voltage - Non-Isolated |
3,262 |
|
Datenblatt |
- | 9-DIP Module | Tape & Box (TB) | Active | High Voltage - Non-Isolated Module | 1 | 11V | 13V | 0 ~ 2000V | - | - | - | 1mA | - | - | ITE (Commercial) | Adjustable Output | 0°C ~ 50°C | 80% | - | - | Through Hole | 1.77" L x 0.91" W x 0.59" H (45.0mm x 23.0mm x 15.0mm) | - | - | - | - |
