DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IAS0105D12-TRDC DC CONVERTER 12V 8DIP SMD |
3,278 |
|
Datenblatt |
IAS01 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
SVR10S6V5DC DC CONVERTER 6.5V |
2,006 |
|
Datenblatt |
SVR10 (10W) | 10-SMD Module, 8 Leads | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 10V | 36V | 6.5V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | Enable, Active High | - | - |
|
|
IES0105S12-H-TRDC DC CONVERTER 12V 8DIP SMD |
3,195 |
|
Datenblatt |
IES01 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
IES0105S3V3DC DC CONVERTER 3.3V |
4,957 |
|
Datenblatt |
IES01 (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | - | - | - | - | - | - | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | - | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
SVR05S09DC DC CONVERTER 9V |
2,203 |
|
Datenblatt |
SVR05 (5W) | 10-SMD Module, 8 Leads | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 12V | 36V | 9V | - | - | - | 500mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | Enable, Active High | - | - |
|
|
IAS0105D05-TRDC DC CONVERTER 5V 8DIP SMD |
3,142 |
|
Datenblatt |
IAS01 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
IAS0105D15-TRDC DC CONVERTER 15V 8DIP SMD |
4,103 |
|
Datenblatt |
IAS01 (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
IES0105S24-H-TRDC DC CONVERTER 24V 8DIP SMD |
2,087 |
|
Datenblatt |
IES01 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | UL | - |
|
|
SVR10S6V5-TRDC DC CONVERTER 6.5V |
1,129 |
|
Datenblatt |
SVR10 (10W) | 10-SMD Module, 8 Leads | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 10V | 36V | 6.5V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.32" H (15.2mm x 8.5mm x 8.3mm) | - | Enable, Active High | - | - |
|

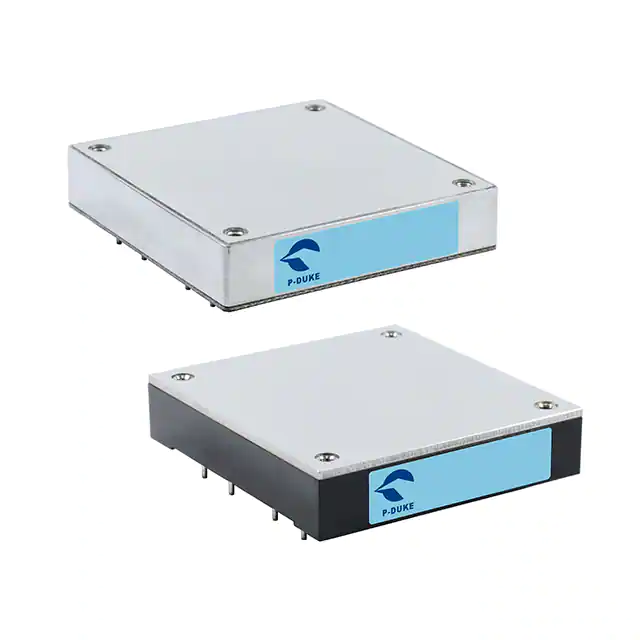

HAE100-12S12DC DC CONVERTER 12V 101W |
2,382 |
|
Datenblatt |
HAE100 (100W) | Half Brick | Box | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 8.4A | 101 W | 3 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CE, cURus | 60950-1 |
|

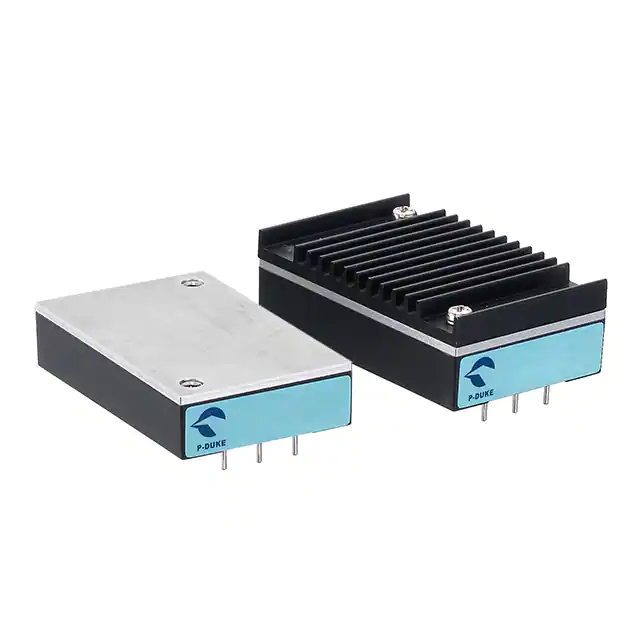

QAE150-48S48DC DC CONVERTER 48V 144W |
3,525 |
|
Datenblatt |
QAE150 (150W) | Quarter Brick | Box | Active | Isolated Module | 1 | 33V | 75V | 48V | - | - | - | 3A | 144 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Standby Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CB, CE, cURus | 62368-1 |
|

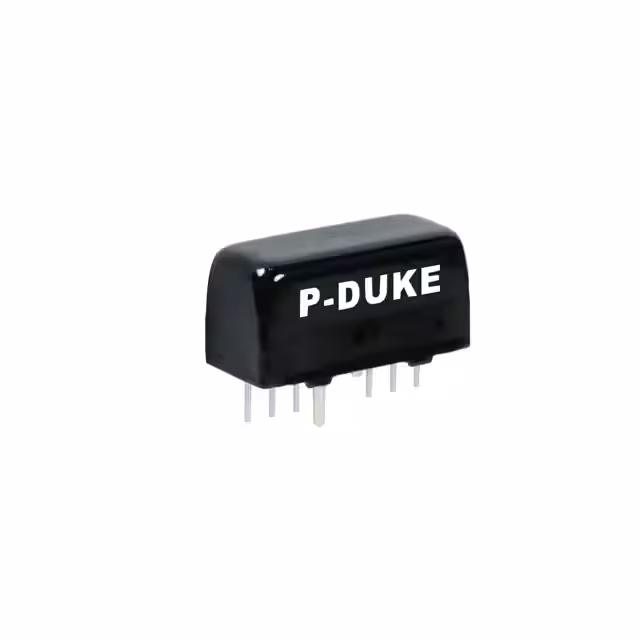

RDL06-24S3P3WDC DC CONVERTER 3.3V 5W |
1,481 |
|
Datenblatt |
RDL06W (6W) | 12-SIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.5A | 5 W | 3 kV | ITE (Commercial) | Remote On/Off, Standby Output | -40°C ~ 100°C (With Derating) | 81% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | CB, CE, cURus | 60950-1; 62368-1 |
|

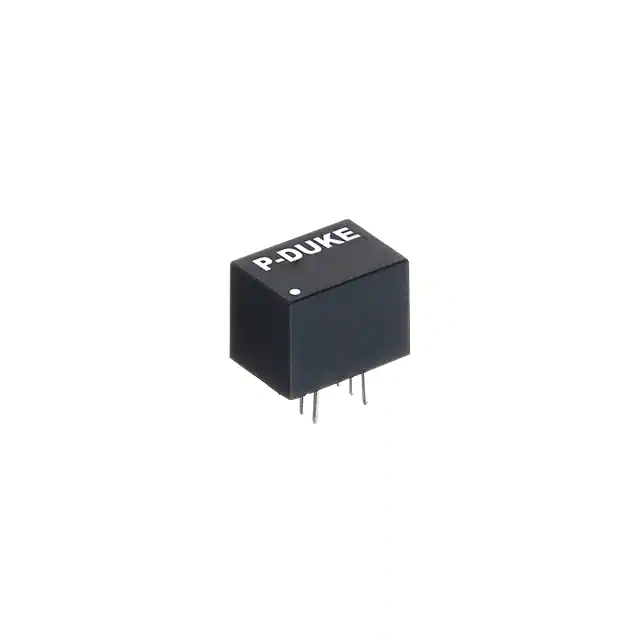

SDH05-05S12DC DC CONVERTER 12V 5W |
3,831 |
|
Datenblatt |
SDH05 (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 13.2V | 12V | - | - | - | 420mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | CE | 62368-1 |
|
|
ISL8215MIRZ-T7DC DC CONVERTER 12V |
1,710 |
|
Datenblatt |
ISL8215M | 22-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 7V | 42V | 0.6 ~ 12V | - | - | - | 15A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Surface Mount | 0.75" L x 0.51" W x 0.21" H (19.0mm x 13.0mm x 5.3mm) | 22-HDA Module (19x13) | - | - | - |
|
|
ZL9030MBIRZDC DC CONVERTER |
4,059 |
|
Datenblatt |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZL9030MBIRZ -TDC DC CONVERTER |
2,165 |
|
Datenblatt |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ISL8215MIRZDC DC CONVERTER 12V |
1,647 |
|
Datenblatt |
ISL8215M | 22-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 7V | 42V | 0.6 ~ 12V | - | - | - | 15A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Surface Mount | 0.75" L x 0.51" W x 0.21" H (19.0mm x 13.0mm x 5.3mm) | 22-HDA Module (19x13) | - | - | - |
|
|
ZL9023MBIRZDC DC CONVERTER |
4,742 |
|
Datenblatt |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZL9025MBIRZDC DC CONVERTER |
1,768 |
|
Datenblatt |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PI3106-00-HVIZDC DC CONVERTER 12V 50W |
1,617 |
|
Datenblatt |
M-Grade® | 8-SMD Module | Tray | Obsolete | Isolated Module | 1 | 16V | 50V | 12V | - | - | - | 4.17A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -55°C ~ 125°C | 88% | - | - | Surface Mount | 0.87" L x 0.65" W x 0.26" H (22.0mm x 16.5mm x 6.7mm) | - | - | CSA | 60950-1 |
