DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM15T-1212DZDC DC CONVERTER +/-12V 15W |
2,885 |
|
Datenblatt |
AM15T-Z (15W) | 24-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 18V | -12 ~ 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|
AM1L-0509SH30-NZDC DC CONVERTER 9V 999MW |
1,345 |
|
Datenblatt |
AM1L-NZ (1W) | 12-SMD Module, 10 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Surface Mount | 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.5mm x 6.5mm) | - | - | CE, cULus, cURus | - |
|

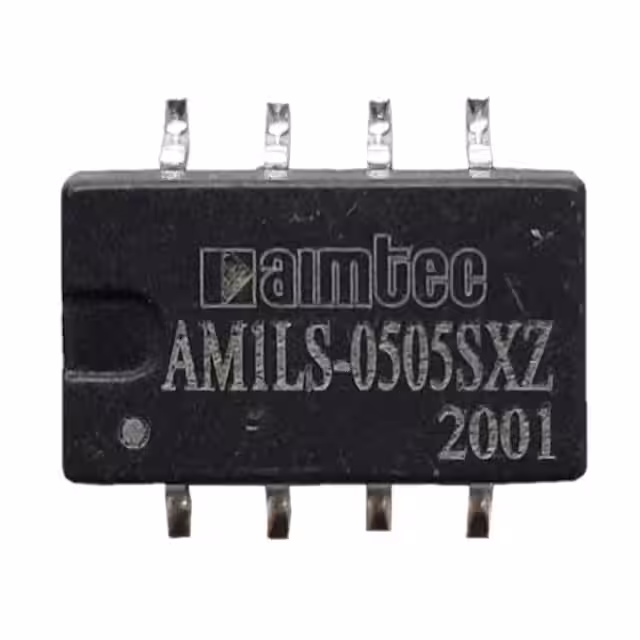

AM1LS-0505SXZDC DC CONVERTER 5V 1W |
1,070 |
|
Datenblatt |
AM1LS-XZ (1W) | SMD | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 100°C | 82% | - | - | Surface Mount | 0.50" L x 0.30" W x 0.25" H (12.7mm x 7.5mm x 6.3mm) | - | - | - | - | |
|

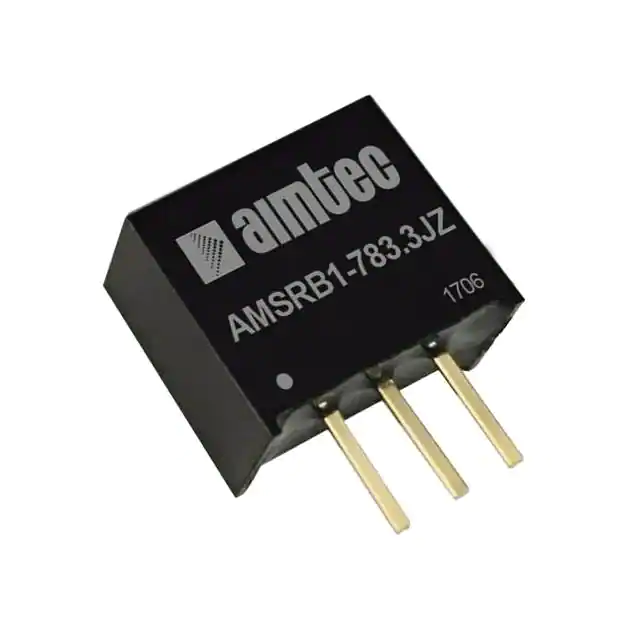

AMSRB1-7815JZDC DC CONVERTER 15V 15W |
4,317 |
|
Datenblatt |
AMSRB1-78JZ (15W) | 3-SIP Module | Obsolete | Non-Isolated PoL Module | 1 | 20V | 36V | -15 ~ 15V | - | - | - | 1A | 15 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) | - | - | - | - | |
|
AM30EW-2412D-NZDC DC CONVERTER +/-12V 30W |
1,375 |
|
Datenblatt |
AM30EW-NZ (30W) | - | Tube | Active | Isolated Module | 2 | 9V | 36V | -12 ~ 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 80°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE, cURus | - |
|

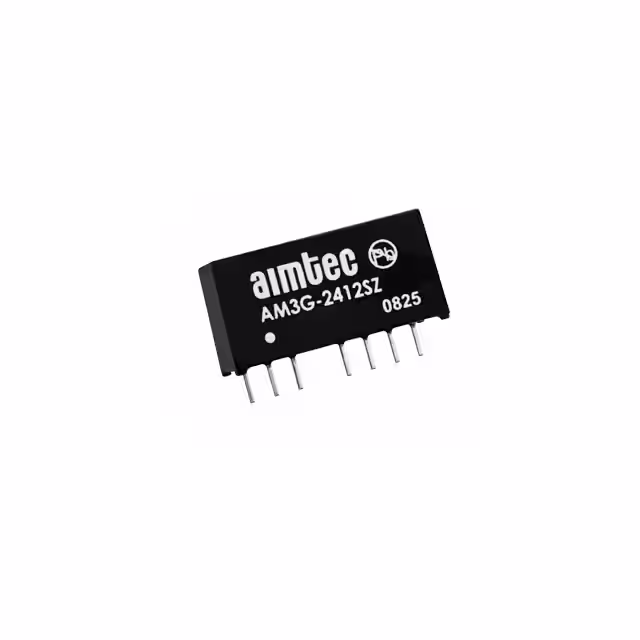

AM3G-0505DH30ZDC DC CONVERTER +/-5V 3W |
4,926 |
|
Datenblatt |
AM3G-Z (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 71°C | 77% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.2mm) | - | - | CE, cURus, UL | - |
|
AM3T-2415DZDC DC CONVERTER +/-15V 3W |
3,507 |
|
Datenblatt |
AM3T-Z (3W) | 24-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | -15 ~ 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
AMSRB1-783.3JZDC DC CONVERTER 3.3V 3.3W |
1,754 |
|
Datenblatt |
AMSRB1-78JZ (15W) | 3-SIP Module | Obsolete | Non-Isolated PoL Module | 1 | 6V | 36V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm) | - | - | - | - | |
|
AM1LS-0505S-NZTRDC DC CONVERTER 5V 1W |
1,250 |
|
Datenblatt |
AM1LS-NZ (1W) | SMD | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | cULus, cURus | - |
|

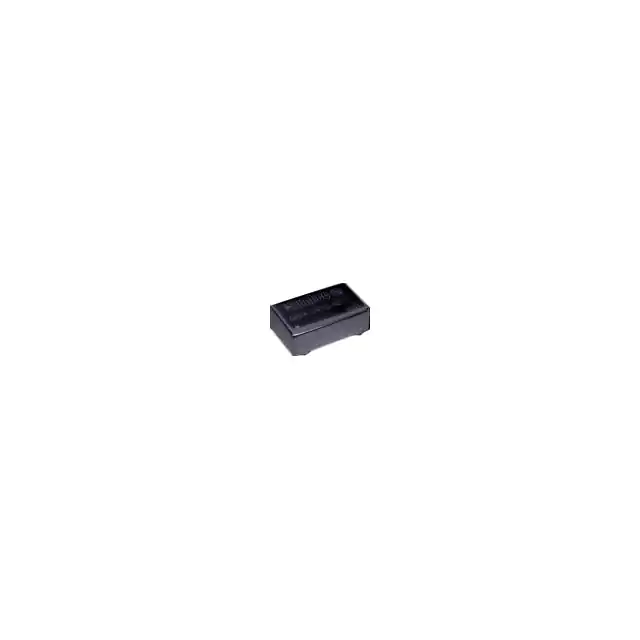

AM6TW-2409SH30-NZDC DC CONVERTER 9V 6W |
3,988 |
|
Datenblatt |
AM6TW-NZ (6W) | 24-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 9V | - | - | - | 667mA | 6 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm) | - | - | cURus, UL | - |
|
AM5TW-2415D-RZDC DC CONVERTER +/-15V 5W |
3,192 |
|
Datenblatt |
AM5TW-RZ (5W) | 24-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | -15 ~ 15V | -15V | - | - | 167mA, 167mA | 5 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE | - |
|

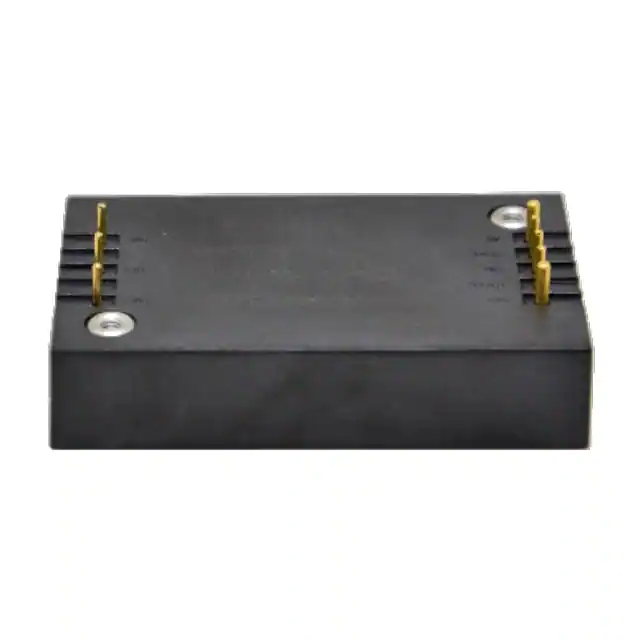

AM75QB-4812SH22-NZDC DC CONVERTER 12V 75W |
2,997 |
|
Datenblatt |
AM75QB-NZ (75W) | Quarter Brick | Bulk | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 6.25A | 75 W | 2.25 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.43" L x 1.58" W x 0.50" H (61.8mm x 40.2mm x 12.7mm) | Quarter Brick | - | CE | - |
|
|
AM1LS-0505S-NZDC DC CONVERTER 5V 1W |
4,410 |
|
Datenblatt |
AM1LS-NZ (1W) | SMD | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 82% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | cULus, cURus | - |
|
|
AM1LS-0503SJZDC DC CONVERTER 3.3V 1W |
4,060 |
|
Datenblatt |
AM1LS-NZ (1W) | SMD | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C | 74% | - | - | Surface Mount | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) | - | - | cULus, cURus | - |
|
AM10CW-4805S-NZDC DC CONVERTER 5V 10W |
2,072 |
|
Datenblatt |
AM10CW-NZ (10W) | - | Obsolete | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 83% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CE, cURus, UL | - | |
|

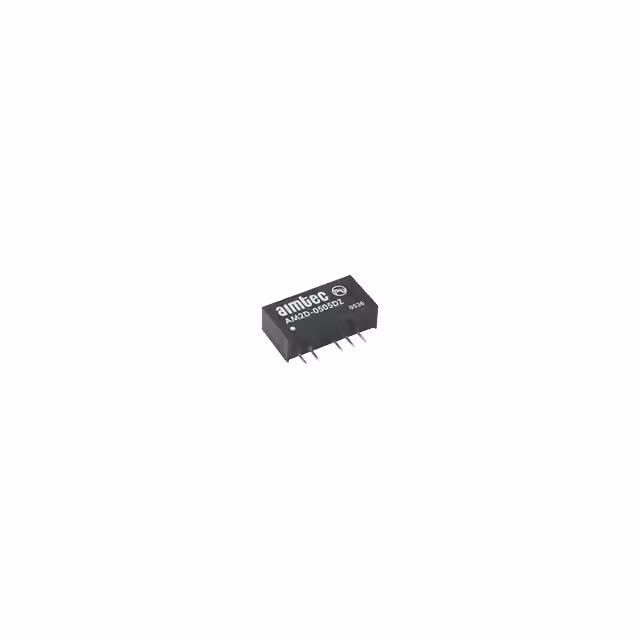

AM2DS-1212DH30-NZDC DC CONVERTER +/-12V 2W |
1,177 |
|
Datenblatt |
AM2DS-NZ (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | -12 ~ 12V | -12V | - | - | 83mA, 83mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 85% | - | - | Through Hole | 0.77" L x 0.28" W x 0.41" H (19.6mm x 7.0mm x 10.5mm) | - | - | cULus, cURus | - |
|

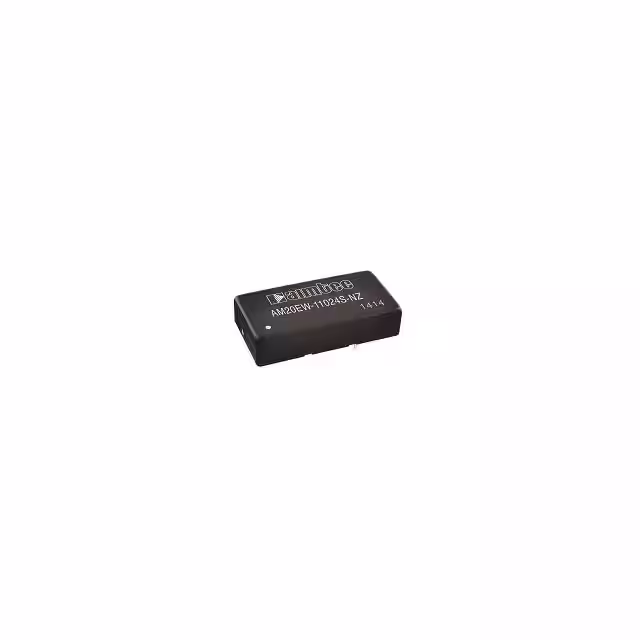

AM20EW-2415D-NZDC DC CONVERTER +/-15V 20W |
2,671 |
|
Datenblatt |
AM20EW-NZ (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | -15 ~ 15V | -15V | - | - | 667mA, 667mA | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CE, cULus, cURus | - |
|

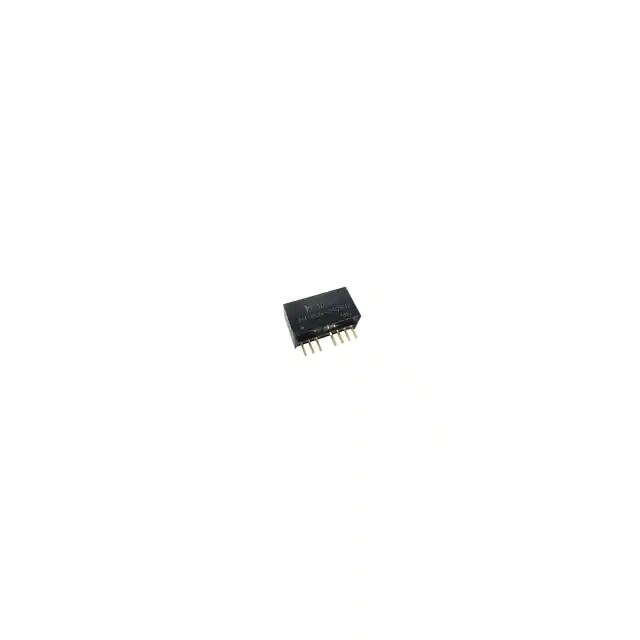

AM10GH-2409NZDC DC CONVERTER 9V 10W |
4,822 |
|
Datenblatt |
AM10GH-NZ (10W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 9V | - | - | - | 1.11A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | Enable, Active Low | - | - |
|
AM1DS-0305SH30-NZDC DC CONVERTER 5V 1W |
3,100 |
|
Datenblatt |
AM1DS-NZ (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 78% | - | - | Through Hole | 0.77" L x 0.24" W x 0.38" H (19.5mm x 6.0mm x 9.6mm) | - | - | cURus | - |
|

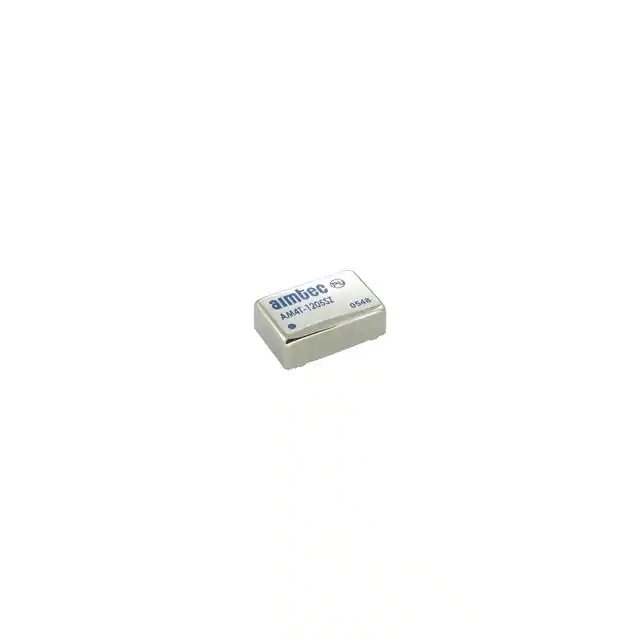

AM4T-2415DZDC DC CONVERTER +/-15V 4W |
4,036 |
|
Datenblatt |
AM4T-Z (4W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | -15 ~ 15V | -15V | - | - | 133mA, 133mA | 4 W | 3.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CE, UL | - |
