DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

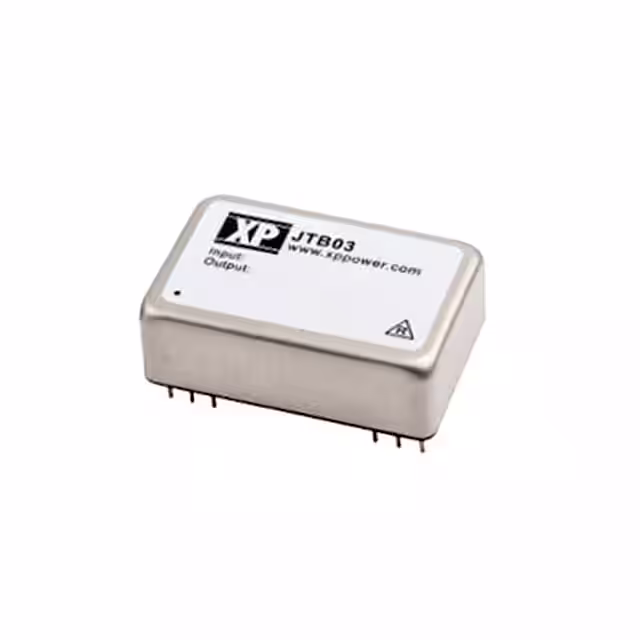

JTB0324S3V3DC DC CONVERTER 3.3V 2W |
4,455 |
|
Datenblatt |
JTB03 (3W) | 24-DIP Module, 14 Leads | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 600mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C (With Derating) | 70% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
JTB0348D05DC DC CONVERTER +/-5V 3W |
2,073 |
|
Datenblatt |
JTB03 (3W) | 24-DIP Module, 14 Leads | Bulk | Obsolete | Isolated Module | 2 | 18V | 72V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C (With Derating) | 71% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
JTB0524D15DC DC CONVERTER +/-15V 6W |
3,999 |
|
Datenblatt |
JTB05 (5W) | 24-DIP Module, 14 Leads | Bulk | Obsolete | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 190mA, 190mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
JTB0524S05DC DC CONVERTER 5V 5W |
4,776 |
|
Datenblatt |
JTB05 (5W) | 24-DIP Module, 14 Leads | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
JTB0524S12DC DC CONVERTER 12V 6W |
2,884 |
|
Datenblatt |
JTB05 (5W) | 24-DIP Module, 14 Leads | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 470mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
JTB0548D05DC DC CONVERTER +/-5V 5W |
3,093 |
|
Datenblatt |
JTB05 (5W) | 24-DIP Module, 14 Leads | Bulk | Obsolete | Isolated Module | 2 | 18V | 72V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C (With Derating) | 77% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
JTB0548D15DC DC CONVERTER +/-15V 6W |
1,815 |
|
Datenblatt |
JTB05 (5W) | 24-DIP Module, 14 Leads | Bulk | Obsolete | Isolated Module | 2 | 18V | 72V | 15V | -15V | - | - | 190mA, 190mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
JTB0548S05DC DC CONVERTER 5V 5W |
2,795 |
|
Datenblatt |
JTB05 (5W) | 24-DIP Module, 14 Leads | Bulk | Obsolete | Isolated Module | 1 | 18V | 72V | 5V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -25°C ~ 100°C (With Derating) | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
WD201DC DC CONVERTER 5V 15W |
3,531 |
|
Datenblatt |
WD (15W) | 5-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 78% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
WD202DC DC CONVERTER 12V 15W |
4,269 |
|
Datenblatt |
WD (15W) | 5-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.25A | 15 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
WE300DC DC CONVERTER 3.3V 17W |
1,755 |
|
Datenblatt |
WE (20W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 5A | 17 W | 500 V | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 70°C | 83% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
WU201DC DC CONVERTER 5V 15W |
2,969 |
|
Datenblatt |
WU (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 500 V | ITE (Commercial) | OVP, SCP | -25°C ~ 71°C | 80% | - | - | Through Hole | 2.00" L x 2.00" W x 0.46" H (50.8mm x 50.8mm x 11.7mm) | - | - | - | - |
|
|

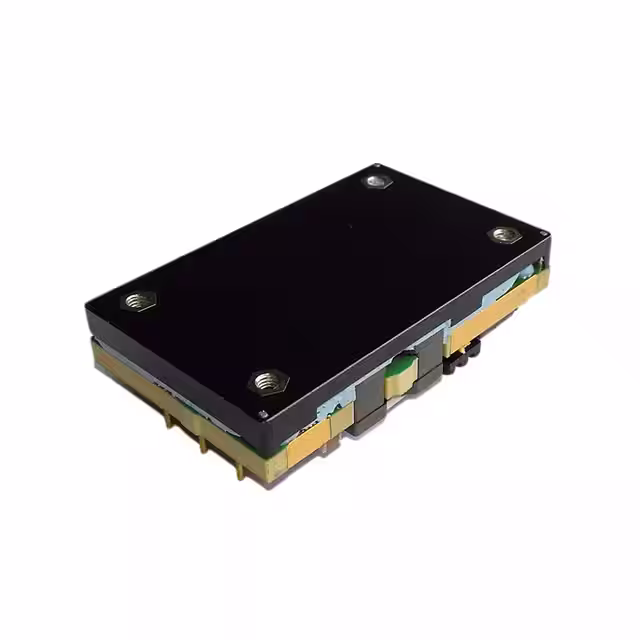

DRQ-8/100-L48NB-CDC DC CONVERTER 8V 800W |
4,579 |
|
Datenblatt |
DRQ-8/100-L48NBxxxx-C (800W) | Quarter Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 60V | 8V | - | - | - | 100A | 800 W | 1.5 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C (With Derating) | 95.8% | - | - | Through Hole | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) | Quarter Brick | - | - | - |
|
DRQ-8/100-L48NBS-CDC DC CONVERTER 8V 800W |
4,991 |
|
Datenblatt |
DRQ-8/100-L48NBxxxx-C (800W) | Quarter Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 60V | 8V | - | - | - | 100A | 800 W | 1.5 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C (With Derating) | 95.8% | - | - | Through Hole | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) | Quarter Brick | - | - | - |
|
|
0RCY-60U12LDC DC CONVERTER 12V 84W |
2,216 |
|
Datenblatt |
0RCY-60U | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 7A | 84 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.8mm x 12.7mm) | Eighth Brick | - | - | - |
|
|
0RSB-40U120DC DC CONVERTER 12V 42W |
3,109 |
|
Datenblatt |
xRSB-40U (40W) | 8-DIP Module, 1/16 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 3.5A | 42 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.30" L x 0.90" W x 0.51" H (33.0mm x 22.9mm x 12.9mm) | Sixteenth Brick | - | - | - |
|
|
QME48T40050-NGABGDC DC CONVERTER 5V 200W |
3,895 |
|
Datenblatt |
QME | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 40A | 200 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.30" L x 1.45" W x 0.44" H (58.4mm x 36.8mm x 11.3mm) | Quarter Brick | - | - | - |
|
|
SSQE48T13050-PAA0GDC DC CONVERTER 5V 65W |
1,152 |
|
Datenblatt |
SSQE48 (65W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 13A | 65 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) | Sixteenth Brick | - | - | - |
|
|
MAXM17502ALI+TDC DC CONVERTER 0.9-5V |
1,074 |
|
Datenblatt |
Himalaya | 28-PowerBLGA Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 60V | 0.9 ~ 5V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.39" L x 0.26" W x 0.11" H (10.0mm x 6.5mm x 2.9mm) | 28-LGA (6.5x10) | - | - | - |
|
|
IAA05015A033V-000-RDC DC CONVERTER 3.3V 50W |
4,912 |
|
Datenblatt |
iAA (50W) | 6-SMD Module | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 15A | 50 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 125°C (With Derating) | 95% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.31" H (33.0mm x 13.5mm x 8.0mm) | 6-SMD | Enable, Active High | - | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
