DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDE2024S15DC DC CONVERTER 15V 20W |
2,663 |
|
Datenblatt |
RDE20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 13V | 70V | 15V | - | - | - | 1.33A | 20 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.43" H (25.4mm x 25.4mm x 10.9mm) | - | Enable, Active High | - | 62368-1 |
|
EN6363QIDC DC CONVERTER 0.75-6.12V |
2,024 |
|
Datenblatt |
Enpirion® | 34-PowerBFQFN Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 2.7V | 6.6V | 0.75 ~ 6.12V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.24" L x 0.16" W x 0.10" H (6.0mm x 4.0mm x 2.5mm) | 34-QFN (4x6) | Enable, Active High | - | - |
|
|
PTB48530AAZDC DC CONVERTER 48V 27W |
4,063 |
|
Datenblatt |
PTB48530A | - | Tray | Obsolete | Isolated Module | 2 | 3V | 3.6V | - | - | - | - | - | 27 W | - | ITE (Commercial) | - | - | - | - | - | Surface Mount | - | - | - | - | - |
|
|
RDT-6Y03DC-DC,14-160V INPUT, 3.3V/1.45A |
2,516 |
|
Datenblatt |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 3.3V | - | - | - | 1.454A | 4.8 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 75% | - | - | Through Hole | 1.24" L x 0.80" W x 0.49" H (31.6mm x 20.3mm x 12.5mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
RDT-6Y12DC-DC,14-160V INPUT, 12V/0.5A OU |
1,407 |
|
Datenblatt |
RDT-6Y | 5-DIP Module | Tube | Active | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 500mA | 6 W | 3 kV | ITE (Commercial), Railway | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Through Hole | 1.24" L x 0.80" W x 0.49" H (31.6mm x 20.3mm x 12.5mm) | - | - | cCSAus, CE, UKCA | 62368-1 |
|
|
UWTH1D54LD-20WR3ISOLATED MODULE DC DC CONVERTER |
2,512 |
|
Datenblatt |
UWTH1D_LD-20W(F/H)R3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 370mA | 20 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CB, cCSAus, CE, CSA, EN, IEC, UKCA | 62368-1 |
|
|
AM20JW-2405SH30ZDC DC CONVERTER 5V 20W |
3,542 |
|
Datenblatt |
AM20JW-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.60" L x 1.00" W x 0.43" H (40.6mm x 25.4mm x 10.9mm) | - | - | - | - |
|
|
AM20JW-2412SH30ZDC DC CONVERTER 12V 20W |
1,515 |
|
Datenblatt |
AM20JW-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial) | - | -40°C ~ 90°C (With Derating) | 88.5% | - | - | Through Hole | 1.60" L x 1.00" W x 0.43" H (40.6mm x 25.4mm x 10.9mm) | - | - | - | - |
|
|
NVS0.3EJ-M6DC DC CONVERTER 15V 6W |
196 |
|
Datenblatt |
NV (6W) | 14-SMD Module | Bulk | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 280mA | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 110°C | 82% | - | - | Surface Mount | 1.30" L x 0.81" W x 0.33" H (33.0mm x 20.6mm x 8.4mm) | - | - | - | - |
|

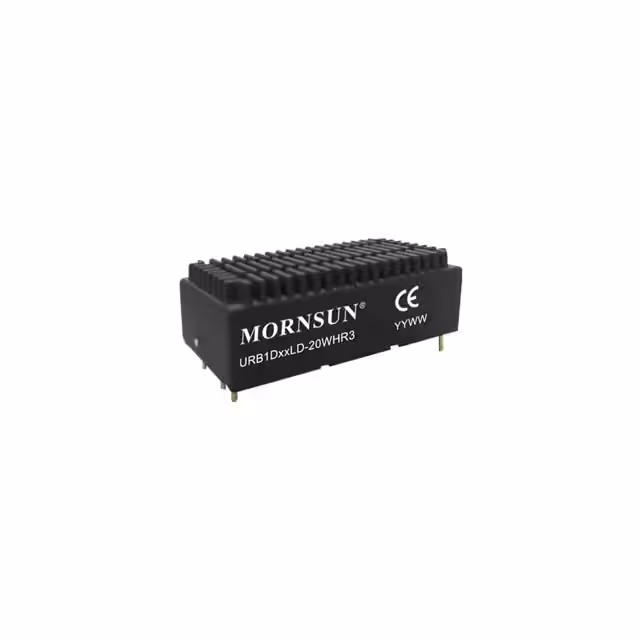

URB1D15LD-20WHR3ISOLATED MODULE DC DC CONVERTER |
1,874 |
|
Datenblatt |
URB1D_LD-20WR3 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 110V | 15V | - | - | - | 1.33A | 20 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.02" L x 1.03" W x 0.65" H (51.4mm x 26.2mm x 16.5mm) | - | - | CE | 60950-1 |
|
|
UWS-3.3/15-Q12P-CDC DC CONVERTER 3.3V 50W |
169 |
|
Datenblatt |
UWS-Q12 | Sixteenth Brick | Tray | Obsolete | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 15A | 50 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 89.5% | - | - | Through Hole | 1.30" L x 0.90" W x 0.36" H (33.0mm x 22.9mm x 9.1mm) | Sixteenth Brick | Enable, Active High | cURus | - |
|
|
PT6901CDC DC CONVERTER -2V |
1,289 |
|
Datenblatt |
PT6900 (12W) | 23-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | -2V | - | - | - | 6A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 70% | - | - | Surface Mount | 2.67" L x 1.28" W x 0.50" H (67.8mm x 32.5mm x 12.7mm) | - | - | - | - |
|
|
PT7601NDC DC CONVERTER 1.3-3.5V 11A |
1,256 |
|
Datenblatt |
PT7600 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 10A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | - |
|
|
PTQA430025N2ADDC DC CONVERTER 2.5V 100W |
1,413 |
|
Datenblatt |
PTQA430025 (100W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm) | - | - | - | - |
|
|
PTQA430025P2ADDC DC CONVERTER 2.5V 100W |
2,297 |
|
Datenblatt |
PTQA430025 (100W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm) | - | - | - | - |
|
|
TWA3-12-12DC DC CONVERTER +/-12V 3W |
3,440 |
|
Datenblatt |
TWA3 (3W) | 24-DIP Module, 12 Leads | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 125mA, 125mA | 3 W | 500 V | ITE (Commercial) | - | -25°C ~ 71°C | 76% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.6mm) | - | - | - | - |
|
|
PTB48600AASDC DC CONVERTER +/-5V 85W |
2,246 |
|
Datenblatt |
PTB48600 (85W) | 8-SMD Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 8.5A, 8.5A | 85 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 85% | - | - | Surface Mount | 2.22" L x 1.89" W x 0.50" H (56.4mm x 48.0mm x 12.7mm) | - | - | - | - |
|
|
VCB4812EBO-400WR3-NISOLATED MODULE DC DC CONVERTER |
3,919 |
|
Datenblatt |
VCB48_EBO-400WR3-N (400W) | Eighth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 33A | 396 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.30" L x 0.90" W x 0.42" H (58.4mm x 22.9mm x 10.7mm) | Eighth Brick | - | - | - |
.jpg)
|
REC6-4824SRW/R10/CDC DC CONVERTER 24V 6W |
180 |
|
Datenblatt |
ECONOLINE REC6/R (6W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 250mA | 6 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
PT4563CDC DC CONVERTER 12V 30W |
3,338 |
|
Datenblatt |
Excalibur™ PT4560 (30W) | 19-SMD Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | 3.00" L x 1.19" W x 0.50" H (76.2mm x 30.2mm x 12.7mm) | - | - | - | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
