DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM4668EY#PBFDC DC CNVRTR 4X0.6-1.8V |
1,459 |
|
Datenblatt |
µModule® | 49-FBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 2.7V | 17V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | 1.2A, 1.2A, 1.2A, 1.2A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.09" H (6.3mm x 6.3mm x 2.3mm) | 49-BGA (6.25x6.25) | - | - | - |
|
|
LTM4668AEY#PBFDC DC CNVRTR 4X0.6-5.5V |
2,664 |
|
Datenblatt |
µModule® | 49-FBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 2.7V | 17V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 1.2A, 1.2A, 1.2A, 1.2A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.09" H (6.3mm x 6.3mm x 2.3mm) | 49-BGA (6.25x6.25) | - | - | - |
|
CC6-4805SR-EDC DC CONVERTER 5V 6W |
2,148 |
|
Datenblatt |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC6-0505SR-EDC DC CONVERTER 5V 5W |
1,303 |
|
Datenblatt |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1A | 5 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
|
CC6-4805SF-EDC DC CONVERTER 5V 6W |
991 |
|
Datenblatt |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC6-2405SF-EDC DC CONVERTER 5V 6W |
629 |
|
Datenblatt |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC6-1205SF-EDC DC CONVERTER 5V 6W |
478 |
|
Datenblatt |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC6-2405SR-EDC DC CONVERTER 5V 6W |
311 |
|
Datenblatt |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC6-0512SF-EDC DC CONVERTER 12-15V 6W |
293 |
|
Datenblatt |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 4.5V | 9V | 12 ~ 15V | - | - | - | 500mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.90" L x 0.83" W x 0.34" H (22.9mm x 21.1mm x 8.5mm) | - | Enable, Active Low | - | - |
|
|
CC6-2412DR-EDC DC CNVRTR +/-12V TO +/-15V 6W |
257 |
|
Datenblatt |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 12 ~ 15V | -12 ~ -15V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
|
|
CC6-1212DR-EDC DC CNVRTR +/-12V TO +/-15V 6W |
171 |
|
Datenblatt |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 2 | 9V | 18V | 12 ~ 15V | -12 ~ -15V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) | - | Enable, Active Low | - | - |
|
LMZ31710RVQRDC DC CONVERTER 0.6-5.5V 55W |
600 |
|
Datenblatt |
SIMPLE SWITCHER® | 42-BQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 17V | 0.6 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.40" L x 0.40" W x 0.17" H (10.2mm x 10.2mm x 4.4mm) | 42-B3QFN (10x10) | Enable, Active High | - | - |
|

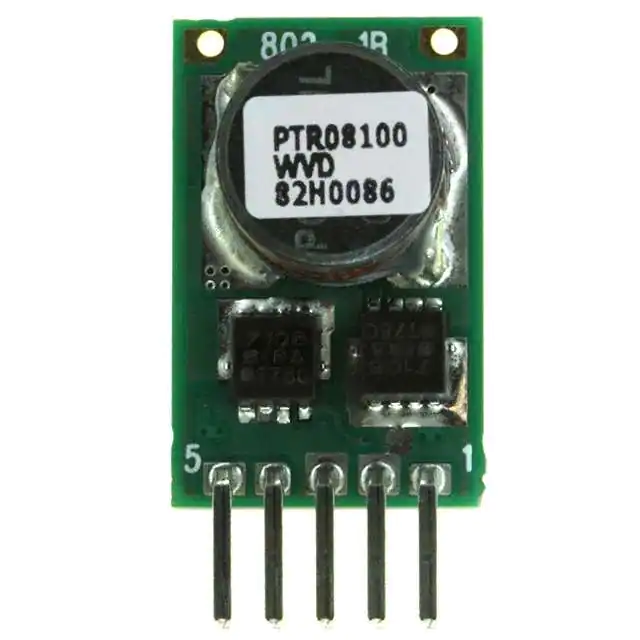

PTR08100WVDDC DC CONVERTER 0.6-5.5V |
107 |
|
Datenblatt |
PTR08100W | 5-SIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.6 ~ 5.5V | - | - | - | 10A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 0.41" L x 0.45" W x 0.65" H (10.4mm x 11.4mm x 16.5mm) | - | - | - | - |
|
TDN 1-2411WIDC DC CONVERTER 5V 1W |
334 |
|
Datenblatt |
TDN 1WI (1W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 200mA | 1 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C | 78% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
171050601DC DC CONVERTER 0.8-6V |
1,385 |
|
Datenblatt |
MagI³C, VDRM | 7-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 6V | - | - | - | 5A | - | - | ITE (Commercial) | SCP, UVLO | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | - | Enable, Active High | - | - |
|

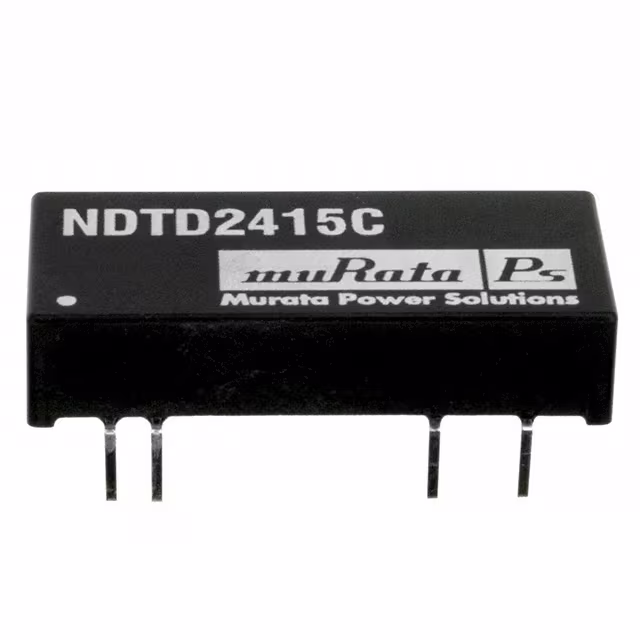

NDTD2415CDC DC CONVERTER +/-15V 3W |
148 |
|
Datenblatt |
NDTD (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm) | - | - | - | - |
|
AG5324DC DC CONVERTER 24V 30W |
300 |
|
Datenblatt |
Ag5300 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 57V | 24V | - | - | - | 1.25A | 30 W | - | - | SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.24" L x 0.71" W x 0.55" H (57.0mm x 18.0mm x 14.0mm) | - | - | - | - |
|
|
AG5300DC DC CONVERTER 12V 30W |
250 |
|
Datenblatt |
Ag5300 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | - | 36V | 57V | 12V | - | - | - | 2.5A | 30 W | - | - | OVP, SCP | -40°C ~ 70°C | 87% | - | - | Through Hole | 2.26" L x 0.71" W x 0.55" H (57.3mm x 18.0mm x 14.0mm) | - | - | - | 60950-1 |
|
LTM4623IV#PBFDC DC CONVERTER 0.6-5.5V 17W |
1,653 |
|
Datenblatt |
µModule® | 25-PowerLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4V | 20V | 0.6 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.25" L x 0.25" W x 0.07" H (6.3mm x 6.3mm x 1.8mm) | 25-LGA (6.25x6.25) | - | - | - |
|

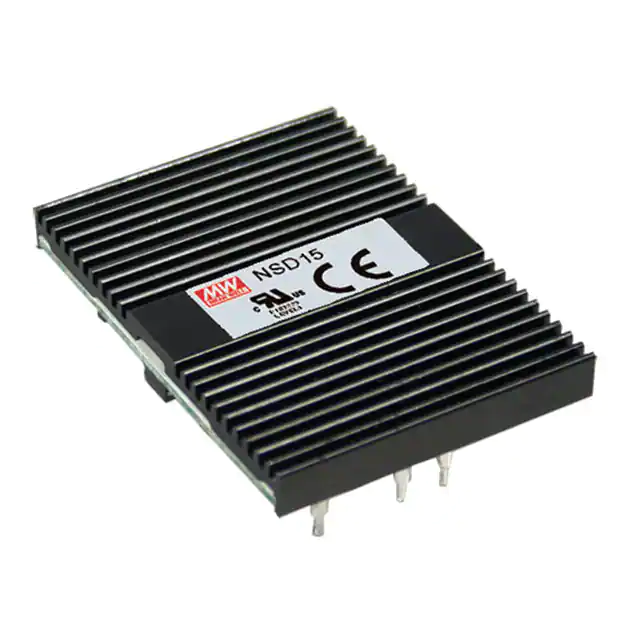

NSD15-12S5DC DC CONVERTER 5V 15W |
1,251 |
|
Datenblatt |
NSD15-S (15W) | 8-DIP Module, 6 Leads | Tray | Active | Isolated Module | 1 | 9.4V | 36V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 77% | - | - | Through Hole | 2.00" L x 1.50" W x 0.39" H (50.8mm x 38.1mm x 9.8mm) | - | - | - | - |
