852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TR10S05DC DC CONVERTER 5V |
497 |
|
Datenblatt |
TR | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 8V | 28V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 93% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | 3-SIP | - | - | - |
|

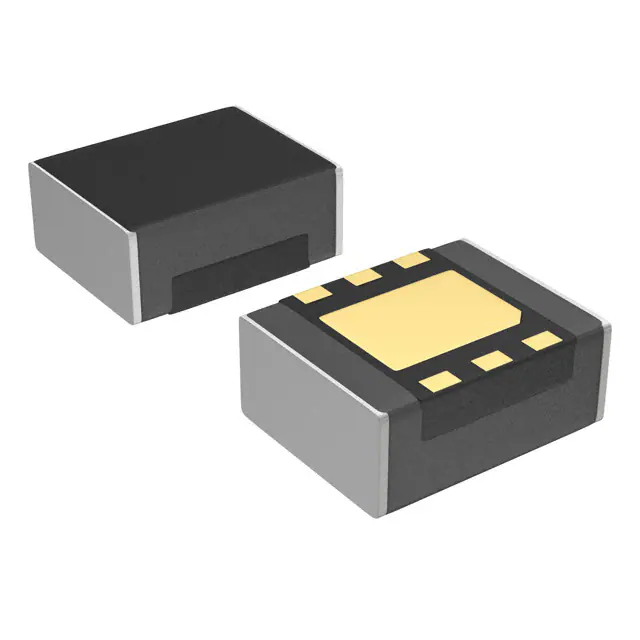

XCL210D181GR-GDC DC CONVERTER 1.8V |
11,128 |
|
Datenblatt |
XCL210 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2V | 6V | 1.8V | - | - | - | 50mA | - | - | ITE (Commercial) | SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | Enable, Active High | - | - |
|

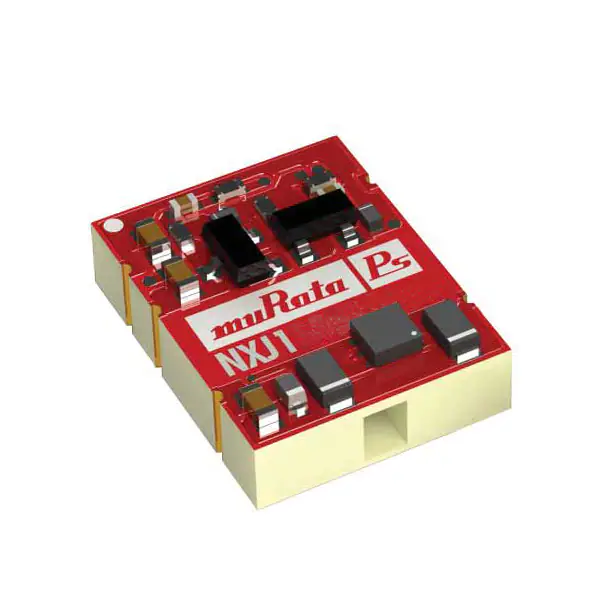

NXJ1S1212MC-R7DC DC CONVERTER 12V 1W |
9,943 |
|
Datenblatt |
NXJ1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 4.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 71% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) | - | - | - | - |
|
|
NXJ1S0303MC-R13DC DC CONVERTER 3.3V 1W |
1,014 |
|
Datenblatt |
NXJ1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 333mA | 1 W | 4.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 69.5% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) | - | - | - | - |
|

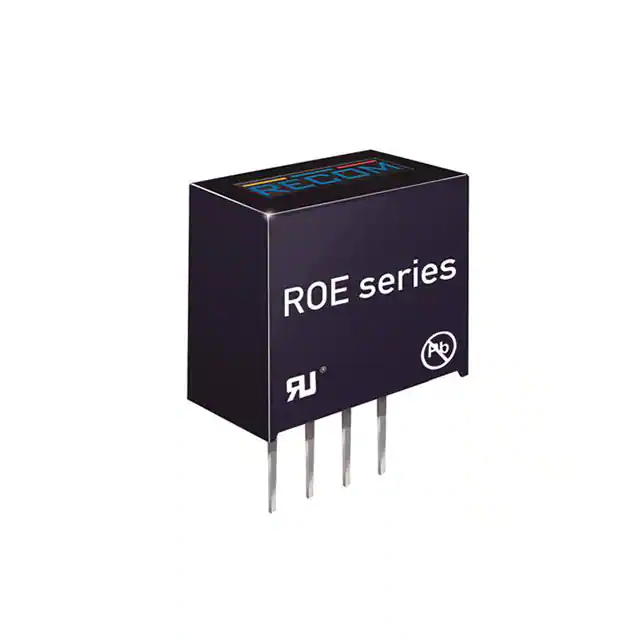

ROE-0515SDC DC CONVERTER 15V 1W |
848 |
|
Datenblatt |
ECONOLINE ROE (E-Series) (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
NXJ1S1215MC-R13DC DC CONVERTER 15V 1W |
726 |
|
Datenblatt |
NXJ1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 4.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 71% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) | - | - | - | - |
|
|
NXJ1S1205MC-R7DC DC CONVERTER 5V 1W |
691 |
|
Datenblatt |
NXJ1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 4.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 72% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) | - | - | - | - |
|
|
NXJ1S0505MC-R7DC DC CONVERTER 5V 1W |
150 |
|
Datenblatt |
NXJ1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 4.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 73.5% | - | - | Surface Mount | 0.54" L x 0.41" W x 0.17" H (13.7mm x 10.5mm x 4.4mm) | - | - | - | - |
|
TPSM84209RKHRDC DC CONVERTER 1.2-6V |
6,941 |
|
Datenblatt |
TPSM | 9-PowerQFN | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 1.2 ~ 6V | - | - | - | 2.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 91.7% | - | - | Surface Mount | 0.18" L x 0.16" W x 0.08" H (4.5mm x 4.0mm x 2.1mm) | 9-QFN-FCMOD (4.5x4) | Enable, Active High | - | - |
|
|
TPSM33625FRDNR3-V TO 36-V INPUT, 1-V TO 15-V O |
2,976 |
|
Datenblatt |
HotRod™ | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 15V | - | - | - | 2.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 95% | - | - | Surface Mount, Wettable Flank | 0.18" L x 0.14" W x 0.08" H (4.5mm x 3.5mm x 2.1mm) | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - |
|
|
TPSM33625RDNR3-V TO 36-V INPUT, 1-V TO 15-V O |
2,420 |
|
Datenblatt |
HotRod™ | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 15V | - | - | - | 2.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 95% | - | - | Surface Mount, Wettable Flank | 0.18" L x 0.14" W x 0.08" H (4.5mm x 3.5mm x 2.1mm) | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - |
|
XCL206B123CR-GDC DC CONVERTER 1.2V |
11,504 |
|
Datenblatt |
XCL206 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2V | 6V | 1.2V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | - | - | - |
|
|
XCL206B333CR-GDC DC CONVERTER 3.3V |
9,431 |
|
Datenblatt |
XCL206 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2V | 6V | 3.3V | - | - | - | 600mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | 0.10" L x 0.08" W x 0.04" H (2.5mm x 2.0mm x 1.0mm) | CL-2025-02 | - | - | - |
|

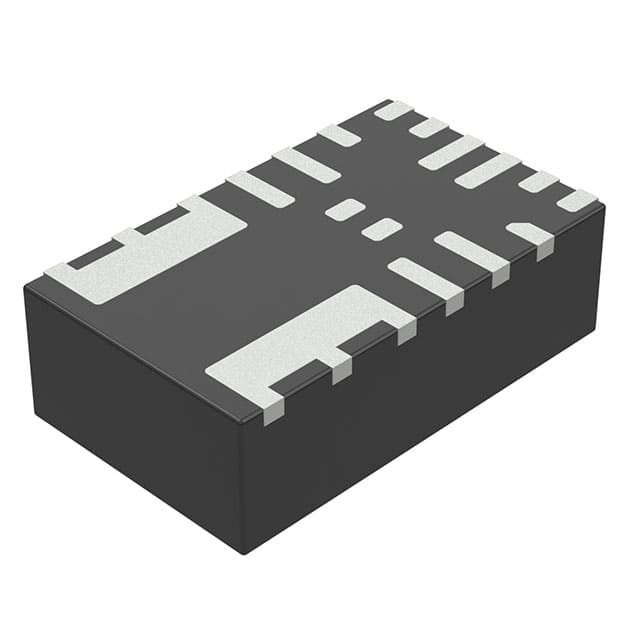

MPM3820GQV-ZDC DC CONVERTER 0.6-6V |
4,680 |
|
Datenblatt |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 6V | 0.6 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 20-QFN (3x5) | Enable, Active High | - | - |
|
|
MPM3610AGQV-ZDC DC CONVERTER 0.8-18.48V |
2,875 |
|
Datenblatt |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 21V | 0.8 ~ 18.48V | - | - | - | 1.2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm) | 20-QFN (3x5) | Enable, Active High | - | - |
|
|
R-78E9.0-0.5DC DC CONVERTER 9V 5W |
1,752 |
|
Datenblatt |
INNOLINE R-78E | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 12V | 28V | 9V | - | - | - | 500mA | 5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 94% | - | - | Through Hole | 0.46" L x 0.33" W x 0.41" H (11.6mm x 8.5mm x 10.4mm) | - | - | - | - |
|
MPM3810GQB-PDC DC CONVERTER 0.6-6V |
4,464 |
|
Datenblatt |
- | 12-PowerVFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.5V | 6V | 0.6 ~ 6V | - | - | - | 1.2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm) | 12-QFN (3x2.5) | - | - | - |
|
|
ROE-1205SDC DC CONVERTER 5V 1W |
3,924 |
|
Datenblatt |
ECONOLINE ROE (E-Series) (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) | - | - | - | - |
|
|
TPSM82901SISR3-V TO 17-V, 1-A HIGH EFFICIENCY |
3,320 |
|
Datenblatt |
TPSM | 10-LDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 0.4 ~ 5.5V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | - | - | - | Surface Mount | 0.12" L x 0.11" W x 0.06" H (3.0mm x 2.8mm x 1.5mm) | 10-uSIP (3x2.8) | Enable, Active Low | - | - |
|
|
ADUM5010ARSZ-RL7DC DC CONVERTER 3.15-5.25V 150MW |
21,081 |
|
Datenblatt |
ADuM5010 | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 3V | 5.5V | 3.15 ~ 5.25V | - | - | - | 30mA | 150 mW | 2.5 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 105°C | - | - | - | Surface Mount | 0.28" L x 0.21" W x 0.07" H (7.2mm x 5.3mm x 1.9mm) | 20-SSOP | Enable, Active Low | - | - |
