DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

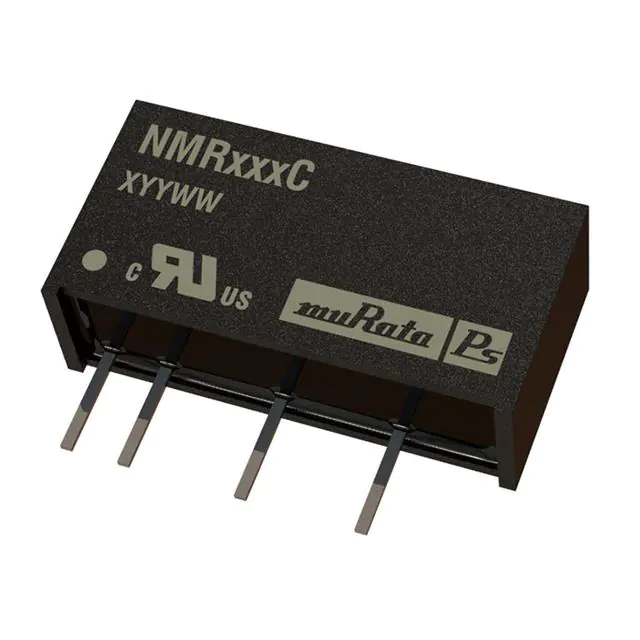

NMR100CDC DC CONVERTER 5V 1W |
3,518 |
|
Datenblatt |
NMR (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm) | - | - | - | - |
|

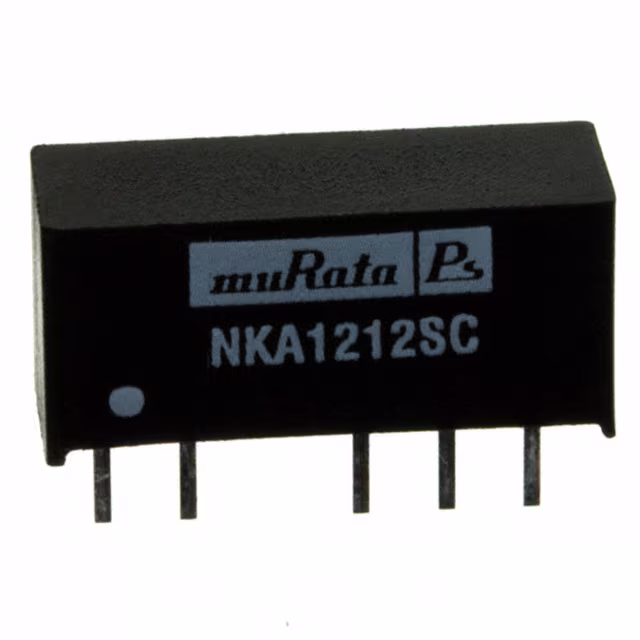

NKA1212SCDC DC CONVERTER +/-12V 1W |
1,784 |
|
Datenblatt |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|
NKE0515SCDC DC CONVERTER 15V 1W |
1,188 |
|
Datenblatt |
NKE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
MTU1S0512MCDC DC CONVERTER 12V 1W |
1,167 |
|
Datenblatt |
MTU1 (1W) | 5-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|
NKE0505DCDC DC CONVERTER 5V 1W |
1,058 |
|
Datenblatt |
NKE (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 69% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
|
MTU1S0515MCDC DC CONVERTER 15V 1W |
685 |
|
Datenblatt |
MTU1 (1W) | 5-SMD Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Surface Mount | 0.33" L x 0.32" W x 0.34" H (8.4mm x 8.2mm x 8.5mm) | - | - | - | - |
|
|
NKE1205SCDC DC CONVERTER 5V 1W |
626 |
|
Datenblatt |
NKE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
|
NKE0303DCDC DC CONVERTER 3.3V 1W |
506 |
|
Datenblatt |
NKE (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.45" L x 0.39" W x 0.21" H (11.5mm x 9.8mm x 5.4mm) | - | - | - | - |
|
|
NKE0303SCDC DC CONVERTER 3.3V 1W |
444 |
|
Datenblatt |
NKE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3V | 3.6V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 72% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
|
NKE1212SCDC DC CONVERTER 12V 1W |
397 |
|
Datenblatt |
NKE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
|
NKE0503SCDC DC CONVERTER 3.3V 1W |
317 |
|
Datenblatt |
NKE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
LMZ12002TZX-ADJ/NOPBDC DC CONVERTER 0.8-6V |
269 |
|
Datenblatt |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 20V | 0.8 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | UVLO | -40°C ~ 125°C | 92% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|

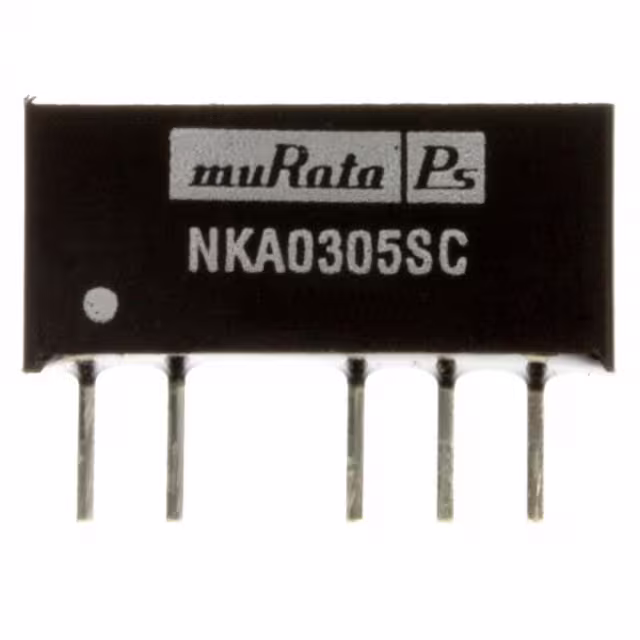

NKA0305SCDC DC CONVERTER +/-5V 1W |
224 |
|
Datenblatt |
NKA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 3V | 3.6V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm) | - | - | - | - |
|

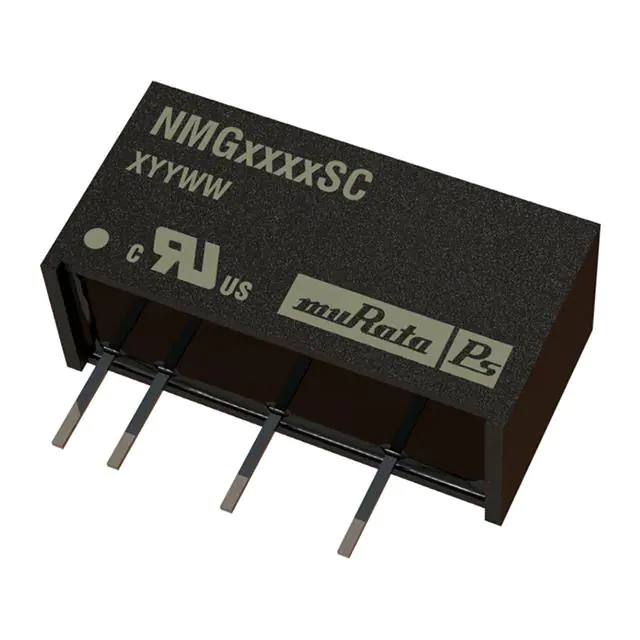

NMG1205SCDC DC CONVERTER 5V 2W |
221 |
|
Datenblatt |
NMG (2W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83.5% | - | - | Through Hole | 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) | - | - | - | - |
|
|
NKE0509SCDC DC CONVERTER 9V 1W |
218 |
|
Datenblatt |
NKE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 111mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Through Hole | 0.45" L x 0.24" W x 0.29" H (11.5mm x 6.0mm x 7.5mm) | - | - | - | - |
|
TPSM63602RDHR3.6-V TO 36-V INPUT, 1-V TO 12-V |
413 |
|
Datenblatt |
TPSM | 30-PowerQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 16V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Standby Output | -40°C ~ 125°C | 94.1% | - | - | Surface Mount | 0.16" L x 0.24" W x 0.07" H (4.0mm x 6.0mm x 1.9mm) | 30-B0QFN (4x6) | Enable, Active High | - | - |
|

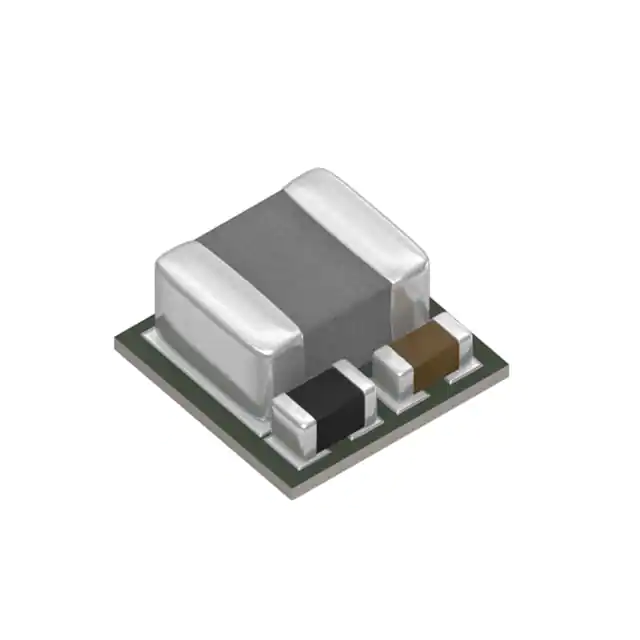

FS1403-5000-ALDC DC CONVERTER 5V |
5,580 |
|
Datenblatt |
µPOL™ micro-POL | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 16V | 5V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.13" L x 0.13" W x 0.06" H (3.3mm x 3.3mm x 1.5mm) | - | - | - | - |
|
AXH003A0X-SRZDC DC CONVERTER 0.8-3.6V 10W |
1,195 |
|
Datenblatt |
Austin MiniLynx™ | 5-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.8 ~ 3.6V | - | - | - | 3A | 10 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.29" H (20.3mm x 11.4mm x 7.3mm) | - | Enable, Active Low | - | - |
|
RPMB5.0-2.0DC DC CONVERTER 5V |
607 |
|
Datenblatt |
INNOLINE RPMB-2.0 | 25-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 5.5V | 36V | 5V | - | - | - | 2A | - | - | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 100°C (With Derating) | 88% | - | - | Surface Mount | 0.48" L x 0.48" W x 0.15" H (12.2mm x 12.2mm x 3.8mm) | - | - | - | - |
|
TSR 0.5-2433DC DC CONVERTER 3.3V 1.7W |
448 |
|
Datenblatt |
TSR 0.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 32V | 3.3V | - | - | - | 500mA | 1.7 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 90°C (With Derating) | 91% | - | - | Through Hole | 0.45" L x 0.30" W x 0.40" H (11.5mm x 7.6mm x 10.2mm) | - | - | - | - |
