Industrielle, DIN-Schienen-Stromversorgungen
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Eingabetyp | Anzahl der Ausgänge | Wechselspannung - Eingang | Gleichspannung - Eingang (Min.) | Gleichspannung - Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung - Ausgang 5 | Spannung - Ausgang 6 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Effizienz | Betriebstemperatur | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLP120-24-1/EAC/DC DIN RAIL SUPPLY 24V 120W |
3,900 |
|
Datenblatt |
DLP120 (120W) | Bulk | Obsolete | AC | 1 | 85 ~ 132 VAC, 170 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 85% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 2.36" W x 3.82" H (110.0mm x 60.0mm x 97.0mm) | CE | - |
|

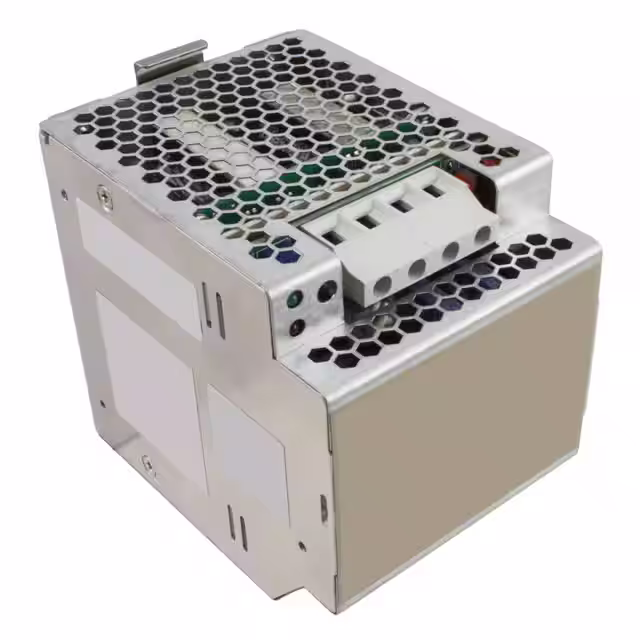

DLP180-24-1/EAC/DC DIN RAIL SUPPLY 24V 180W |
4,762 |
|
Datenblatt |
DLP180 (180W) | Bulk | Obsolete | AC | 1 | 85 ~ 132 VAC, 170 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 180W | 3 kV | ITE (Commercial) | 87% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 3.15" W x 3.82" H (110.0mm x 80.0mm x 97.0mm) | CE | - |
|
VDRS-40-12AC/DC DIN RAIL SUPPLY 12V 40W |
3,112 |
|
Datenblatt |
VDRS-40 (41W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3.4A | 40W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 3.90" L x 1.57" W x 3.54" H (99.0mm x 40.0mm x 90.0mm) | CE, cULus, cURus, TUV | - |
|

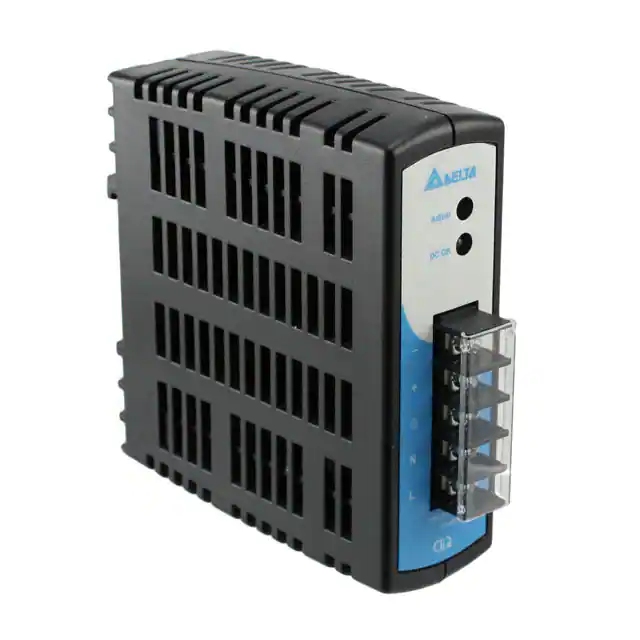

DRP012V015W1AZAC/DC DIN RAIL SUPPLY 12V 15W |
4,272 |
|
Datenblatt |
CliQ (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | ITE (Commercial) | 84% | -20°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | 3.96" L x 1.26" W x 3.94" H (100.6mm x 32.0mm x 100.0mm) | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|

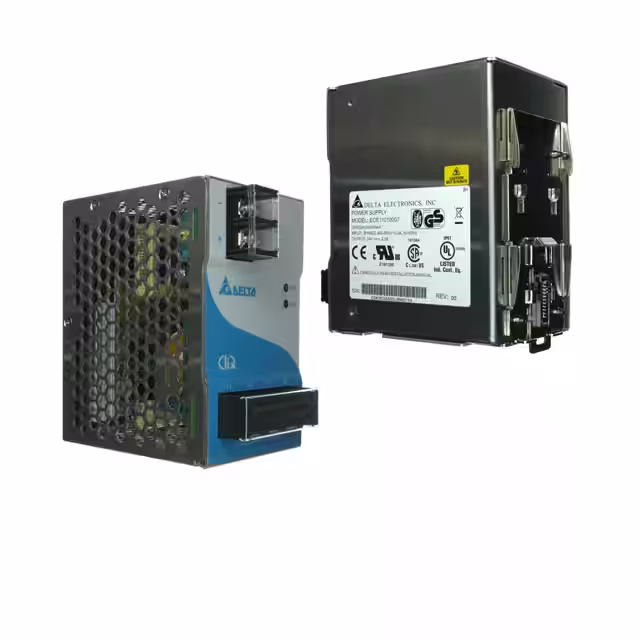

DRP024V060W3AAAC/DC DIN RAIL SUPPLY 24V 60W |
3,024 |
|
Datenblatt |
CliQ (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 86% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.67" L x 2.76" W x 4.76" H (118.5mm x 70.0mm x 121.0mm) | cCSAus, CE, cULus, cURus | - |
|

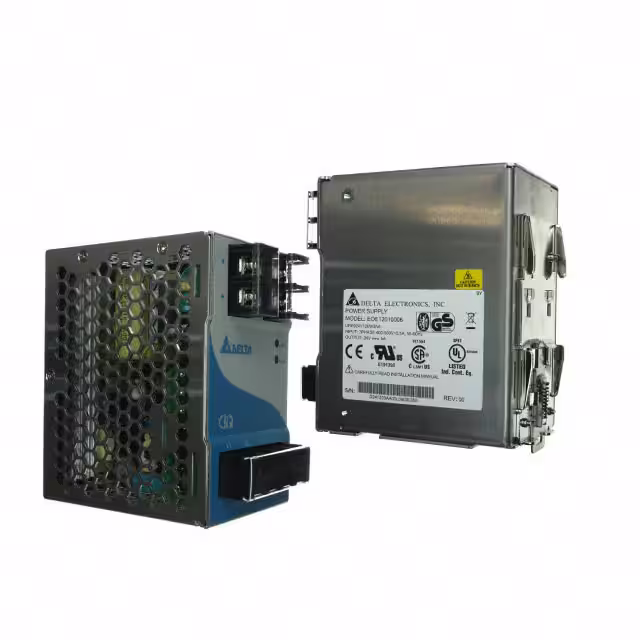

DRP024V120W3AAAC/DC DIN RAIL SUPPLY 24V 120W |
1,306 |
|
Datenblatt |
CliQ (120W) | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 86% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.67" L x 2.76" W x 4.76" H (118.5mm x 70.0mm x 121.0mm) | cCSAus, CE, cULus, cURus | - |
|

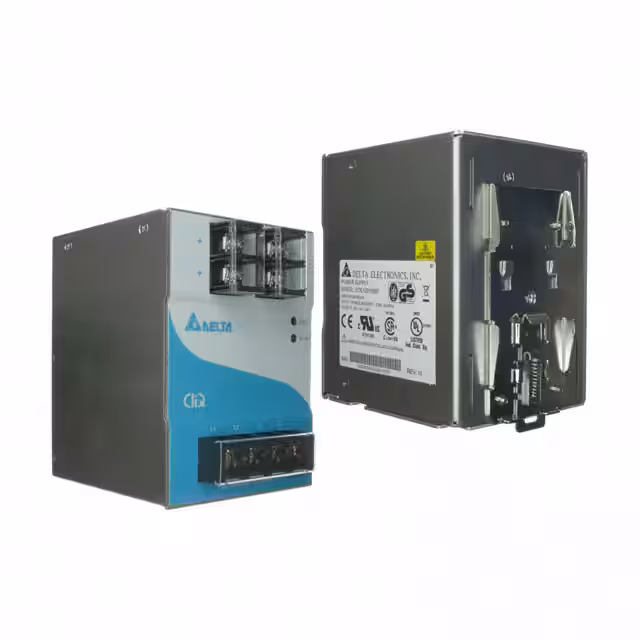

DRP024V240W3AAAC/DC DIN RAIL SUPPLY 24V 240W |
4,459 |
|
Datenblatt |
CliQ (240W) | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.76" L x 3.35" W x 4.74" H (121.0mm x 85.0mm x 120.5mm) | cCSAus, CE, cULus, cURus | - |
|

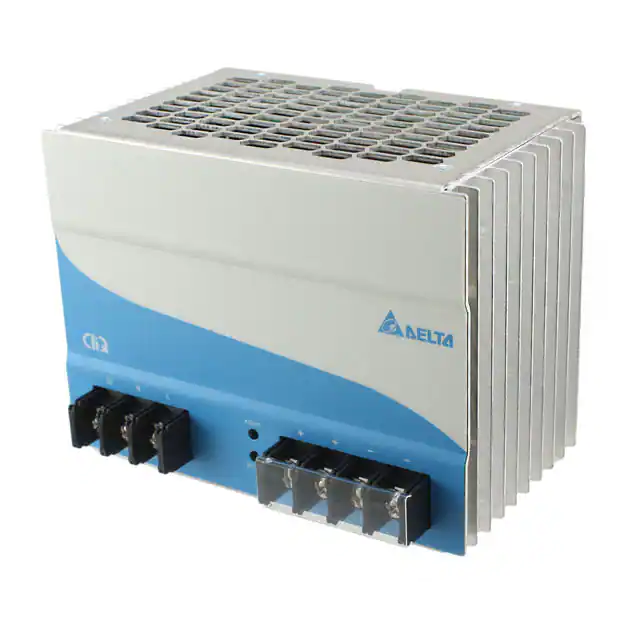

DRP024V480W3AAAC/DC DIN RAIL SUPPLY 24V 480W |
1,376 |
|
Datenblatt |
CliQ (480W) | Box | Obsolete | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 800V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 4.67" L x 6.30" W x 4.76" H (118.5mm x 160.0mm x 121.0mm) | cCSAus, CE, cULus, cURus | - |
|
RAC05-05DA-STAC/DC DIN RAIL SUPPLY +/-5V 5W |
4,504 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 2 | 90 ~ 264 VAC | - | - | 5V | -5V | - | - | - | - | 500mA, 500mA | 5W | 3 kV | ITE (Commercial) | 70% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-05SA-E-STAC/DC DIN RAIL SUPPLY 5V 5W |
1,391 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 1A | 5W | 3 kV | ITE (Commercial) | 65% | -40°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-05SA-STAC/DC DIN RAIL SUPPLY 5V 5W |
4,446 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 1A | 5W | 3 kV | ITE (Commercial) | 65% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-05SB-STAC/DC DIN RAIL SUPPLY 5V 5W |
1,055 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 1A | 5W | 3 kV | ITE (Commercial) | 72% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-12DA-E-STAC/DC DIN RAIL SUPPLY +/-12V 5W |
2,937 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 2 | 90 ~ 264 VAC | - | - | 12V | -12V | - | - | - | - | 200mA, 200mA | 5W | 3 kV | ITE (Commercial) | 67% | -40°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-12SA-E-STAC/DC DIN RAIL SUPPLY 12V 5W |
2,520 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 416mA | 5W | 3 kV | ITE (Commercial) | 70% | -40°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-12SA-STAC/DC DIN RAIL SUPPLY 12V 5W |
2,792 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 416mA | 5W | 3 kV | ITE (Commercial) | 70% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-12SB-E-STAC/DC DIN RAIL SUPPLY 12V 5W |
1,400 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 420mA | 5W | 3 kV | ITE (Commercial) | 73% | -40°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-12SB-STAC/DC DIN RAIL SUPPLY 12V 5W |
1,623 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 420mA | 5W | 3 kV | ITE (Commercial) | 73% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-15SA-STAC/DC DIN RAIL SUPPLY 15V 5W |
2,917 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 333mA | 5W | 3 kV | ITE (Commercial) | 70% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-15SB-STAC/DC DIN RAIL SUPPLY 15V 5W |
4,714 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 333mA | 5W | 3 kV | ITE (Commercial) | 75% | -25°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
|
|
RAC05-24SA-E-STAC/DC DIN RAIL SUPPLY 24V 5W |
1,821 |
|
Datenblatt |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 200mA | 5W | 3 kV | ITE (Commercial) | 71% | -40°C ~ 70°C (With Derating) | Universal Input | 3.78" L x 2.12" W x 0.83" H (96.0mm x 53.9mm x 21.0mm) | CE, cURus | - |
