Hochfrequenzrelais (RF)
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Spulentyp | Spulenstrom | Spulenspannung | Kontaktform | Kontaktleistung (Strom) | Schaltspannung | Muss Betriebsspannung | Muss Freigabespannung | Betriebszeit | Freigabezeit | Funktionen | Montageart | Anschlussart | Betriebstemperatur |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARE134HRELAY RF SPDT 500MA 4.5V |
3,926 |
|
Datenblatt |
ARE | Tube | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
ARE13A12RELAY RF SPDT 500MA 12V |
2,639 |
|
Datenblatt |
ARE | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6Z-1P DC12RELAY RF SPDT 10MA 12V |
4,420 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1P DC24RELAY RF SPDT 10MA 24V |
1,180 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1PE DC5RELAY RF SPDT 10MA 5V |
3,641 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1PE DC12RELAY RF SPDT 10MA 12V |
1,667 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6Z-1PE DC24RELAY RF SPDT 10MA 24V |
4,413 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
G6Z-1F DC5RELAY RF SPDT 10MA 5V |
4,065 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1F DC12RELAY RF SPDT 10MA 12V |
2,085 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1FE DC5RELAY RF SPDT 10MA 5V |
1,229 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1FE DC12RELAY RF SPDT 10MA 12V |
2,893 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6Z-1FE DC24RELAY RF SPDT 10MA 24V |
1,778 |
|
Datenblatt |
G6Z | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
B10-05BRELAY RF SPST-NO 250MA 5V |
3,213 |
|
Datenblatt |
B10 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 3.8 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

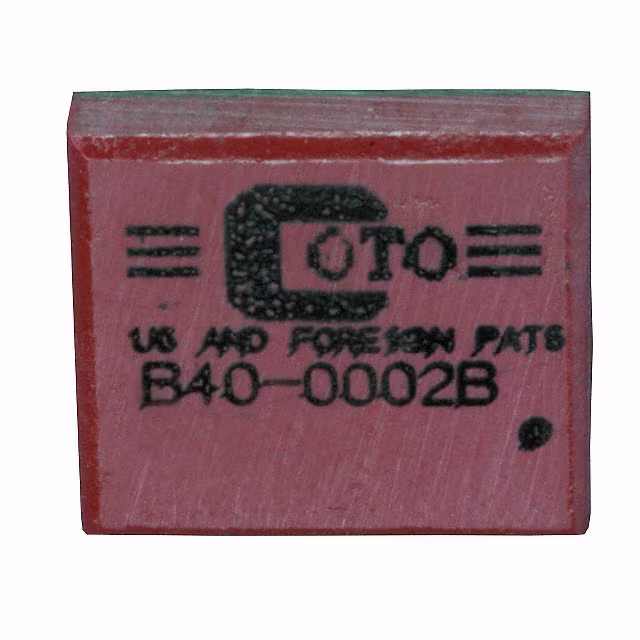

B40-0002BRELAY RF SPST-NO X 4 250MA 3.3V |
1,731 |
|
Datenblatt |
B40 | Tube | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|
9814-03-10RELAY RF SPST-NO 250MA 3.3V |
2,017 |
|
Datenblatt |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
9814-05-10RELAY RF SPST-NO 250MA 5V |
3,892 |
|
Datenblatt |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
9852-03-00RELAY RF SPDT 100MA 3.3V |
4,411 |
|
Datenblatt |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 2.5 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9852-03-20RELAY RF SPDT 100MA 3.3V |
1,379 |
|
Datenblatt |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | 3.3VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 2.5 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9852-05-10RELAY RF SPDT 100MA 5V |
4,663 |
|
Datenblatt |
9800 | Tube | Obsolete | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
G6Z-1FE-A DC24RELAY RF SPDT 10MA 24V |
2,177 |
|
Datenblatt |
G6Z | Bulk | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
