Digitale Isolatoren
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Technologie | Typ | Isoliert Stromversorgung | Anzahl der Kanäle | Eingänge – Seite 1/Seite 2 | Kanaltyp | Spannung - Isolierung | Immunität gegen Gleichtakttransienten (Min.) | Datenrate | Ausbreitungsverzögerung tpLH / tpHL (Max.) | Pulsbreitenverzerrung (Max.) | Anstiegs-/Abfallzeit (Typ) | Spannung - Versorgung | Klasse | Qualifizierung | Betriebstemperatur | Montageart | Lieferant Gerätepaket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL 711-1EDGTL ISO 1000VRMS 2CH GP 8MSOP |
4,121 |
|
Datenblatt |
IsoLoop® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Discontinued at Digi-Key | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 1000Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-MSOP |
|
|
IL 712-1EDGTL ISO 1000VRMS 2CH GP 8MSOP |
1,467 |
|
Datenblatt |
IsoLoop® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Discontinued at Digi-Key | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 1000Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-MSOP |
|
|
IL 711S-1EDGTL ISO 1000VRMS 2CH GP 8MSOP |
1,972 |
|
Datenblatt |
IsoLoop® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Discontinued at Digi-Key | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 1000Vrms | 100kV/µs | 150Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-MSOP |
|
|
IL 711T-1EDGTL ISO 1000VRMS 2CH GP 8MSOP |
4,459 |
|
Datenblatt |
IsoLoop® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Discontinued at Digi-Key | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 2/0 | Unidirectional | 1000Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-MSOP |
|
ADUM3440CRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,378 |
|
Datenblatt |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3441CRWZDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,513 |
|
Datenblatt |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3442CRWZDGTL ISO 2.5KV GEN PURP 16SOIC |
1,433 |
|
Datenblatt |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3440CRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,624 |
|
Datenblatt |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|
|
ADUM3442CRWZ-RLDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,824 |
|
Datenblatt |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 32ns, 32ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC |
|

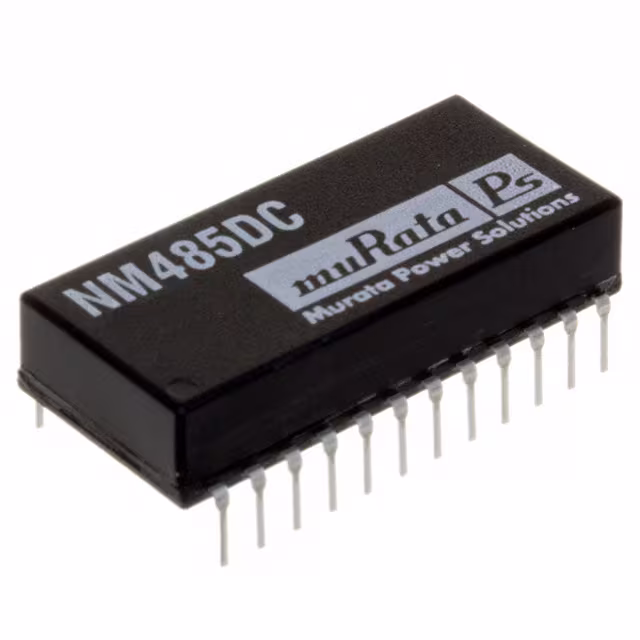

NM485DCDGTL ISO 1000VRMS 4CH GP 24DIL |
2,247 |
|
Datenblatt |
- | 24-DIP (0.667", 16.95mm) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 1000Vrms | - | 1.25Mbps | - | - | - | 4.75V ~ 5.25V | - | - | 0°C ~ 60°C | Through Hole | 24-DIL |
|

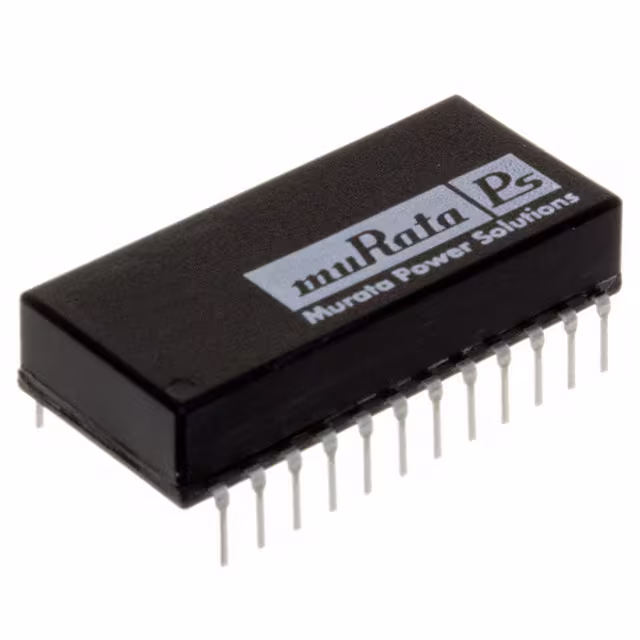

NM485SLCDGTL ISO 1000VRMS 2CH GP 24DIL |
2,764 |
|
Datenblatt |
- | 24-DIP (0.667", 16.95mm) | Tube | Obsolete | Capacitive Coupling | General Purpose | Yes | 2 | 1/1 | Unidirectional | 1000Vrms | - | 2.5Mbps | - | - | - | 4.75V ~ 5.25V | - | - | 0°C ~ 70°C | Through Hole | 24-DIL |
|
|
IL 510-1EDGTL ISO 2500VRMS 1CH GP 8MSOP |
2,079 |
|
Datenblatt |
IsoLoop® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Obsolete | GMR (Giant Magnetoresistive) | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 30kV/µs | 2Mbps | 25ns, 25ns | 10ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-MSOP |
|
ISO721DUBDGTL ISO 2500VRMS 1CH GP 8SOP |
1,104 |
|
Datenblatt |
- | 8-SMD, Gull Wing | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOP |
.jpg)
|
IL 41050TEDGT ISOL 2500VRMS 2CH CAN 16SOIC |
2,283 |
|
Datenblatt |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | GMR (Giant Magnetoresistive) | CAN | No | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 1Mbps | - | - | - | 3V ~ 5.5V, 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
SI8420AD-A-ISDGTL ISO 5000VRMS 2CH GP 16SOIC |
3,105 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 20kV/µs | 1Mbps | 35ns, 35ns | 25ns | 2ns, 2ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8410AD-A-ISDGTL ISO 5000VRMS 1CH GP 16SOIC |
3,677 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 5000Vrms | 20kV/µs | 1Mbps | 35ns, 35ns | 25ns | 2ns, 2ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8421AD-B-ISDGTL ISO 5000VRMS 2CH GP 16SOIC |
4,070 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 20kV/µs | 1Mbps | 35ns, 35ns | 25ns | 2ns, 2ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8422AD-B-ISDGTL ISO 5000VRMS 2CH GP 16SOIC |
4,321 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 20kV/µs | 1Mbps | 35ns, 35ns | 25ns | 2ns, 2ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8423AD-B-ISDGTL ISO 5000VRMS 2CH GP 16SOIC |
4,394 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 20kV/µs | 1Mbps | 35ns, 35ns | 25ns | 2ns, 2ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
SI8423BB-B-ISDGTL ISO 2500VRMS 2CH GP 8SOIC |
4,008 |
|
Datenblatt |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 2500Vrms | 20kV/µs | 150Mbps | 11ns, 11ns | 3ns | 2ns, 2ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
