Digitale Isolatoren
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Technologie | Typ | Isoliert Stromversorgung | Anzahl der Kanäle | Eingänge – Seite 1/Seite 2 | Kanaltyp | Spannung - Isolierung | Immunität gegen Gleichtakttransienten (Min.) | Datenrate | Ausbreitungsverzögerung tpLH / tpHL (Max.) | Pulsbreitenverzerrung (Max.) | Anstiegs-/Abfallzeit (Typ) | Spannung - Versorgung | Klasse | Qualifizierung | Betriebstemperatur | Montageart | Lieferant Gerätepaket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI86S640BE-AS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
3,125 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 4/0 | Unidirectional | 6000Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86S640EE-AS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
2,735 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 4/0 | Unidirectional | 6000Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86S642EE-AS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
3,300 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 2/2 | Unidirectional | 6000Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86S640HE-AS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
3,296 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 4/0 | Unidirectional | 6000Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86S642FE-AS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
1,578 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 2/2 | Unidirectional | 6000Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86S641HE-AS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
1,005 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 3/1 | Unidirectional | 6000Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86S640FE-AS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
3,292 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 4/0 | Unidirectional | 6000Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86S641FE-AS26.0 KVRMS ISOLATOR, 4 UNIDIRECTI |
4,444 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 3/1 | Unidirectional | 6000Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM3166BRSZ-RL3.75KV 480MBPS USB DIG ISOLATOR |
3,345 |
|
Datenblatt |
- | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | RS232, USB | No | 1 | 1/0 | Unidirectional | 3750Vrms | 40kV/µs | 480Mbps | 77ns, 77ns | - | 675ps, 675ps (Min) | 3V ~ 3.6V, 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 20-SSOP |
|
SI88420ED-ISDGTL ISO 5KV 2CH GEN PURP 16SOIC |
2,394 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tray | Not For New Designs | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI88421ED-ISDGTL ISO 5KV 2CH GEN PURP 16SOIC |
4,933 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tray | Not For New Designs | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI88422ED-ISDGTL ISO 5KV 2CH GEN PURP 16SOIC |
4,486 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tray | Not For New Designs | Capacitive Coupling | General Purpose | No | 2 | 0/2 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI88420BD-ISDGTL ISO 5KV 2CH GEN PURP 16SOIC |
2,629 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tray | Not For New Designs | Capacitive Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI88421BD-ISDGTL ISO 5KV 2CH GEN PURP 16SOIC |
2,691 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tray | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI88422BD-ISDGTL ISO 5KV 2CH GEN PURP 16SOIC |
4,565 |
|
Datenblatt |
- | 16-SOIC (0.295", 7.50mm Width) | Tray | Not For New Designs | Capacitive Coupling | General Purpose | No | 2 | 0/2 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|

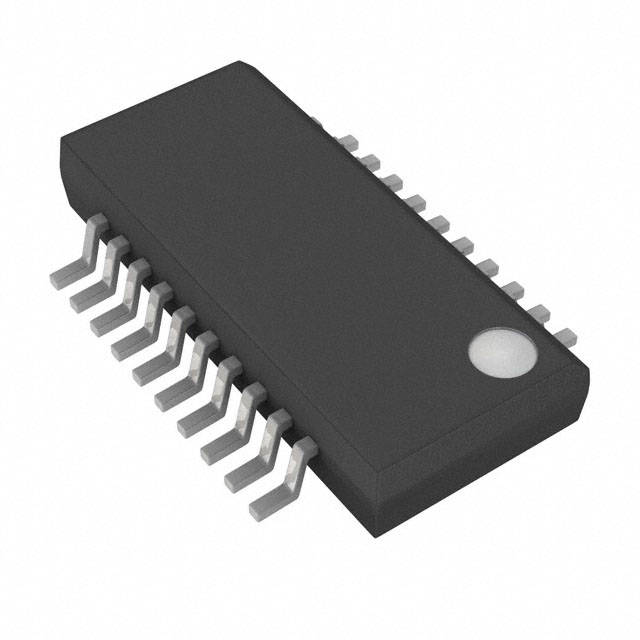

SI8382P-IUDGTL ISO 2500VRMS 8CH GP 20QSOP |
1,755 |
|
Datenblatt |
- | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 8 | 8/0 | Unidirectional | 2500Vrms | - | 2Mbps | - | - | 3.9ns, 3.7ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-QSOP |
|
|
SI8382PM-IUDGTL ISO 2500VRMS 8CH GP 20QSOP |
2,078 |
|
Datenblatt |
- | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 8 | 8/0 | Unidirectional | 2500Vrms | - | 2Mbps | - | - | 3.9ns, 3.7ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-QSOP |
|
|
SI8382PS-IUDGTL ISO 2500VRMS 8CH GP 20QSOP |
4,129 |
|
Datenblatt |
- | 20-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 8 | 8/0 | Unidirectional | 2500Vrms | - | 2Mbps | - | - | 3.9ns, 3.7ns | 2.25V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-QSOP |
|
|
SI8641ED-ASRAUTOMOTIVE LOW-POWER, QUAD-CHANN |
1,409 |
|
Datenblatt |
Si864x | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | Yes | 4 | 3/1 | Unidirectional | 5000Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.375V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC |
.jpg)
|
IL 715TEDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,657 |
|
Datenblatt |
IsoLoop® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 100kV/µs | 110Mbps | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
