852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Anzahl der Ausgänge | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Effizienz | Betriebstemperatur | Montageart | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEQ 40-7215WIRDC/DC CONVERTER 24V 40W |
4,555 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 43V | 160V | 1 | 24V | - | - | - | 1.67A | 40W | 3 kV | ITE (Commercial), Railway | 89% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
TEQ 40-4812WIRDC/DC CONVERTER 12V 40W |
2,745 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 3.33A | 40W | 1.6 kV | ITE (Commercial), Railway | 91% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
TEQ 40-4825WIRDC/DC CONVERTER +/-24V 40W |
4,978 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 18V | 75V | 2 | 24V | -24V | - | - | 830mA, 830mA | 40W | 1.6 kV | ITE (Commercial), Railway | 90% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | CB, CE, cURus | - |
|
TEQ 40-7211WIRDC/DC CONVERTER 5V 40W |
4,498 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 43V | 160V | 1 | 5V | - | - | - | 8A | 40W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|

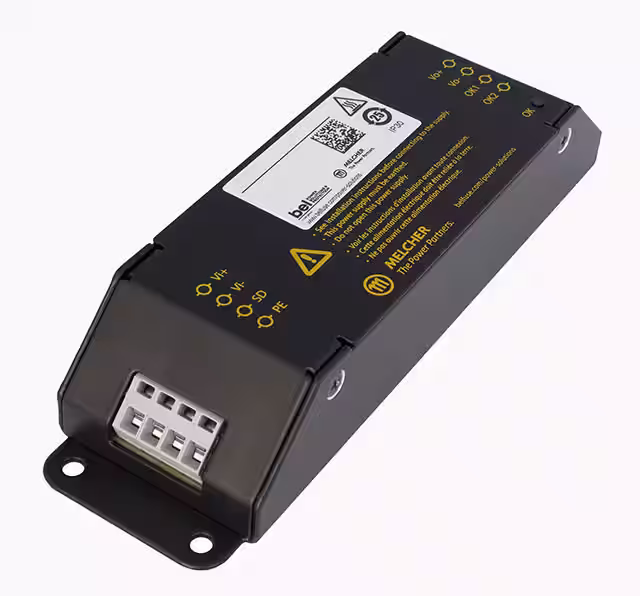

XRCM60-12DC/DC CONVERTER 12V 60W |
4,647 |
|
Datenblatt |
Melcher RCM (60W) | Bag | Active | Enclosed, Conformal Coated | 16.8V | 137.5V | 1 | 12V | - | - | - | 5A | 60W | 4.2 kV | ITE (Commercial) | 87% | -40°C ~ 70°C | Chassis Mount | 6.77" L x 1.97" W x 1.26" H (172.0mm x 50.0mm x 32.0mm) | cCSAus, CE | - |
|
|
XRCM60-24DC/DC CONVERTER 24V 60W |
3,289 |
|
Datenblatt |
Melcher RCM (60W) | Bag | Active | Enclosed, Conformal Coated | 16.8V | 137.5V | 1 | 24V | - | - | - | 2.5A | 60W | 4.2 kV | ITE (Commercial) | 88% | -40°C ~ 70°C | Chassis Mount | 6.77" L x 1.97" W x 1.26" H (172.0mm x 50.0mm x 32.0mm) | cCSAus, CE | - |
|

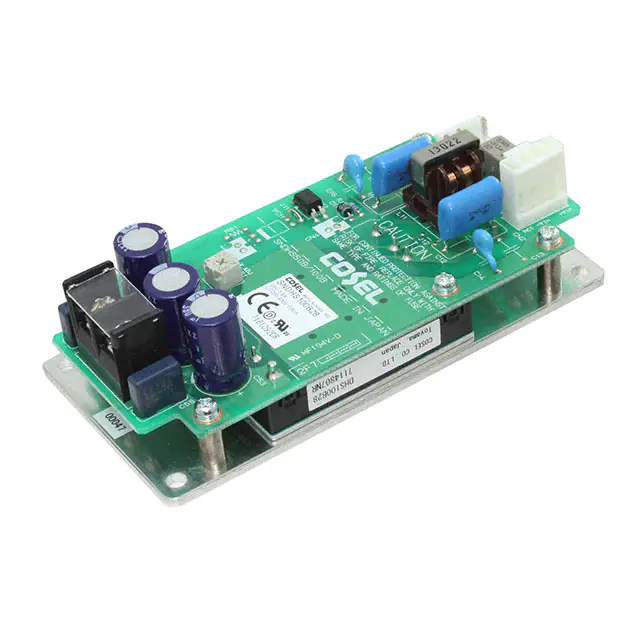

SNDHS50B28DC/DC CONVERTER 28V 50W |
1,571 |
|
Datenblatt |
SNDHS (50W) | Box | Active | Open Frame | 200V | 400V | 1 | 28V | - | - | - | 1.8A | 50W | - | ITE (Commercial) | 82% | -20°C ~ 95°C (With Derating) | Chassis Mount | 5.00" L x 2.42" W x 1.75" H (127.0mm x 61.5mm x 44.5mm) | CE, cURus | - |
|
12RCM60-15KDC-DC, 8-36V INPUT, 15V/4A OUTPU |
4,016 |
|
Datenblatt |
RCM60 (60W) | Box | Active | Enclosed, Conformal Coated | 8V | 36V | 1 | 15V | - | - | - | 4A | 60W | 4.2 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.77" L x 1.97" W x 1.26" H (172.0mm x 50.0mm x 32.0mm) | cCSAus, CE | 62368-1 |
|

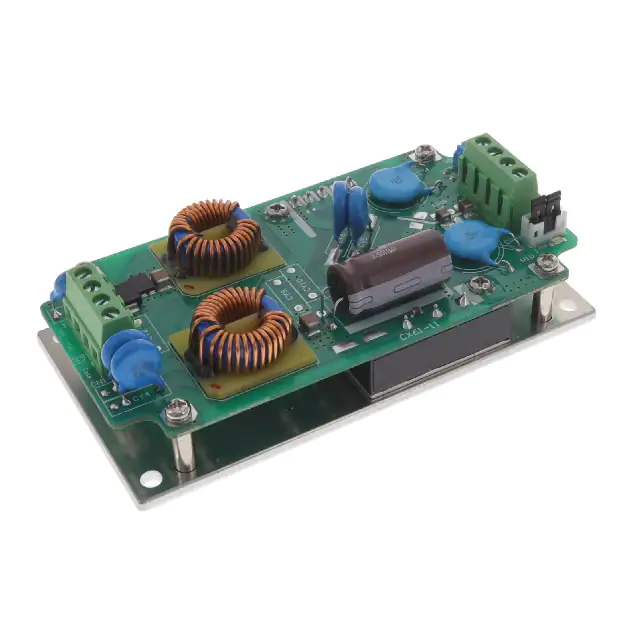

CQB50W8-36S24-CMFCDC/DC CONVERTER 24V 50W |
1,386 |
|
Datenblatt |
CQB50W8 CMFC(D) (50W) | Box | Active | Open Frame | 9.5V | 75V | 1 | 24V | - | - | - | 2.08A | 50W | 4.2 kV | ITE (Commercial), Railway | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 62368-1 |
|
TEP 75-4812WI-CMFDC/DC CONVERTER 12V 76W |
4,650 |
|
Datenblatt |
TEP 75WICMF (75W) | Box | Active | Open Frame | 18V | 75V | 1 | 12V | - | - | - | 6.3A | 76W | 3 kV | ITE (Commercial), Railway | 90% | -40°C ~ 75°C | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | CB, CE, cURus | - |
|
TEP 75-2418WI-CMFDC/DC CONVERTER 48V 77W |
3,769 |
|
Datenblatt |
TEP 75WICMF (75W) | Box | Active | Open Frame | 9V | 36V | 1 | 48V | - | - | - | 1.6A | 77W | 3 kV | ITE (Commercial), Railway | 87% | -40°C ~ 75°C | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | CB, CE, cURus | - |
|
TEP 75-2415WI-CMFDC/DC CONVERTER 24V 77W |
4,805 |
|
Datenblatt |
TEP 75WICMF (75W) | Box | Active | Open Frame | 9V | 36V | 1 | 24V | - | - | - | 3.2A | 77W | 3 kV | ITE (Commercial), Railway | 87% | -40°C ~ 75°C | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | CB, CE, cURus | - |
|
RSD-500D-24DC/DC CONVERTER 24V 499W |
1,975 |
|
Datenblatt |
RSD-500 (500W) | Box | Active | Enclosed | 67.2V | 154V | 1 | 24V | - | - | - | 20.8A | 499W | 4 kV | ITE (Commercial), Railway | 93% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) | CB, CE, cURus, EAC, RCM | - |
|
|
RSD-500D-12DC/DC CONVERTER 12V 420W |
1,191 |
|
Datenblatt |
RSD-500 (500W) | Box | Active | Enclosed | 67.2V | 154V | 1 | 12V | - | - | - | 35A | 420W | 4 kV | ITE (Commercial), Railway | 93% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) | CB, CE, cURus, EAC, RCM | - |
|
|
TEQ 40-7213WIRDC/DC CONVERTER 15V 40W |
3,657 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 43V | 160V | 1 | 15V | - | - | - | 2.67A | 40W | 3 kV | ITE (Commercial), Railway | 90% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
TEP 100-2411-CMFDC/DC CONVERTER 5V 100W |
2,349 |
|
Datenblatt |
TEP 100 (100W) | Box | Active | Enclosed | 18V | 36V | 1 | 5V | - | - | - | 20A | 100W | 2.25 kV | ITE (Commercial) | 93% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | cURus | - |
|
TEP 100-2412-CMFDC/DC CONVERTER 12V 101W |
2,869 |
|
Datenblatt |
TEP 100 (100W) | Box | Active | Enclosed | 18V | 36V | 1 | 12V | - | - | - | 8.4A | 101W | 2.25 kV | ITE (Commercial) | 93% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | cURus | - |
|
CFB750-300S12-CMFDDC/DC CONVERTER 12V 750W |
2,062 |
|
Datenblatt |
CFB750-300S-CMFD (750W) | Box | Active | Enclosed | 200V | 425V | 1 | 12V | - | - | - | 62.5A | 750W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.45" L x 4.33" W x 1.65" H (240.0mm x 110.0mm x 41.9mm) | CE | 62368-1 |
|
CFB750-300S15-CMFDDC/DC CONVERTER 15V 750W |
1,449 |
|
Datenblatt |
CFB750-300S-CMFD (750W) | Box | Active | Enclosed | 200V | 425V | 1 | 15V | - | - | - | 50A | 750W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.45" L x 4.33" W x 1.65" H (240.0mm x 110.0mm x 41.9mm) | CE | 62368-1 |
|
|
CFB750-300S28N-CMFDDC/DC CONVERTER 28V 748W |
4,042 |
|
Datenblatt |
CFB750-300S-CMFD (750W) | Box | Active | Enclosed | 200V | 425V | 1 | 28V | - | - | - | 26.7A | 748W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.45" L x 4.33" W x 1.65" H (240.0mm x 110.0mm x 41.9mm) | CE | 62368-1 |
