852-69415941
DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Anzahl der Ausgänge | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Effizienz | Betriebstemperatur | Montageart | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSDH-300-48250-1500VDC O/P +48V6.25A |
4,895 |
|
Datenblatt |
RSDH-300 (300W) | Box | Active | Enclosed | 250V | 1500V | 1 | 48V | - | - | - | 6.25A | 300W | 4 kV | ITE (Commercial) | 91% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) | CB, CE, EAC, UKCA | - |
|

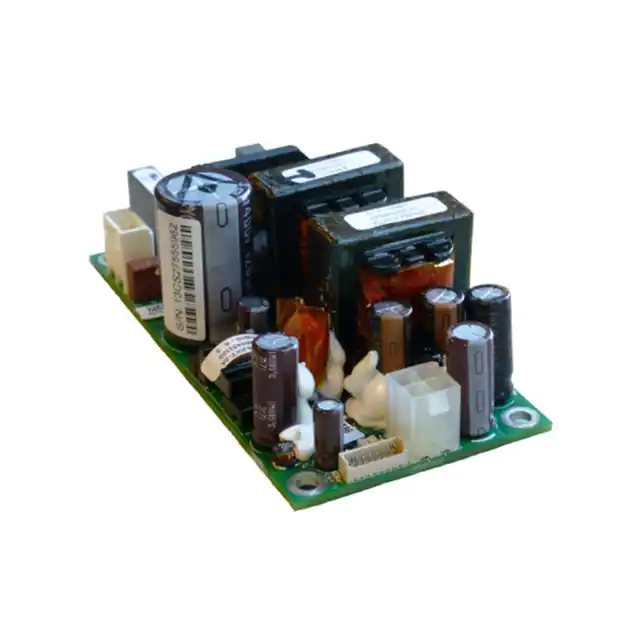

CLP0212DCSX5Z01CDC/DC CONVERTER 12V 200W |
2,346 |
|
Datenblatt |
CLP0212DC (200W) | Box | Active | Open Frame | 36V | 75V | 1 | 12V | - | - | - | 16.7A | 200W | 1 kV | ITE (Commercial) | 93% | -40°C ~ 85°C (With Derating) | Chassis Mount | 4.00" L x 2.00" W x 1.40" H (101.6mm x 50.8mm x 35.6mm) | CB, CE, cUL, TUV, UL | - |
|
RSD-300C-12DC/DC CONVERTER 12V 300W |
2,674 |
|
Datenblatt |
RSD-300 (300W) | Box | Active | Enclosed | 33.6V | 62.4V | 1 | 12V | - | - | - | 25A | 300W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Chassis Mount | 8.50" L x 3.80" W x 1.57" H (216.0mm x 96.5mm x 40.0mm) | CE | - |
|
|
RSD-300C-48DC/DC CONVERTER 48V 302W |
3,864 |
|
Datenblatt |
RSD-300 (300W) | Box | Active | Enclosed | 33.6V | 62.4V | 1 | 48V | - | - | - | 6.3A | 302W | 4 kV | ITE (Commercial), Railway | 92% | -40°C ~ 70°C (With Derating) | Chassis Mount | 8.50" L x 3.80" W x 1.57" H (216.0mm x 96.5mm x 40.0mm) | CE | - |
|
TEQ 20-2411WIRDC/DC CONVERTER 5V 20W |
3,830 |
|
Datenblatt |
TEQ 20WIR (20W) | Box | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 4A | 20W | 2.25 kV | ITE (Commercial), Railway | 87% | -40°C ~ 93°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
VHK50W-Q48-S5DC/DC CONVERTER 5V 50W |
4,108 |
|
Datenblatt |
VHK50W (50W) | Tray | Active | Enclosed | 18V | 75V | 1 | 5V | - | - | - | 10A | 50W | - | - | 80% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
|
TEQ 20-7215WIRDC/DC CONVERTER 24V 20W |
4,441 |
|
Datenblatt |
TEQ 20WIR (20W) | Box | Active | Enclosed | 43V | 160V | 1 | 24V | - | - | - | 833mA | 20W | 2.25 kV | ITE (Commercial), Railway | 87% | -40°C ~ 93°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
TEQ 40-2413WIRDC/DC CONVERTER 15V 40W |
1,799 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 9.5V | 36V | 1 | 15V | - | - | - | 2.67A | 40W | 1.6 kV | ITE (Commercial), Railway | 91% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
TEQ 40-2411WIRDC/DC CONVERTER 5V 40W |
3,914 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 9.5V | 36V | 1 | 5V | - | - | - | 8A | 40W | 1.6 kV | ITE (Commercial), Railway | 90% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
TEQ 40-2425WIRDC/DC CONVERTER +/-24V 40W |
2,978 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 9.5V | 36V | 2 | 24V | -24V | - | - | 830mA, 830mA | 40W | 1.6 kV | ITE (Commercial), Railway | 90% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | CB, CE, cURus | - |
|
|
TEQ 40-2423WIRDC/DC CONVERTER +/-15V 40W |
3,748 |
|
Datenblatt |
TEQ 40WIR (40W) | Box | Active | Enclosed | 9.5V | 36V | 2 | 15V | -15V | - | - | 1.33A, 1.33A | 40W | 1.6 kV | ITE (Commercial), Railway | 89% | -40°C ~ 92°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | CB, CE, cURus | - |
|
|
VHK50W-Q24-S5DC/DC CONVERTER 5V 50W |
4,975 |
|
Datenblatt |
VHK50W (50W) | Box | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 10A | 50W | - | - | 79% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
ISO5125I-45DC/DC CONVERTER 5W |
4,138 |
|
Datenblatt |
ISO5125I (5W) | Box | Active | Open Frame | 14.5V | 15.5V | 1 | - | - | - | - | 200mA | 5W | 7.4 kV | ITE (Commercial) | - | -40°C ~ 85°C | Chassis Mount | 4.72" L x 1.85" W x 1.75" H (120.0mm x 47.0mm x 44.5mm) | - | - |
|
TEP 150-4816WIDC/DC CONVERTER 28V 151W |
3,467 |
|
Datenblatt |
TEP 150WI (150W) | Box | Active | Enclosed | 18V | 75V | 1 | 28V | - | - | - | 5.4A | 151W | 2.25 kV | ITE (Commercial), Railway | 89% | -40°C ~ 75°C | Chassis Mount | 3.86" L x 2.07" W x 1.60" H (98.0mm x 52.6mm x 40.6mm) | CB, cURus | - |
|
TEP 150-2416WIDC/DC CONVERTER 28V 151W |
4,284 |
|
Datenblatt |
TEP 150WI (150W) | Box | Active | Enclosed | 9V | 36V | 1 | 28V | - | - | - | 5.4A | 151W | 2.25 kV | ITE (Commercial), Railway | 87% | -40°C ~ 75°C | Chassis Mount | 3.86" L x 2.07" W x 1.60" H (98.0mm x 52.6mm x 40.6mm) | CB, cURus | - |
|
TEP 75-2411WI-CMFDC/DC CONVERTER 5V 75W |
4,838 |
|
Datenblatt |
TEP 75WICMF (75W) | Box | Active | Open Frame | 9V | 36V | 1 | 5V | - | - | - | 15A | 75W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 75°C | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | CB, CE, cURus | - |
|
TEP 75-4815WI-CMFDC/DC CONVERTER 24V 77W |
1,403 |
|
Datenblatt |
TEP 75WICMF (75W) | Box | Active | Open Frame | 18V | 75V | 1 | 24V | - | - | - | 3.2A | 77W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 75°C | Chassis Mount | 3.35" L x 2.40" W x 1.53" H (85.1mm x 61.0mm x 38.9mm) | CB, CE, cURus | - |
|
|
B70SP12440ADC/DC CONVERTER 12.4V 496W |
4,775 |
|
Datenblatt |
B70SP12440 (500W) | Box | Active | Enclosed | 32V | 96V | 1 | 12.4V | - | - | - | 40A | 496W | 2.25 kV | ITE (Commercial) | 89% | -40°C ~ 90°C (With Derating) | Chassis Mount | 7.80" L x 4.45" W x 1.77" H (198.0mm x 113.0mm x 45.0mm) | CE | - |
|
|
RSD-500B-48DC/DC CONVERTER 48V 422W |
2,591 |
|
Datenblatt |
RSD-500 (500W) | Box | Active | Enclosed | 16.8V | 33.6V | 1 | 48V | - | - | - | 8.8A | 422W | 4 kV | ITE (Commercial), Railway | 92% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) | CB, CE, cURus, EAC, RCM | - |
|
|
RSD-500D-48DC/DC CONVERTER 48V 499W |
3,407 |
|
Datenblatt |
RSD-500 (500W) | Box | Active | Enclosed | 67.2V | 154V | 1 | 48V | - | - | - | 10.4A | 499W | 4 kV | ITE (Commercial), Railway | 93% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.33" L x 3.94" W x 1.61" H (237.0mm x 100.0mm x 41.0mm) | CB, CE, cURus, EAC, RCM | - |
